Storage Rack Column Roll Forming Machines
Storage rack column roll forming machines produce heavy-duty upright posts and vertical framing members for modern warehouse pallet racking, automated storage and retrieval systems (ASRS), and multi-tier mezzanine shelving. Engineered to form high-strength steel strip (1.5 mm to 3.0 mm thick, yield strength up to 450 MPa), these specialized lines integrate high-tonnage servo mechanical or hydraulic pre-punching presses executing teardrop, diamond, or butterfly hole patterns with tight cumulative pitch tolerances. Utilizing 20 to 28 precision forming stands with Cr12MoV vacuum-hardened rollers and heavy hydraulic cut-off tooling, these machines ensure outstanding column straightness and load capacity. Explore technical specifications, tooling capabilities, and production line layouts below.
Supermarket Rack System Making Machine Steel Upright Rack Roll- 8-10M/MIN+ZT-300+width 3m * length 35m
$25,000.00
MOQ: 1
Supermarket Shelf Goods Rack Roll Forming Machine Storage Shelf- 20 M/Min+rack upright shelf roll forming machine+10 kw
$45,000.00
MOQ: 1
Upright Rack Column Roll Forming Machine Storage Warehouse Shelf- Good shelf machine+10 kw
$15,000.00
MOQ: 1

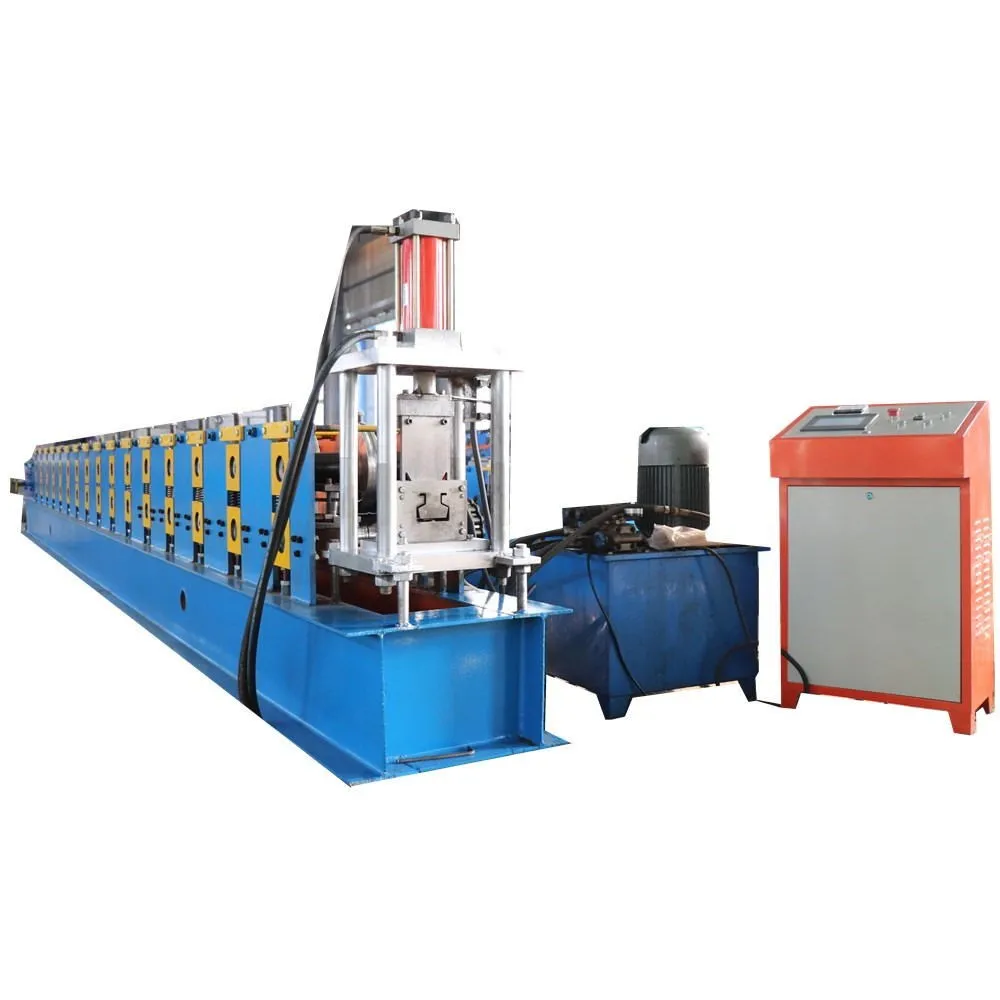

Metal Steel Shelf System Steel Upright Rack Making Machine- 15m/min+SR+customized
$15,000.00
MOQ: 1

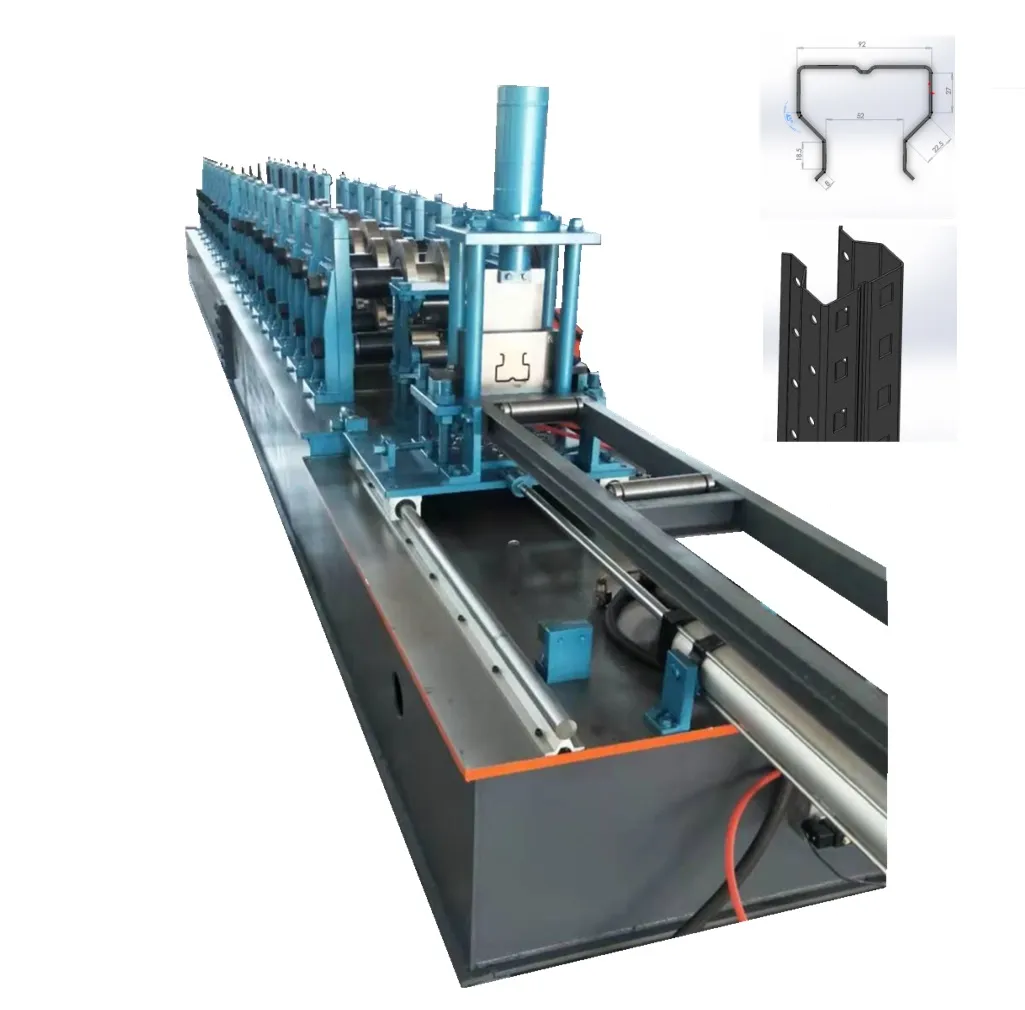

Rack Supermarket Shelf Storage Upright Beam Roll Forming Machine- 80/100/120mm+As the profile drawing
$50,000.00
MOQ: 1
Shelves Rack Pillar Beam Upright Roll Forming Machine Steel- customized+1000mm
$30,000.00
MOQ: 1

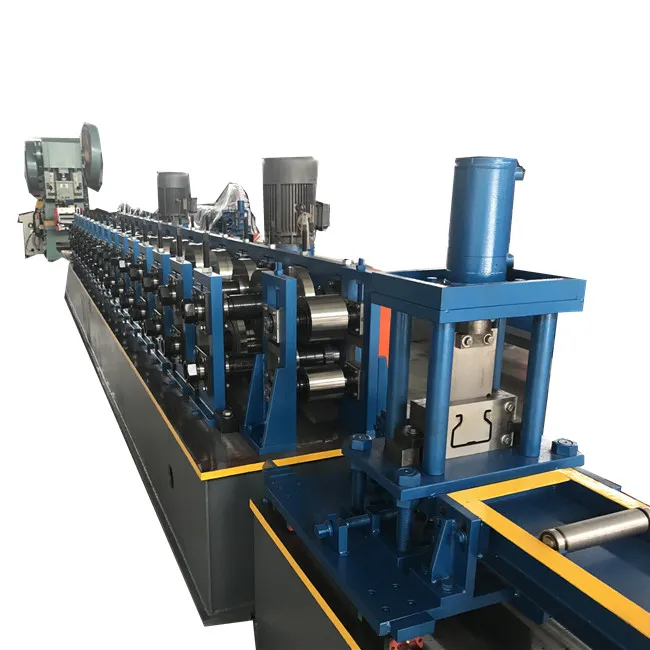

Supermarket Upright Rack Rolling Forming Machine- uoright rack roll forming machine+14 kw
$20,000.00
MOQ: 1
Steel Supermarket Shelves Storage Rack Upright Pillar Roll- 20 M/Min+Supermarket Shelves Storage Rack Upright Pillar+7.5
$18,000.00
MOQ: 1
Shelf System Upright Roll Forming 60 90 100 120 150 160 Shelves- ZTRFM-B01+11.5kw+15 m/min
$58,500.00
MOQ: 1

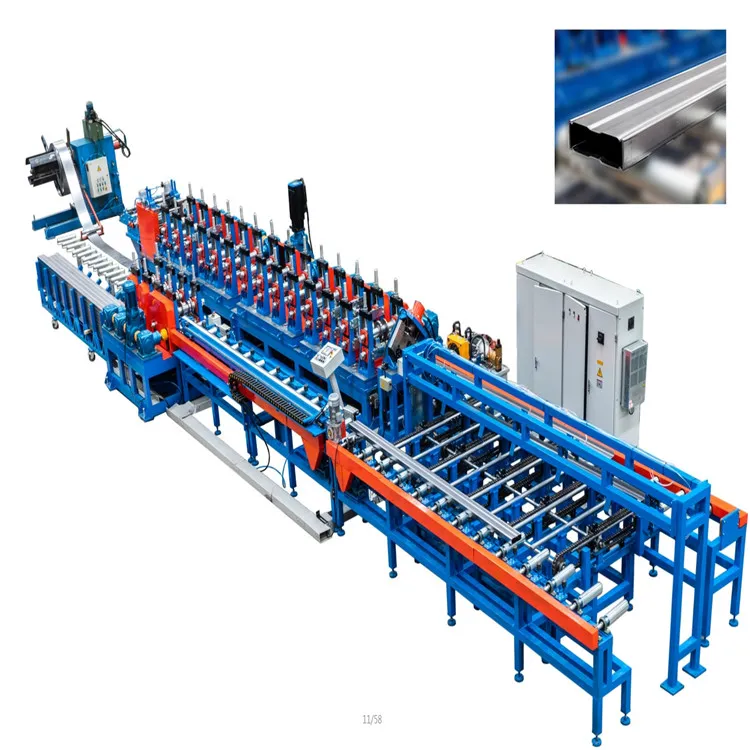

60 90 100 120 150 160 Shelf System Steel Box Beam Making Machine- 15m/min+ShelfBoxbeam+customized
$15,000.00
MOQ: 1
Safety Level Storage Shelf Profile Upright Rack Roll Forming Machine- uoright rack roll forming machine+14 kw
$20,000.00
MOQ: 1
Warehouse Market Shelves Storage Rack Upright Pilliar Steel- CZZT-S1+15kw
$65,000.00
MOQ: 1
Super Market Storage Shelf Upright Pillar Rack Roll Forming Machine- 80/100/120mm+As the profile drawing
$50,000.00
MOQ: 1
Pallet Upright Rolling Forming Machine- panels rolling forming machine+15 KW
$59,000.00
MOQ: 1
Customizable C Stud Diagonal Brace Roll Forming Machine Warehouse- 30m/min+ZTRFM C Stud Shelf Diagonal Brace Roll Forming Machine+197mm
$24,000.00
MOQ: 1
Shelf Support Bar Heavy Duty Roll Forming Machine for Upright Rack above 20m- above 20m per minute
$98,000.00
MOQ: 1
Automatic Storage Rack Column Roll Forming Machine- Customized
$43,000.00
MOQ: 1
About Storage Rack Column Roll Forming Machines
Storage rack column roll forming machines represent specialized high-precision manufacturing equipment engineered for the global material handling, industrial warehousing, and intralogistics industries. Rack upright columns serve as primary vertical load-bearing columns in warehouse pallet rack systems, carrying dozens of metric tons of dynamic pallet weight across heights reaching 10 to 30 meters in automated high-bay warehouses.
Upright profiles feature complex multi-bend geometries (typically 8 to 14 forming bends) designed to maximize section modulus, radius of gyration, and torsional rigidity while minimizing overall steel weight. Common profiles include 80×60 mm, 90×70 mm, 100×70 mm, and 120×95 mm upright channels with multiple return stiffening ribs. Standard punch configurations encompass American teardrop patterns, European diamond/butterfly slots, and round accessory holes spaced along continuous 50 mm or 75 mm pitch centers. Punching precision is paramount: cumulative pitch error across a 12-meter column must remain within ±1.0 mm to ensure beam connector hooks lock smoothly into place on site.
The high-performance production line incorporates a heavy-duty hydraulic decoiler with coil car, high-precision 11-roll straightener to eliminate internal material residual stress, a 160-to-250-ton high-speed precision mechanical or servo hydraulic punching press with multi-station carbide dies, 20 to 28 heavy cast-iron or archway roll forming stands with solid Cr12MoV rollers (vacuum heat-treated to HRC 60–62), an omnidirectional 10-roller Turk's head straightener, and a custom hydraulic profile shear that trims columns cleanly without deforming the open profile at line speeds of 12 to 25 m/min.
Applications
Automated Storage & Retrieval High-Bay Racks (ASRS)
Precision 20-meter high structural upright columns supporting automated high-density rack-clad buildings and crane-retrieval logistics warehouses.
Heavy-Duty Industrial Warehouse Pallet Racks
Teardrop and diamond-punched roll-formed upright columns providing certified multi-ton load capacity for commercial logistics distribution centers.
Multi-Tier Mezzanine Shelving & Walkway Systems
Perforated rack columns serving as structural supports for multi-level mezzanine walkways and carton-flow picking shelves in e-commerce fulfillment hubs.
Cold-Storage Logistics Drive-In Racks
Heavy-duty galvanized roll-formed upright posts providing high-density drive-in pallet storage inside -25°C refrigerated food distribution warehouses.

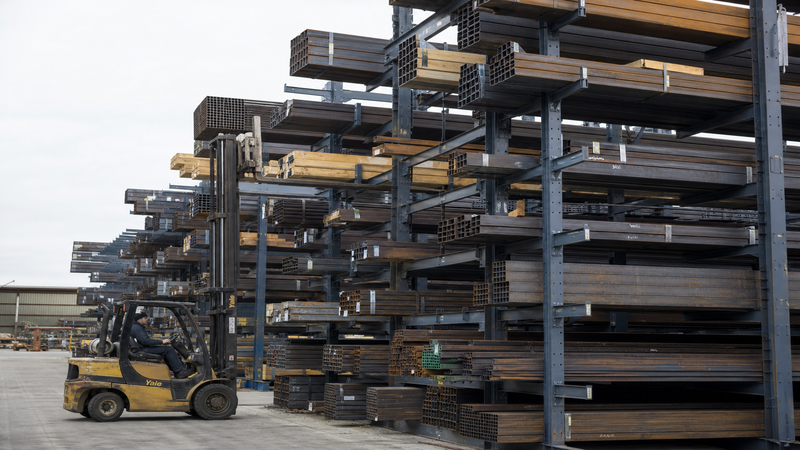

Heavy-Duty Cantilever Racking for Steel & Lumber
Heavy roll-formed vertical columns with bolted arm connections supporting long steel structural tubes, aluminum profiles, and timber packs in outdoor yards.
Technical Overview
| Parameter | Information |
|---|---|
| Machine / Product Family | Heavy-duty warehouse storage rack upright column roll forming line |
| Applicable Coil Materials | Hot-rolled pickled (HRPO), cold-rolled (SPCC), galvanized (Q235, Q355, S355MC) |
| Material Thickness Range | 1.50 mm – 3.00 mm (16-gauge to 11-gauge structural strip) |
| Upright Section Dimensions | 80×60 mm, 90×70 mm, 100×70 mm, 120×95 mm (custom engineered profiles) |
| Punching Pattern Types | Teardrop, diamond/butterfly, hexagonal keyhole & round hole matrices |
| Hole Pitch & Tolerance | 50 mm / 75 mm / 76.2 mm pitch; cumulative pitch tolerance ±1.0 mm / 12 m |
| Punch Press Specification | 160T – 250T high-precision mechanical or servo hydraulic press with NC feeder |
| Forming Stations & Tooling | 20 – 28 heavy cast-iron stands (solid Cr12MoV vacuum hardened, HRC 60–62) |
| Straightening & Cut-Off | 10-roller Turk's head straightener + hydraulic profile contour shear |
| Line Speed & Length Accuracy | 12 – 25 m/min production speed; cut length tolerance ±1.0 mm |
Related Solutions
Storage Rack Roll Forming Solution
Pallet-rack P-beam mill with bottom laser weld. Example: 26 stands, 1-1.5 mm, 6…
Custom Profile Roll Forming for OEM
Flexible roll forming line for custom cross-sections. Suitable for OEMs who need…
Pre-Engineered Building Component Line
Integrated solution for PEB secondary framing: C/Z purlins, girts, eave struts,…
Heavy Coil Handling Solution
Coil infeed is a weight class plus a drive: manual expand, electric expand with…
Metal Sheet Processing Solution
Blanking and cut-off around a roll former is a shear class: flying (tracking) sh…
Light-Gauge Keel Roll Forming Solution
Light-gauge keel package: partition stud and track, ceiling T-grid, furring, or…
Related Information
Storage Rack Upright Roll Forming Machine: Specs & Punching Explained
storage rack upright roll forming machine, rack pillar roll forming machine, war…
Read More
Warehouse Storage Rack Upright Roll Forming Lines: Punching Precision, Heavy Gauge Forming & Machine Specs
pallet rack upright roll forming, heavy duty rack upright machine, rack upright…
Read More
Roll Forming Roller Materials: D2 vs DC53 and Heat Treatment Guide
D2, DC53, Cr12MoV — which roller material is right for your roll forming line? H…
Read More
Cold Formed Steel vs Hot Rolled Steel: What Roll Forming Buyers Need to Know
Yield strength, ductility, surface finish, tolerances — a practical comparison o…
Read More
High-Strength Steel (HSLA) in Roll Forming
High-strength low-alloy steel lets you build lighter structures—but it fights ba…
Read More
Pre-Punching vs Post-Punching in Roll Forming
Punch the holes before or after forming? The choice changes hole accuracy, tooli…
Read More
FAQ
What upright profile sizes and punching patterns are standard for warehouse rack machines?
Standard upright profiles include 80×60 mm, 90×70 mm, 100×70 mm, and 120×95 mm with material thicknesses from 1.8 mm to 3.0 mm. Standard punching patterns include teardrop (USA standard), diamond/butterfly slots, hexagonal keyholes, and round holes spaced at 50 mm, 75 mm, or 76.2 mm (3-inch) pitch centers.
How is cumulative hole pitch error controlled across long 10- to 20-meter upright columns?
Cumulative pitch error is controlled by using an 11-roll precision leveler that removes residual coil tension, high-precision servo NC feeders driven by optical linear scales, and precision progressive punching dies guided by ball-bearing die sets, holding pitch tolerance within ±1.0 mm over 12 meters.
What material grades and sheet thicknesses are used for heavy-duty rack upright columns?
Heavy-duty uprights utilize hot-rolled pickled and oiled (HRPO) steel or pre-galvanized structural steel coils in grades Q235, Q355, ASTM A1011 HSLAS Grade 50, or S355MC, in thicknesses ranging from 1.5 mm to 3.0 mm (16-gauge to 11-gauge).
Why do storage rack upright roll formers require 22 to 28 forming stations?
Rack uprights possess complex cross-sections with multiple stiffening ribs, inward return lips, and tight internal bend radii. Using 22 to 28 progressive forming stations allows gradual plastic deformation (2 to 4 degrees per pass), preventing profile flare, web wave, and localized corner micro-cracking.
How are camber, bow, and twist eliminated in roll-formed open rack channels?
Open thin-walled channels are prone to twist and camber due to asymmetrical hole punching. Lines integrate an omnidirectional Turk's head straightener with 10 adjustable hardened rollers at the exit of the roll former, enabling operators to counteract lateral bow, vertical camber, and axial twist.
Mechanical punch press vs. hydraulic punch press: which is better for storage rack lines?
High-tonnage mechanical punch presses (160T to 250T) with servo feed are preferred for high-speed continuous production because they achieve cycle rates of 60 to 100 strokes/min with superior die life. Hydraulic punching is suitable for lower production volumes or budget configurations running below 10 m/min.
What parameters should buyers verify when sourcing a storage rack upright roll forming line?
Buyers should verify upright cross-section drawings (web, flange, return lips, gauge), punching pattern and pitch tolerance specifications, punch press tonnage, roller material (solid Cr12MoV vacuum hardened), shaft diameter (Φ80–95 mm), and profile shear blade contour precision.
