The upright rack forming machine is provide by our professional factory with high precision and competitive price.

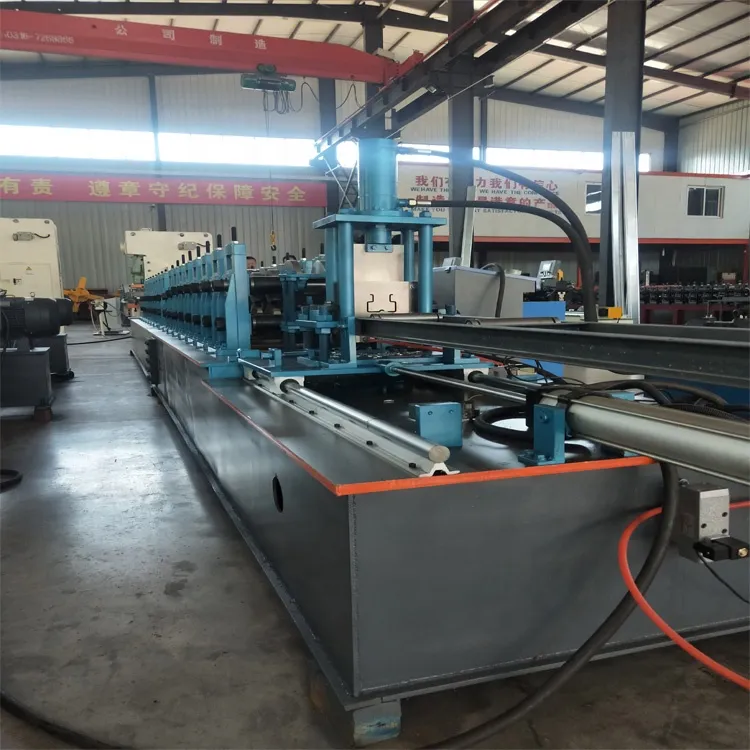

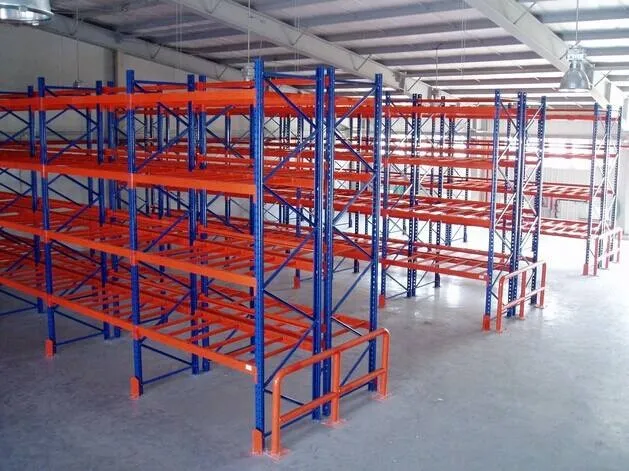

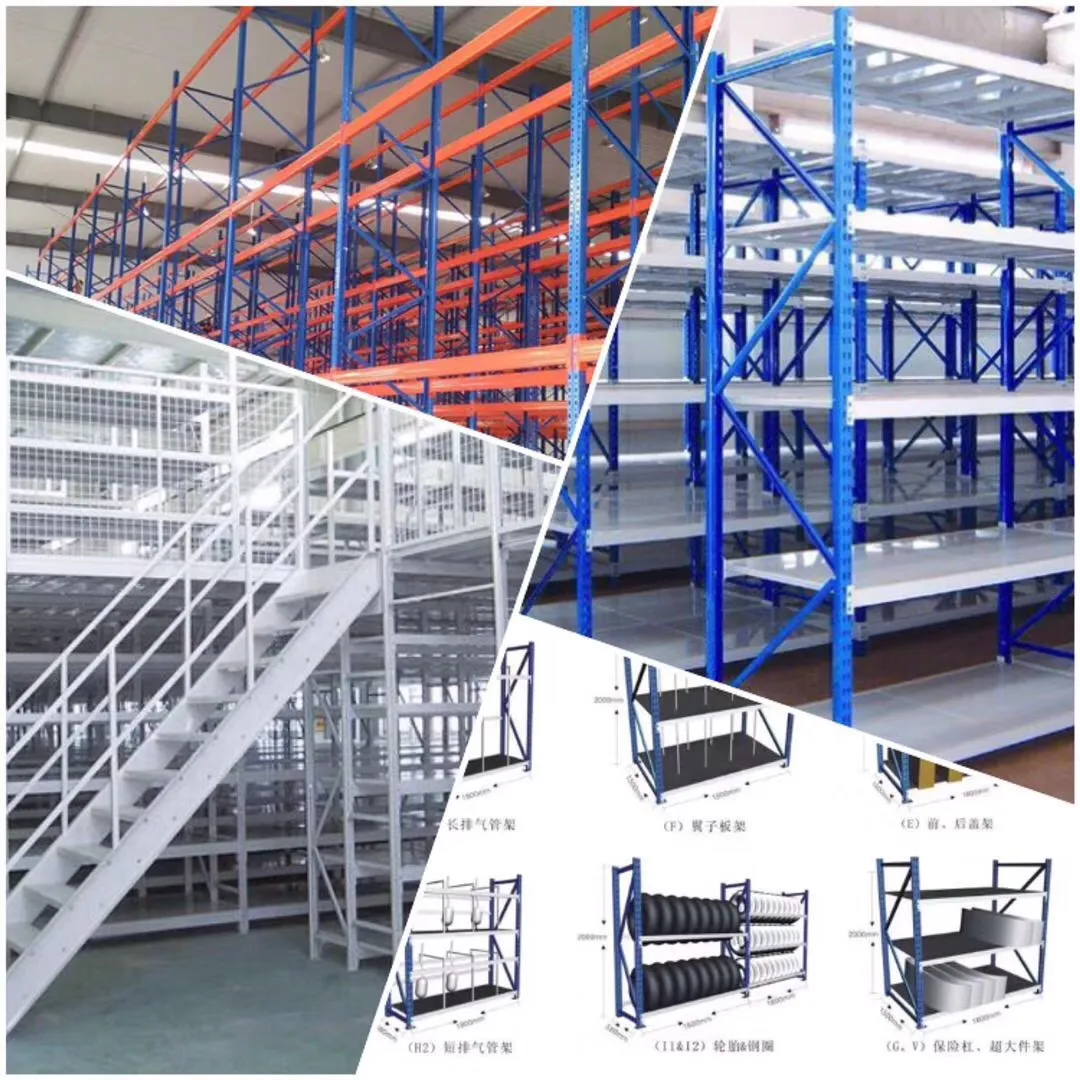

This kind of machine is a set of production line that includs decoiler, leveling device,punching system, forming system, and cutting system,etc.

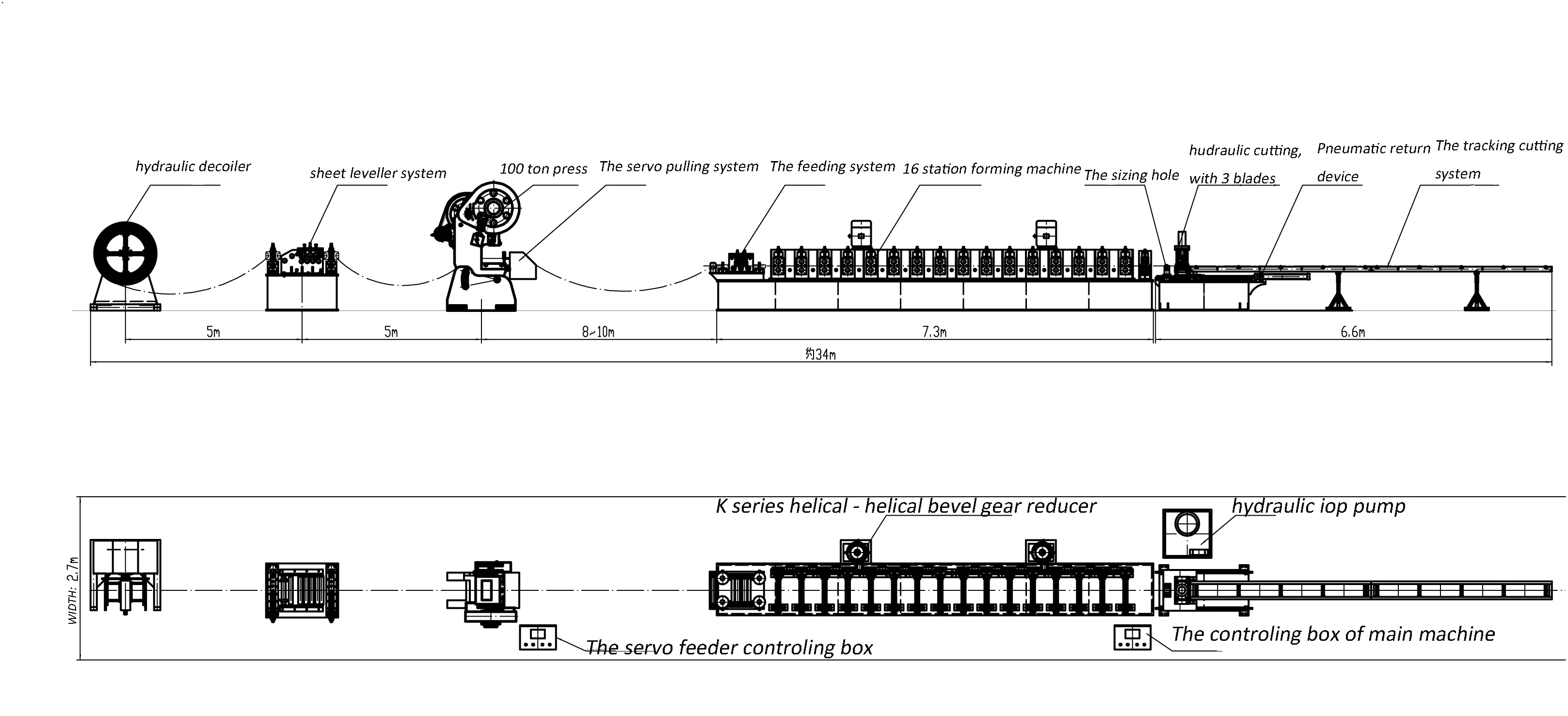

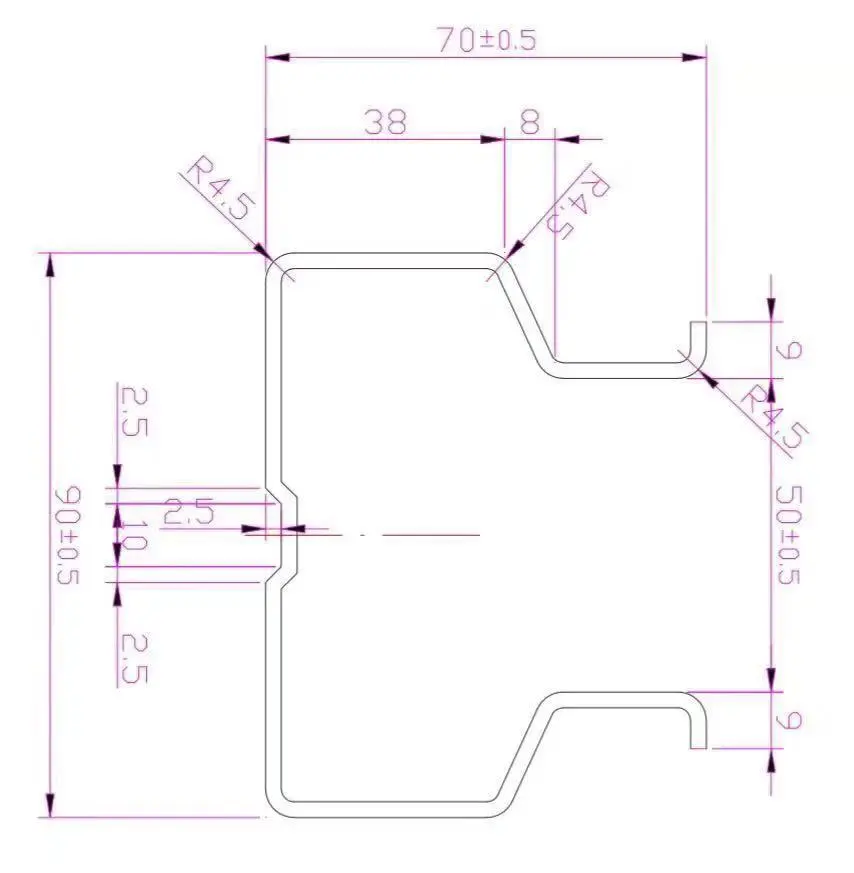

Profile drawing:

Working process:
Uncoiling---leveling device---punching machine---main roll former---cutting system---product collect table

Packing list:
| Series | Quantity(set) | Remark |
| Decoiler | 1 | 3Tons,hydraulic |
| Leveling device | 1 | |
| Main roll former | 1 | gear drive |
| Straightening | 1 | |
| Welded pipe device | 1 | |
| hydraulic cutting system | 1 | Delta brand,tracking cutting |
| Product receving table | 1 | 6m length |
Technical parameter:
| Series | Details | Parameter |
| Product | Raw material |
GI or CR sheet |
| Material thickness | 1-2mm | |
| Decoiler | Work type | Manual |
| Loading capacity | 3 Tons | |
| Coil inner diameter | 450-550 mm (adjustable) |
| Series | Details | Parameter |

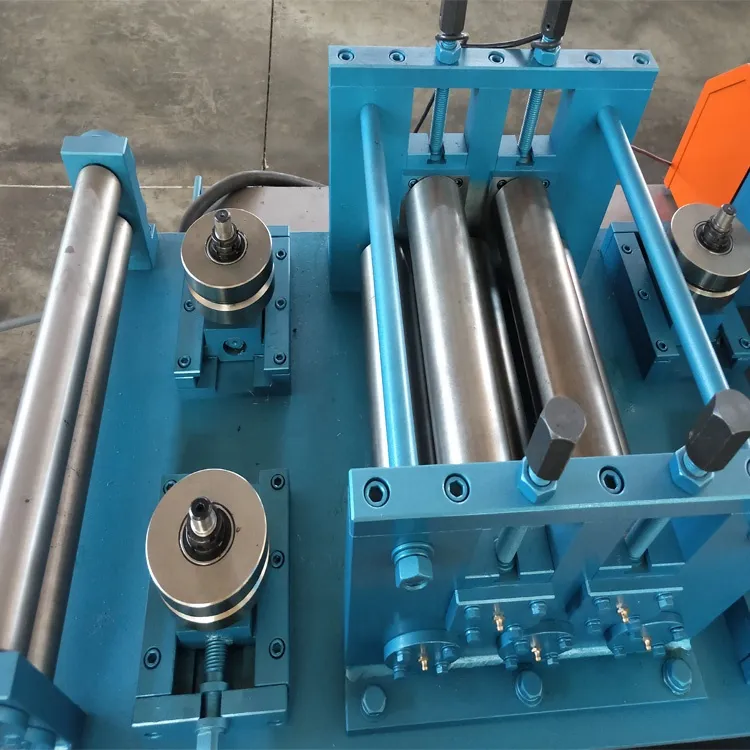

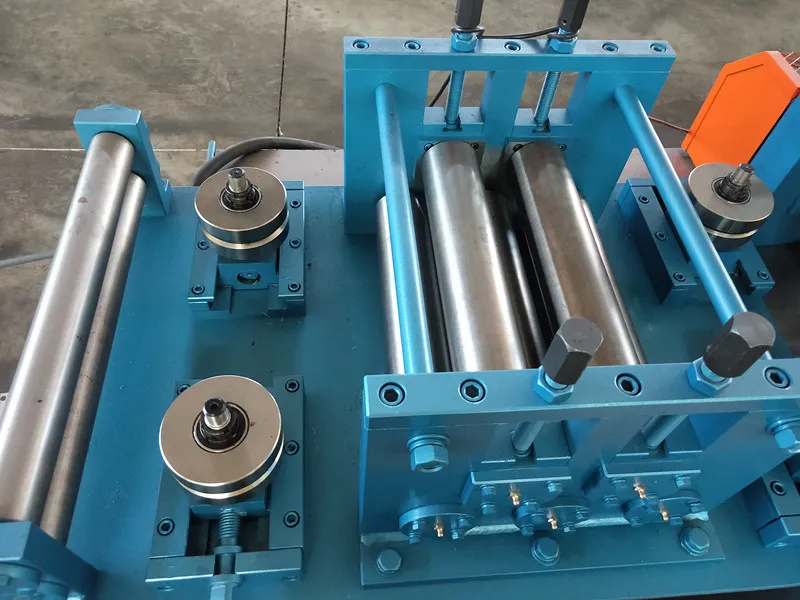

| Leveling device | Leveling shaft | Upper:3 Belower:4 |
| Shaft diameter | 80 mm |

| Series | Details | Parameter |

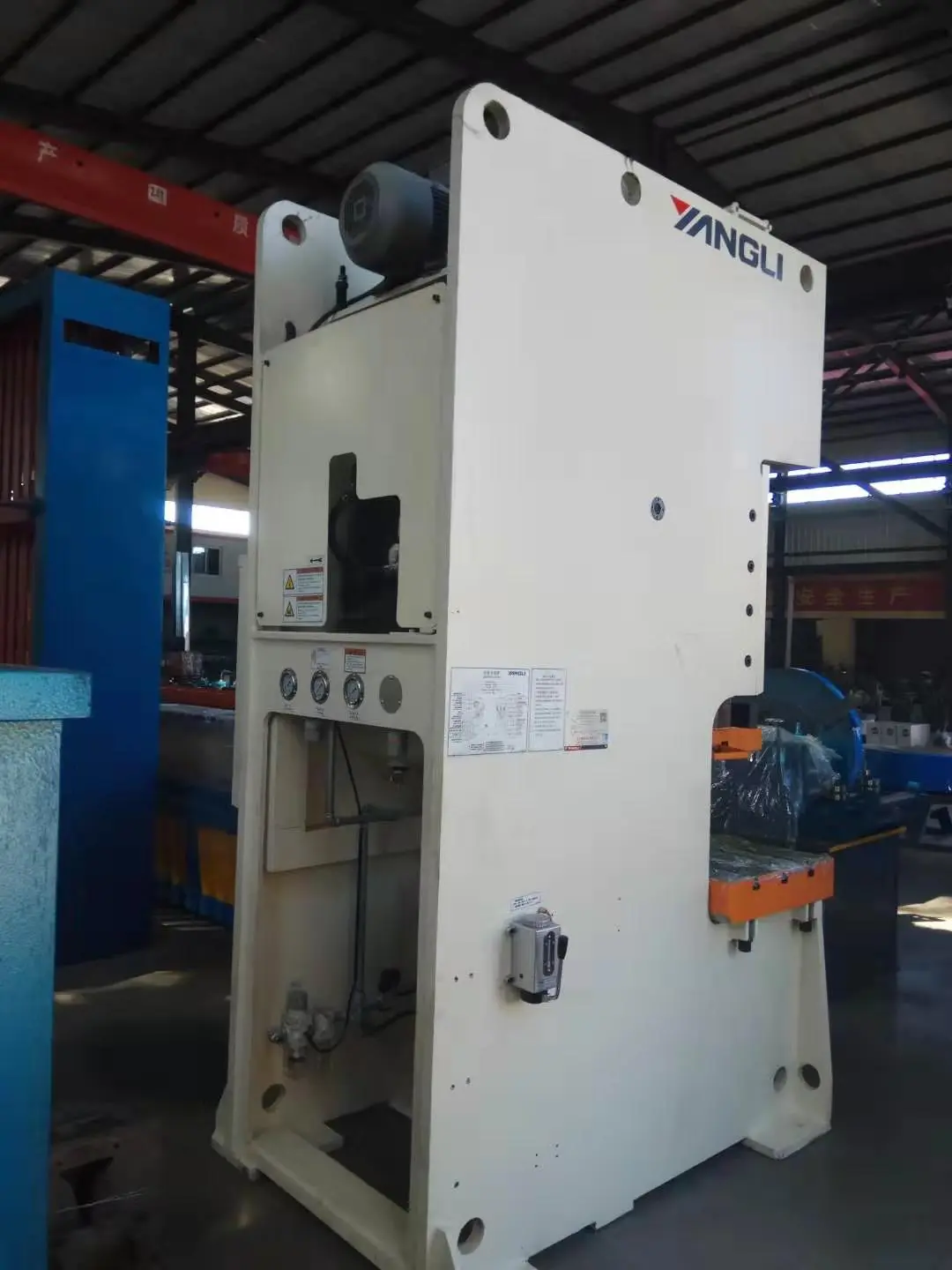

| Punching system |
Tonnage |
100 Tons |
| Hole punch quality | 6 holes one time | |
| Feeder | Servo feeder | |
| Punch die | one set |

| Series | Details | Parameter |

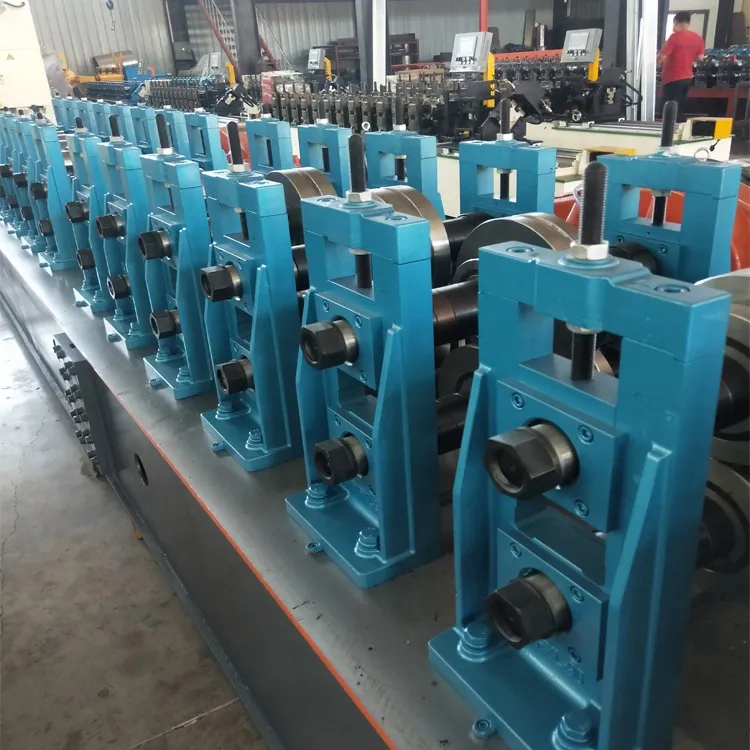

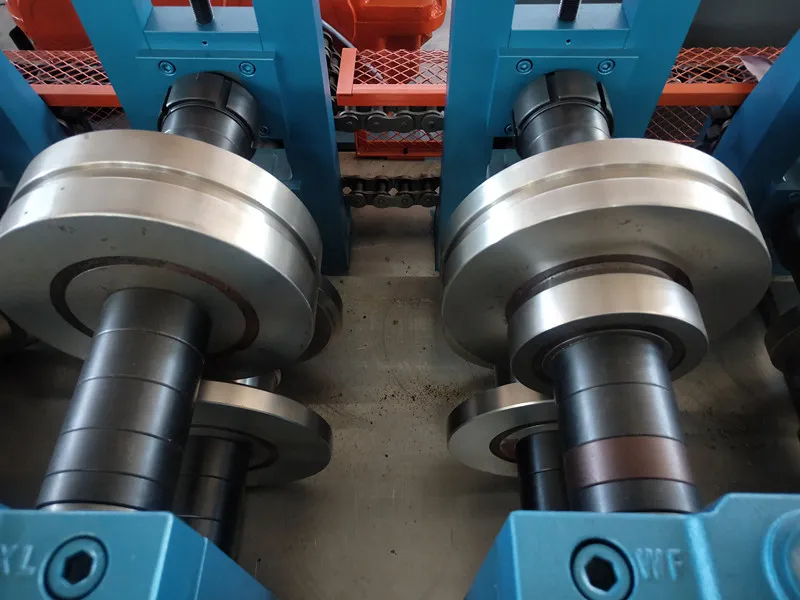

| Main roll former |
Rolling shaft material |
40Cr |
| Shaft diameter | 70mm | |
| Roller material |
Cr12 HRC 56-58 |
|
| Rolling station |
16 stations |
|
| Work speed | 15 m/min | |
| Machine frame | Iron casting vertical grinding | |
| Motor brand | Siements | |
| Work power | 22 KW(two motor driving) | |
| Transmission | By gear drive |

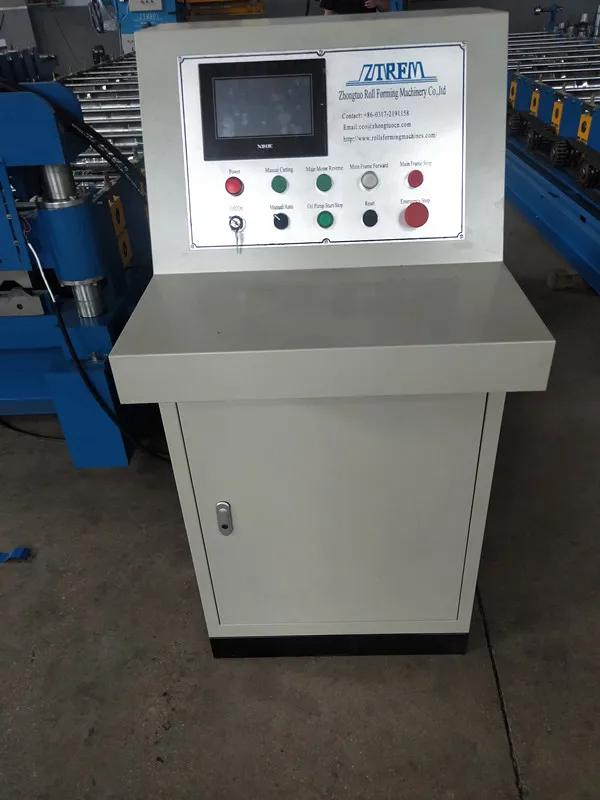

| Series | Details | Parameter |
| PLC control system | Frequency brand | Delta |
| PLC brand | Delta | |
| Screen type | Touch screen with button |

| Series | Details | Parameter |

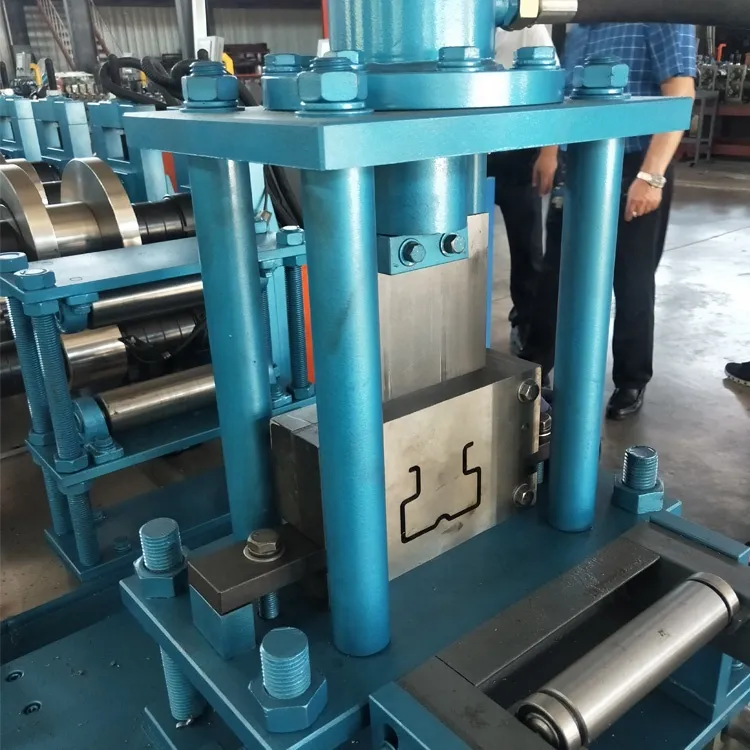

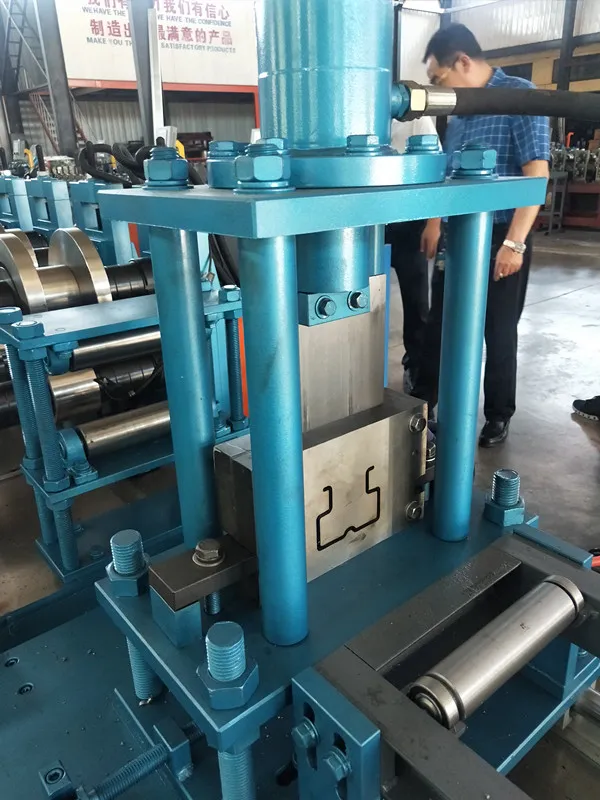

| Cutting system | Work type | Hydraulic |
| Driving method | By pillar type cylinder | |
| Motor power | 5.5 KW | |
| Length tolerence |
±1mm/3m |

| Series | Details | Parameter |
| Product receiving table | Length | 6 m |
| Width | 0.5 m |
1. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can pick up you.
2.How to get a quotation?
a.Give me the profile drawing and thickness,this is the important.
b.Other spicific requirements is welcome,such as the speed,power and voltage you want.
3.How about the machines for testing?
A:Warmly welcome to our factory supervise and inspect anytime;
B:We will arrange the machine test in our factory before the shipment.
C:If the customer can't come, we will provide the machine running video and photos to them.
4. How can I install my machine when it arrives?
A: We will send technician to install and train your people to use machines if required.If you need,our engineer will go to your factory for teaching.
5.What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken(not including man made).And offer life time after sale service.
