Storage Rack Column Roll Forming Machine for Supermarket Shelving Uprights 0-20m/min

Storage Rack Column Roll Forming Machine for Supermarket Shelving Uprights

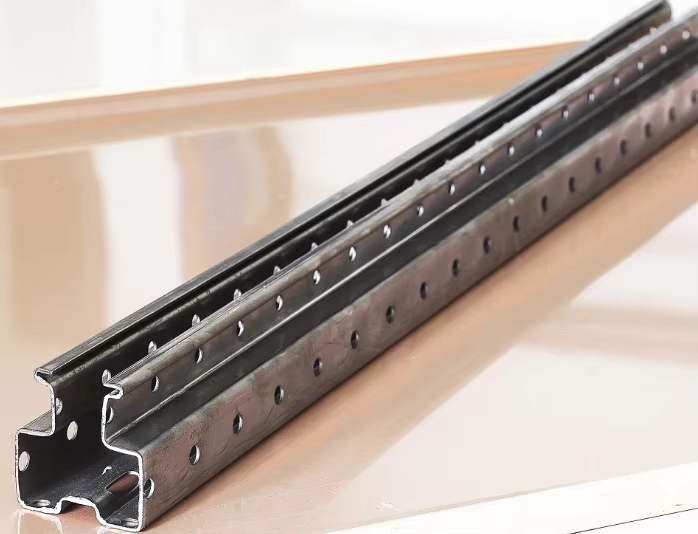

The Storage Rack Column Roll Forming Machine is a fully automatic cold bending forming equipment developed specifically for the mass production of the core load-bearing components of supermarket shelves - columns. The entire production line integrates hydraulic unwinding, precision leveling, servo feeding, online punching, continuous cold bending forming, automatic fixed length cutting, finished product discharge and other full process processes, achieving continuous and automated production from metal coils to finished product columns.The equipment can process metal sheets such as galvanized steel, cold-rolled steel, and carbon steel, with a suitable material thickness range of 1.5mm to 2.7mm. It can produce shelf columns with various cross-sectional shapes such as C-shaped, U-shaped, and octagonal. By replacing or adjusting the roller set, a production line can meet the production needs of columns with different specifications and load-bearing requirements, fully adapting to the diverse product specifications of supermarket shelves.

Widely applicable scenarios：

1.E-commerce Warehousing and Logistics Center
To meet the high-density storage needs of e-commerce enterprises for massive goods, an efficient three-dimensional storage rack system is constructed to significantly improve warehouse space utilization and cargo access efficiency.

2.Manufacturing and Industrial Warehouses
Provide sturdy and durable shelf columns for raw materials, semi-finished products, and finished goods warehouses of various manufacturing enterprises, helping to optimize warehouse layout and achieve orderly storage and efficient management of goods.

The core value of helping enterprises transform and upgrade

Choosing Storage Rack Column Roll Forming Machine means:

Quality improvement: With a molding accuracy of ± 0.1mm and a product qualification rate of over 99.5%, we ensure that every pillar meets international standards;

Cost reduction: Automated production significantly reduces labor costs and lowers energy consumption per unit product by about 20%;

Efficiency increase: Production efficiency has been improved by 30% -50%, and the delivery cycle of orders has been significantly shortened;

Energy saving: Low noise chain transmission design, operating noise below 70dB, energy-saving and environmentally friendly.

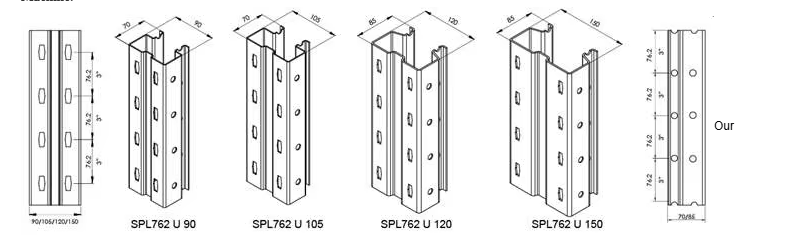

Pattern diagram:

Product Attributes:

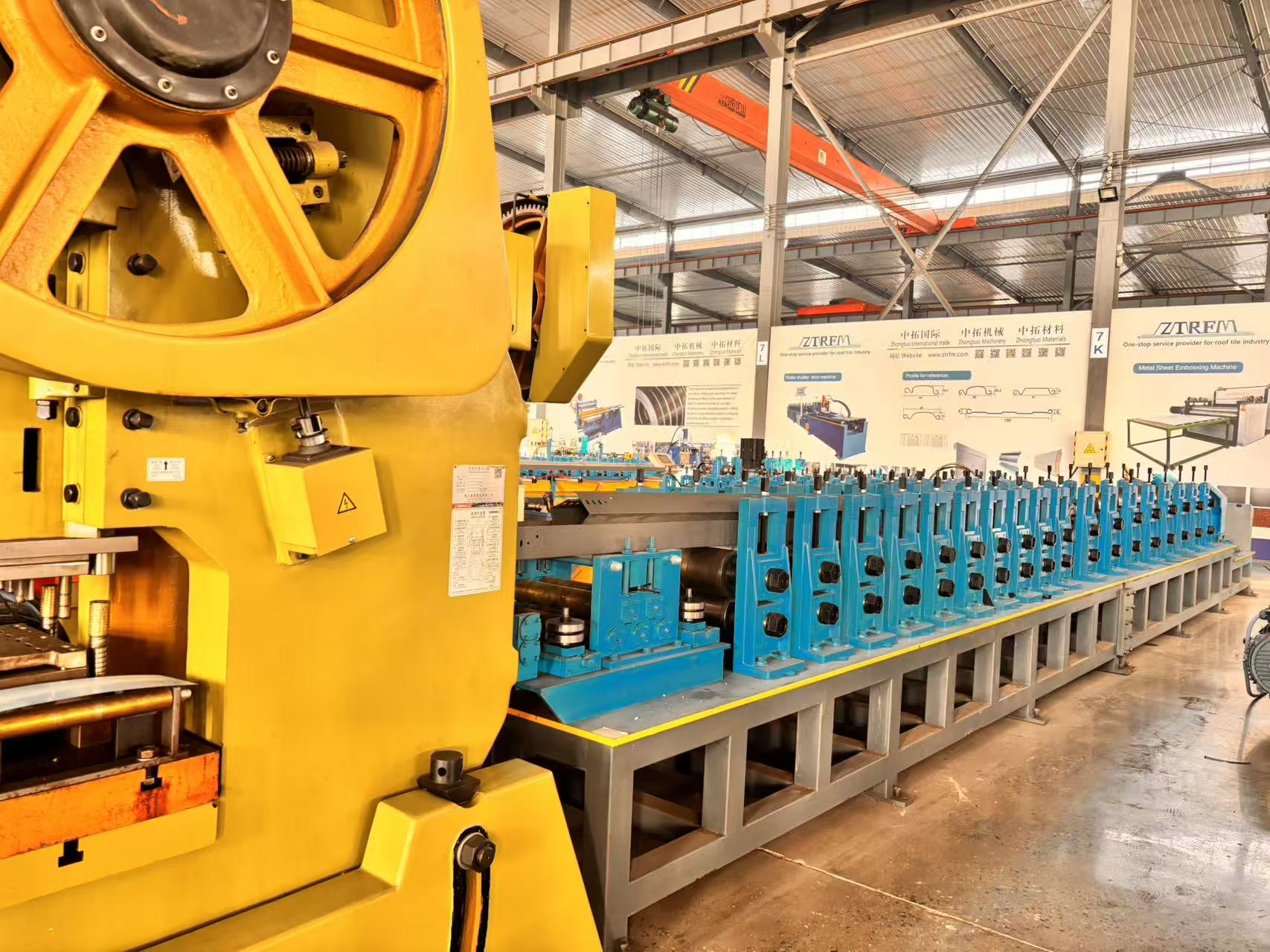

Machine photos:

Contact Us:

In today's continuously upgrading warehouse logistics and retail industry, Storage Rack Column Roll Forming Machine has become an essential equipment for supermarket shelf manufacturing enterprises to achieve intelligent transformation and enhance core competitiveness. Whether you are planning to build a new production line or upgrade your existing capacity, this high-precision, fully automated column cold bending solution will bring sustained value returns to your business.
