Fully Automatic Storage Rack Column Roll Forming Machine with High Precision 0-20m/min

Fully Automatic Shelf Upright Roll Forming Machine：High Precision & Customizable

Description:The shelf upright roll forming machine is a professional fully automated production line dedicated to manufacturing various warehouse storage racks, supermarket shelves, and pallet rack upright columns. As core equipment for storage hardware manufacturing, it integrates feeding, punching, continuous roll forming, flying cutting, and finished product output into one intelligent production process. Designed for global storage equipment manufacturers, this machine solves the pain points of low efficiency, inconsistent product precision, and high labor costs in traditional shelf column production. It supports mass and customized production of various shelf upright profiles, fully meeting the diversified production needs of small, medium and large storage equipment factories worldwide.

Core Advantages

Fully Automatic Integrated Production, High Efficiency & Cost Saving

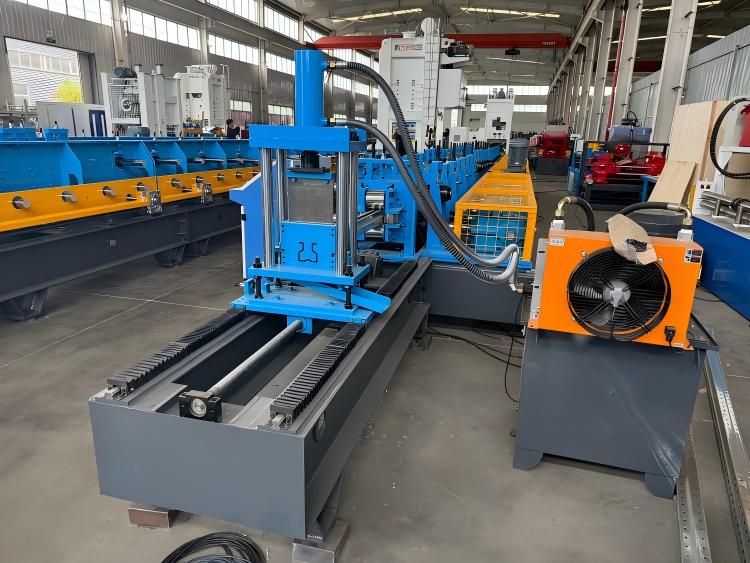

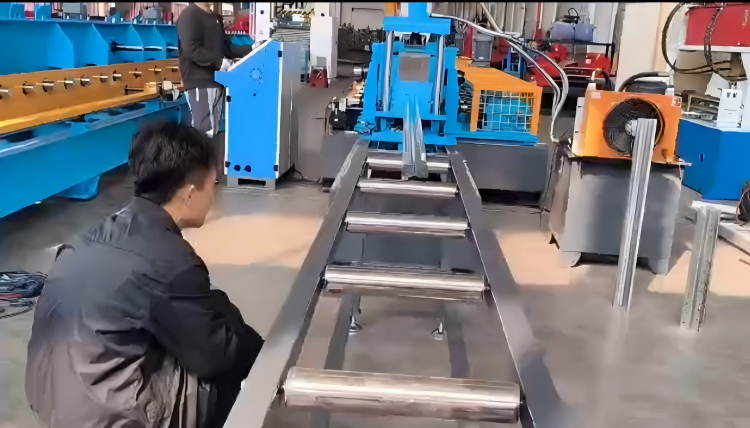

This machine adopts a one-piece automated production design, realizing unmanned continuous operation from raw material feeding to finished product discharging. Equipped with high-speed flying cutting and synchronous punching technology, it eliminates secondary processing procedures, reducing overall production cycle by 60% compared with traditional equipment. The maximum production speed reaches 20m/min, with stable daily output to support large-scale order production, effectively saving manual operation and workshop management costs for enterprises.

High Precision Forming, Stable Product Quality

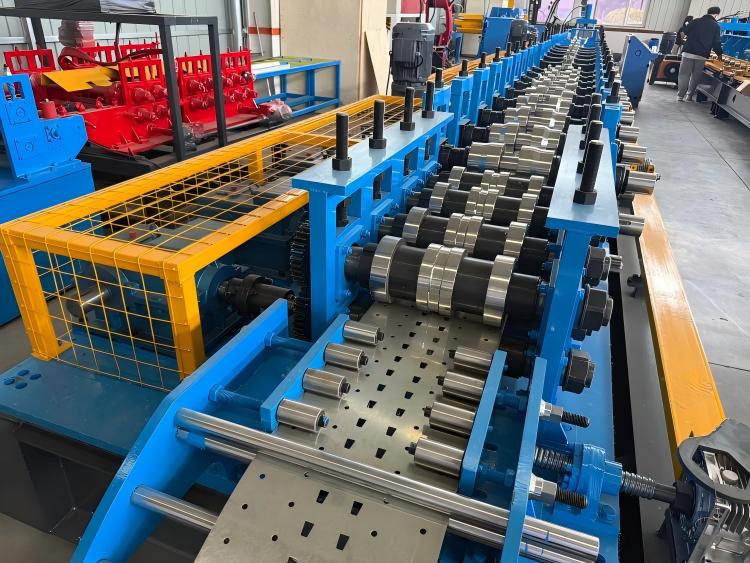

Adopting precision CNC processing rollers and imported transmission components, the equipment ensures consistent molding size of shelf uprights, with profile dimension error controlled within ±0.5mm and punching hole pitch accurate and neat. The whole line operates stably without burrs, deformation or deviation, ensuring high structural matching and load-bearing capacity of finished shelf columns. All finished products fully comply with international storage equipment industry standards, suitable for high-standard storage rack supporting projects worldwide.

Strong Customization Adaptability

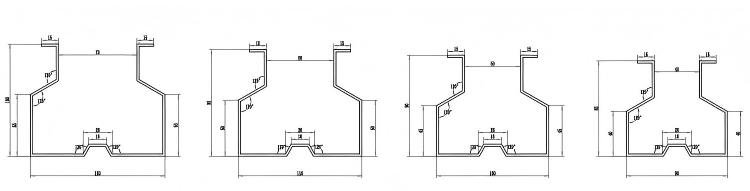

The equipment supports flexible customization of multiple parameters, adapting to raw materials such as carbon steel, galvanized steel and PPGI with material thickness ranging from 1.5mm to 2.7mm (customizable for special thickness). It can produce various mainstream shelf upright profiles, including C-shaped columns, pallet rack uprights, supermarket shelf columns and industrial heavy-duty storage columns. According to customers’ drawings and production demands, we can adjust forming stations, punching modes and cutting sizes to meet personalized production requirements.

Heavy-Duty Structure, Durable & Low Maintenance

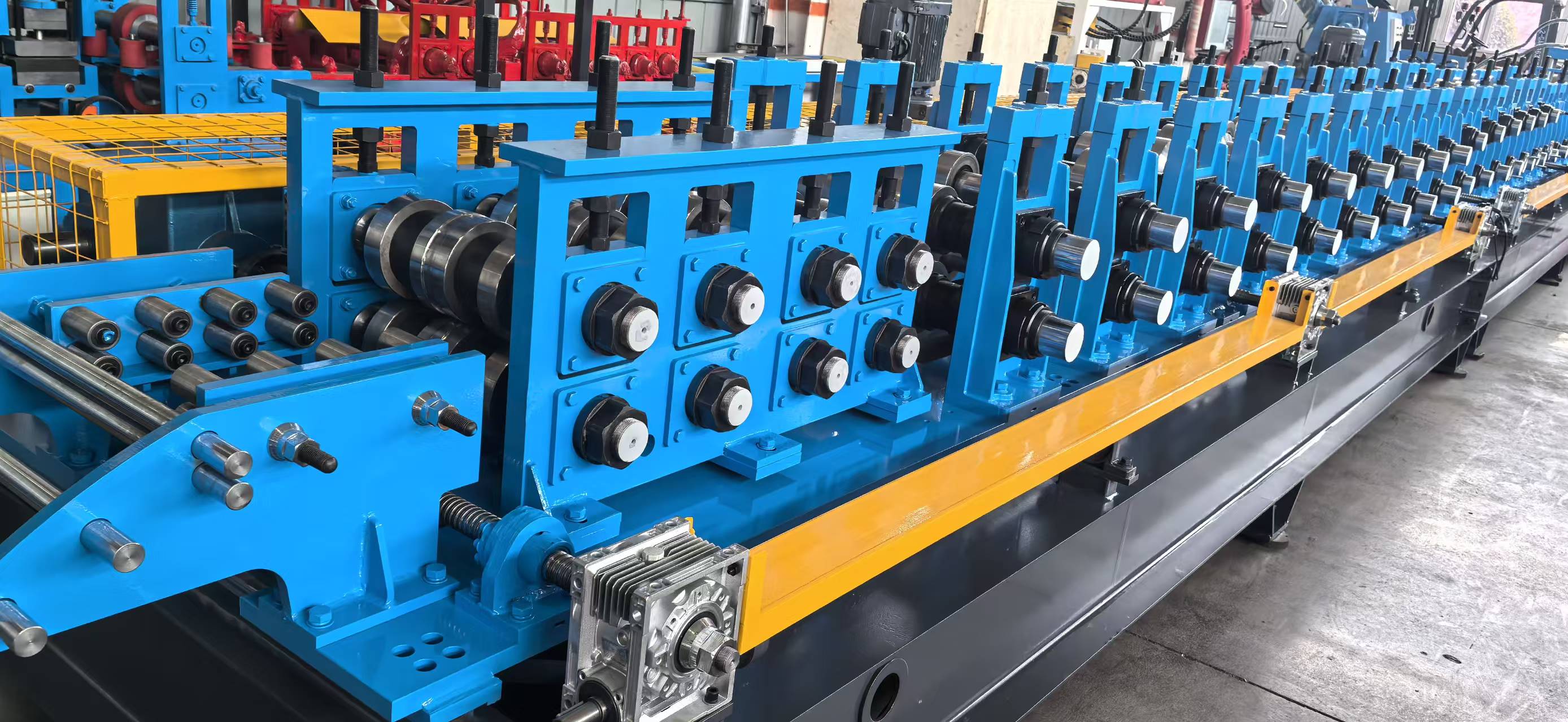

The whole machine adopts thickened steel plate welding frame with overall stress relief treatment, featuring strong rigidity, anti-vibration and anti-deformation during long-term high-load operation. Equipped with famous brand punching units and electrical control systems, the core components have stable performance and long service life. The modular structural design simplifies daily maintenance and replacement of wearing parts, reducing equipment failure rate and later operation costs for customers.

Intelligent Safety Protection System

Built-in infrared safety induction device realizes 0.1s rapid shutdown protection in case of abnormal operation or personnel approach, effectively avoiding production safety accidents. The real-time dimension monitoring system automatically detects product molding quality, alarms and corrects deviations in real time, ensuring zero defective products in batch production. The humanized operation interface is simple and intuitive, with multi-language switching function, convenient for operators in different countries to use.

Technical Parameters

Item	Specification
Applicable Materials	Carbon Steel, Galvanized Steel, PPGI
Material Thickness	1.5-2.7mm (Customizable)
Forming Speed	0-20m/min (Adjustable)
Dimension Tolerance	±0.5mm
Punching Precision	High-precision hole spacing, no burrs
Control System	PLC Full Automatic Control, Multi-language Interface
Power Supply	380V/50Hz 3-phase (Customizable)
Machine Weight	About 60T
Overall Dimension	41m*5m (Support layout adjustment)

Application Scenarios

This shelf upright forming machine is widely applicable to mass production of various storage equipment, covering industrial warehouse heavy-duty pallet racks, logistics storage shelves, supermarket display shelves, workshop storage racks and other fields. It is the preferred core production equipment for storage hardware manufacturers, shelf processing factories and logistics equipment supporting enterprises, and has been exported to Europe, Southeast Asia, Africa, the Middle East and other regions, winning consistent recognition from global customers.

Product Certification & After-sales Service

All our shelf upright roll forming machines have passed CE international certification, complying with EU mechanical safety standards and global export norms. We provide one-stop export services including factory customization, quality inspection, professional packaging and global logistics delivery. The equipment enjoys a 1-year full warranty and lifelong technical maintenance service. We support overseas on-site installation, commissioning and operator training, and provide 24-hour online technical support to quickly solve equipment operation problems for customers, ensuring stable and continuous production of customer projects.

Why Choose Us

With more than 20 years of professional experience in roll forming equipment R&D and manufacturing, we have mature production technology and perfect quality control system. We focus on customized solutions for global storage equipment production lines, can provide exclusive equipment design and production scheme according to customers’ local market demands and production scale. With reliable product quality, competitive factory direct sales price and perfect after-sales service system, we have established long-term cooperative relationships with hundreds of overseas enterprises, becoming a trusted supplier of shelf forming equipment in the global market.
