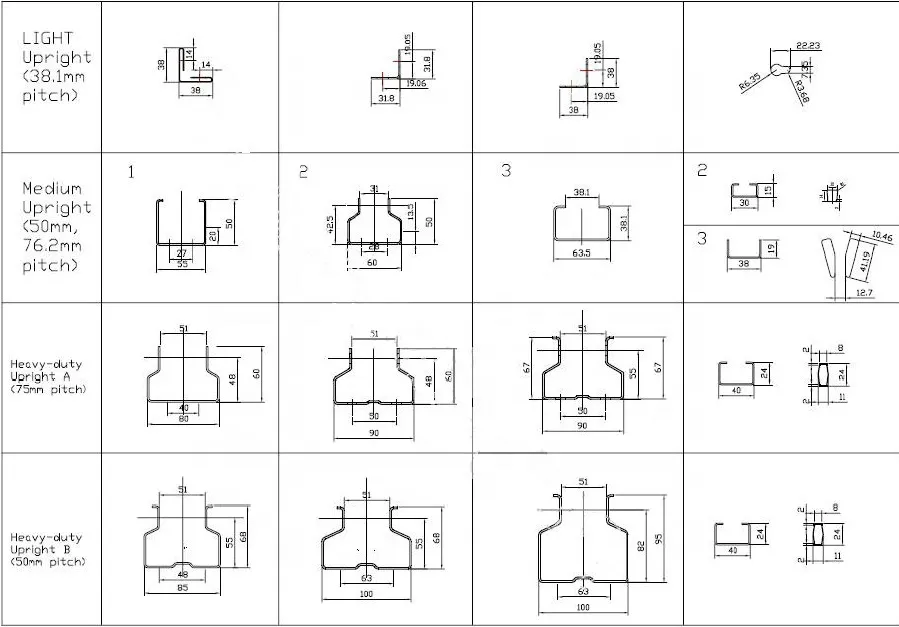

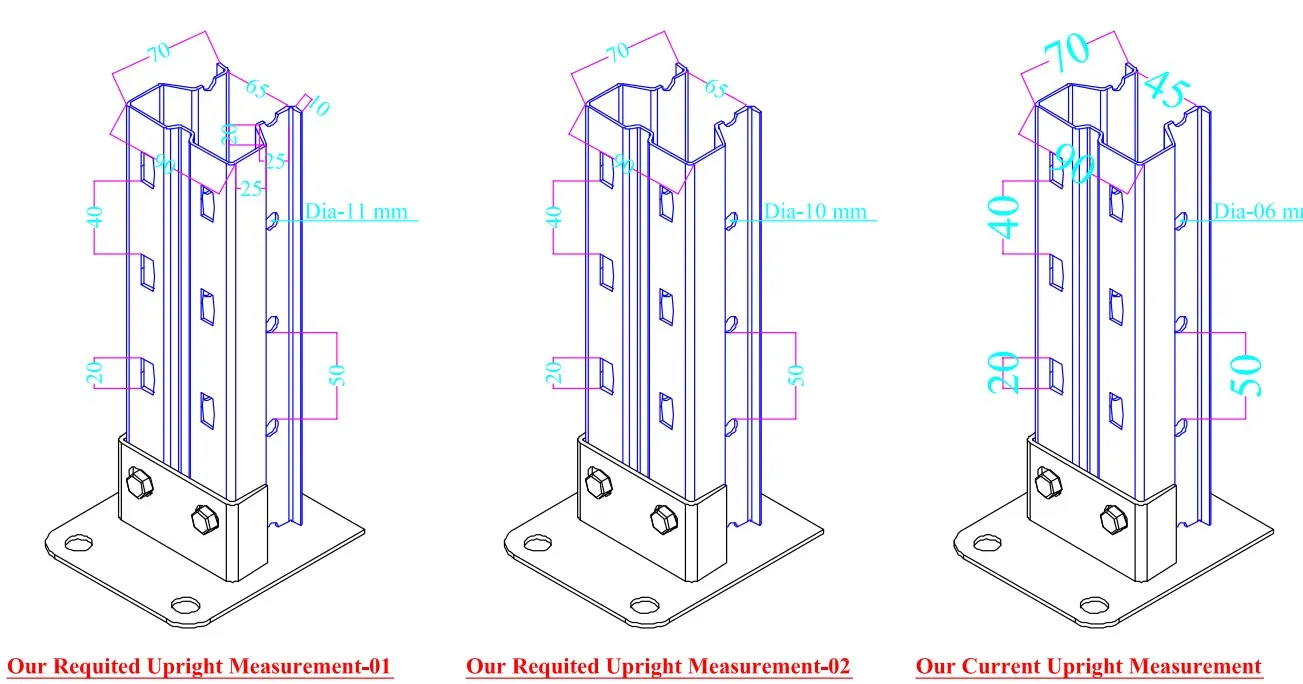

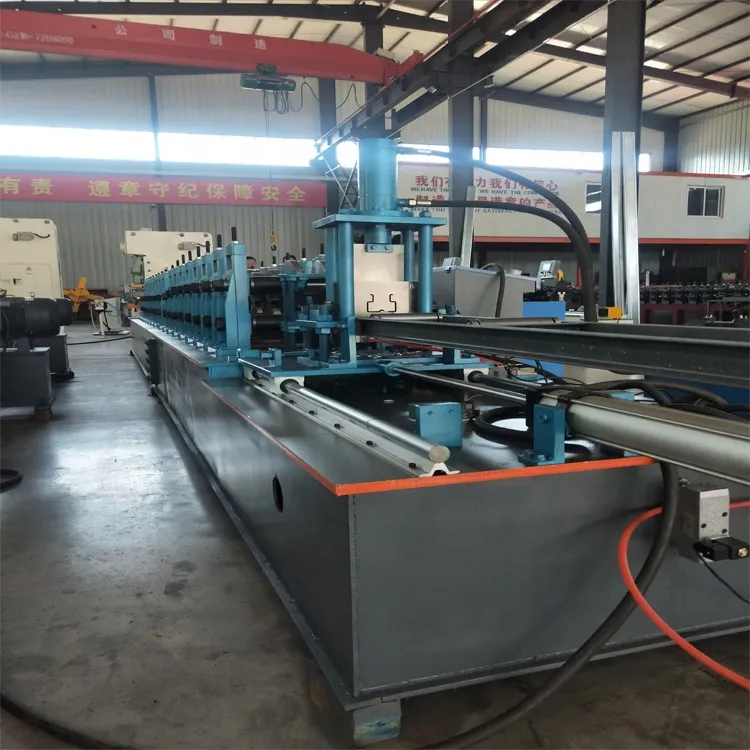

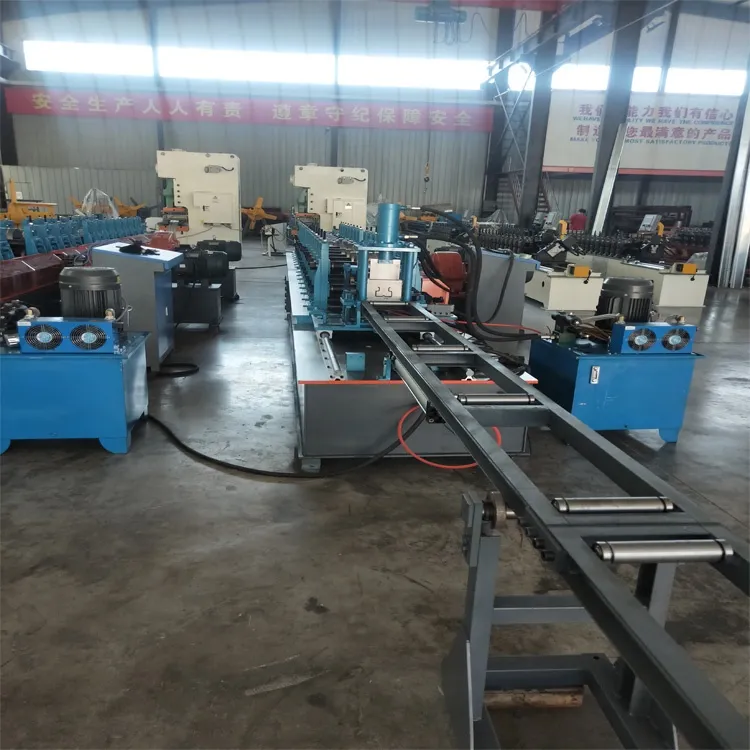

Super market storage shelf upright pillar rack roll forming machine | ||||||||
1.Formed Material | PPGI,GI,AI | Thickness:1.5-2mm | ||||||

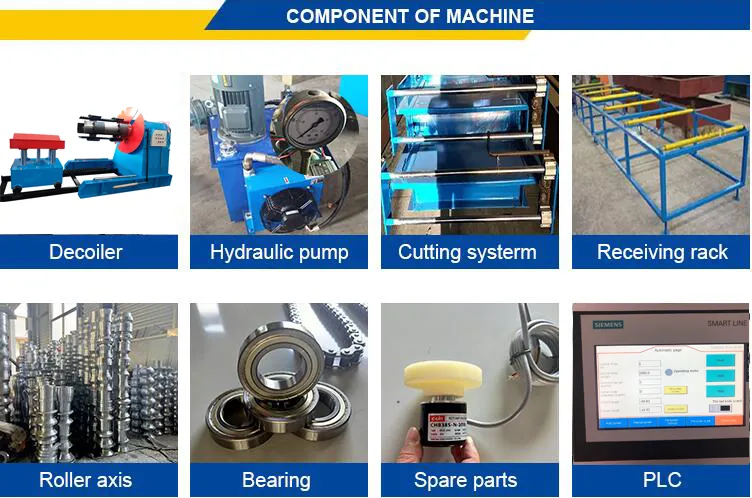

2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||||||

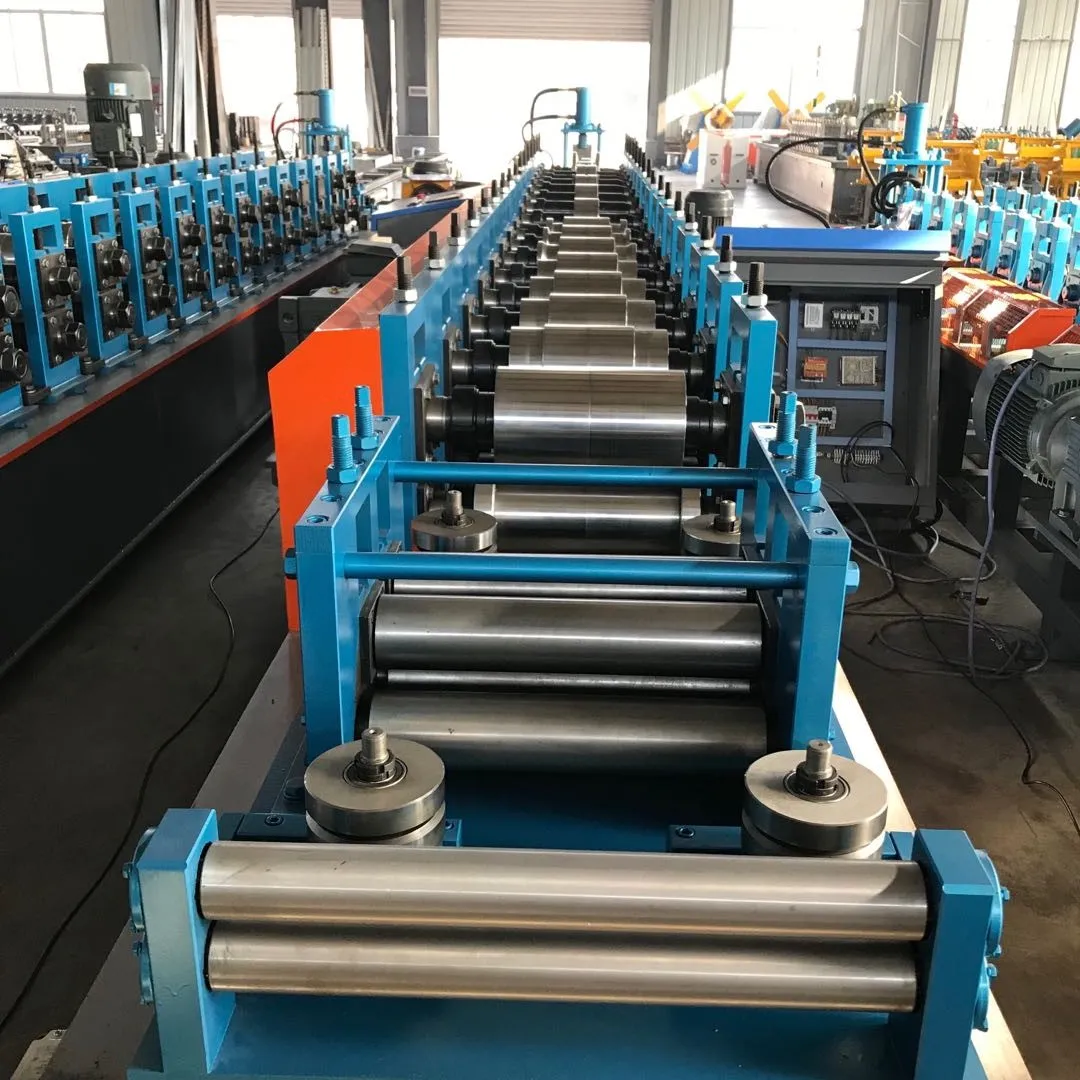

3.Main body | Roller station | 16 rows(As your requirement) | ||||||

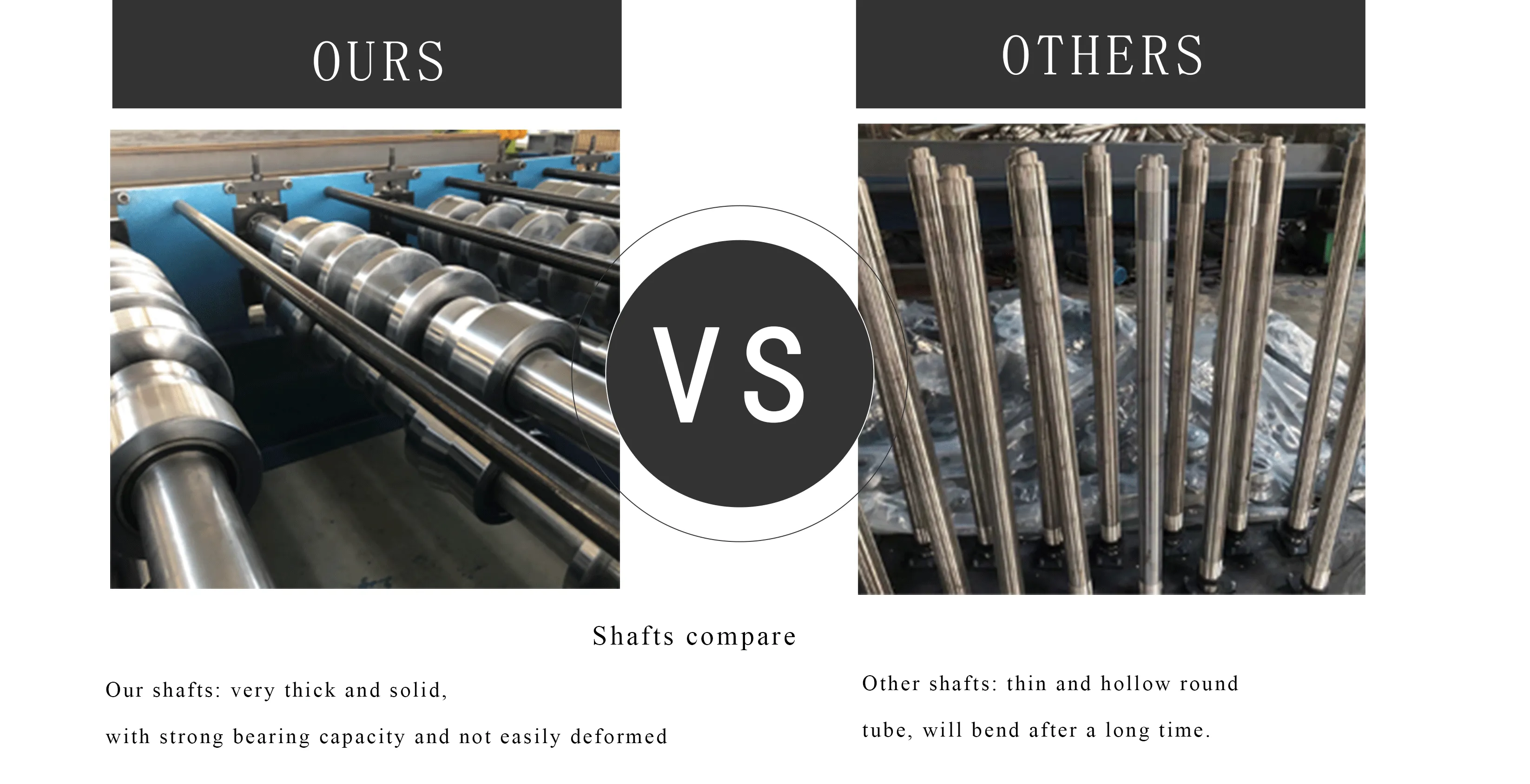

Diameter of shaft | 80mm solid shaft | |||||||

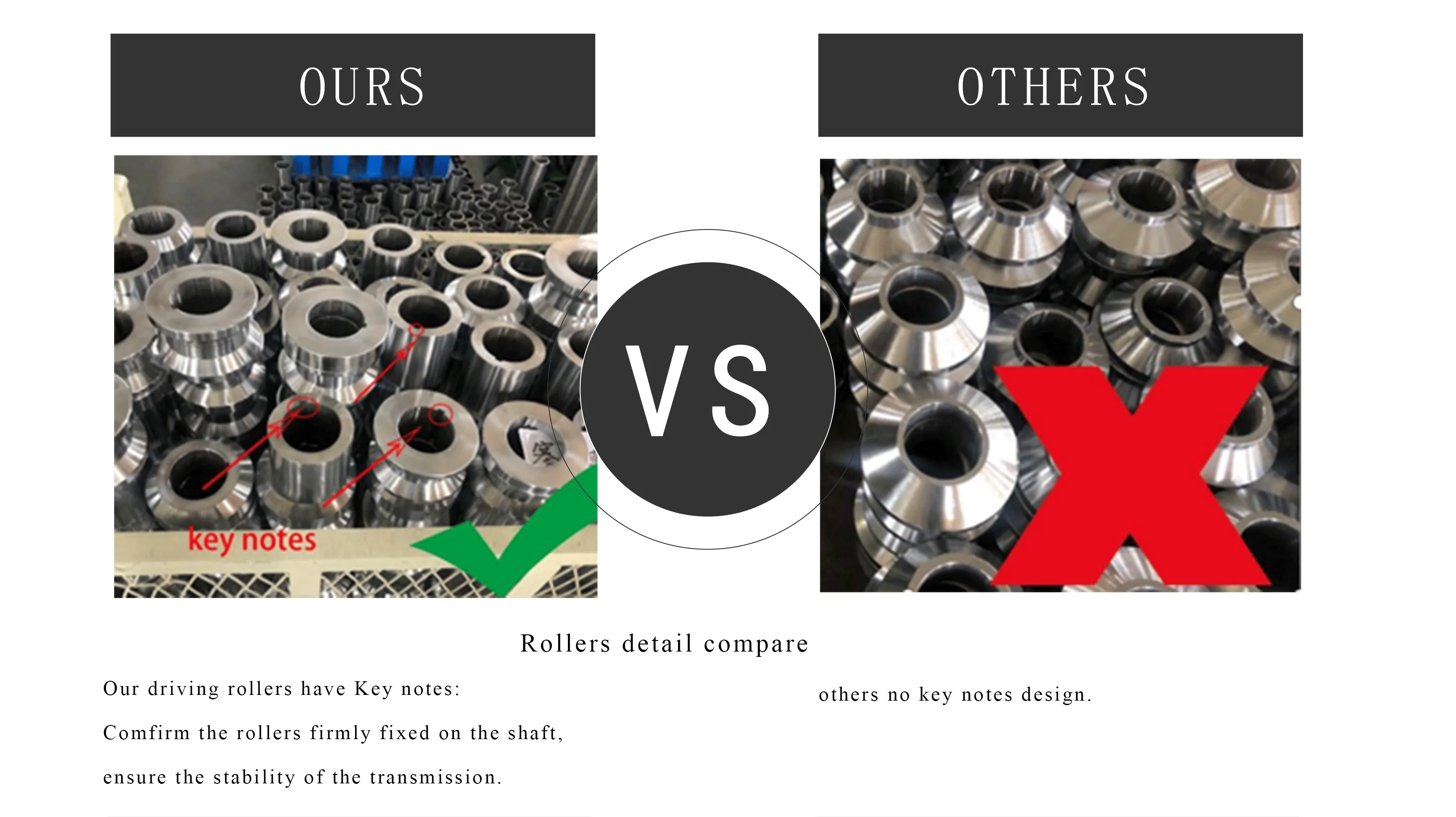

Material of rollers | Cr12 with quenched treatment, hard chrome plated on the surface | |||||||

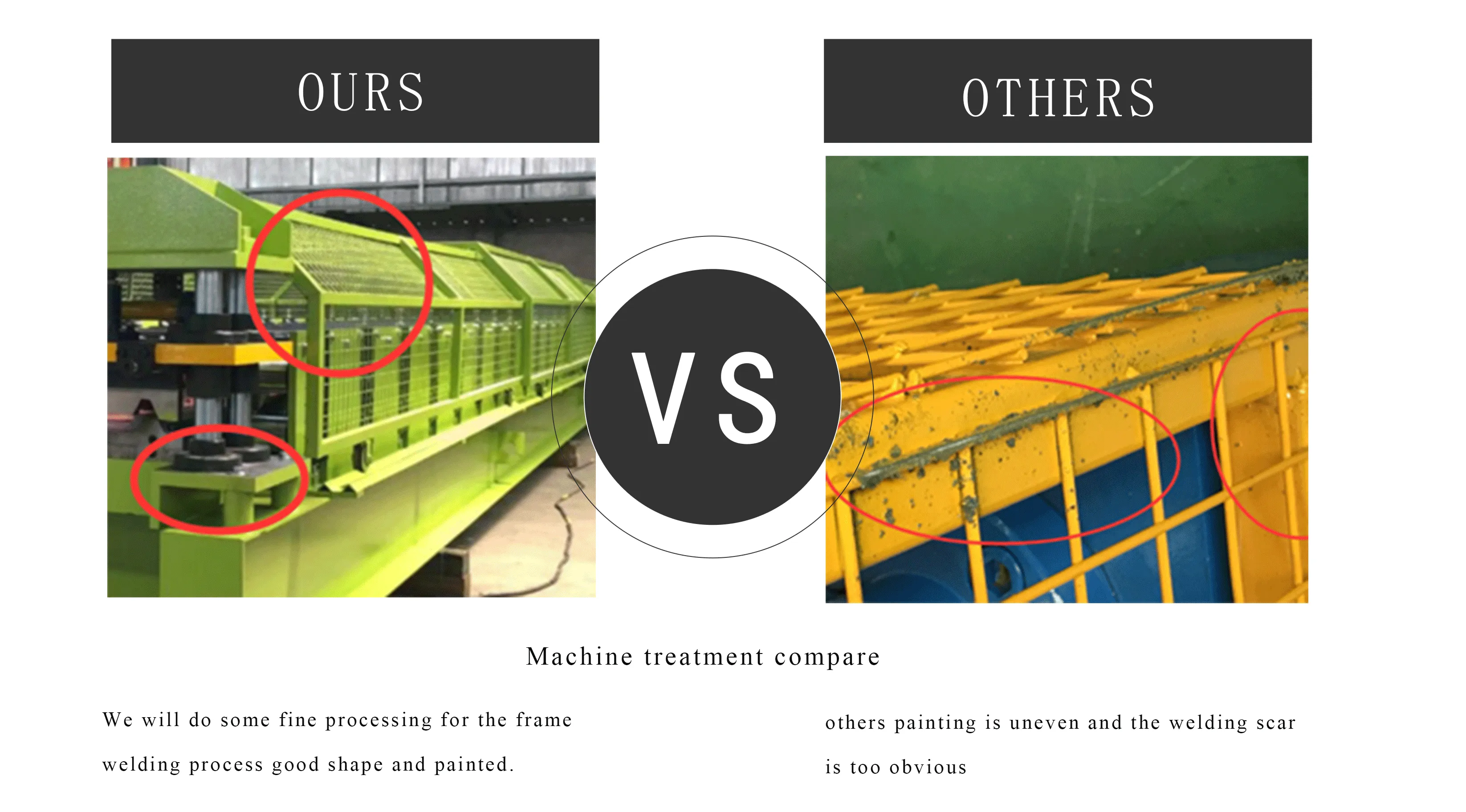

Machine body frame | 350 H steel | |||||||
Drive | Gear/Chain transmission | |||||||
Dimension(L*W*H) | 7500*1600*1600(customize) | |||||||
Weight | 5.6T | |||||||

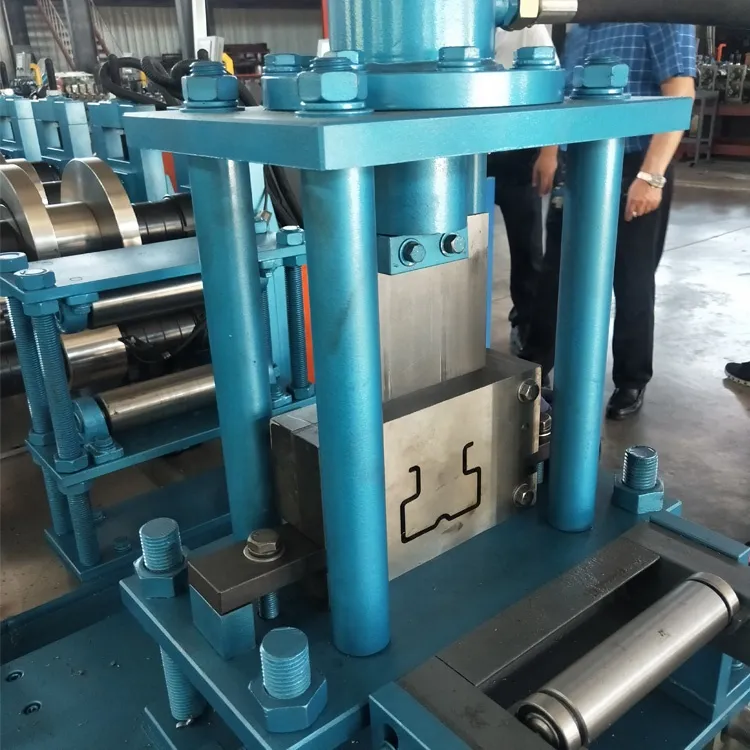

4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||||||
5.Power | Motor Power | 11KW*2 sets | ||||||
Hydraulic system power | 5.5KW | |||||||
6.Voltage | 380V 50Hz 3Phase | As your requirement | ||||||
7.Control system | Electric Box | Customized(famous brand) | ||||||
Language | English(Support multiple languages) | |||||||
PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||||||
18.Forming Speed | 0-15m/min | The speed depends on the shape of the tile and the thickness of the material. | ||||||
