Storage Rack System > Production Equipment > Storage rack column machine

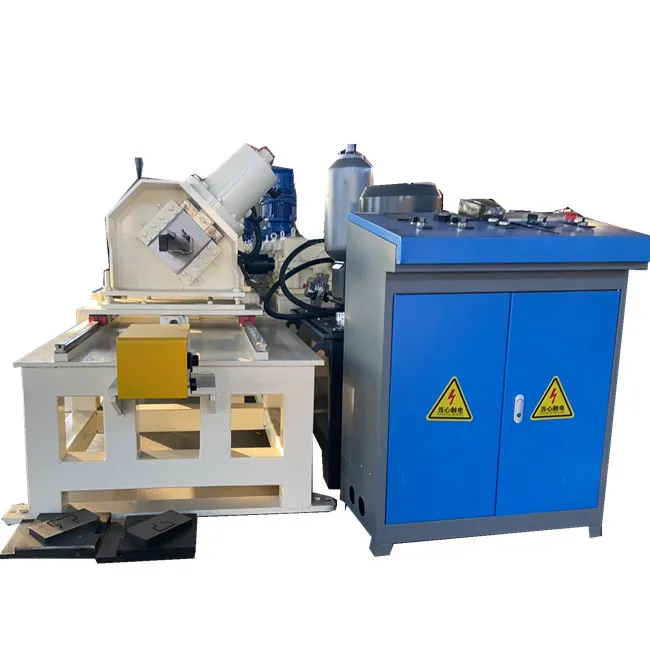

Pallet Upright Rolling Forming Machine panels rolling forming machine+15 KW

Cangzhou Zhongtuo International Trade Co., Ltd

Pallet Upright Rolling Forming Machine panels rolling forming machine+15 KW

Name: Pallet Upright Rolling Forming Machine panels rolling forming machine+15 KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT85551260

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

panels rolling forming machine

Power(W):

15 KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
upright rolling forming machine
Tile Type
Colored Steel
Use
Wall
Voltage
as your requests
Rolling Thinckness
1.5 to 2.5mm
Feeding Width
adjustable

Product Description

Pallet Upright rolling forming machine

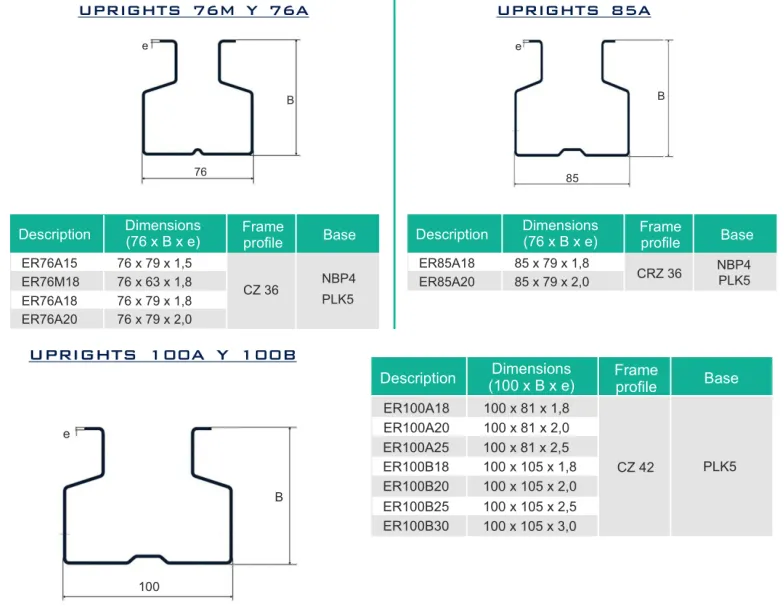

Pallet uprights rolling forming machine is designed to make the industrial shelving system suitable for palletized goods of multiple references. Pallet racking system is characterized by being selective, it allows immediate access to all the loading units with no need to move or displace the other pallets, which favors the warehouse stock controls.It is adaptable to the type of load to store, as they can be different sizes, containers, drums, pallets, it can be combined with shelves for picking, manual storage, pallet-drawers... It keeps the loads perfectly organized. So based on the market needs, we designed some types pallet upright rolling forming machine . Here are popular drawing profiles and sized for your reference.

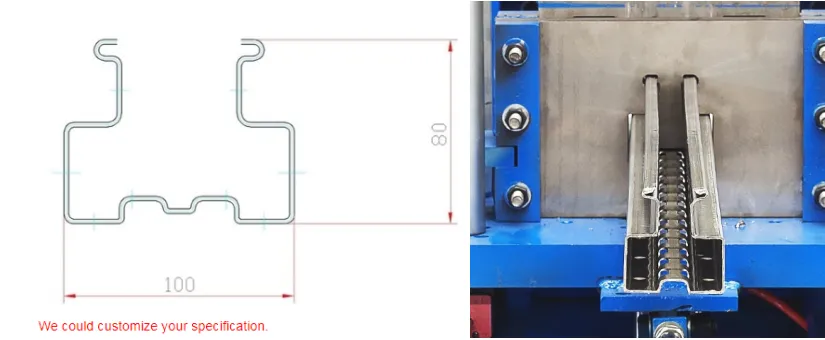

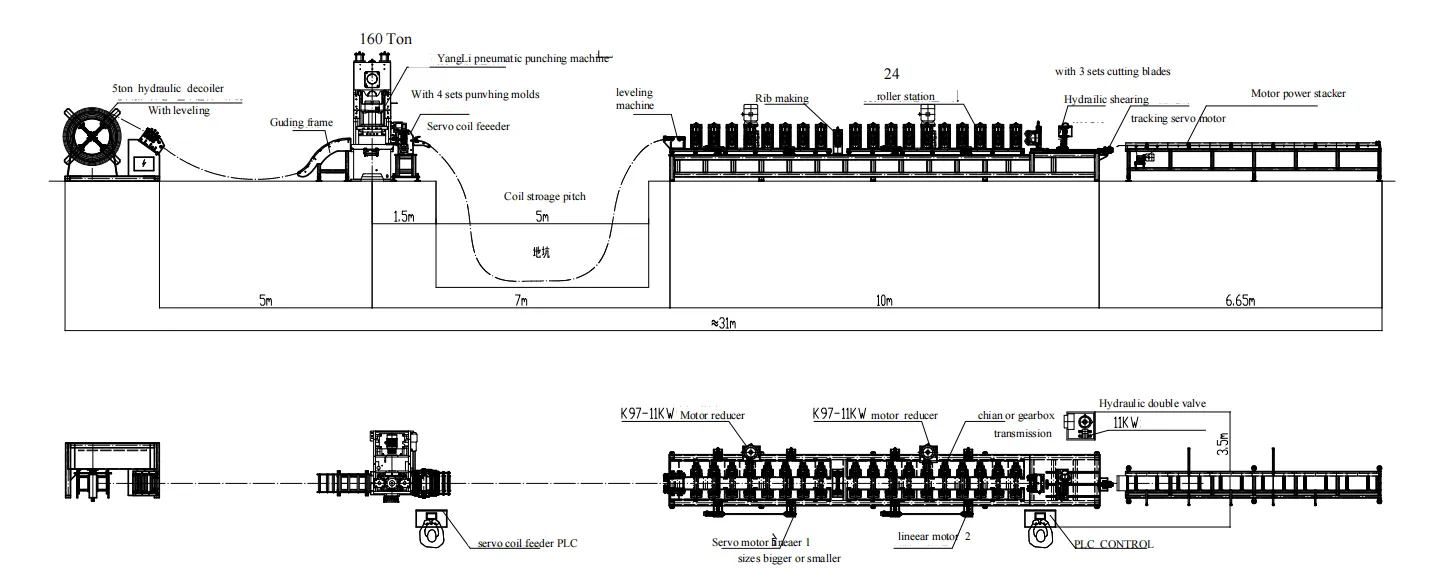

For the Pallet Uprights according to the thickness, there are some light duty, heavy duty and others as the profile and thickness will be different and then the machine profile will be different. Here we will take a random drawing profile for your reference to show you the whole working flow.

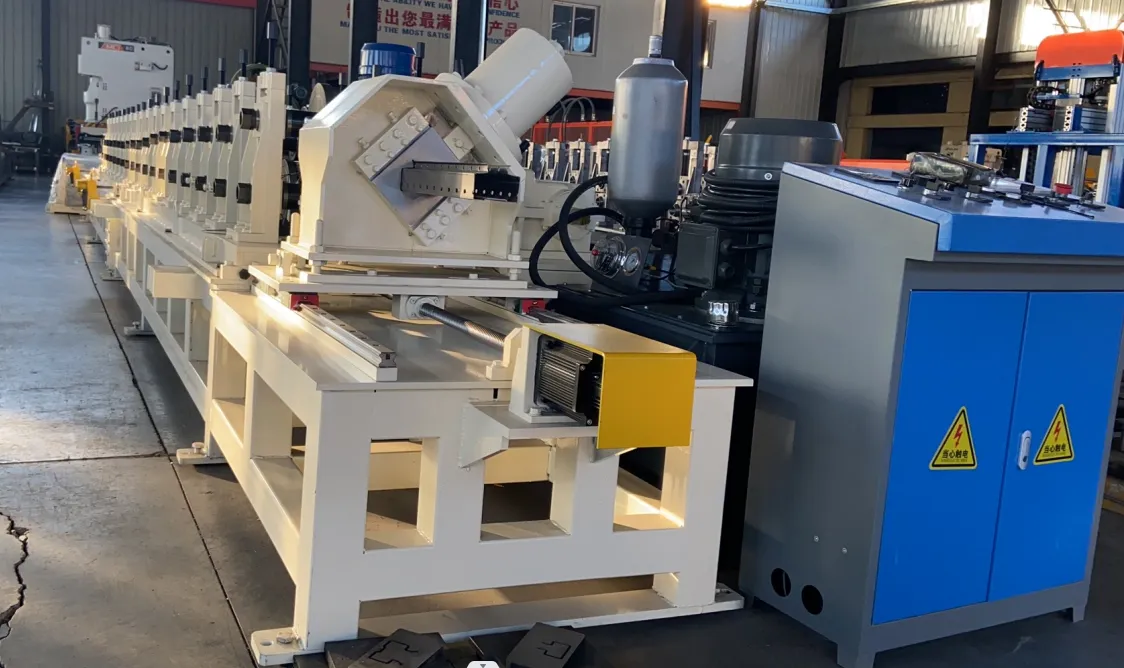

For the upright machine, it is composed by the following elements: 5T decoiler with Leveling device, Punching machine with die, Main roll former with cutter, PLC control station, Hydraulic oil pump, Tracking cutting system,Product collect table. But as to the upright main rolling forming machine, punching machines, decoiler, and receiving table, there are many options for your reference. You can choose according to your needs.

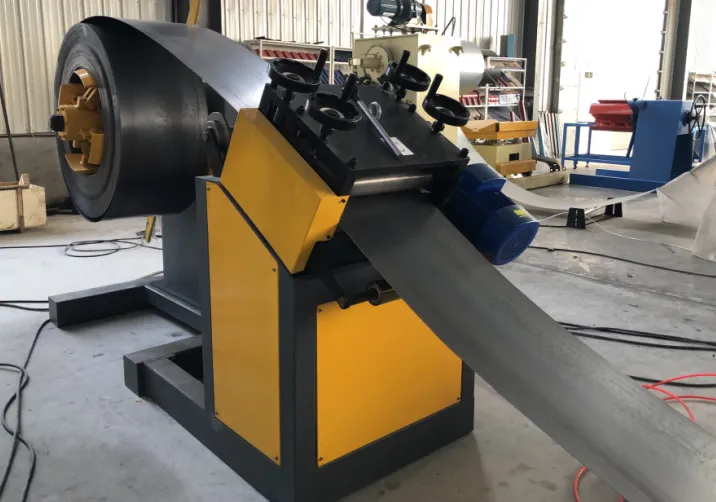

For example: decoiler you can choose manual one or hydraulic one with leveling system. Here is one example for your reference:

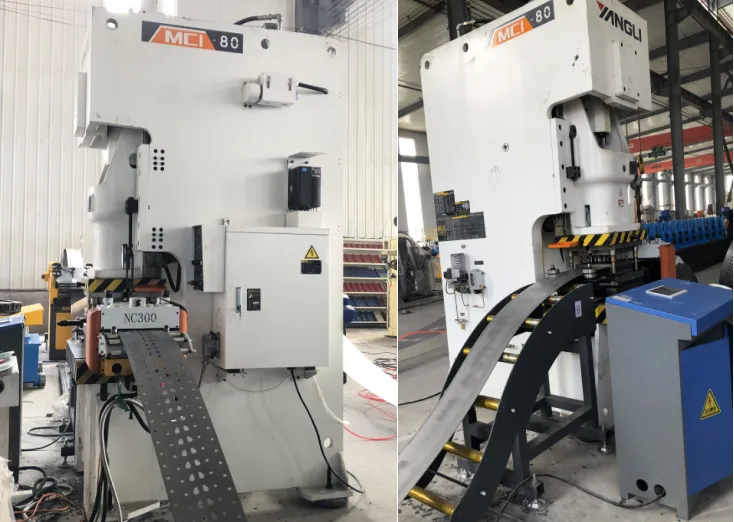

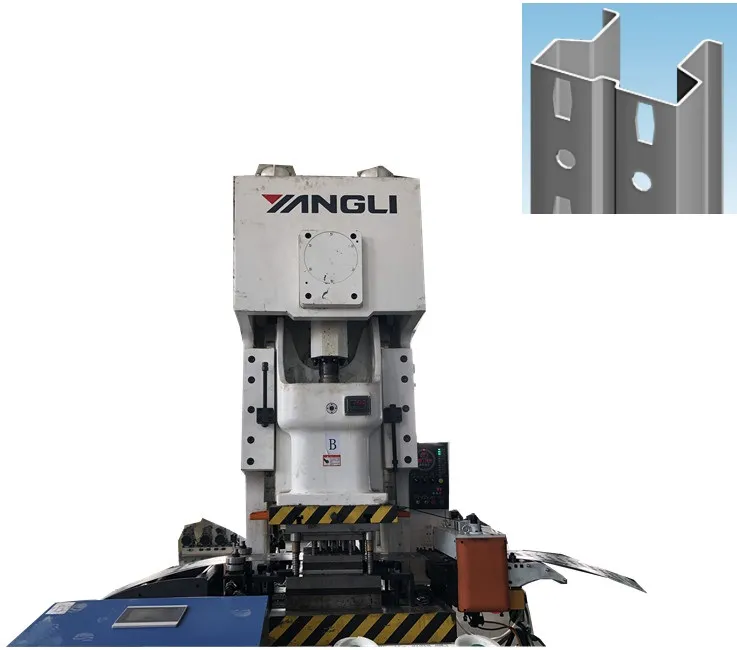

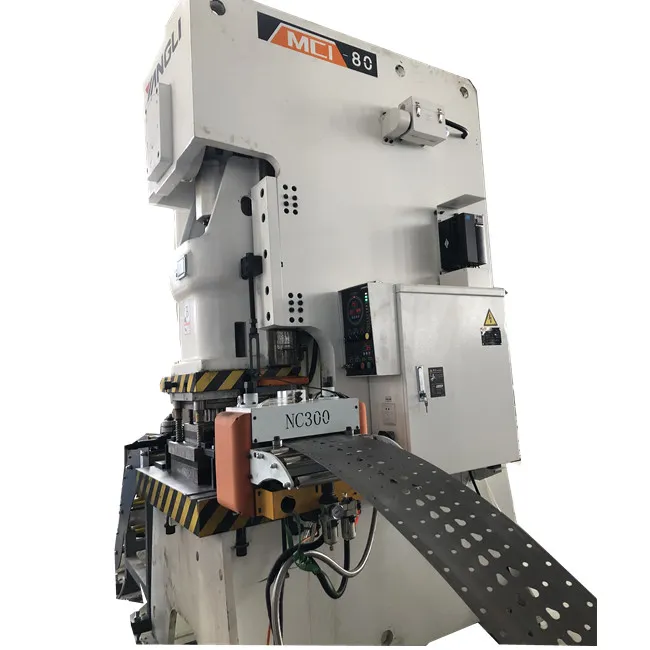

As to the punching machine, you can choose the normal brand punching machine or high quality punching machine and then the cost will be different.

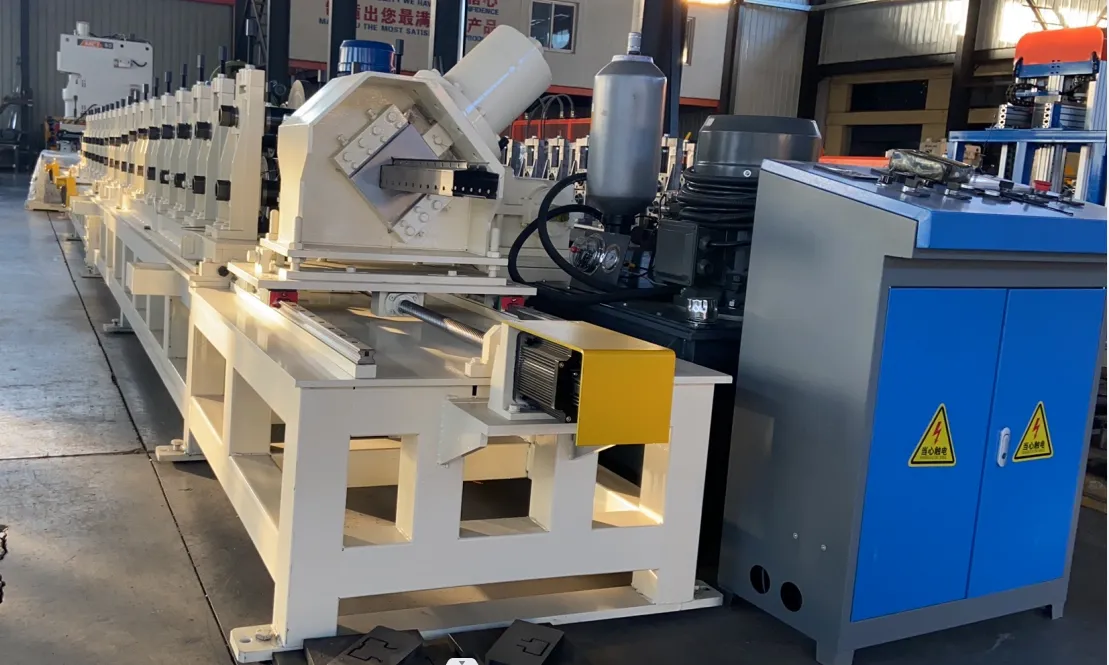

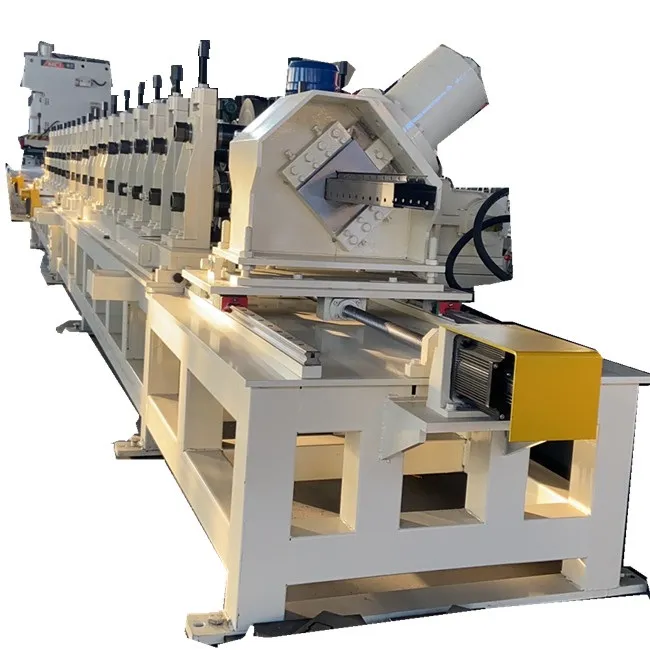

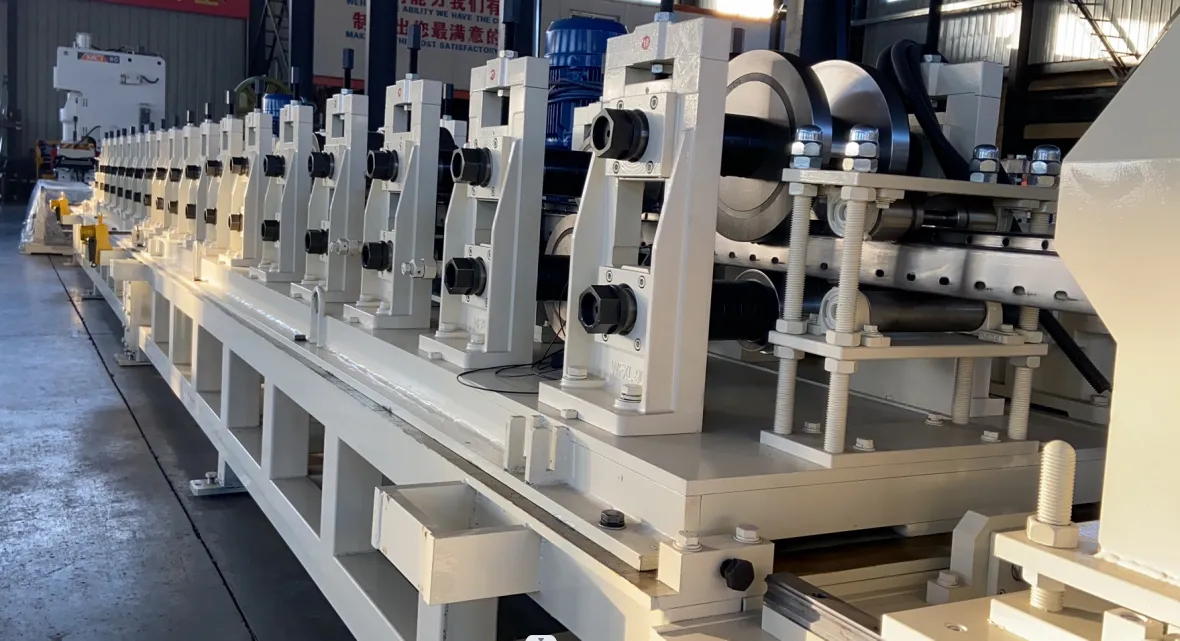

Pallet Upright rolling forming machine for heavy duty will be like this: In order to increase the speed, we use the servo tracking shearing system, then whole line working speed can reach 19 to 25 meter per minute.

Rack Upright Roll Forming Machine
1.Formed Material	GI,AI		Thickness:2 to 3mm
2.Decoiler	Automatic decoiler		Manual decoiler(will give you as free）

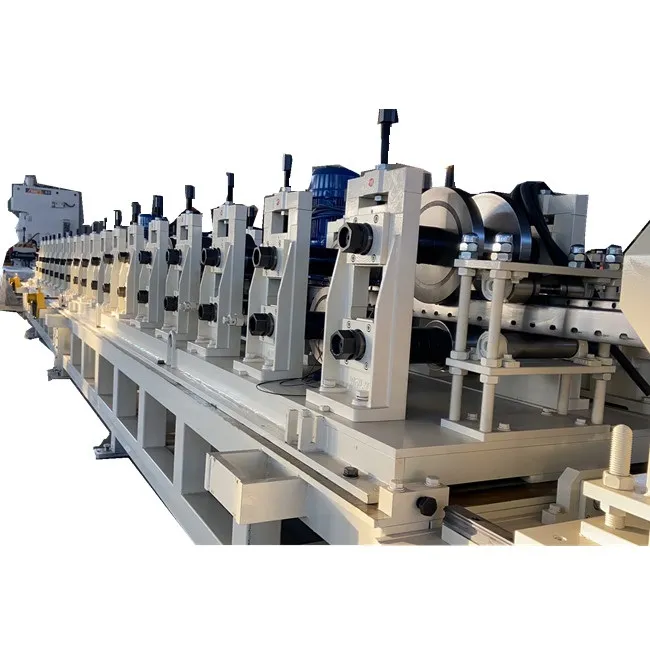

3.Main body	Roller station		20 rows(As your requirement)
		Diameter of shaft		80mm solid shaft
		Material of rollers		Gcr12mov
		Machine body frame		500 H steel
		Drive		Chain transmission
		Dimension(LWH)		950016001600(customize)
		Weight		6T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		7.5KW
		Hydraulic system		7.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	15-20m/min		The speed depends on the shape of the tile and the thickness of the material.

And there are more other profiles for your reference:
