Industrial HMI (Human-Machine Interface) touch screens serve as the centralized operational and diagnostic portal for cold roll forming machines, slitting lines, and automated sheet metal systems. Ranging from compact 7-inch and 10-inch operator stand displays to expansive 15-inch multi-zone supervisory panels, these rugged TFT color touchscreens interface seamlessly with leading PLCs via RS485, Modbus, and Ethernet/IP protocols. Standard industrial configurations feature IP65-rated dust-and-waterproof front bezels, high-capacity batch and length recipe storage, multi-language operator interfaces, and real-time encoder pulse tracking for precision cutting. Explore verified panel specifications, communication capabilities, and integrated electrical automation solutions below.
Filters
New Industrial Control HMI Touch Screen 7 Inch Modbus Monitor RS232 RS485 HMI Control Human Machine Interface- Guangdong, China+TK8070H+coolmay+Industrial Automation+ABS
$66.00
MOQ: 5
TK6070FH 7-inch Screen HMI Stable Reliable Anti-Interface Product- Guangdong, China+Coolmay TK6070Fh+Coolmay+Electronic Products, Industrial Automation+ABS
$46.00
MOQ: 1
TK8050H 5 Inch TFT LCD Display HMI Touch Screen- Guangdong, China+TK8050H+Coolmay+Electronic Products, Industrial Automation+ABS
$39.00
MOQ: 5
Modbus RTU 7 Inch IP65 Waterproof HMI Touch Screen- TK6070FH+800X480+7"
$74.00
MOQ: 1
Coomay Small HMI Touch Screen 3.5inch Mini Panel- TK6037FH+Other+Other
$48.00
MOQ: 1
Coolmay 10.1" Inch HMI TK8100H Touch Screen Monitor Display with Modbus RS232 RS485 HMI Touch Panel- 10.1"+TK8100H+1024X600
$57.00
MOQ: 2
Brand New 10 Inch HMI Touch Panel for Industrial Monitoring- Guangdong, China+TK6100FH+Coolmay+Industrial Automation+ABS
$96.00
MOQ: 10
Coolmay Hot Touch Panel 10.1'' HMI Separate HMI Screen TK6100FH- TK6100FH+1024X600+10.1"
$36.00
MOQ: 1
About HMI Touch Screens
Industrial HMI touch screens bridge the critical gap between complex machine automation and frontline factory operators across roll forming and metal fabrication facilities. Replacing outdated discrete pushbuttons, dials, and LED counters, modern touch panels consolidate full line management into intuitive graphic screens. Key functions include entering cutting length schedules, setting piece quotas, adjusting hydraulic shear deceleration timings, zeroing rotary encoders, and visualizing automated C/Z purlin profile changeover dimensions in real time.
Engineered specifically for demanding metalworking plant environments, these industrial panels withstand ambient electrical noise, high-frequency inverter interference, mechanical vibration, and airborne metallic dust. Displays feature high-brightness TFT LCDs (typically 400 to 500 nits) with durable 4-wire or 5-wire resistive touch sensors that respond accurately even when touched by gloved operators. Front panels carry IP65 sealing against oil and coolant splashing, while internal solid-state flash memory ensures zero data corruption during sudden workshop power interruptions.
Hardware specifications support widespread industrial interoperability, offering dual serial ports (RS-232/RS-485), high-speed 10/100M Ethernet, and USB program downloading ports. They run optimized real-time firmware compatible with major programmable logic controllers including Siemens, Mitsubishi, Delta, Schneider, and Omron. Built-in software features include 100+ product recipe storage, graphical I/O status diagnostics, comprehensive multi-language switching (English, Spanish, Russian, Arabic), and password-protected administrative calibration screens.
These touch panels are mounted on roll forming operator consoles, cantilever swing-arms, flying cut-off carriages, and centralized main electrical distribution enclosures across metal roofing, purlin, decking, and sandwich panel manufacturing plants.
Applications
Roll Forming Production Lines & Operator Consoles
Industrial HMI touch screens serve as the primary human-machine interface on roll forming consoles, enabling operators to enter piece lengths, batch quantities, and cutting offsets with real-time encoder feedback.
Sheet Metal Slitting & High-Speed Cut-to-Length Lines

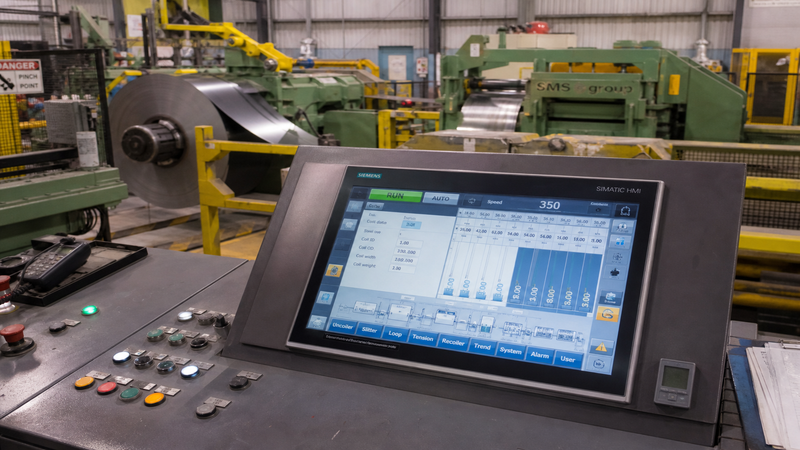

High-resolution touch panels configure uncoiling line speeds, servo flying shear synchronization curves, and multi-bin stacking recipes with millisecond-level responsiveness across heavy-duty steel processing lines.
Continuous Sandwich Panel Foaming & Lamination Lines
Articulated pendant HMI displays monitor multi-zone caterpillar heating temperatures, high-pressure polyurethane injection ratios, and synchronized saw cutting travel along continuous composite panel lines.
C/Z Purlin Automatic Quick-Changeover Systems

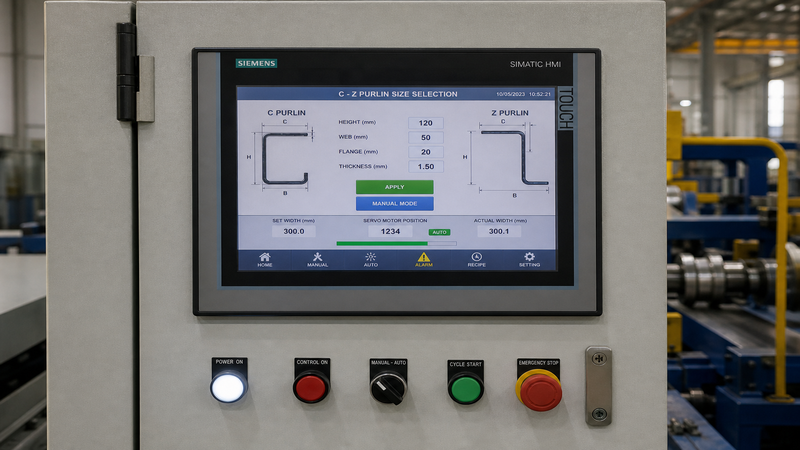

Graphic touchscreen interfaces provide one-touch profile recipe selection, commanding multi-axis servo drives to reposition roll forming stands, flange widths, and hole-punching centers in under three minutes.
Industrial OEM Electrical Cabinets & Control Retrofits
IP65-rated front bezel HMI panels replace legacy pushbuttons and dials on industrial machinery, offering comprehensive I/O status diagnostics, multilingual operation, and historical alarm logging for retrofit projects.
Technical Overview
| Parameter | Information |
|---|---|
| Display Type & Size | 7.0-inch / 10.1-inch / 15.0-inch TFT LCD color display |
| Resolution & Brightness | 800×480 / 1024×600 px; 400–500 cd/m² LED backlight |
| Touchscreen Technology | High-precision 4-wire / 5-wire resistive touch (glove operable) |
| Ingress Protection | IP65 waterproof & dustproof front bezel (NEMA 4 equivalent) |
| Communication Ports | COM1 (RS232), COM2/COM3 (RS485 isolated), USB Host, 10/100M RJ45 |
| PLC Protocol Support | Siemens, Mitsubishi, Delta, Schneider, Omron, Modbus RTU/TCP |
| Power Supply | 24V DC (±15%) with reverse polarity and surge protection |
| Operating Temperature | -10°C to +55°C; 10%–90% RH non-condensing |
| Memory Capacity | 128 MB Flash ROM + 128 MB DDR3 RAM (recipe & log storage) |
| Software Features | 100+ recipe storage, multilingual UI, I/O monitoring & alarm history |
Related Solutions
C/Z Purlin Interchange Line Solution
C/Z interchangeable purlin line for plants that run both C and Z. Dedicated C or…
Heavy Coil Handling Solution
Coil infeed is a weight class plus a drive: manual expand, electric expand with…
Custom Profile Roll Forming for OEM
Flexible roll forming line for custom cross-sections. Suitable for OEMs who need…
Metal Sheet Processing Solution
Blanking and cut-off around a roll former is a shear class: flying (tracking) sh…
Related Information
Roll Forming Machine Control Systems: PLC, HMI and Encoder Integration
How do PLC, HMI, VFD and encoders work together on a roll forming line? A practi…
Read More
Innovations in Cold Roll Forming Machinery: Smart Manufacturing Solutions
By Hu Xianzhe, Cold Roll Forming Technical Engineer at ZTRFM | Last Updated: Sep…
Read More
How to Install and Commission a Roll Forming Machine on Site
Foundation requirements, leveling, electrical hookup, first run procedure, and c…
Read More
Manual vs Automatic CZ Purlin Roll Forming Machines
Compare manual vs automatic CZ purlin roll forming machines. Analyze changeover…
Read More
Maintaining Excellence: Quality Control in Cold Roll Forming Operations
Quality assurance in cold roll forming requires meticulous attention to dimensio…
Read More
How to Maintain a Roll Forming Machine: Daily, Weekly & Monthly Checklist
A practical roll forming machine maintenance schedule from a factory floor manag…
Read More
FAQ
What screen sizes and resolutions are standard for roll forming machine operator panels?
7-inch (800×480) and 10.1-inch (1024×600) touchscreens are the global industry standard for roll forming consoles, providing ample screen area for length tables, batch quotas, and alarm banners. For complex continuous sandwich panel lines or automated multi-axis purlin lines, 12-inch or 15-inch displays are preferred to display full line schematics simultaneously.
Which PLC brands and industrial communication protocols are supported?
Our industrial HMIs feature universal communication drivers supporting all major industrial PLCs including Siemens (S7-200/1200/1500), Delta (DVP series), Mitsubishi (FX series), Schneider, and Omron. Physical connectivity includes isolated RS-485, RS-232, and RJ45 Ethernet supporting Modbus RTU/TCP, Profinet, and Ethernet/IP.
How does the touchscreen interface handle multiple production recipes and batch orders?
The HMI software includes built-in non-volatile recipe management allowing operators to save and recall up to 100 distinct production orders. Each recipe stores cutting length, target piece quantity, profile size codes, and punching pitch coordinates, enabling instantaneous job changeovers without manual parameter re-entry.
Can the HMI operate reliably in harsh, dusty, or unconditioned factory environments?
Yes, the units feature an IP65-rated front bezel that seals out airborne metallic dust, lubricant mist, and ambient moisture. With an industrial operating temperature range of -10°C to +55°C and high electromagnetic immunity (EMC Level 3), the screen operates reliably next to high-power variable frequency drives (VFDs).
Is multi-language switching supported for international export machinery?
Every panel comes preloaded with dynamic multi-language switching supporting English, Spanish, Russian, Arabic, French, and Portuguese. Operators can switch the entire graphical interface instantly with a single touch, ensuring compliance with international export regulations and multinational operator safety.
How does the HMI assist technicians with troubleshooting and alarm diagnostics?
The system features a dedicated diagnostic screen displaying real-time I/O bit status for all connected limit switches, photoelectric sensors, and hydraulic valves. When a fault occurs (such as encoder signal loss, hydraulic overload, or safety gate opening), the screen immediately displays a detailed alarm description and troubleshooting prompt.
What technical details are needed when ordering a replacement or custom HMI?
Buyers should specify the connected PLC model and communication interface (serial COM port pinout or Ethernet IP), preferred screen diagonal (7", 10", or 15"), input power supply (standard 24V DC), and whether preloaded machine control software or a blank runtime terminal is required.
