Floor Decking Roll Forming Machines

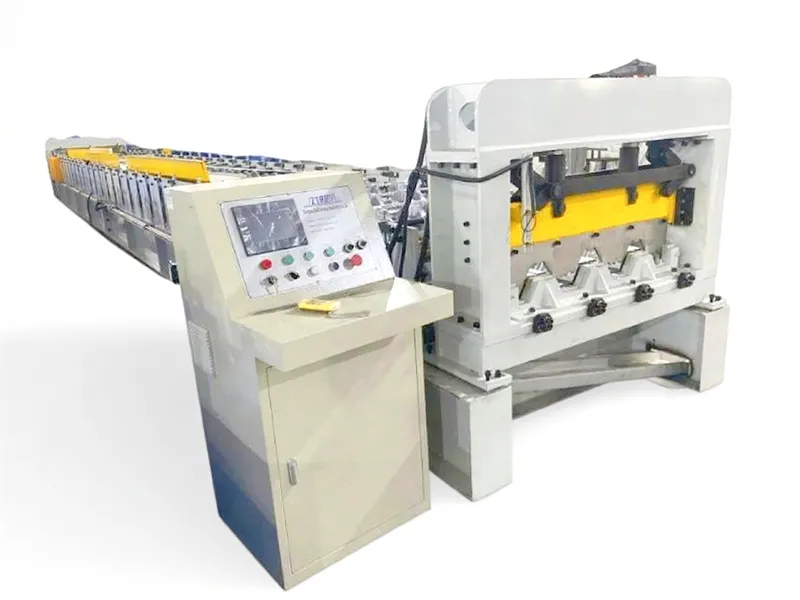

Open-rib (trapezoidal) profiles offer the highest section modulus and longest un-propped spans, making them cost-effective for large industrial warehouses. Dovetail (re-entrant) profiles allow direct mechanical service hangers without drilling, while closed-rib profiles completely encapsulate bottom ribs, providing flat underside ceilings, superior fire ratings, and reduced concrete consumption.

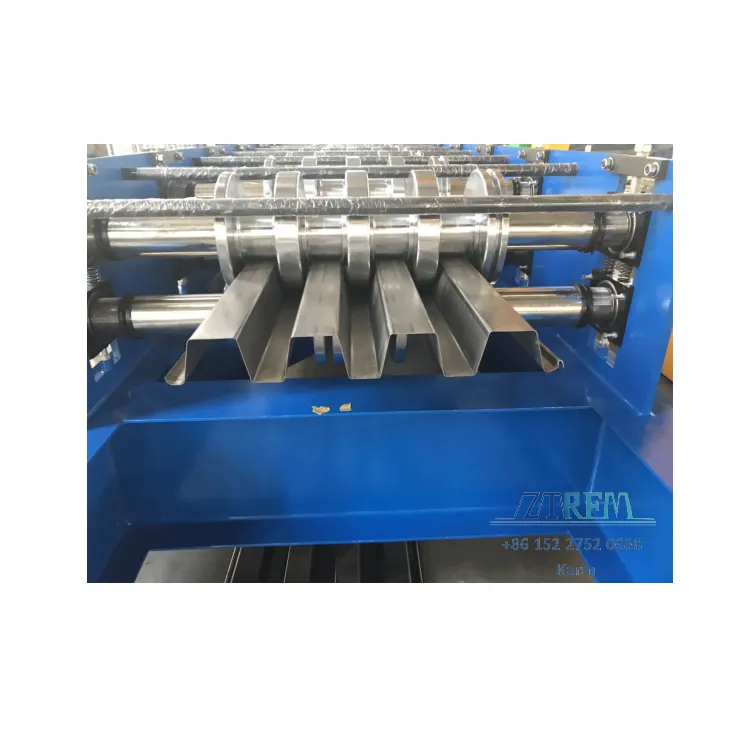

Floor decking requires forming 0.8 mm to 1.5 mm structural galvanized steel with yield strengths up to G550, demanding 3 to 5 times greater forming torque than 0.4 mm roofing sheets. To prevent shaft deflection, roller wear, and panel camber, floor deck machines utilize 75–95 mm solid 40Cr steel shafts, heavy cast-iron or guide-pillar stands, and individual gearbox drive transmissions.

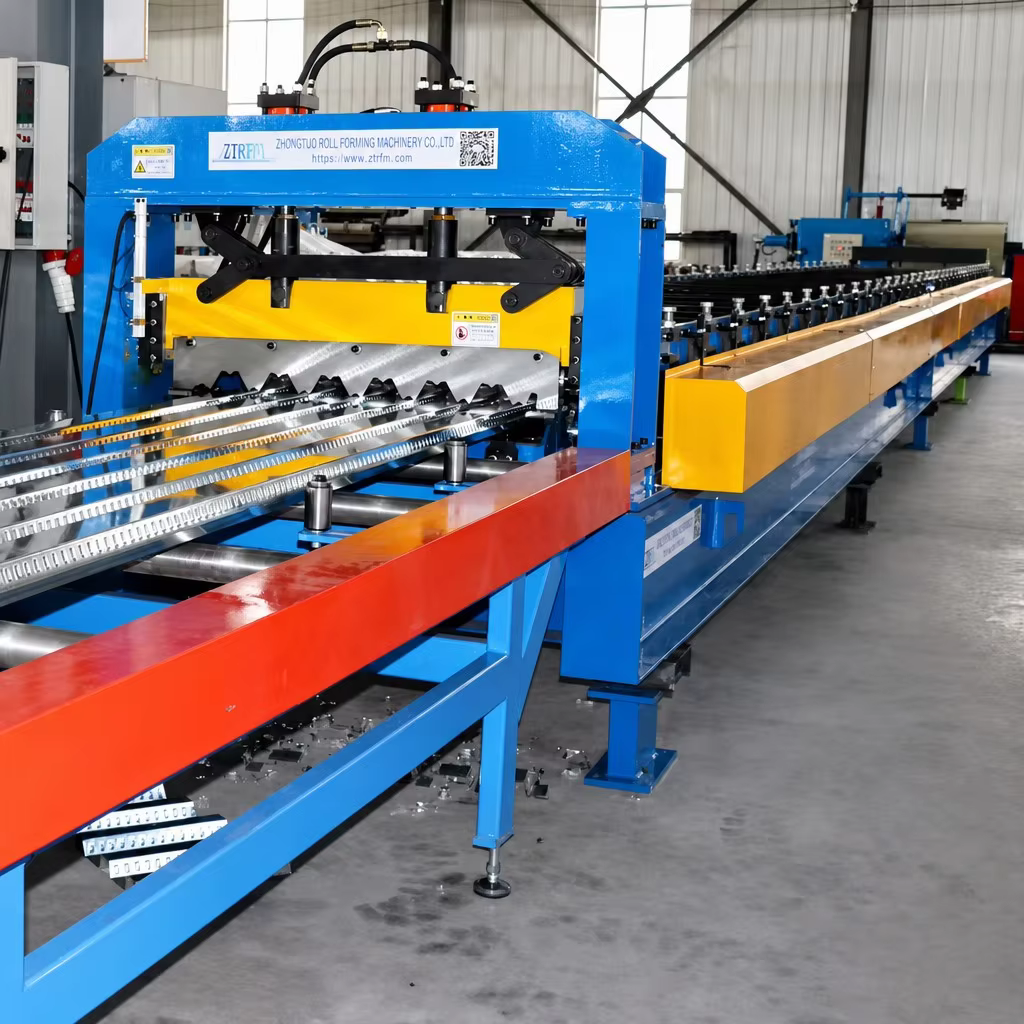

In-line embossing rolls press raised or recessed chevron patterns into the vertical webs of the deck profile. When concrete cures around these indentations, they create a mechanical interlock that transfers horizontal shear stresses between the steel sheet and the concrete slab, transforming the deck into effective tensile reinforcement without relying purely on friction.

Structural composite decks typically mandate ASTM A653 / EN 10346 certified structural steel coils with minimum yield strengths of 250 MPa (often 350 to 550 MPa). Zinc coating weights should be at least Z275 (275 g/m² total both sides) or G90 to guarantee long-term corrosion protection in unexposed indoor environments over a multi-decade service life.

Because 1.2 mm thick coils at 1000–1250 mm width weigh substantially more than thin roofing coils, a 10-ton or 12-ton hydraulic expanding decoiler paired with a motorized coil loading car is standard. This setup prevents coil slippage, ensures controlled uncoiling tension, and reduces coil changeover time from 40 minutes to under 10 minutes.

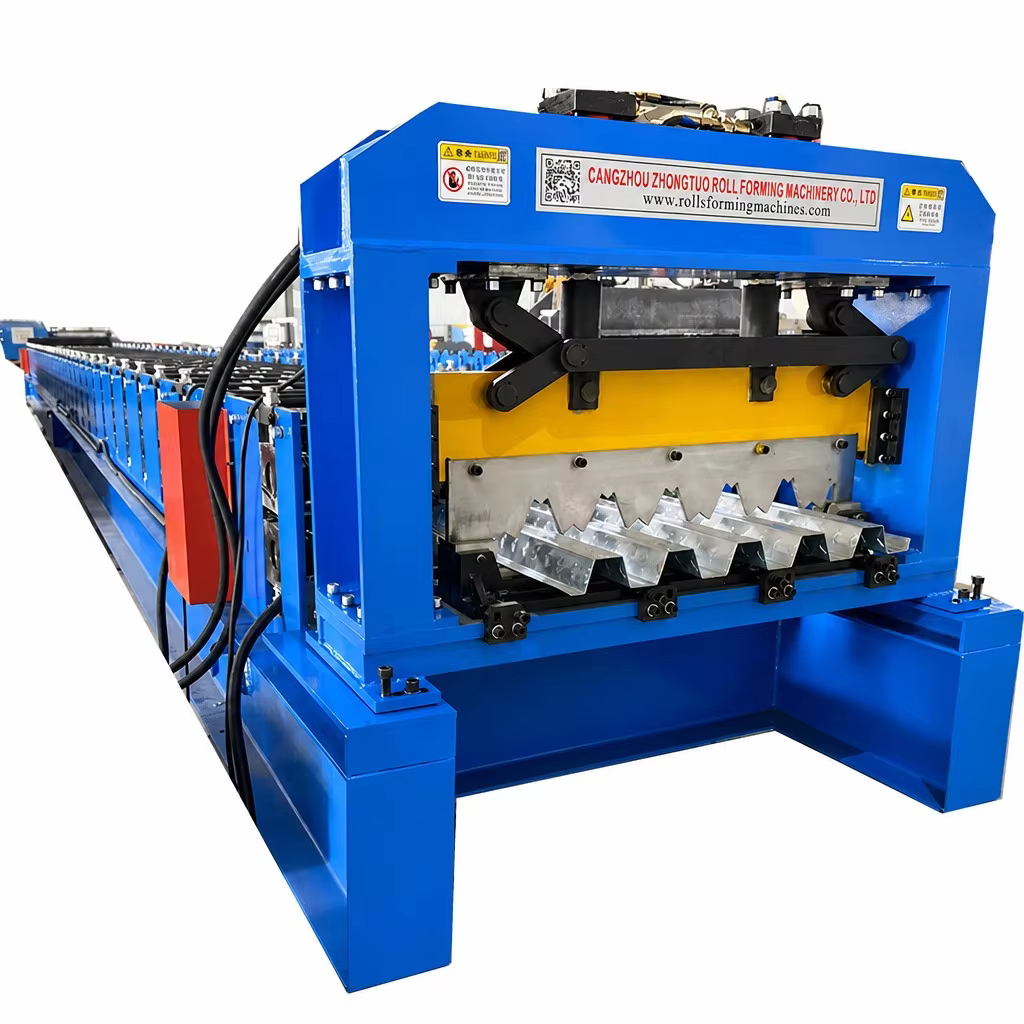

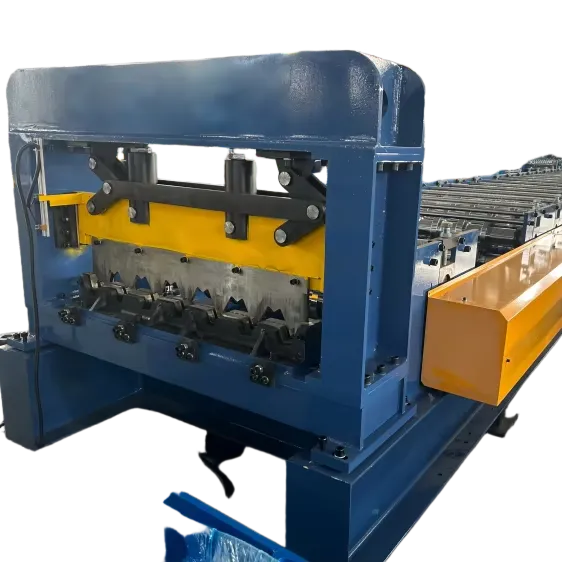

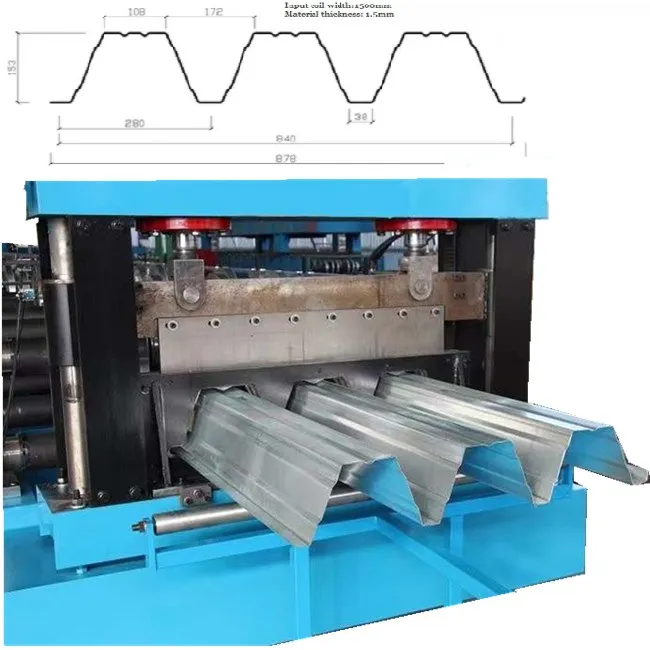

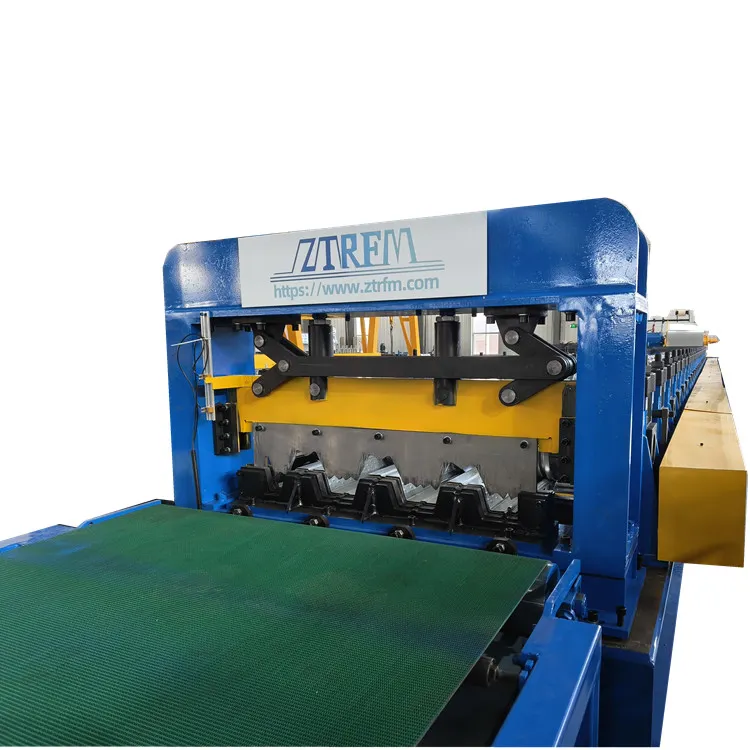

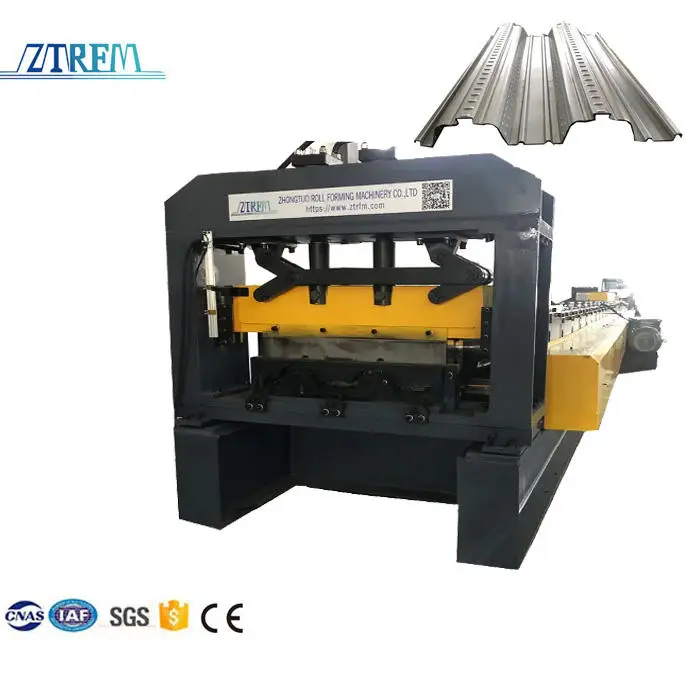

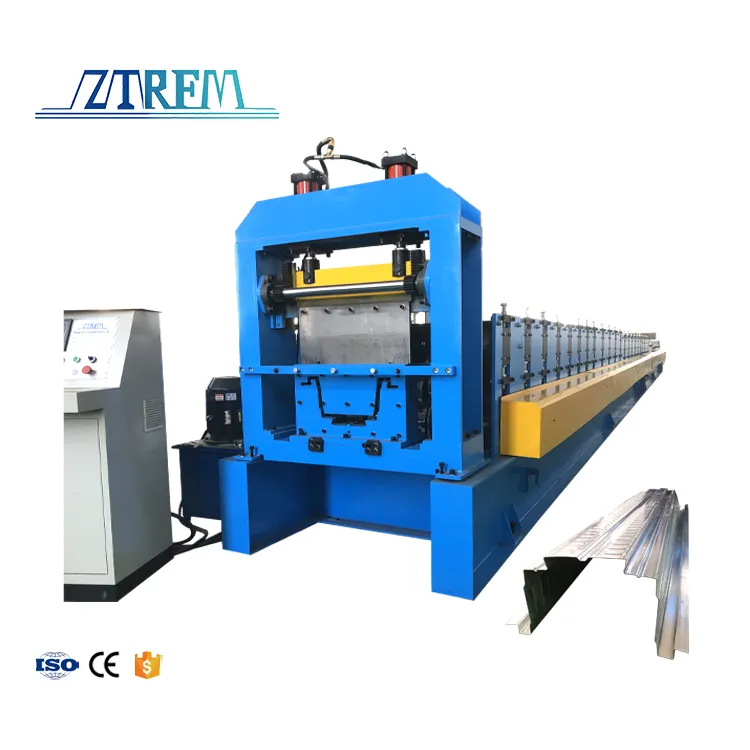

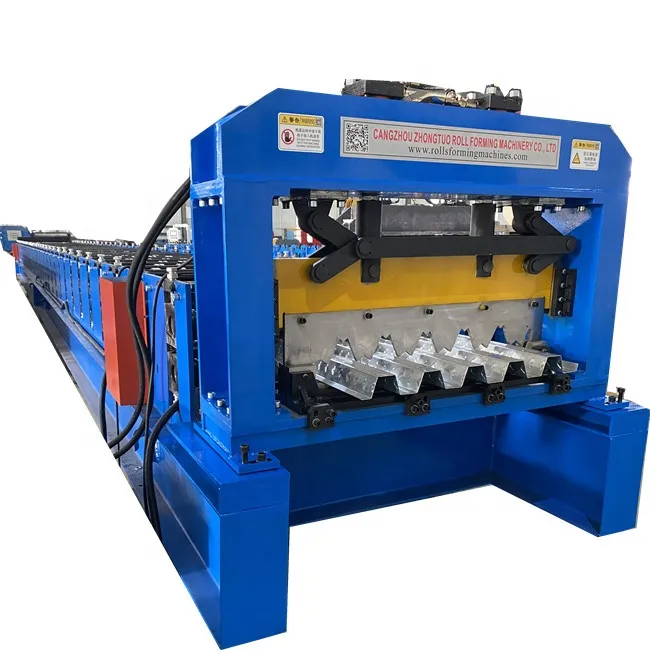

Deep floor deck profiles (rib heights 51 mm to 76 mm) require custom-machined two-piece or three-piece Cr12MoV cutting dies with precision-guided hydraulic shear cylinders. The cutting blade profile precisely follows the corrugated cross-section, shearing simultaneously from top and bottom to eliminate end crushing, flare, or jagged burrs.

Buyers must provide the signed profile drawing (specifying effective cover width, rib height, pitch, and embossing pattern), maximum and minimum coil thickness, coil yield strength (MPa), required line speed (typically 12–18 m/min), decoiler weight capacity, and target hydraulic cut-off configuration.
