Gutter Solutions & Industrial Equipment
Architectural metal gutters, commercial box troughs, and residential seamless eaves drainage systems provide critical rainwater evacuation for modern building envelopes. Manufactured from high-grade Galvalume, prepainted steel, heavy galvanized sheet, and aluminum alloys, these roll-formed rainwater channels prevent foundation erosion, water ingress, and exterior facade staining. Designed in standard K-style, half-round, and custom industrial box configurations, they serve residential, commercial, and heavy industrial steel structures worldwide.
Steel K-Style Gutter Roll Forming Machine Automatic Rain Gutter Making- Gutter Roll Forming Machine
$26,000.00
MOQ: 1
About Gutter Solutions & Industrial Equipment
In modern architectural engineering and pre-engineered metal building design, rainwater gutters serve as the primary roof drainage conduit, safeguarding building perimeters, foundation footings, and structural facade envelopes from water damage. Under extreme storm deluge events, undersized or improperly sloped guttering results in valley back-flooding, interior ceiling leaks, and severe structural corrosion. Our commercial and industrial gutter systems are hydrodynamically engineered to calculate rainfall intensity per square meter (DIN EN 12056-3 / AS/NZS 3500.3), ensuring generous hydraulic cross-sections with sufficient freeboard margins.
Key structural profiles include traditional K-style gutters (featuring a decorative stepped front face that complements architectural fascia boards), smooth half-round profiles (promoting self-cleaning water velocities that prevent sediment buildup), and heavy-tonnage industrial box gutters engineered for wide-span multi-pitch warehouses and concealed parapet walls. Formed from corrosion-resistant Galvalume (AZ150), 304/316 stainless steel, or PVDF prepainted steel coils (0.5 mm to 1.5 mm thick), these channels exhibit high rigidity against snow loading and high wind uplift.
Installation systems feature heavy-duty hidden hanger brackets with reinforcing ribs, external fascia brackets, pre-punched overflow relief slots, and prefabricated expansion joints that absorb thermal elongation over long continuous gutter runs exceeding 30–50 meters without joint tearing. Complementary sumps, leaf guards, end caps, and drop outlets ensure turnkey installation speed and lifelong waterproof reliability.
Applications
Industrial Plant Internal Valley Gutters & Parapet Troughs
Heavy-duty large-capacity box gutters installed in internal roof valleys and parapet walls of massive logistics hubs, draining high-volume deluge rainwater. Applications: Multi-span steel structure factories, logistics park warehouses, and multi-pitch aircraft hangars. Features: Deep cross-sectional drainage capacity up to 15 L/s per outlet, integrated expansion joints, and heavy galvanized or stainless steel construction.

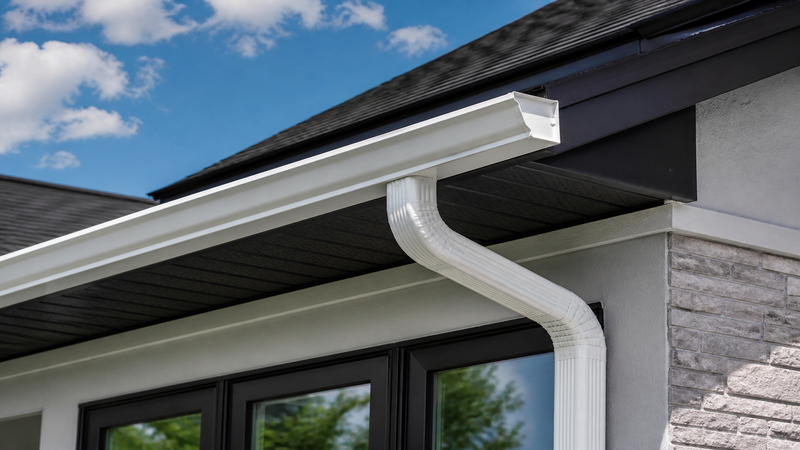

Residential High-Capacity K-Style Seamless Eaves Gutters
Architectural K-style (ogee profile) seamless metal gutters engineered to blend with residential fascia boards while diverting eaves rainwater cleanly. Applications: Luxury residential villas, multi-family townhouse developments, and suburban housing communities. Features: Classic stepped architectural profile, hidden hanger brackets with zero exposed fasteners, and high-durability prepainted color finishes.
Commercial Half-Round Architectural Fascia Gutters
Modern half-round metal rainwater gutters with smooth curved hydrodynamic interior, promoting self-clearing water flow and minimal debris accumulation. Applications: Contemporary commercial office parks, boutique hotels, civic libraries, and modern retail complexes. Features: Superior hydraulic self-cleaning velocity, heavy external fascia bracket mounting, and premium zinc or copper architectural options.
Commercial Multi-Span Greenhouse Structural Gutters
Multi-functional heavy-gauge galvanized structural gutters acting as both rainwater collection troughs and longitudinal roof ridge support beams. Applications: Venlo-style high-tech commercial agricultural greenhouses, botanical research conservatories, and hydroponic produce facilities. Features: Dual-function water evacuation and structural truss support, integrated condensation drip channels, and heavy hot-dip galvanized coating.
Coastal Industrial Facilities & High-Rainfall Heavy Box Gutters
Extreme corrosion-resistant box gutters manufactured from 316 stainless steel or PVDF-coated Galvalume, engineered for tropical cyclone rainfalls. Applications: Coastal port container terminals, chemical processing plants, and equatorial high-monsoon industrial buildings. Features: High freeboard depth preventing storm overflow, acid and salt-spray immune metallurgy, and welded watertight sump boxes.
Technical Overview
| Parameter | Information |
|---|---|
| Gutter Profile Types | K-Style (5" / 6" / 7" / 8"), Half-Round (6" / 8"), Custom Industrial Box Gutters, Parapet Troughs |
| Raw Material Options | Galvalume (55% Al-Zn AZ150), PPGI/PPGL Coils, Aluminum Alloy, Stainless Steel 304/316, Copper |
| Material Thickness Range | 0.50 mm – 1.50 mm (Heavy industrial box gutters up to 2.0 mm) |
| Gutter Girth / Stretch Width | 300 mm / 400 mm / 500 mm / 600 mm / 1000 mm customized |
| Standard Production Length | 3.0 m / 4.0 m / 6.0 m segments or continuous seamless on-site roll-formed lengths |
| Hydraulic Drainage Capacity | 5 L/s up to 25 L/s per single drop outlet (based on depth and slope) |
| Hanger Bracket Spacing | 600 mm – 800 mm centers (400–500 mm for heavy alpine snow regions) |
| Surface Finish & Color | PVDF, High-Durability Polyester (HDP), SMP, Anti-Fingerprint Galvalume, Natural Copper |
| Expansion Joint Interval | Every 18 – 24 meters continuous run (EPDM flexible expansion sleeve) |
| Compliance & Testing | DIN EN 12056-3, AS/NZS 3500.3, SMACNA Architectural Sheet Metal Manual |
Related Solutions
Gutter and Downspout Roll Forming Solution
Paired rainwater package: K-style / half-round gutter plus lock-seam downpipe, w…
Rainwater System Solution: Gutters, Elbows & Covers
A rainwater shop is a gutter mill plus fittings. Volume K-style or half-round ru…
Metal Roofing & Wall Panel Roll Forming Solution
Trapezoidal / IBR, standing-seam, corrugated or glazed-tile roof and wall panel…
Standing Seam Roofing Project Solution
A standing-seam project is a shop mill that forms lock legs, plus an on-roof sea…
Multi-Layer Roofing Solution
One mill that sells two (or three) roof profiles, and a barrel corrugator that s…
Wide-Format Roofing Production Solution
Buyers type “3 m roofing” for four different jobs: a 3 m cut length on a roof mi…
Related Information
Downpipe and Gutter Roll Forming Machine: Profiles, Sizes and Production Line
Downpipe sizes (2x3, 3x4, 4x5), K-style vs rectangular gutters, machine configur…
Read More
Gutter & Downpipe Roll Forming Machine: K-Style, Box and Half-Round Lines
gutter roll forming machine, downpipe roll forming machine, k style gutter machi…
Read More
Galvanized Steel Roofing Sheets: SGC400, Z275, and Coating Standards Explained (2026)
Understand SGC400, Z275 and related coating standards for galvanized steel roofi…
Read More
Roofing Sheet Roll Forming Machine: Corrugated, Trapezoidal & IBR Profiles Explained
Corrugated vs trapezoidal vs IBR roofing profiles — what each looks like, where…
Read More
Steel Roofing Sheet Profiles and Dimensions: A Buyer's Reference Guide
840, 900, 750, IBR, corrugated, standing seam — what do these roofing sheet prof…
Read More
Cold Roll Forming Process for Metal Roofing: From Coil to Roof Sheet
cold roll forming process metal roofing, roof sheet roll forming process, how ro…
Read More
FAQ
How is the correct gutter size and cross-sectional area calculated for a roof?
Gutter sizing follows rainfall intensity formulas (e.g., DIN EN 12056 / AS 3500) based on roof catchment area, local 100-year storm rainfall rates (mm/hr), roof pitch, and downspout outlet spacing, ensuring 20%+ freeboard safety margins.
What is the difference between seamless K-style and half-round gutters?
K-style gutters feature a flat back and decorative tiered front profile holding higher water volumes per width. Half-round gutters have a semicircular cross-section that produces smoother laminar flow, reducing debris accumulation.
How are thermal expansion and contraction managed on long industrial gutter runs?
For runs exceeding 20–25 meters, prefabricated rubberized expansion joints or stepped sump transitions are installed at designed intervals to allow thermal expansion without breaking sealant or popping mechanical fasteners.
What materials provide the best corrosion resistance for coastal metal gutters?
Galvalume (AZ150), aluminum alloys (AA3003/3004), or Grade 316 stainless steel with PVDF coatings are recommended to withstand airborne sea salt aerosols, providing 25 to 50 years of maintenance-free service.
What types of hanger brackets are used to secure gutters against heavy snow and wind?
Options include heavy stamped galvanized hidden hangers installed every 600–800 mm with structural drive screws, heavy-gauge external wraparound brackets, and reinforced snow straps over the gutter top.
Can gutters be pre-painted to match custom RAL building colors?
Yes, gutters are manufactured from prepainted coils with high-durability polyester, SMP, or PVDF finishes matching all standard RAL colors with high UV and chalking resistance.
What accessories are supplied with complete gutter installations?
Complete systems include precision stamped end caps, inside/outside mitered corner joints, drop outlets (nozzles), leaf guard mesh screens, expansion joint sleeves, and high-performance neutral-cure silicone sealants.
