Width Adjustable 100-600mm Automatic Light Weight Supermarket Display Shelf Panel Roll Forming Machine SM-SPM+customized

Width Adjustable 100-600mm Automatic Light Weight Supermarket Display Shelf Panel Roll Forming Machine SM-SPM+customized

Name: Width Adjustable 100-600mm Automatic Light Weight Supermarket Display Shelf Panel Roll Forming Machine SM-SPM+customized
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT27736055

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

SM-SPM

Specification:

customized

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Product Description

Main Roll forming machine technique data:

1. Materials to form: According to the customers’ requirementwidth 200-610mm, adjustable by PLC automatically, width from 100-600mm, also can do 200-900mm, thickness 0.7-1.2mm
2. Forming steps: About 18 steps
3. Material of rollers:GCr15 steel, precision-machined, high frequency quenching HRC58-62, diameter of rollers: ＞￠150
4. Material of main shaft : 45# high quality steel (diameter＞￠50)
5. Chains’ material: 45# steel, high frequency quenching, circular pitch:1; number of teeth: 13
6. Cutting: Hydraulic cutting; quenching HRC58-62

7. Electronic control: PLCcontrol
8. Dimension of machine: 10000mmX1000mmX900mm
9. Drive system: Chain drive, 11KW main motor power, working speed:3-5m/min;
10. Welding structure: material of fixed beam and walking beam: hot-rolled steel, the base and rack are be gantry planer
processing after welded, work platform is not allowed stress deformation; main machine table-board’s plainness ＜2mm/1000mm
11. Parts: Slide: imported from Japan; bearing: Zhonghang Brand of Harbin
12. Punching: Punching the holes at the press machine before forming the shapes
13. Bending: Bending after the hydraulic cutting

	Name	Quantity (set)
1	5 ton hydraulic De-coiler	1 set
2	Servo feeder	1 set
3	Hydraulic punching device	1 set
4	Hydraulic cutting & bending machine	1 set
5	Main roll forming machine	1 set
6	Run out table	2 sets
7	Control box	2 sets

Product Display

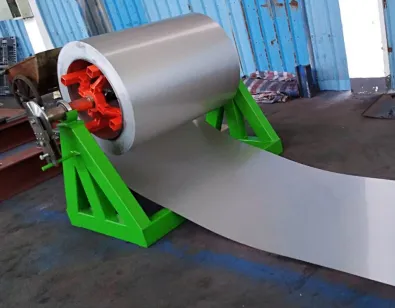

5 ton Passive Decoiler

Coil inner Diameter: ￠460-520mm
Max out diameter of the coil: ￠1500mm
Max Coil Width: 1250mm

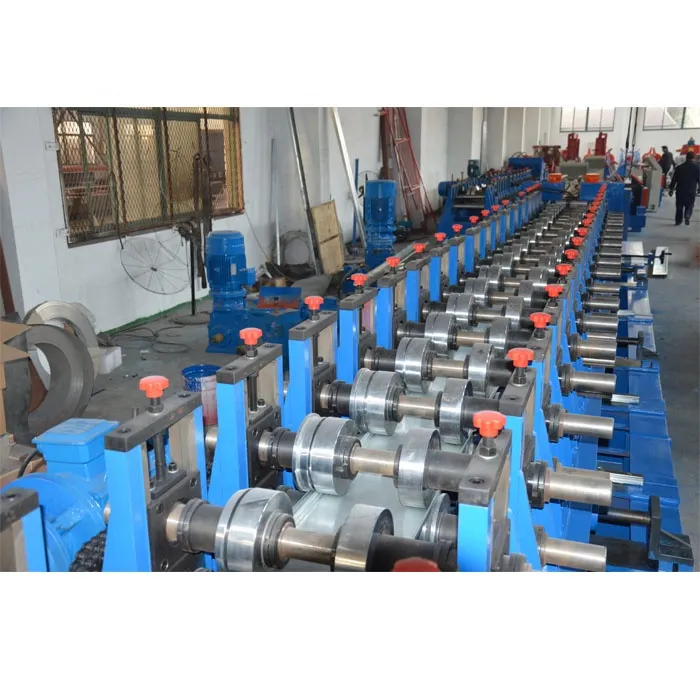

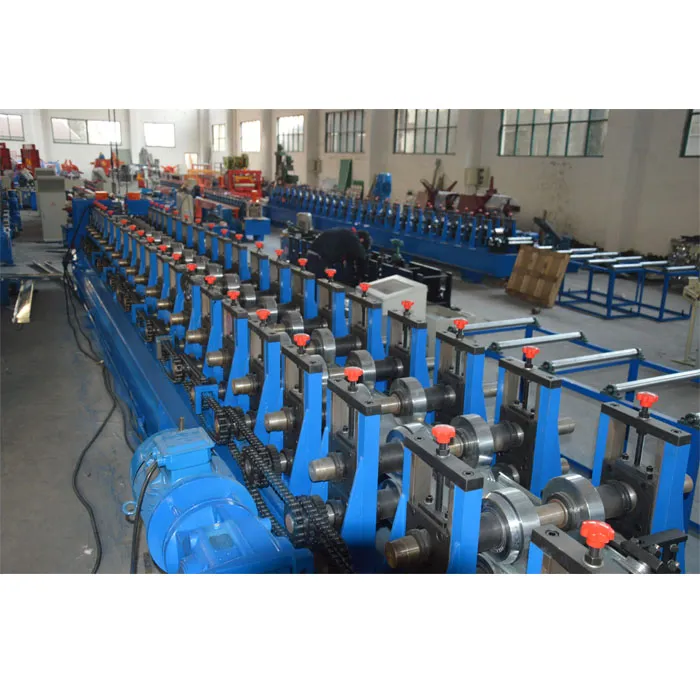

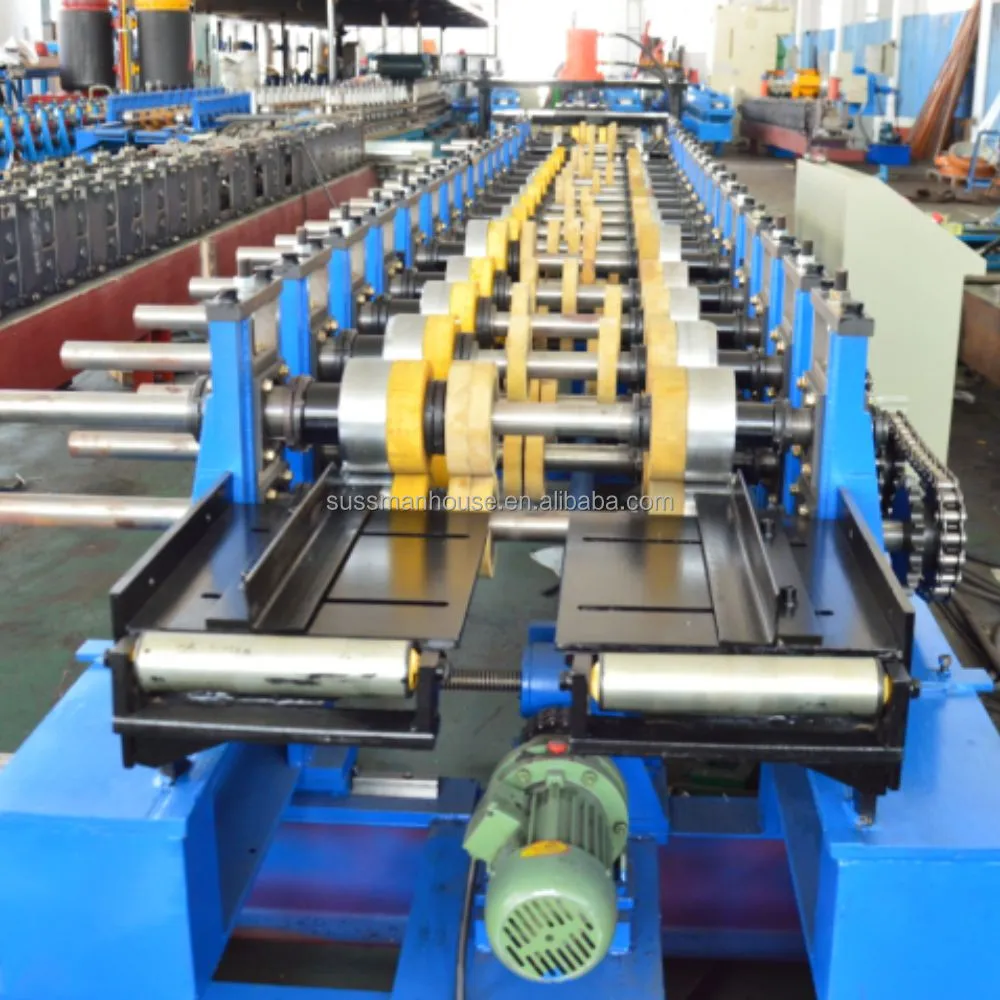

Main Roll Forming machine

According to the customers’ requirement width 200-610mm, adjustable by PLC automatically, thickness 0.5-1.0mm, length is variable
from 0-10000mm

Hydraulic Punching Device

Feeding Servo feeding motor: about 1.8kw Delta Brand
Description: servo feeding can control the punching distance in precision, controlled by PLC, and the feeding tolerance can
be+-0.05mm, the servo motor can control the speed, and can accept the input signal, and react quickly, and performance well, the
touch screen can display the rotating speed, the length and the quantity, it can be controlled by the manual and auto modes.

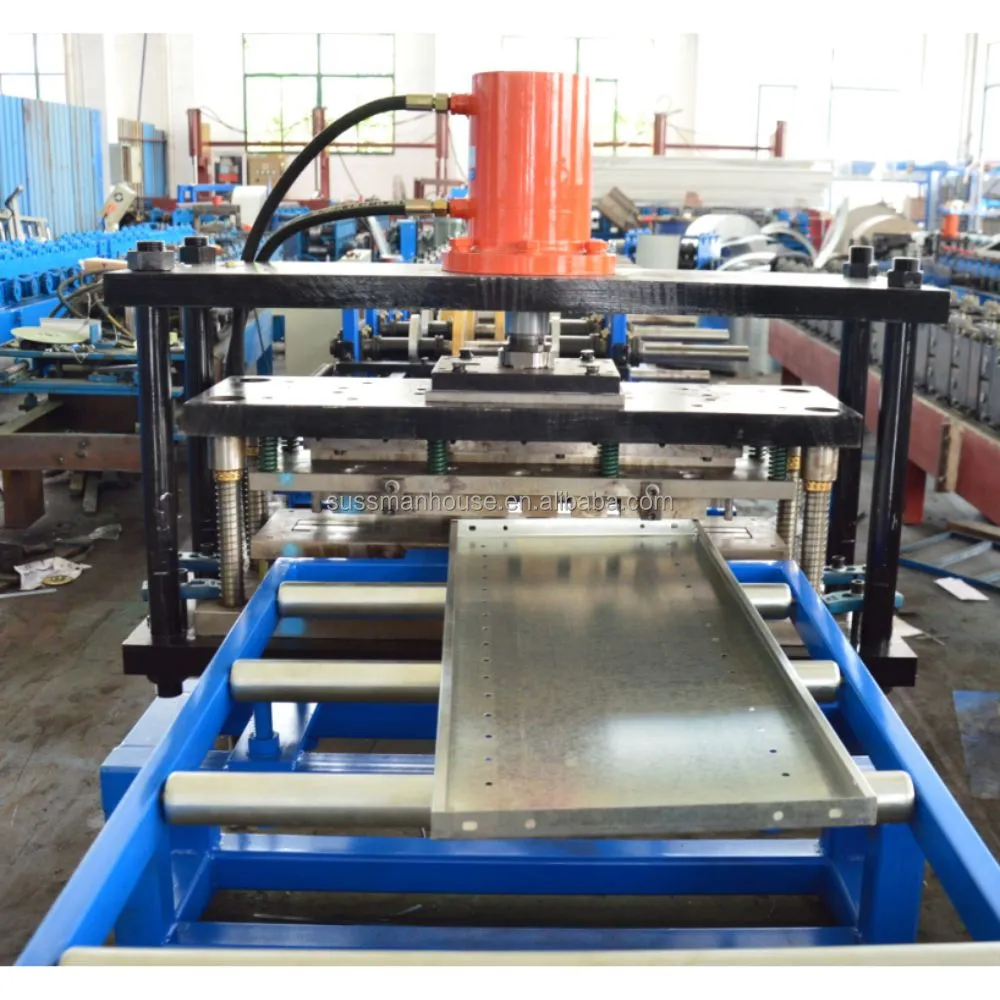

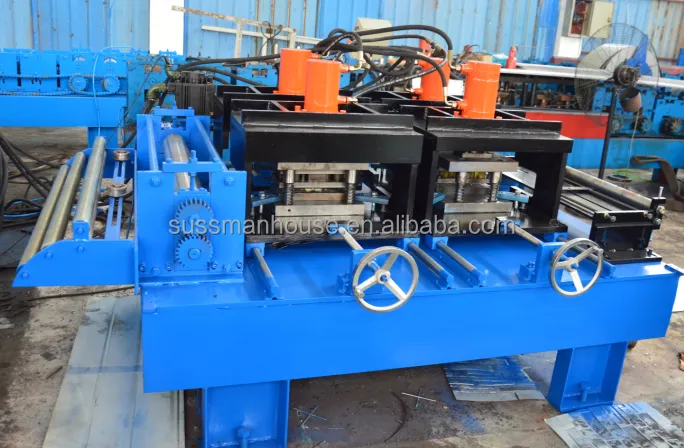

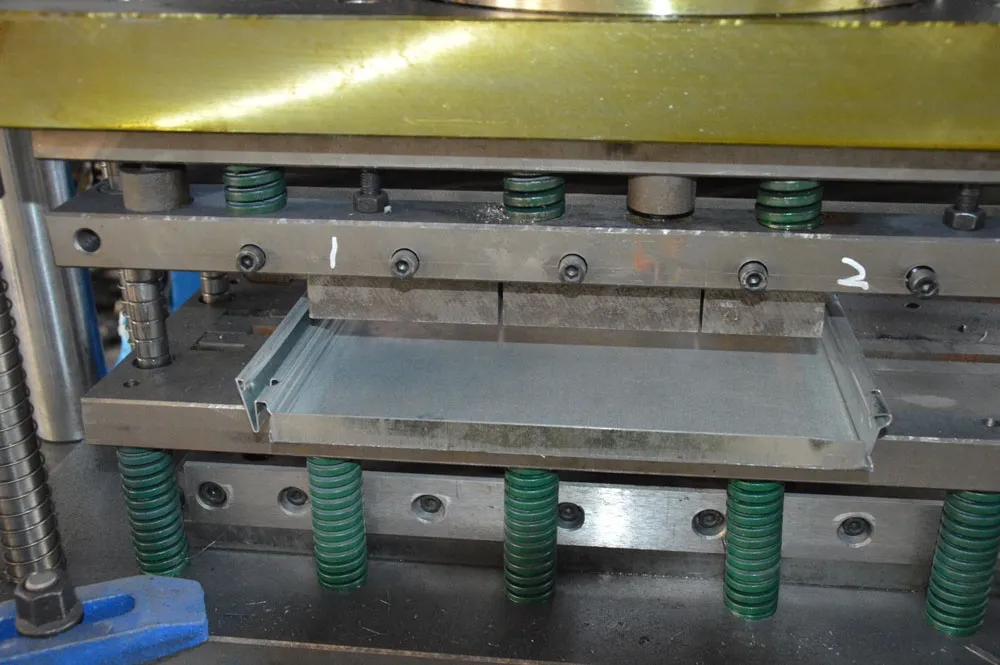

Hydraulic Cutting & Bending Device

Bending after cutting

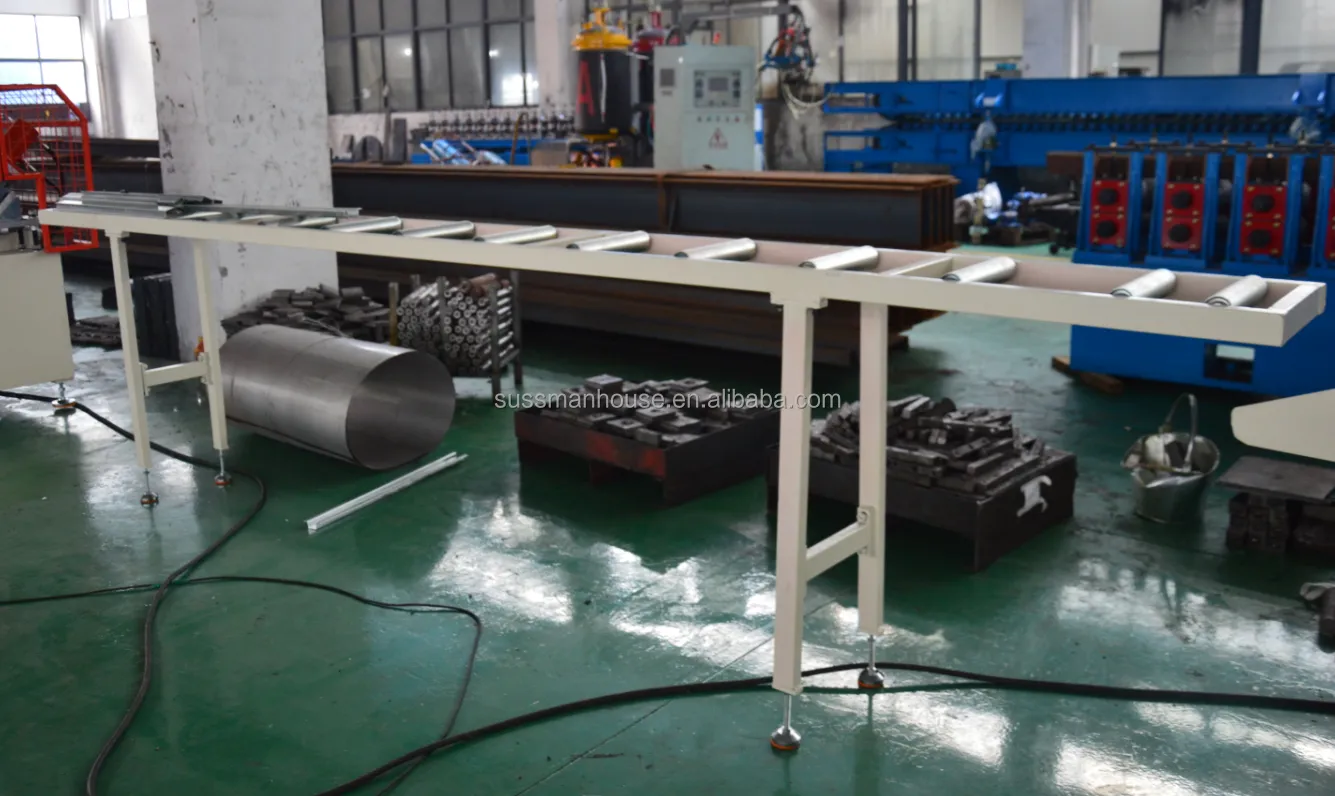

Output table

1. Length: 6 meters
2. Number: 1unit

Application

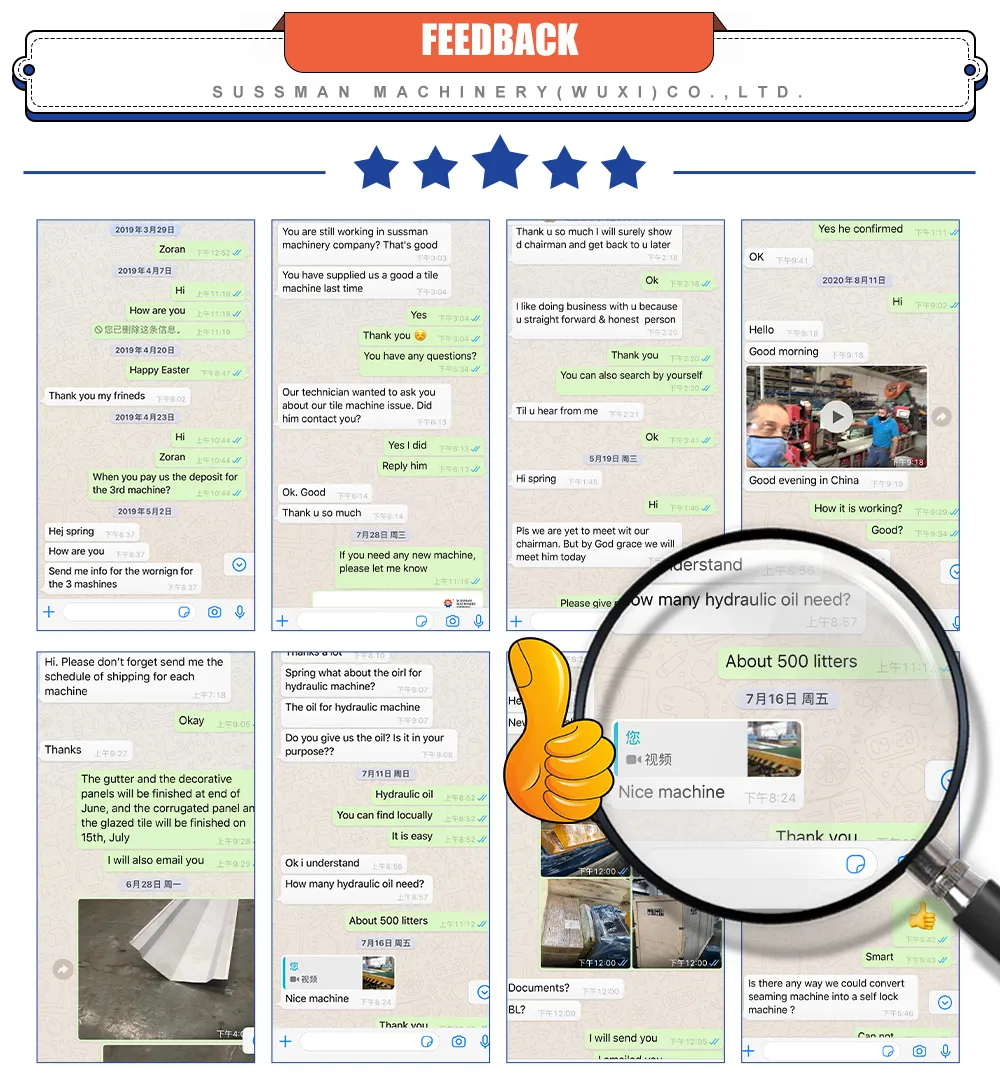

Feedback

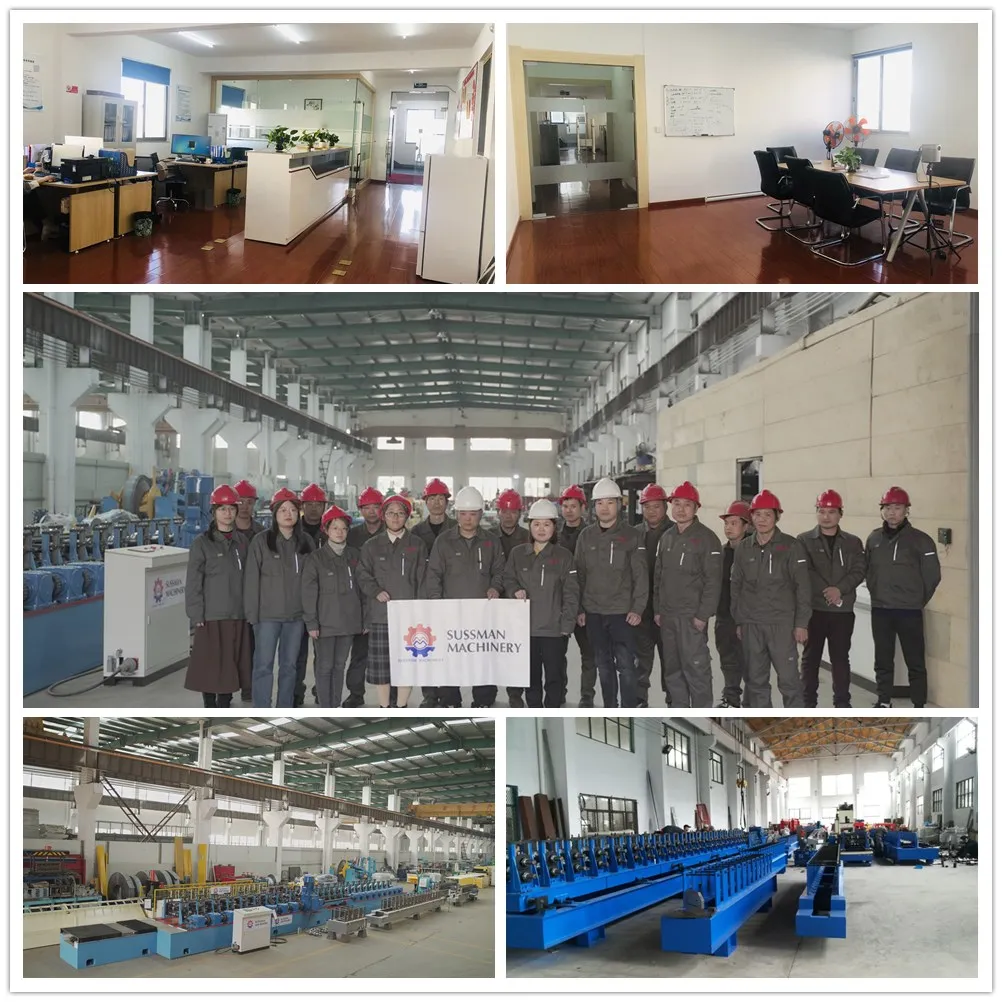

About Us
