2.0mm Thickness Galvanized Steel Fence Post Rack Steel Forming Machine Palisade Rollformer SM-FP+150MM

2.0mm Thickness Galvanized Steel Fence Post Rack Steel Forming Machine Palisade Rollformer SM-FP+150MM

Name: 2.0mm Thickness Galvanized Steel Fence Post Rack Steel Forming Machine Palisade Rollformer SM-FP+150MM
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT27505434

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

SM-FP

Specification:

150MM

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Product Description

A fence post roll forming machine is a type of industrial equipment used to manufacture metal fence posts in a continuous, high-speed, and automated process. These machines are widely used in the construction, agriculture, and security sectors for the production of fence posts made from galvanized steel, pre-painted steel, aluminum, or stainless steel.

----------------------------------------------------------------------------------------------------------------------------------

What is a Fence Post Roll Forming Machine?
A fence post roll forming machine is a production line that transforms flat metal coils into various shaped fence posts by passing the metal through a series of rollers. Each roller gradually bends the metal until the desired profile is achieved.

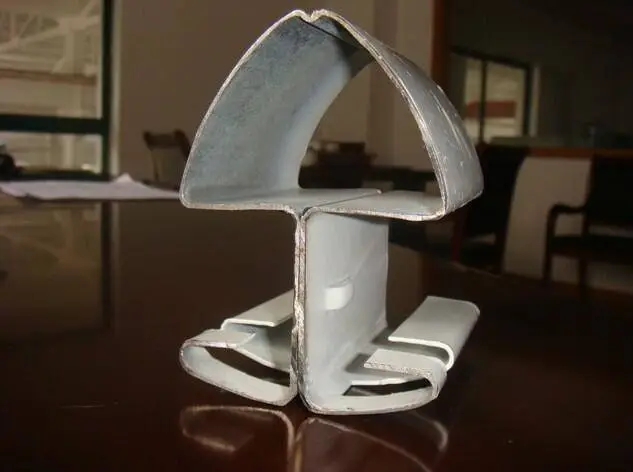

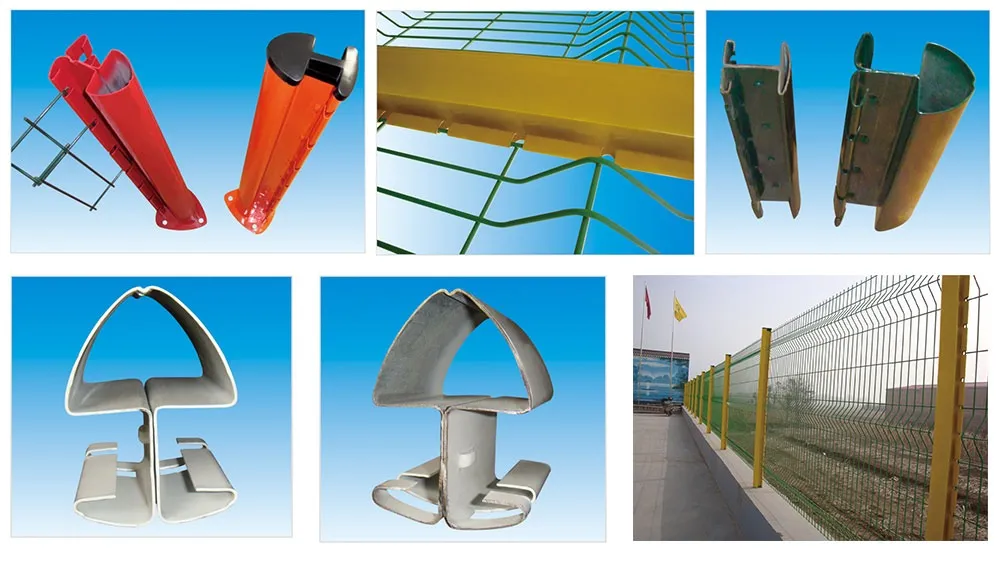

Common Fence Post Shapes:
* C Post

* Y Post (Star Picket)

* U Post

* T Post

* Square or Rectangular Post

These shapes are commonly used for:
* Wire mesh fencing

* Chain link fences

* Barbed wire fencing

* Agricultural field fencing

* Security perimeter fencing

----------------------------------------------------------------------------------------------------------------------------------

Main Components of the Machine
1. Uncoiler – Feeds the raw metal coil into the machine.

2. Leveling Device – Flattens the coil and prepares it for forming.

3. Servo Feeder + Hydraulic Punching – Adds holes or slots for bolts or wire connections.

4. Roll Forming Unit – Series of hardened rollers shape the metal.

5. Cutting Device – Hydraulic or flying saw cutter for precise cutting to length.

6. Control System – PLC control panel for automatic operation, length adjustment, and punching position setting.

7. Output Table – Holds the finished fence posts for collection.

----------------------------------------------------------------------------------------------------------------------------------

Key Features
* High Speed: Produces posts continuously at speeds of up to 15–30 meters per minute.

* Customizable Profiles: Machines can be designed for different shapes, sizes, and thicknesses.

* Hydraulic Punching: Integrated for fast and clean punching of holes or slots.

* Adjustable Sizes: Some advanced machines allow for adjustable width and height.

* Heavy-Duty Design: Built with strong materials for stability and durability.

----------------------------------------------------------------------------------------------------------------------------------

Typical Specifications
Item Specification
Material Thickness 1.2 – 3.0 mm
Material Width 80 – 300 mm
Profile Shapes C, U, Y, T, Square
Speed 10 – 30 m/min
Roller Stations 12 – 24
Drive Type Chain or gearbox driven
Control System PLC (Siemens, Delta, etc.)
Cutting System Hydraulic or flying cut-off
Power 15 – 30 kW (depending on machine type)

----------------------------------------------------------------------------------------------------------------------------------

Applications
* Agriculture: Fencing farms, vineyards, orchards

* Construction: Temporary fencing on job sites

* Highways: Guardrails and protective barriers

* Security: Border fencing and property enclosures

* Gardening: Residential garden fences

----------------------------------------------------------------------------------------------------------------------------------

Advantages
* Cost-effective: High production rate lowers per-unit cost.

* Consistency: Produces uniform, high-quality fence posts.

* Customization: Easy to switch tooling for different post types.

* Automation: Reduces labor and increases safety.

* Durability: Posts can be galvanized or coated for corrosion resistance.

----------------------------------------------------------------------------------------------------------------------------------

Optional Add-ons
* Automatic stacker

* Labeling or stamping unit

* Quick-change roller system

* Remote monitoring system

* Edge embossing for added strength

Machine list	3 tons passive de-coiler	1 set
		Feeding with guide	1 set
		Main roll forming machine	1 set
		Hydraulic cutting	1 set
		Control box	1 unit
		Hydraulic station	1 unit
		Out table	1 set
		Safety cover	1 set
		Spare parts	1 package

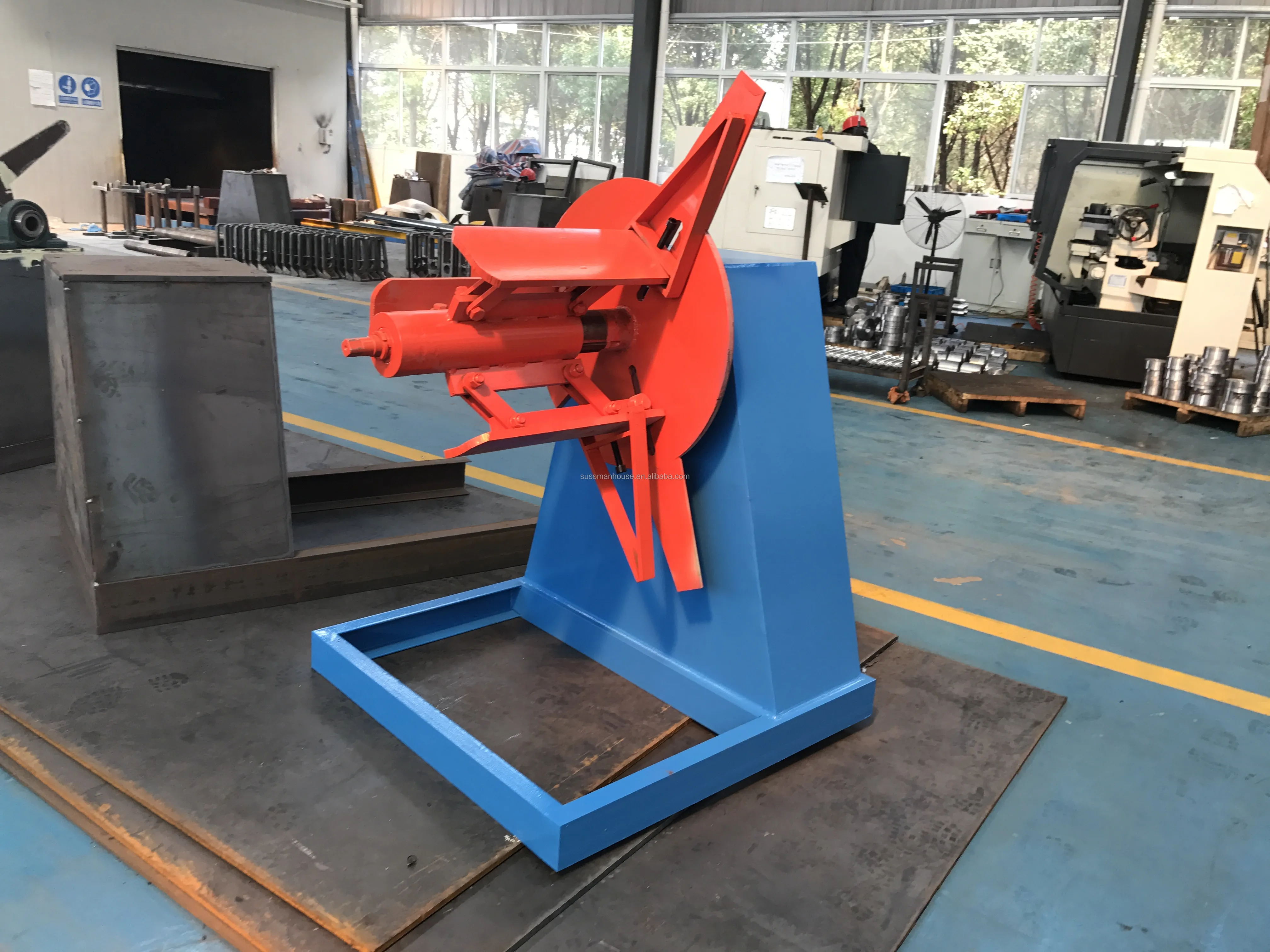

5 tons passive decoiler

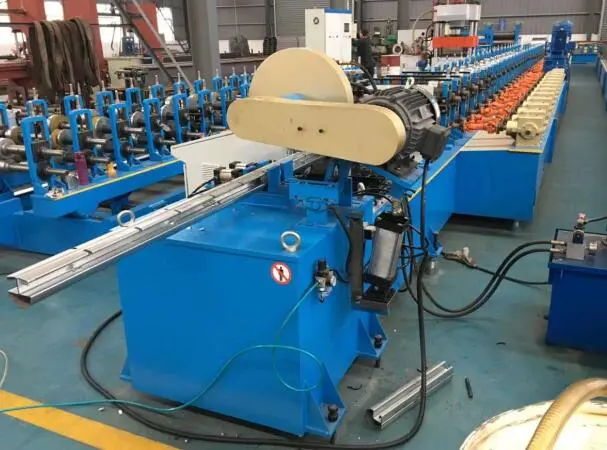

Main roll forming machine

Hydraulic station

Control box

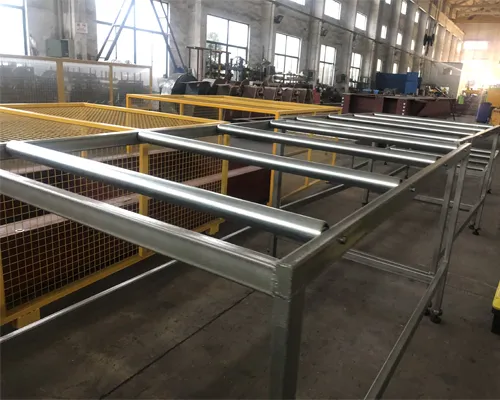

Passive out table
