Product Description

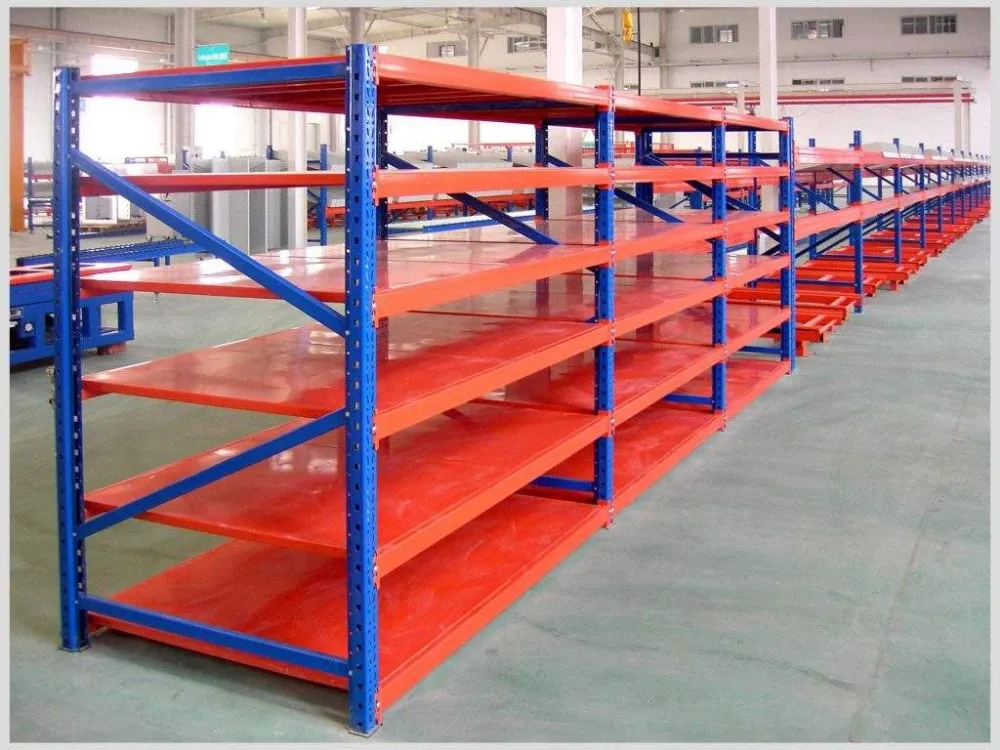

Warehouse shelf upright system roll forming machine is widely used to produce upright post, shelf panel, back panel/ board, box beam and step beam machine, beam welding machine.
The machine can do thickness is from 0.7-1.2mm with raw material Cold-rolled Steel, Galvanized Coil, Carbon steel.
The shelf box machine is together with the top hat machine to make the shelf box for the supermarket shelf. Sussman Shelf box machine is included the de-coiler, the hydraulic punching device, the main roll forming machine, and the hydraulic cutting device.
The shelf box machine can make width from 100-600mm, also can do 200-900mm. It is the good choice for the supermarket shelf business.
Our produced profile meet ISO, CE, UL standards, and our machine is applied to Warehouse supermarket ,industry or home.
We have experience of exporting our pallet racking system roll forming machine to Mexico, Bangladesh, Costa Rica, Russia,Dominica, etc.

Main Roll forming machine technique data:
1. Materials to form: According to the customers’ requirementwidth 200-610mm, adjustable by PLC automatically, thickness 0.5-1.0mm, length is variable from 0-10000mm
2. Forming steps: About 18 steps
3. Material of rollers:GCr15 steel, precision-machined, high frequency quenching HRC58-62, diameter of rollers: ＞￠150
4. Material of main shaft : 45# high quality steel (diameter＞￠50)
5. Chains’ material: 45# steel, high frequency quenching, circular pitch:1; number of teeth: 13
6. Cutting: Hydraulic cutting; quenching HRC58-62

7. Electronic control: PLCcontrol
8. Dimension of machine: 10000mmX1000mmX900mm
9. Drive system: Chain drive, 11KW main motor power, working speed:3-5m/min;
10. Welding structure: material of fixed beam and walking beam: hot-rolled steel, the base and rack are be gantry planer
processing after welded, work platform is not allowed stress deformation; main machine table-board’s plainness ＜2mm/1000mm
11. Parts: Slide: imported from Japan; bearing: Zhonghang Brand of Harbin
12. Punching: Punching the holes at the press machine before forming the shapes
13. Bending: Bending after the hydraulic cutting

	Name	Quantity (set)
1	5 ton hydraulic De-coiler	1 set
2	Servo feeder	1 set
3	Hydraulic punching device	1 set
4	Hydraulic cutting & bending machine	1 set
5	Main roll forming machine	1 set
6	Run out table	2 sets
7	Control box	2 sets

Product Display

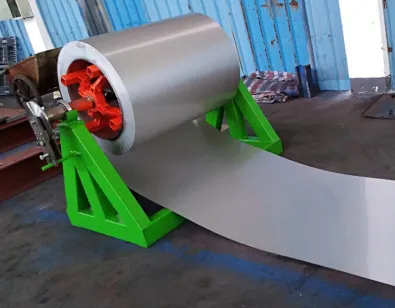

5 ton Passive Decoiler

Coil inner Diameter: ￠460-520mm
Max out diameter of the coil: ￠1500mm
Max Coil Width: 1250mm

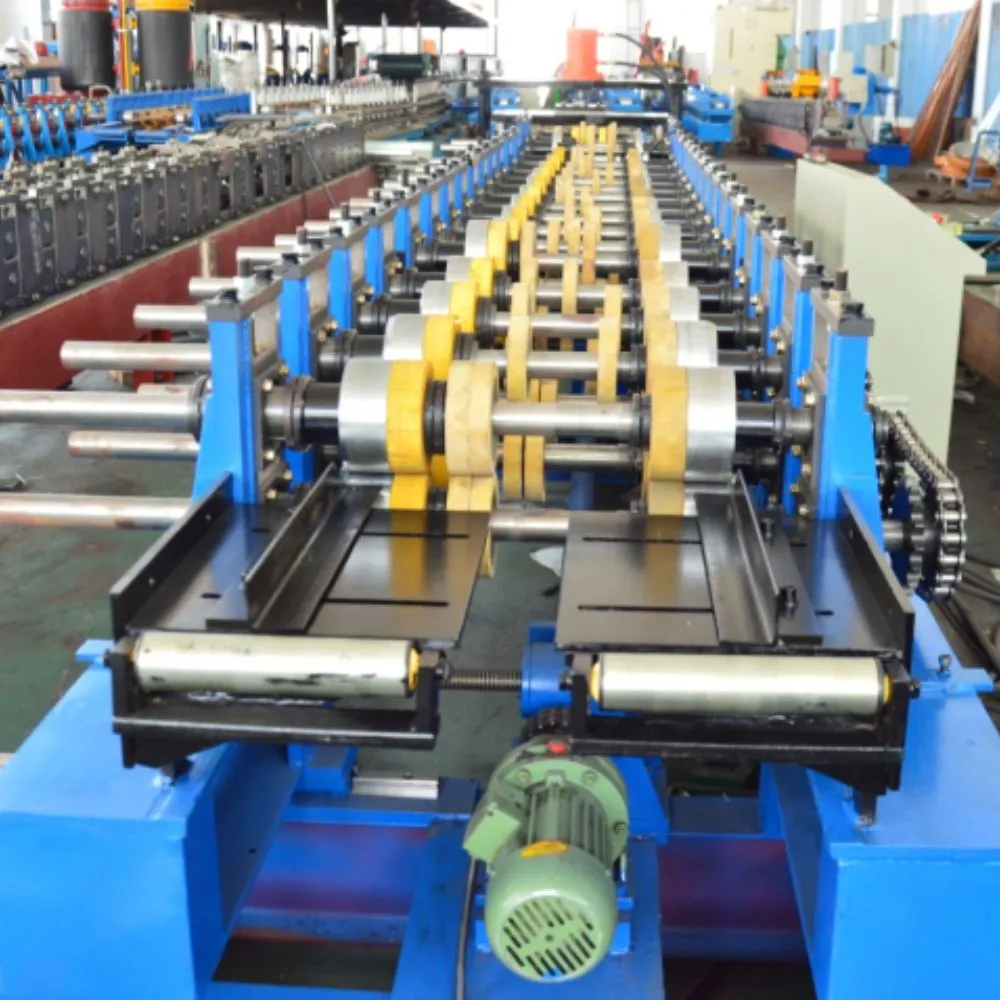

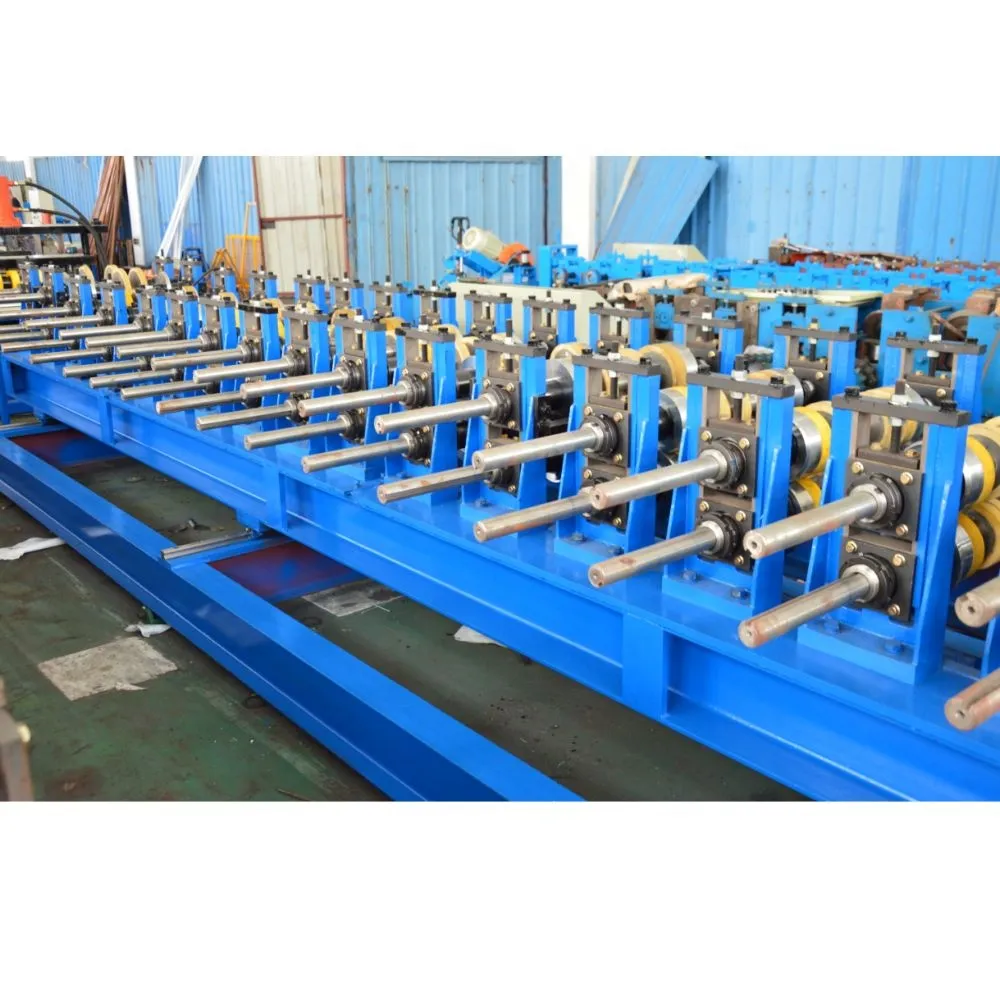

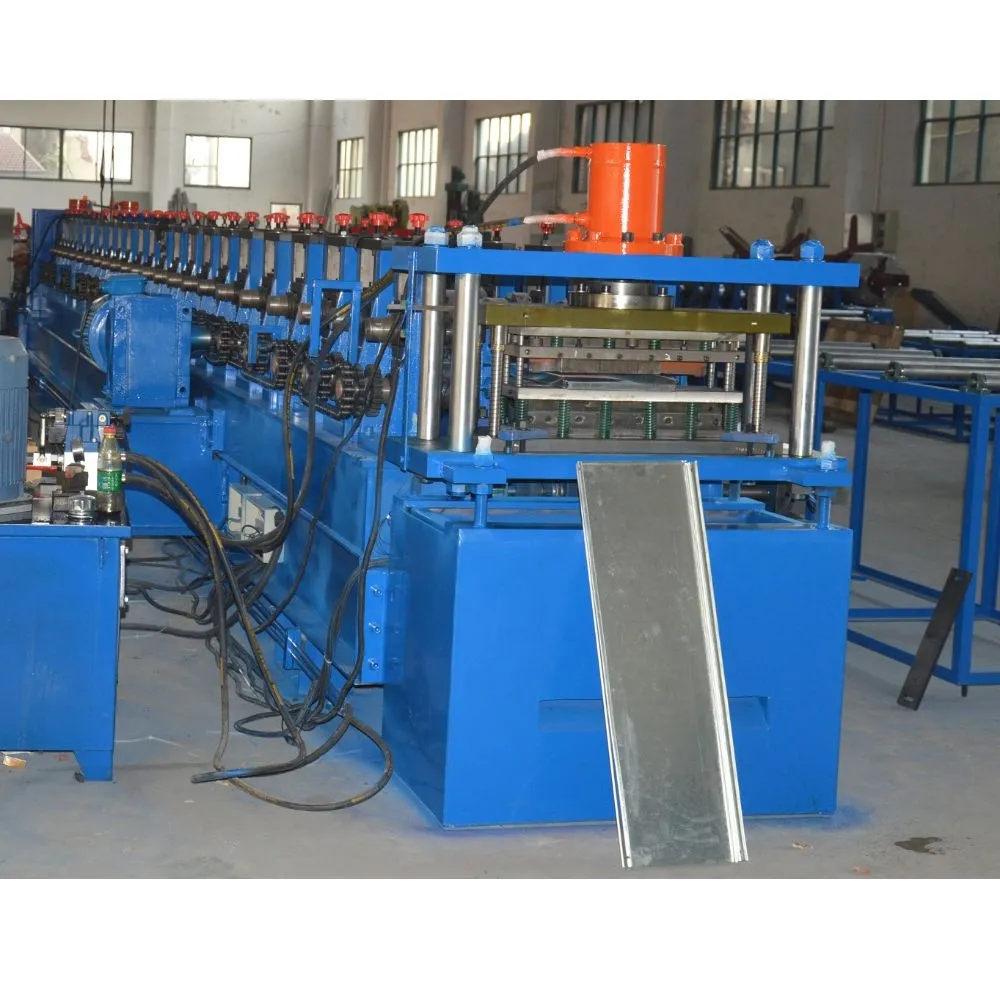

Main Roll Forming machine

According to the customers’ requirement width 200-610mm, adjustable by PLC automatically, thickness 0.5-1.0mm, length is variable
from 0-10000mm

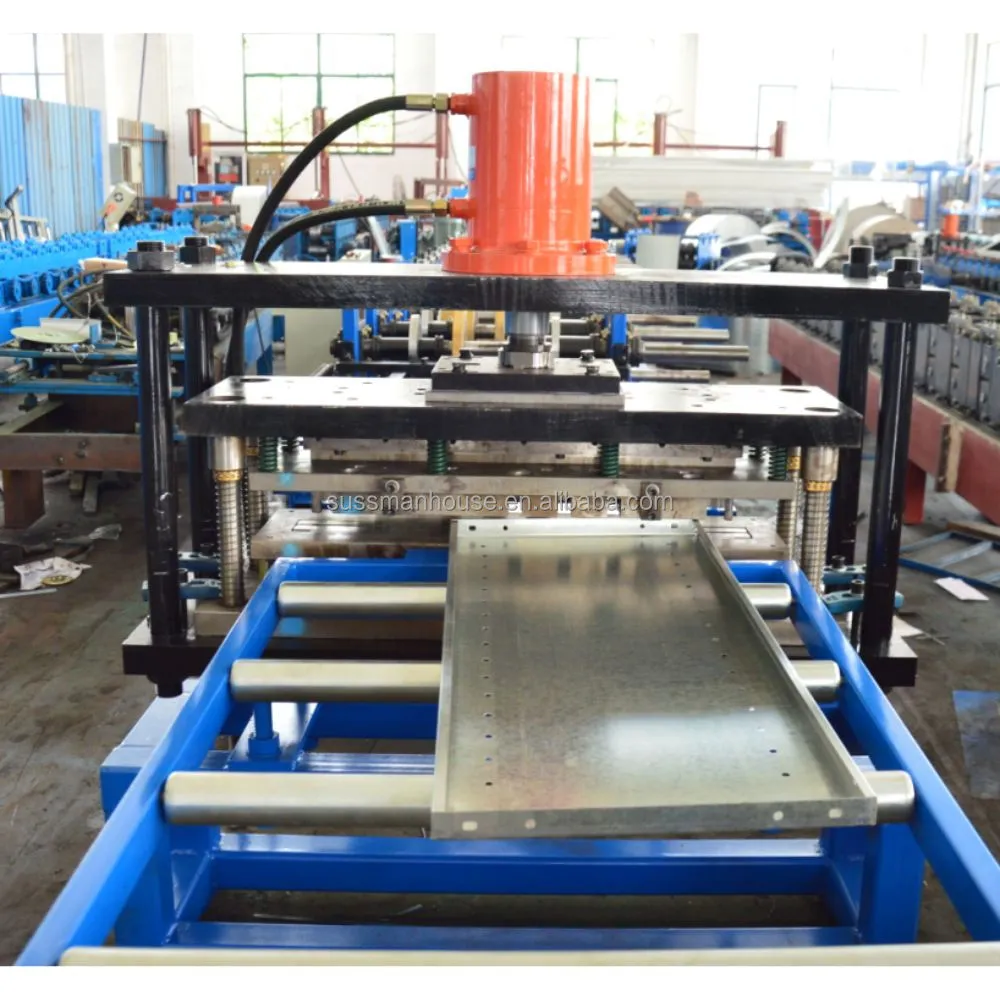

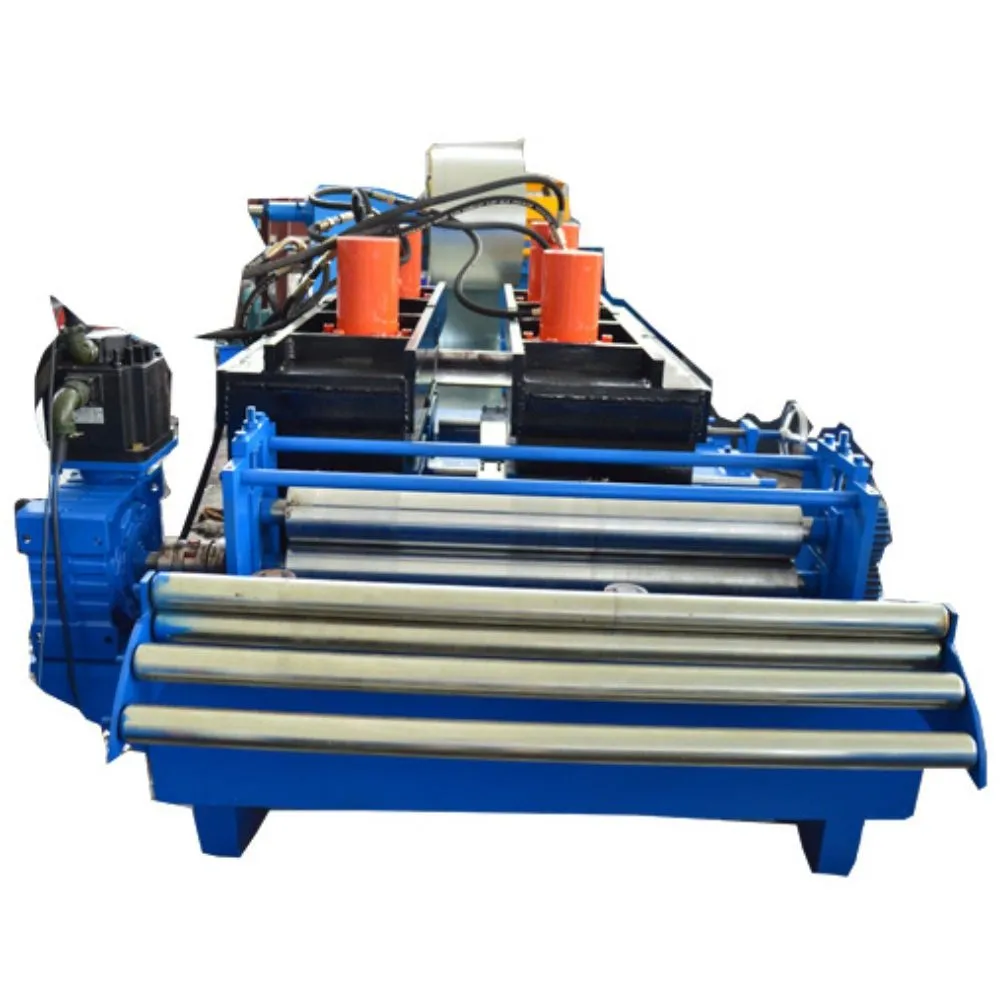

Hydraulic Punching Device

Feeding Servo feeding motor: about 1.8kw Delta Brand
Description: servo feeding can control the punching distance in precision, controlled by PLC, and the feeding tolerance can
be+-0.05mm, the servo motor can control the speed, and can accept the input signal, and react quickly, and performance well, the
touch screen can display the rotating speed, the length and the quantity, it can be controlled by the manual and auto modes.

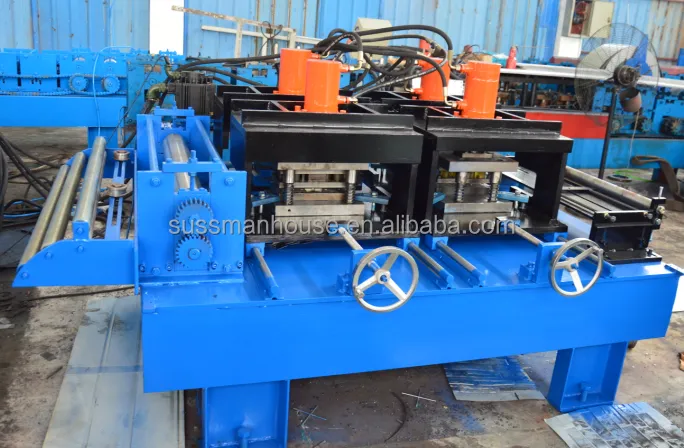

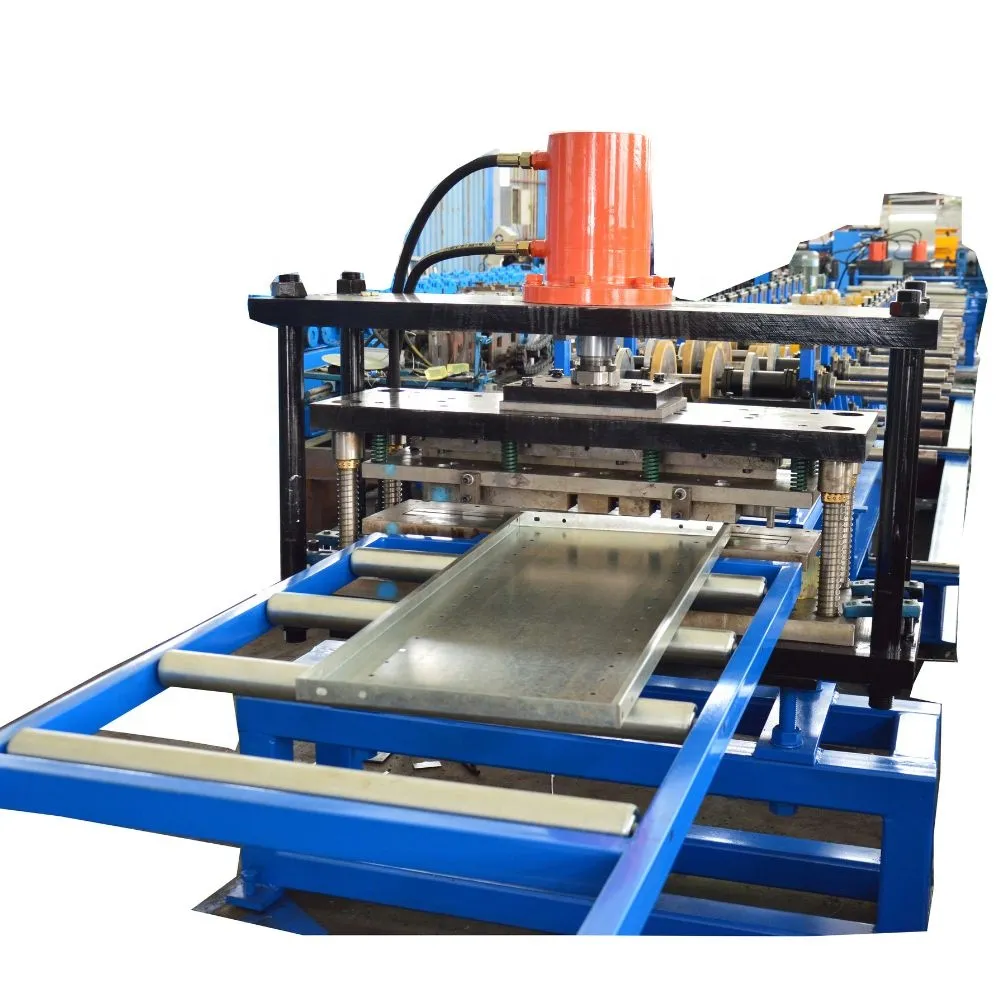

Hydraulic Cutting & Bending Device

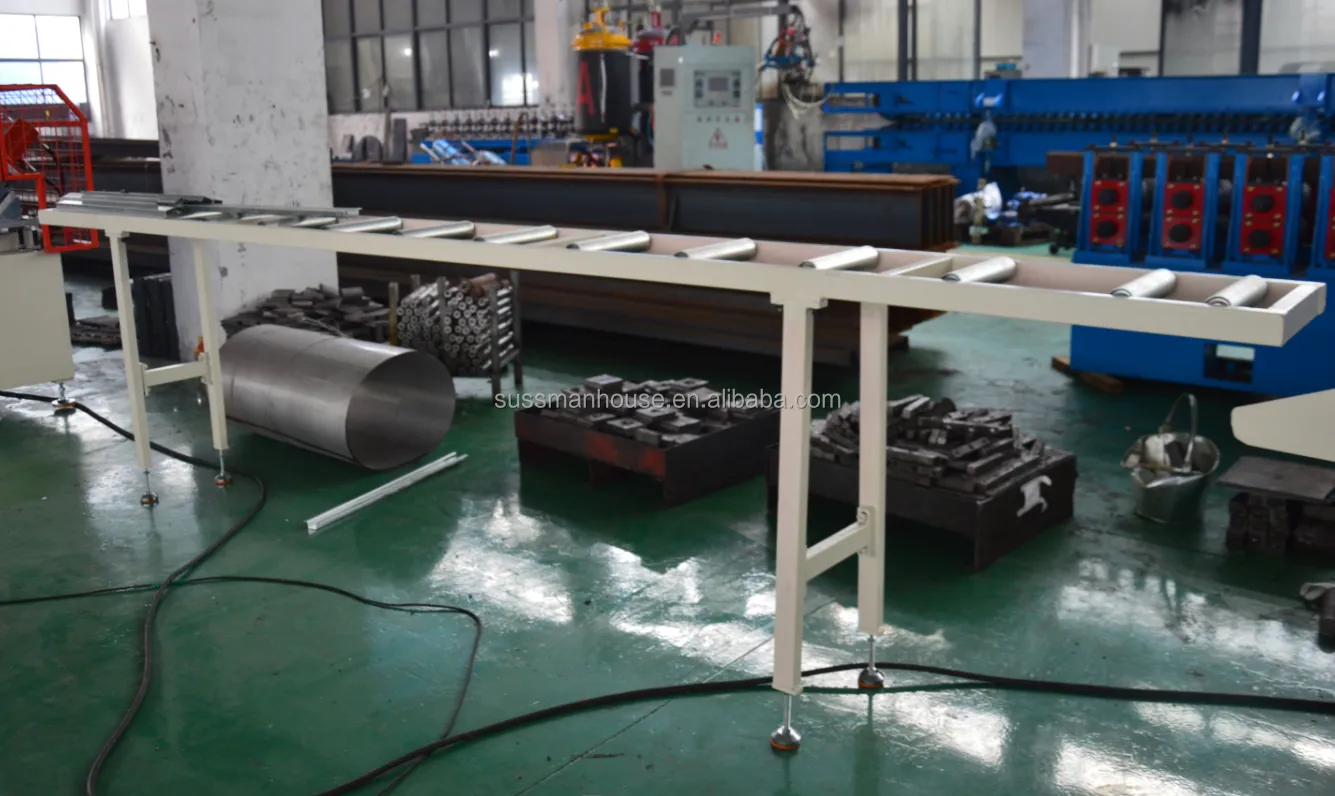

Output table

1. Length: 6 meters
2. Number: 1unit
