Product Description

Warehouse shelf upright roll forming machine is widely used in producing upright frame, box beam and step beam. Our intelligent roll forming machine could make wide range of sizes using cantilever type structure, and automatically change by motors from one size to the other not only at width but also at height. The one and only step is to put your required data into our touch screen and wait for few seconds. Machinable thickness is from 1.5-3mm with raw material Cold-rolled Steel, Galvanized Coil, PPGI, Carbon steel, Stainless Steel and Aluminum. Our produced profile meet ISO, CE , FEM standards, and our machine is applied to Warehouse ,supermarket ,industry or home.
We have experience of exporting our pallet racking roll forming machine to Pakistan, Mexico, Peru, Egypt, Australia and UK etc. In warehouse pallet racking system, we are able to manufacture more machines like Box beam roll forming machine, step beam roll forming machine and shelf panel roll forming machine etc.
We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service,adaptable for your every need. Whichever line you choose, the quality of Sussman Machinery will ensure you obtain perfectly functional profiles.

Main Roll forming machine technique data:
5.1. Suitable Plate Material: thickness 1.5-3.0mm, Galvanized steel or blank steel
5.2. Working Speed: 0-12 meters / min
5.3. Forming Steps: 18 stations
5.4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5.5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
5. 6. Drivensystem: Gear box
5.7. Main Power with reducer: 15KW WH Chinese Famous
5.8. Cutting: Hydraulic Cutting Cr12mov
5.9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
5.10. Hydraulic Station Power: 7.5KW Wuxi Wanshen Famous Chinese Brand
5.11. The whole machine is controlled by industry computer-PLC.
5.12 PLC--Panasonic, Japan English and Chinese Language
* Touch Screen--Panasonic Japan
* Encoder--Omron, Japan
* Electric parts--Schneider

S.N	Equipment name	Quantity
1	3T hydraulic un-coiler with coil car	1 set
2	Leveling device	1 set
3	Servo feeding device	1 unit
4	Press machineJH21-110	1 unit
5	Main roll forming machine	1 set
7	Cutting holder	1 set
8	Hydraulic station	1 set
9	Control system ( including control box)	1 set
10	Out tables	2 units
11	Spare parts	1 package
12	Servo following Cutting dies	3 sets
13	Punching die set	3 sets
14	Gear box driven system	1 set

Product Display

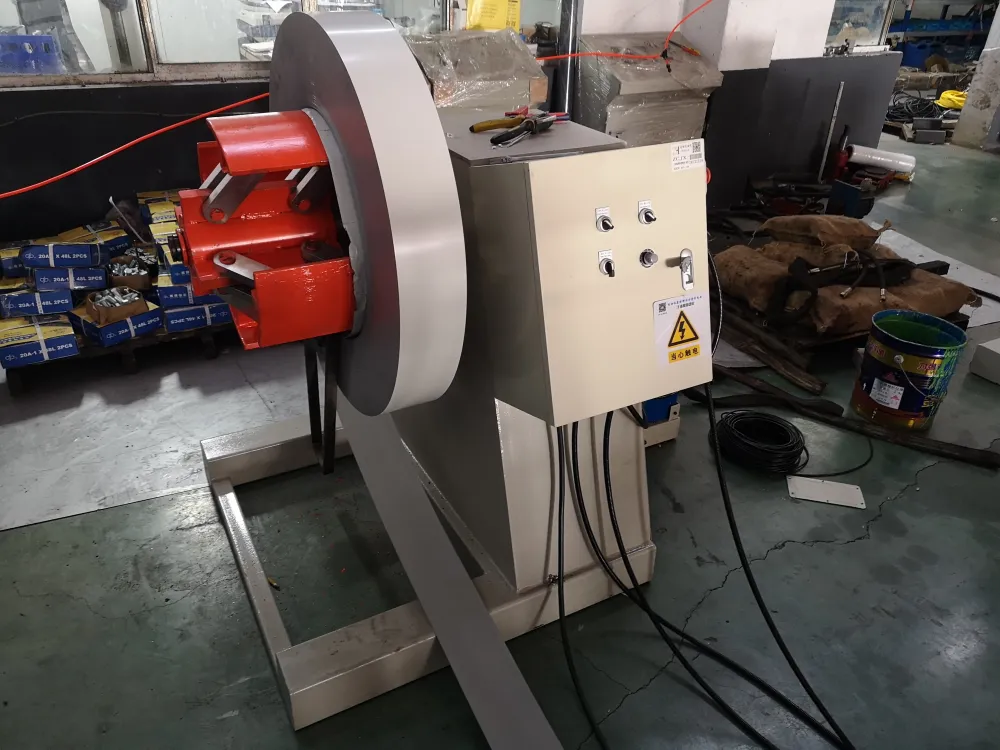

3 ton hydraulic De-coile

Diameter: 460-520mm expansion.
Expansion: hydraulic
Capacity: 3000kg per mandrel

Press machine

To punch holes

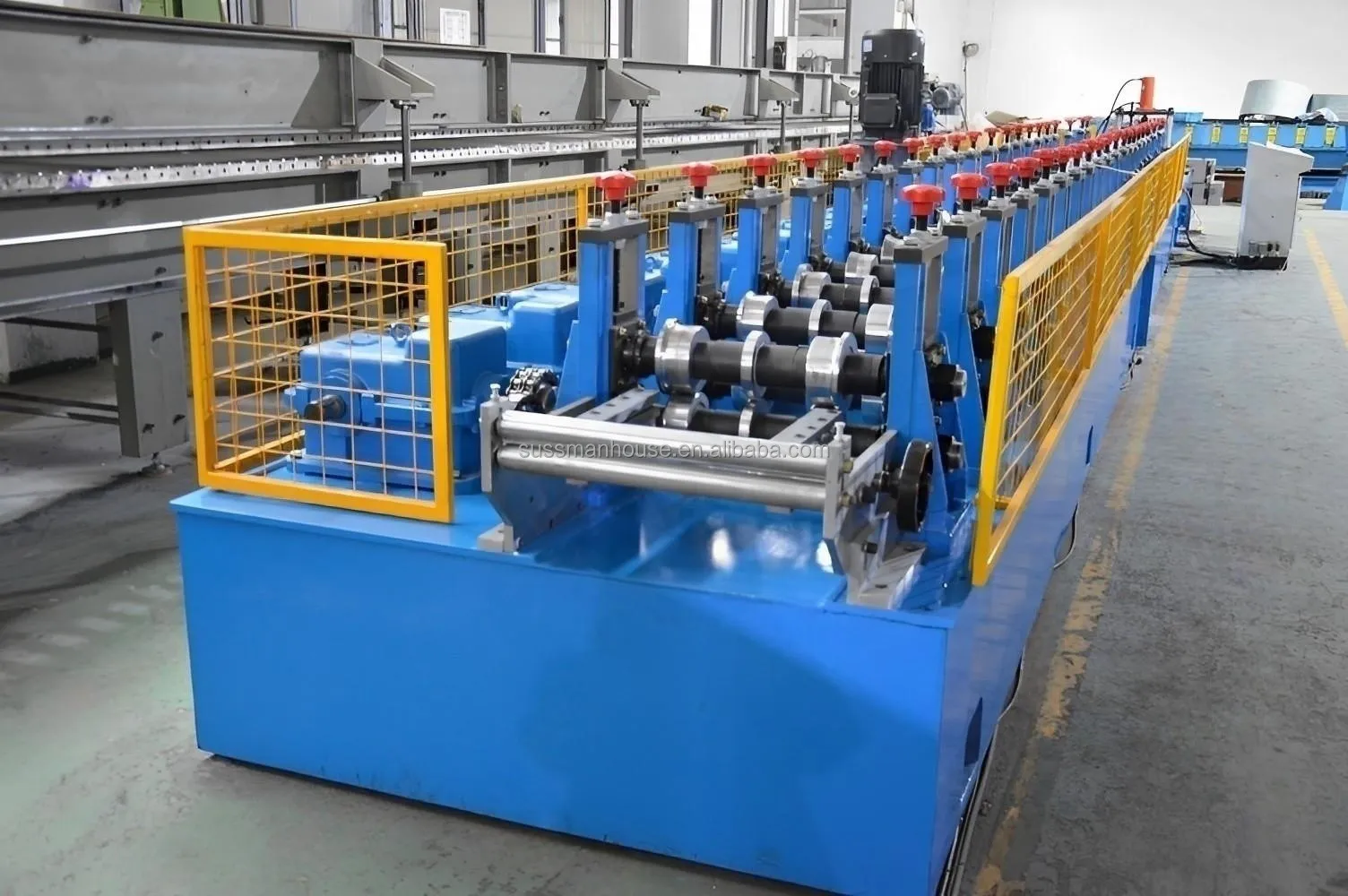

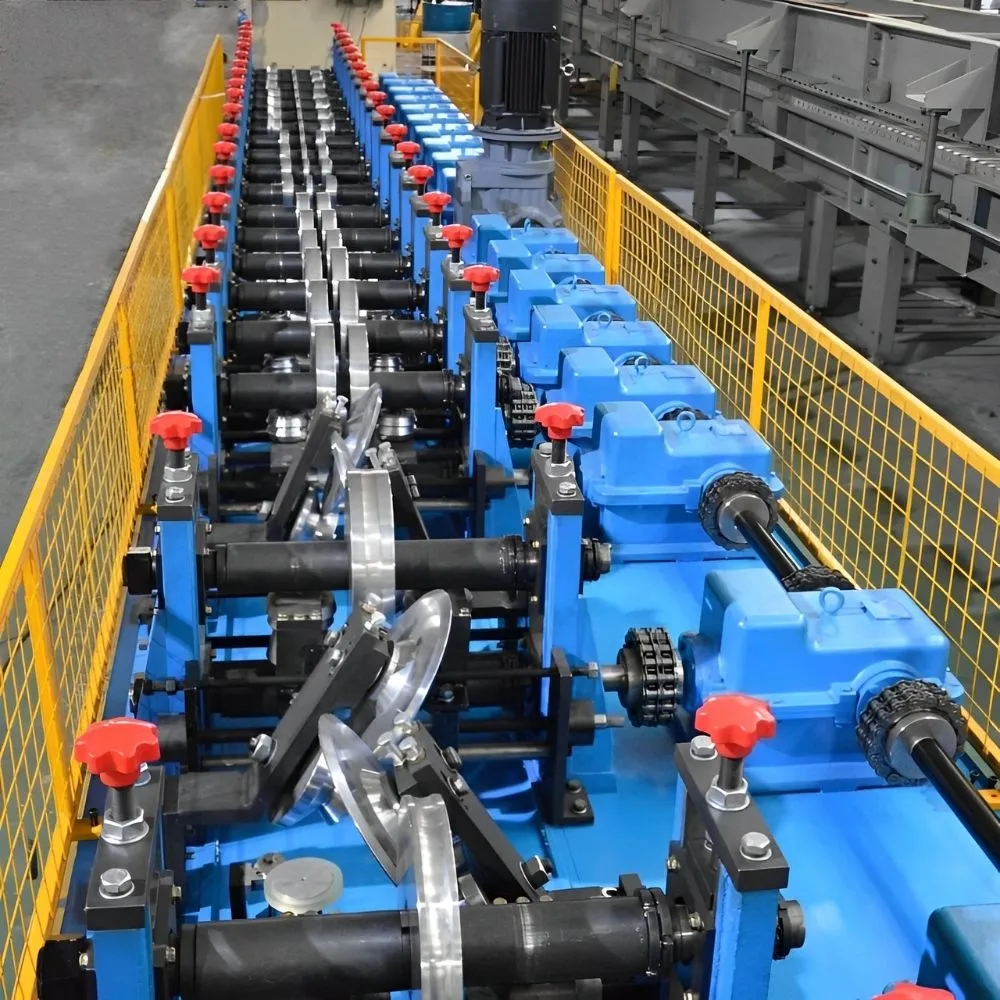

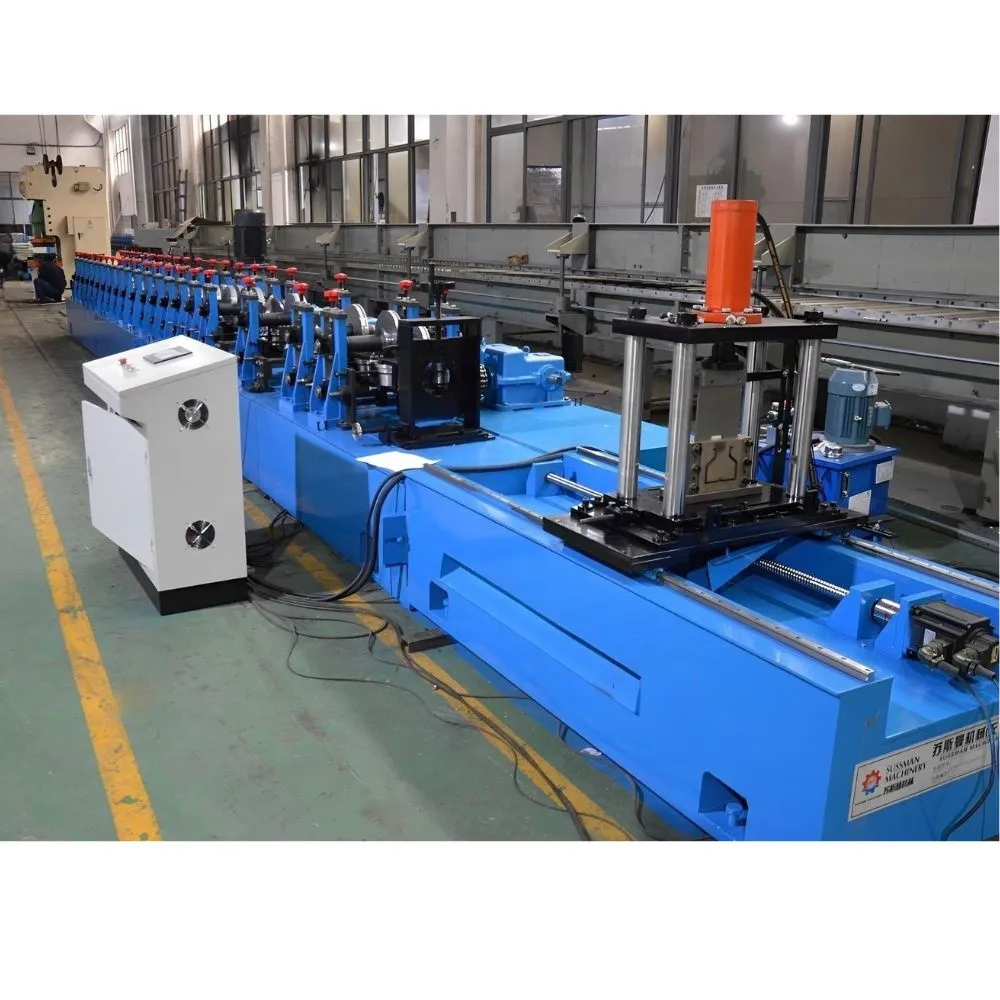

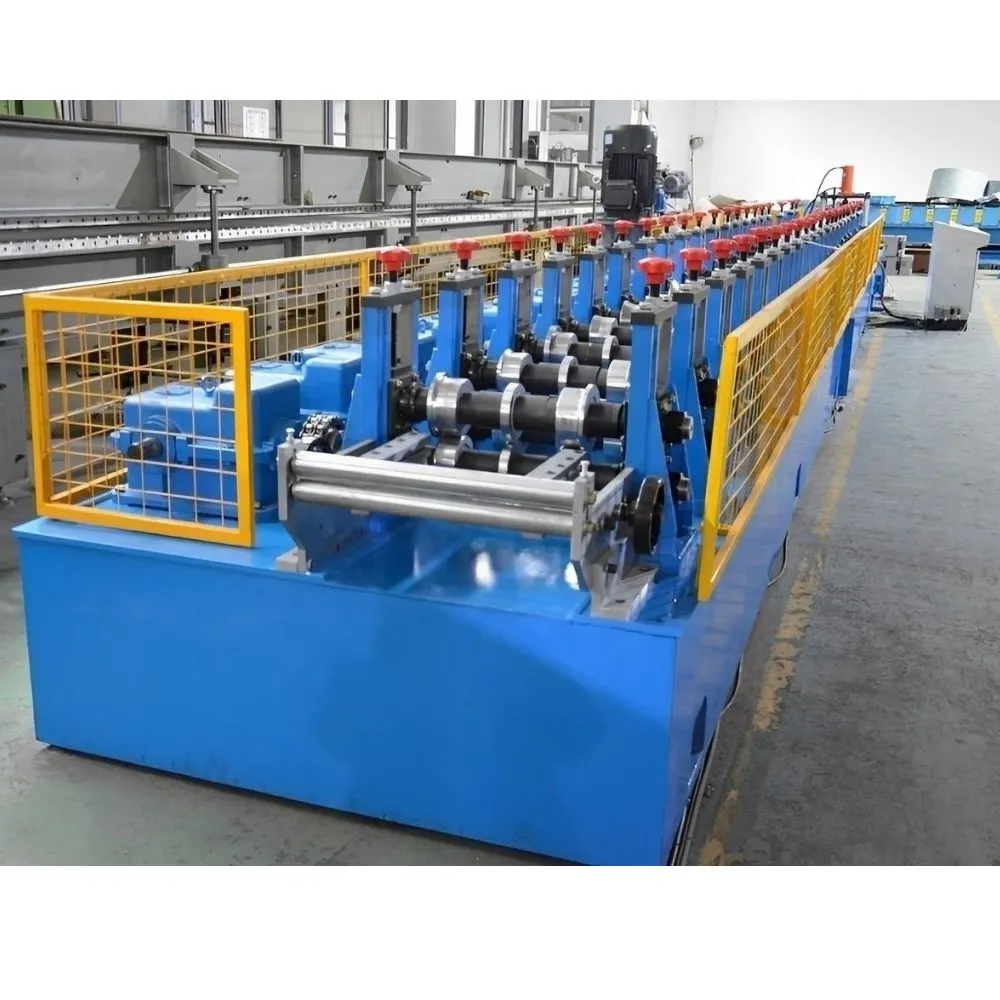

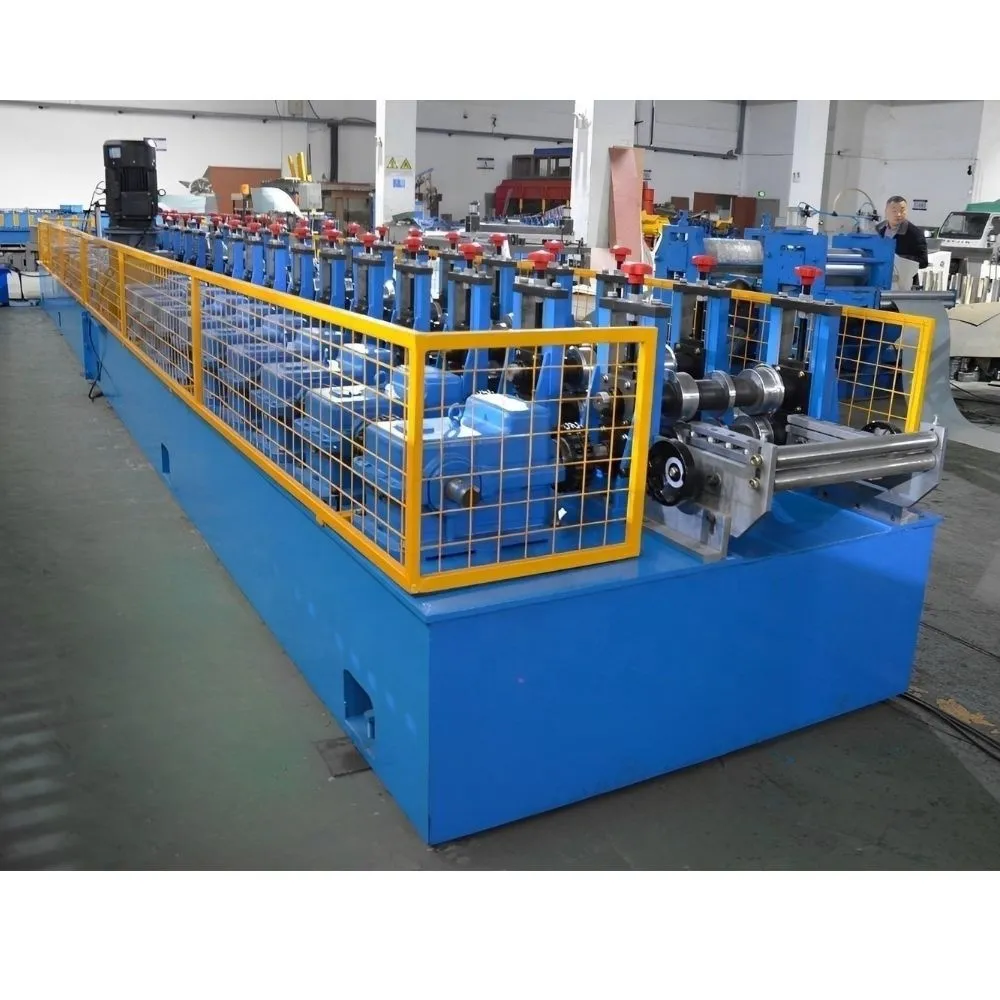

Main Roll Forming machine

By Gearbox Sizes Changeable depends on the sizes you want

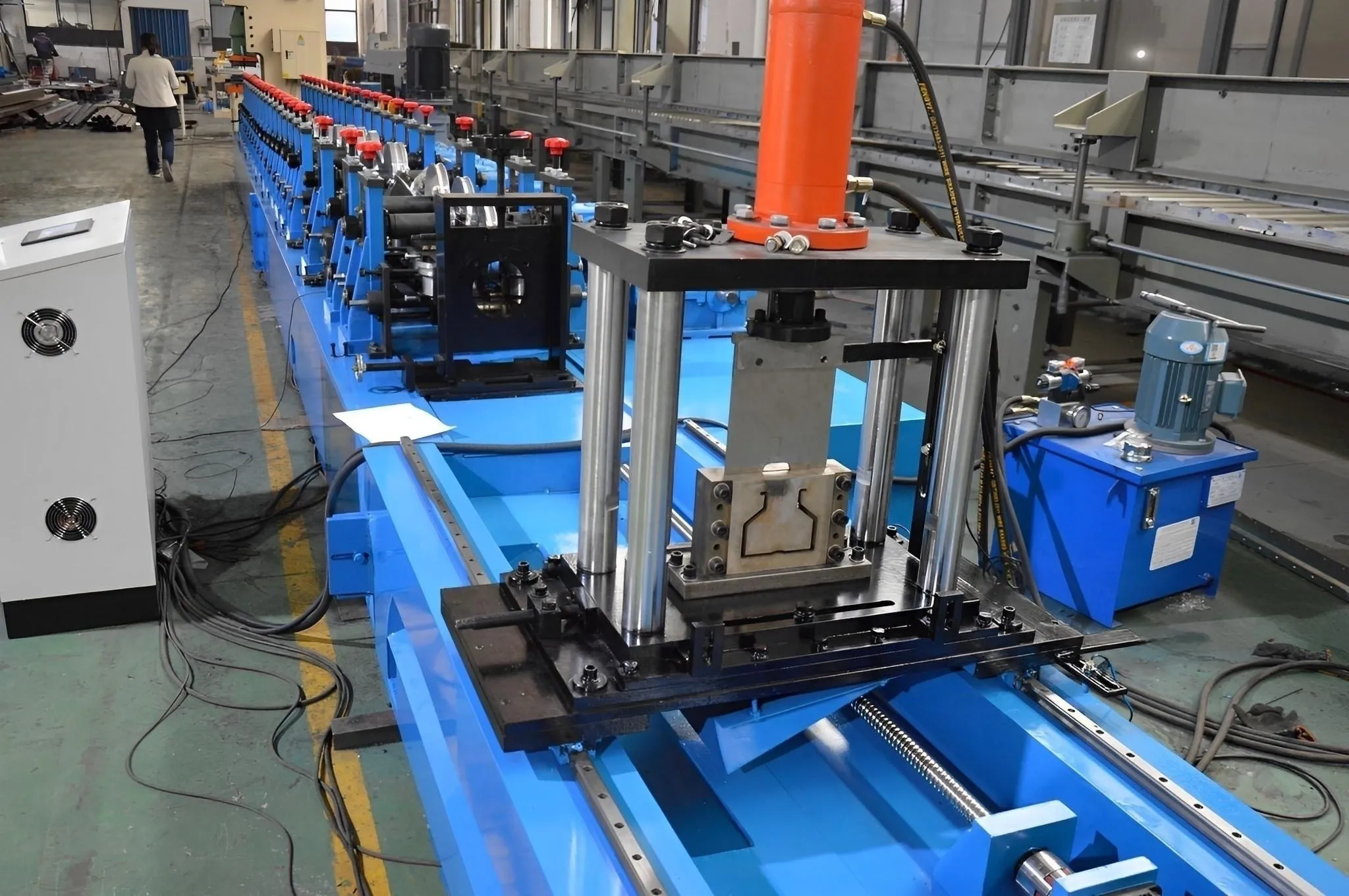

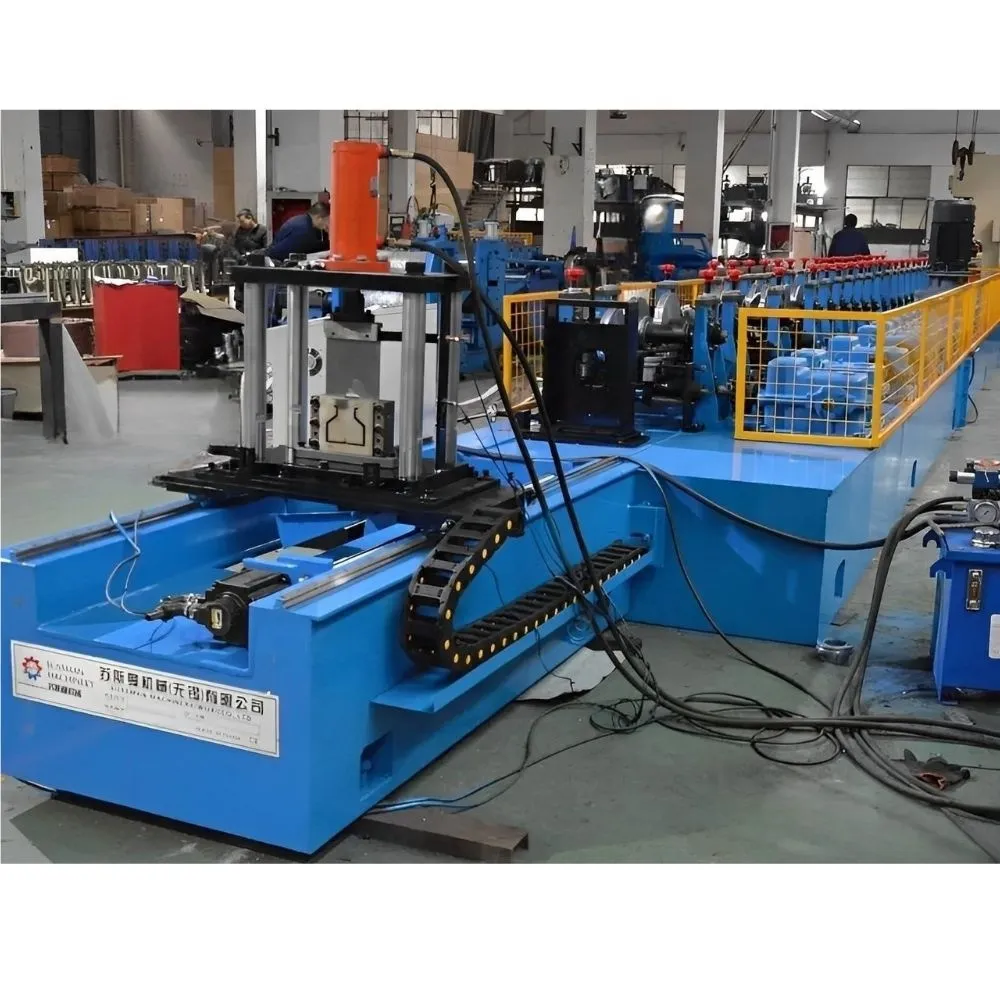

Servo Following Fly saw cutting device

Servo fly saw cutting device

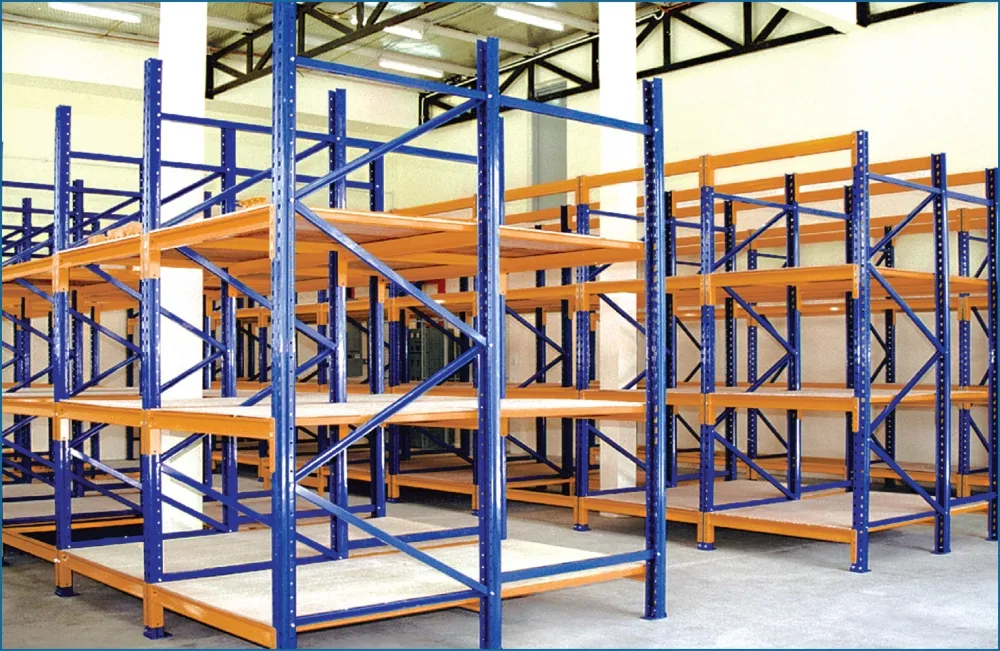

Application
