1.5-2.5mm Thickness Carbon Steel Warehouse Storage Racking System Upright Column Post Roll Forming Machine Motor+Jiangsu, China+8000 kg+1 Year+SSM

1.5-2.5mm Thickness Carbon Steel Warehouse Storage Racking System Upright Column Post Roll Forming Machine Motor+Jiangsu, China+8000 kg+1 Year+SSM

Name: 1.5-2.5mm Thickness Carbon Steel Warehouse Storage Racking System Upright Column Post Roll Forming Machine Motor+Jiangsu, China+8000 kg+1 Year+SSM
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT112760530

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Voltage
380 V, 440 V, 220 V
Power(W)
18.5KW

Product Description

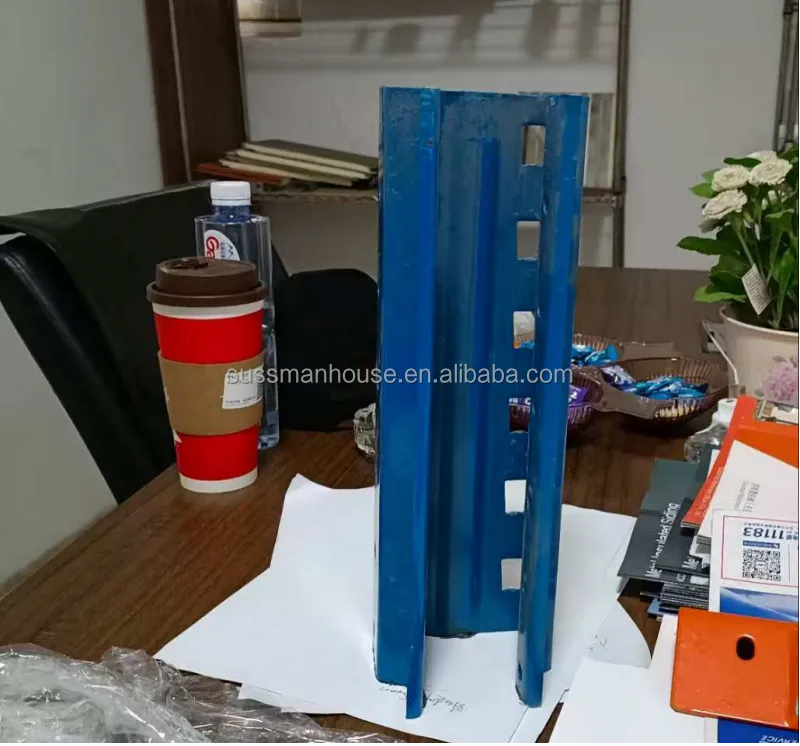

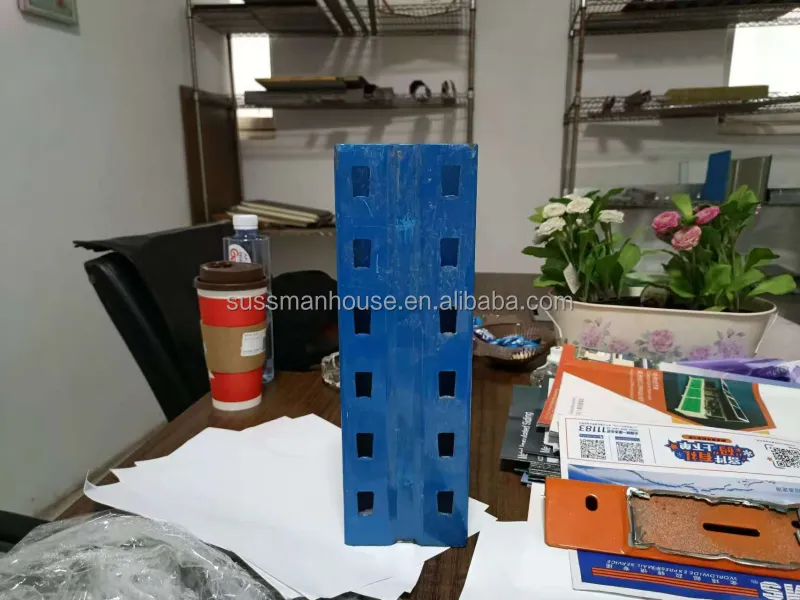

Warehouse shelf upright roll forming machine is widely used in producing upright frame, box beam and step beam. Our intelligent roll forming machine could make wide range of sizes using cantilever type structure, and automatically change by motors from one size to the other not only at width but also at height. The one and only step is to put your required data into our touch screen and wait for few seconds. Machinable thickness is from 1.5-3mm with raw material Cold-rolled Steel, Galvanized Coil, PPGI, Carbon steel, Stainless Steel and Aluminum. Our produced profile meet ISO, CE , FEM standards, and our machine is applied to Warehouse ,supermarket ,industry or home.
We have experience of exporting our pallet racking roll forming machine to Pakistan, Mexico, Peru, Egypt, Australia and UK etc. In warehouse pallet racking system, we are able to manufacture more machines like Box beam roll forming machine, step beam roll forming machine and shelf panel roll forming machine etc.
We make different solutions according to customers’ drawing, tolerance and budget, offering professional one-to-one service,adaptable for your every need. Whichever line you choose, the quality of Sussman Machinery will ensure you obtain perfectly functional profiles.

Technique data

Item	Specification / Detail
Material Thickness	1.5 - 2.5 mm, Galvanized Steel or Blank (Uncoated) Steel
Working Speed	12 - 15 meters / minute
Forming Stations	18 stations
Roller Material	Gcr15, Quench HRC58-62 Plated Chrome
Shaft Material	45# Carbon Steel (Thermal Refining), 76 mm
Main Motor Power	18.5 KW, WH (Chinese Famous Brand)
Drive Type	Gearbox drive
Cutting Method	Servo Following Hydraulic Cutting
Cutting Knife Material	Cr12MoV Alloy Tool Steel,Quenched, HRC 58-62
Hydraulic Station Power	7.5 KW,Wuxi Wanshen (Chinese Famous Brand)
Core Control	PLC
Touch Screen	Panasonic (Japan)
Encoder	Omron (Japan)
Electrical Components	Schneider (France)

Machine List:

S.N	Equipment name	Quantity
1	3T hydraulic un-coiler	1 set
2	Leveling device	1 set
3	Servo feeding device	1 unit
4	Press machineJH21-80	1 unit
5	Main roll forming machine	1 set
7	Cutting holder	1 set
8	Hydraulic station	1 set
9	Control system ( including control box)	1 set
10	Out tables	2 units
11	Spare parts	1 package
12	Servo following Cutting dies	1 set
13	Punching die set	1 set
14	Gear box driven system	1 set

Product Display

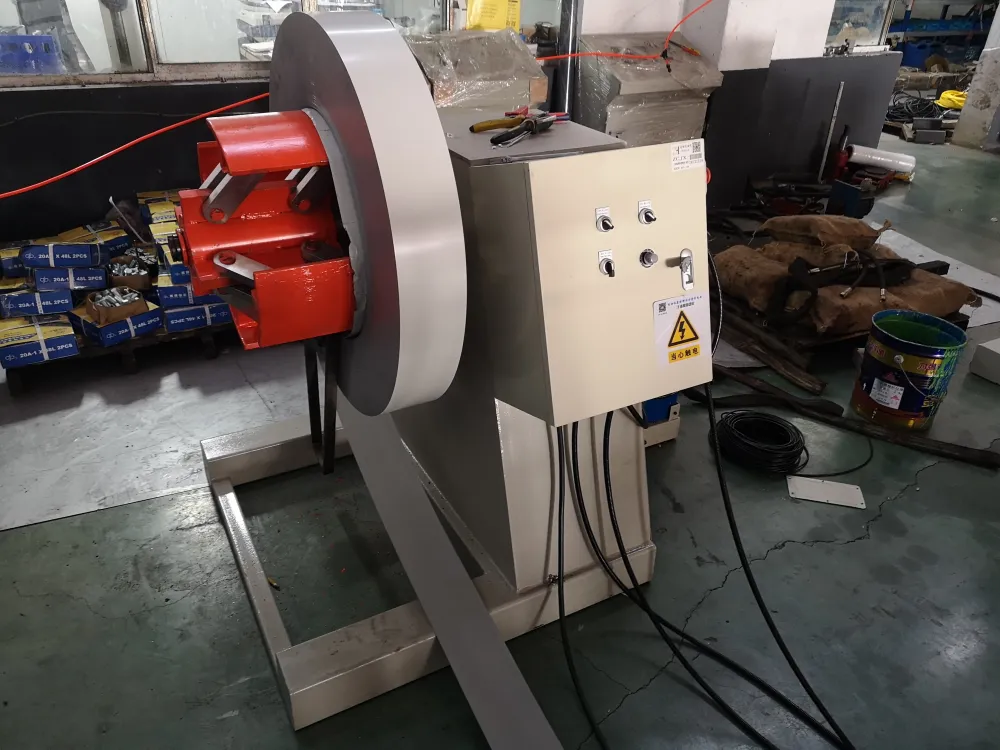

3 ton hydraulic De-coile

Diameter: 460-520mm expansion.
Expansion: hydraulic
Capacity: 3000kg per mandrel

Press machine

To punch holes

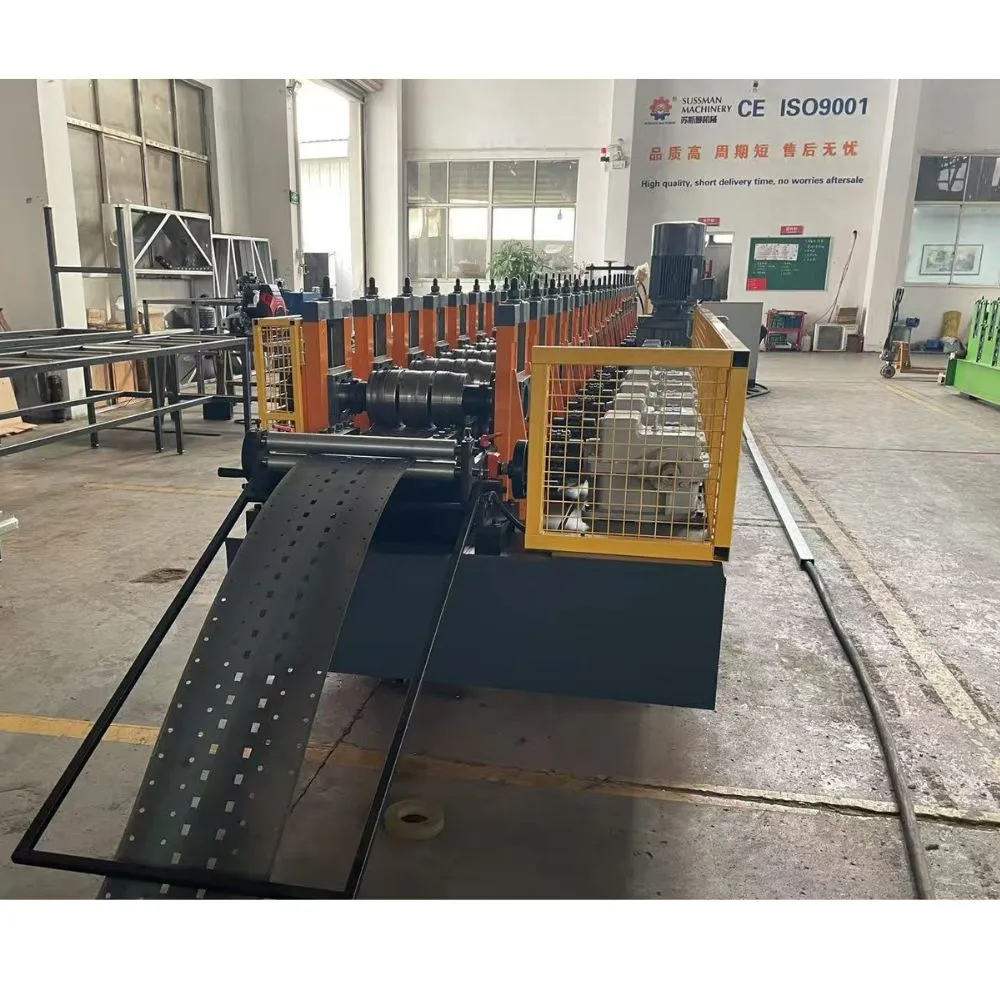

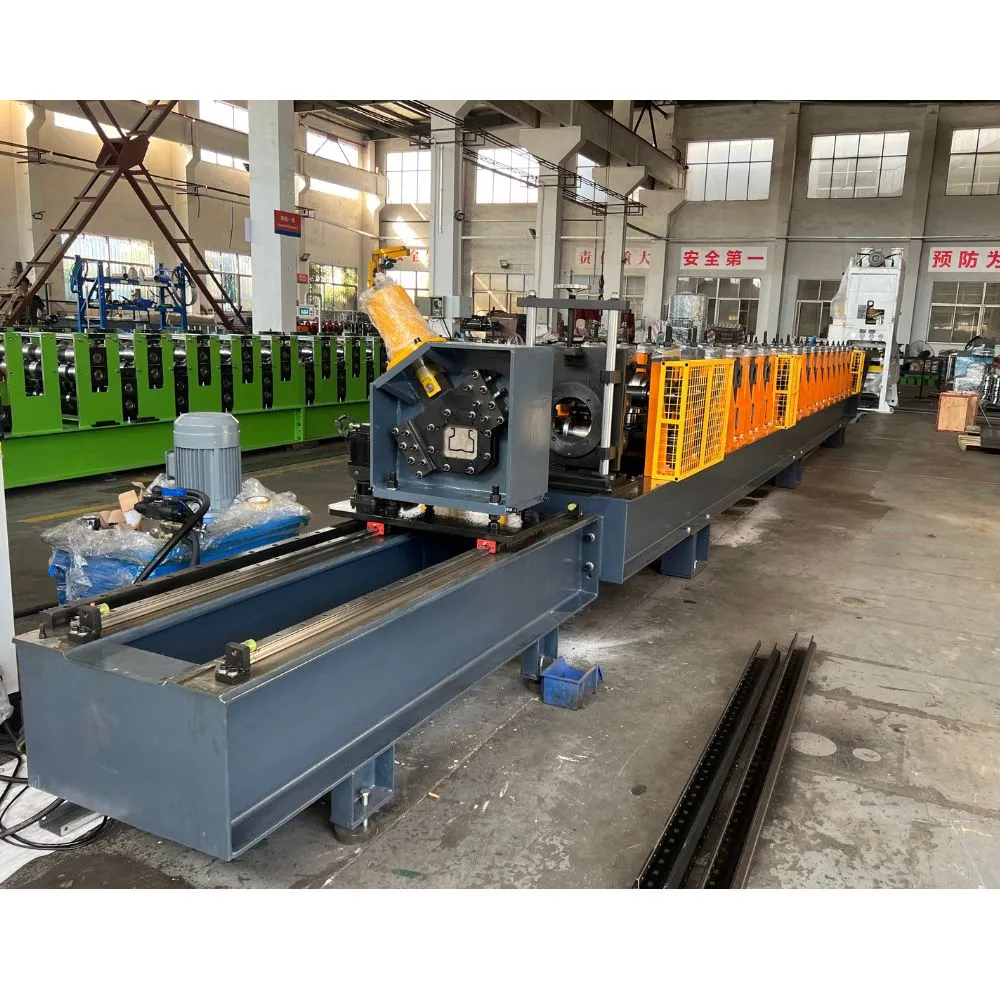

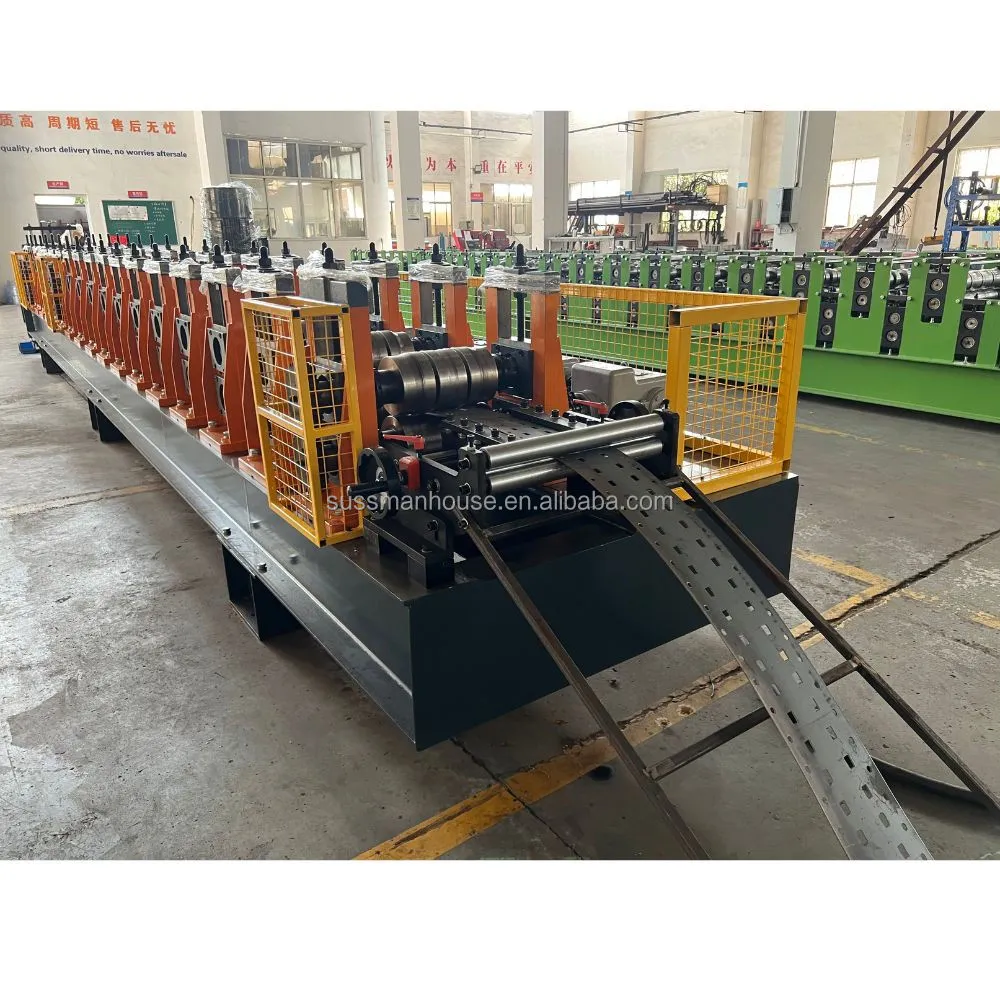

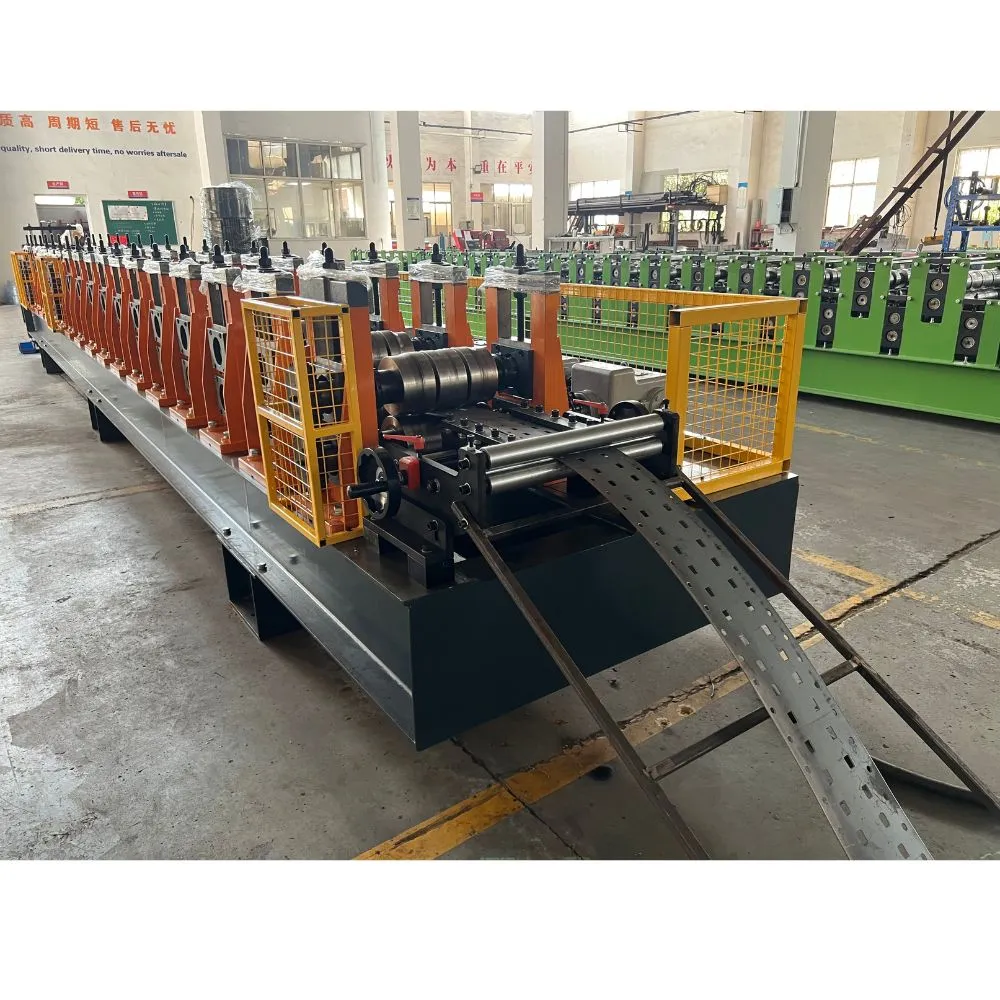

Main Roll Forming machine

By Gearbox Sizes Changeable depends on the sizes you want

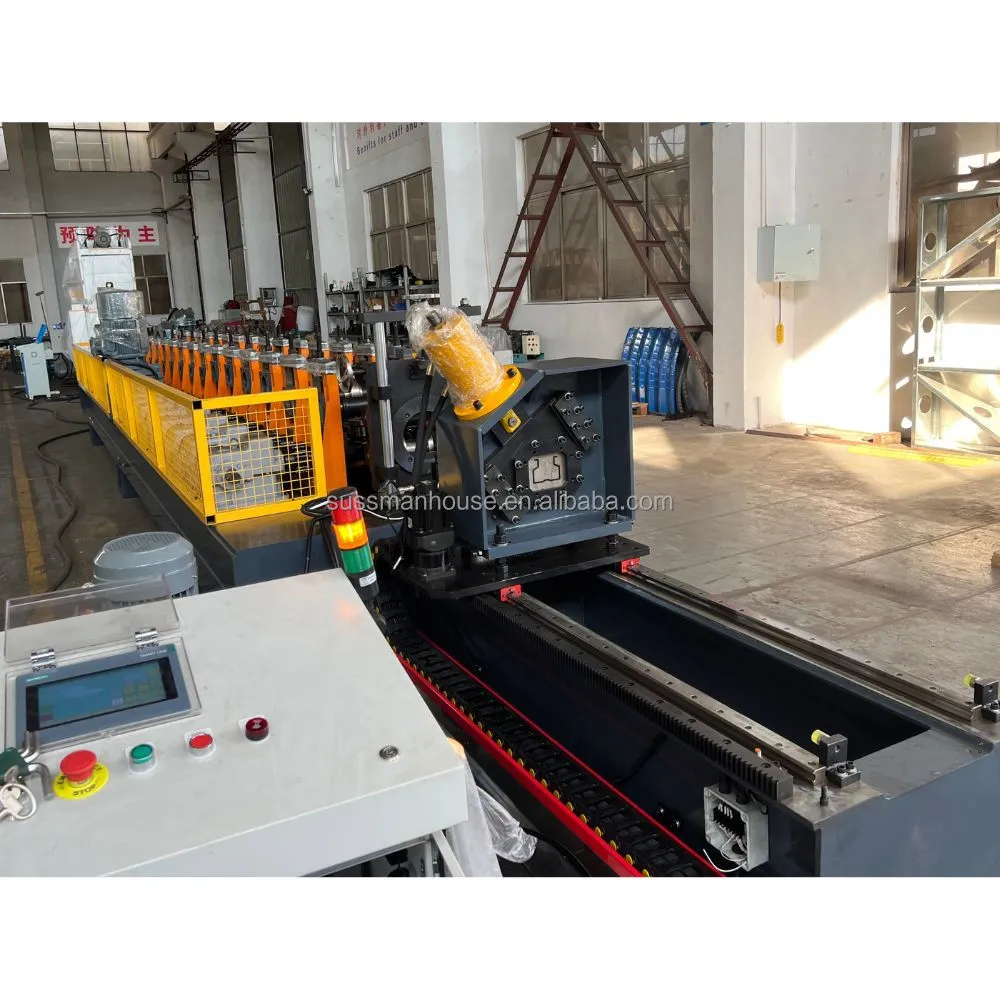

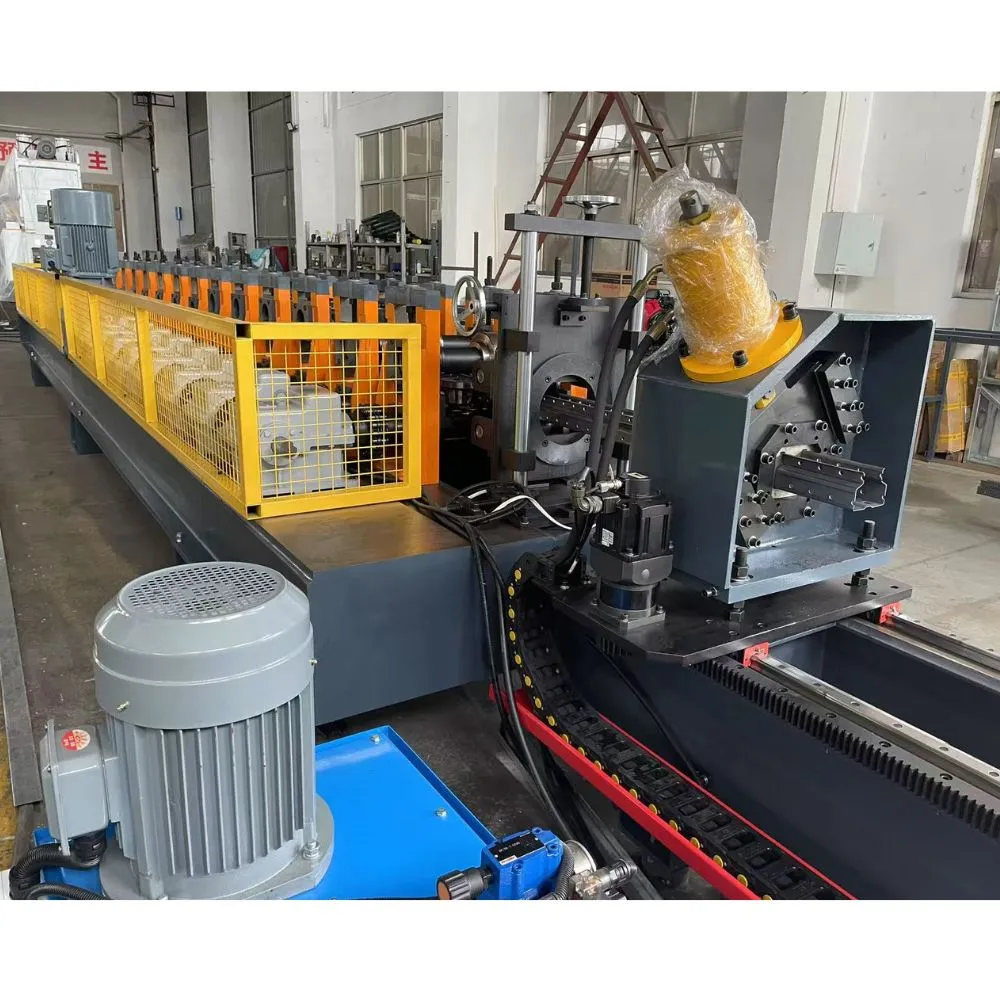

Servo Following Fly saw cutting device

Servo fly saw cutting device

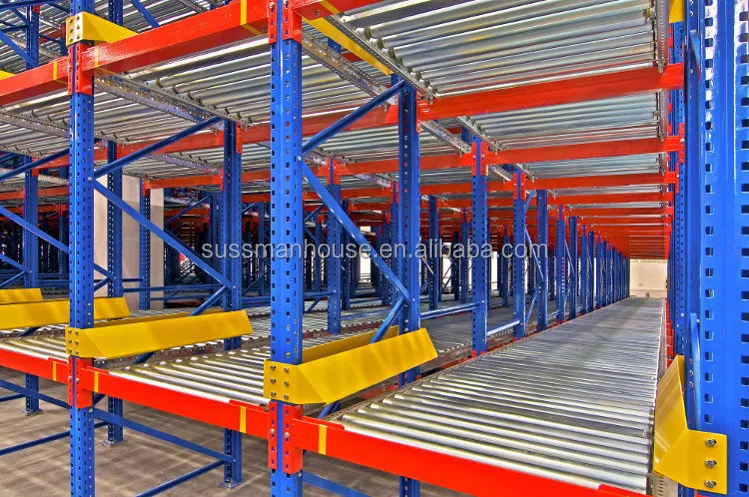

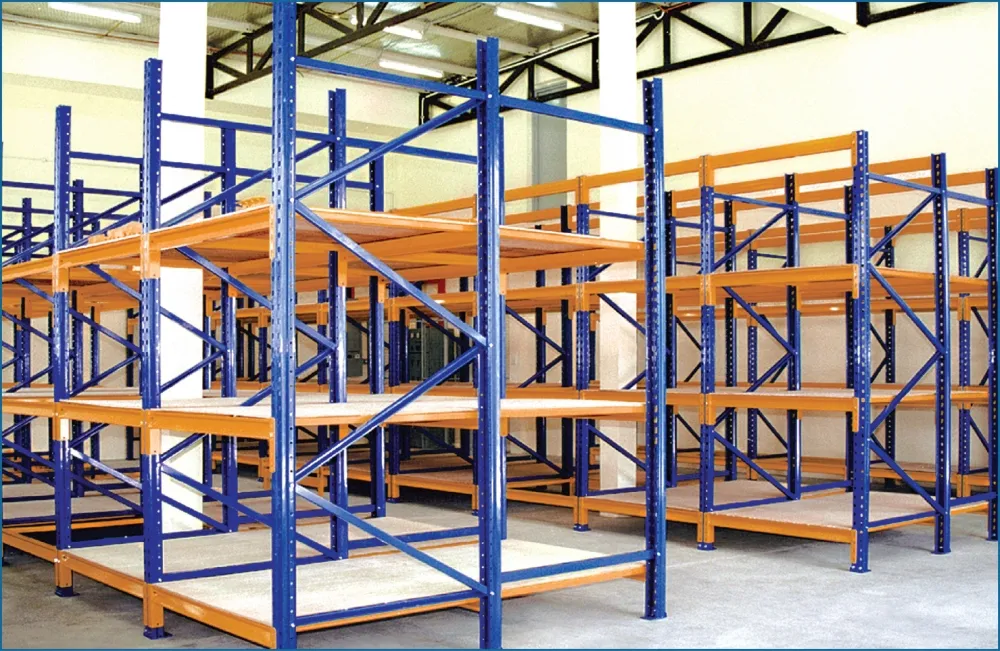

Application
