1.5-2.0mm Construction Material Mesh Deck U Profile U Channel Roll Forming Machine 0-10M/MIN

Name: 1.5-2.0mm Construction Material Mesh Deck U Profile U Channel Roll Forming Machine 0-10M/MIN
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT112993808

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

0-10M/MIN

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Work Pressure
12
Voltage
380 V, 440 V, 220V
Power(W)
5.5KW

Product Description

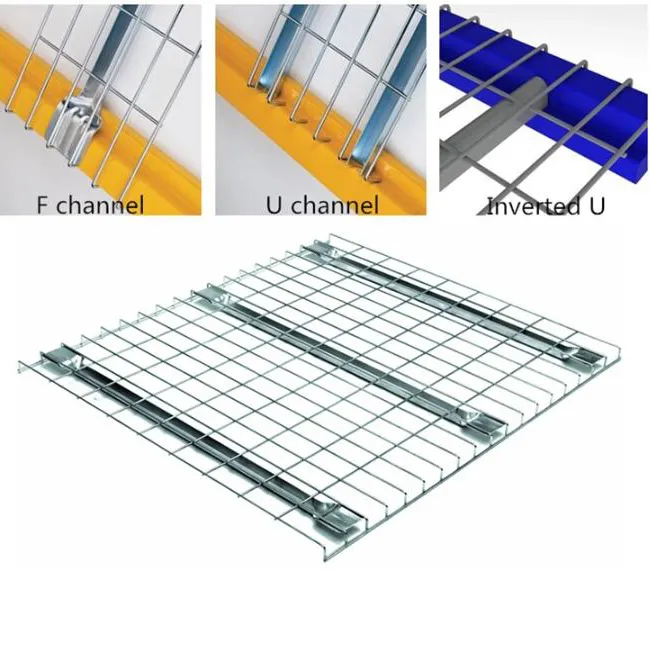

Heavy duty warehouse zinc plated galvanized steel wire mesh decking for pallet racking system.

This line is to make material thickness 1.5-2.0mm, the speed is up to 30m/min with non stop following cutting.This line includes decoiler, roll forming system, non stop cutting, out put tables.

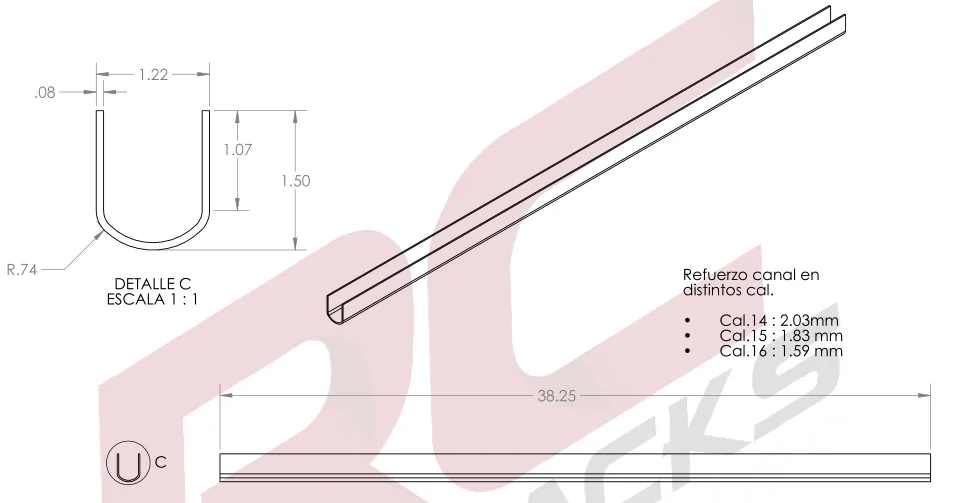

U channel are mainly used for supermarket racking upright system, shopping mall, etc.

Forming stations	About 11 stations or according to you profile drawings
Rollers material	GCr15,quenching treatment:HRC58-62; Cr12, SKD11（optional）
Way of drive	Chain drive
Raw material request	Cold rolled or hot rolled steel,galvanized steel,SS316L, Mild Steel
Whole line working speed	0-30m/min
Length precision	6+-1.0mm
Straighten device	Yes
Cutting system	Hydraulic cutting
Inverter	Siemens,Mitsubishi, panasonic (option Brand)
PLC	Siemens,Mitsubishi, panasonic (option Brand)
Main Power with reducer	5.5KW WH Chinese Famous
Cutting holder	Hydraulic cutting
Motor power of hydraulic station	4KW
Cutting type	Hydraulic drive, cut after forming
Material of cutting blade	Cr12Mov , quenching process

Machine List:

2 tonne double heads de-coiler	1 set
Main roll forming machine	1 set
PLC Control box	1 set
Hydraulic station	1 unit
Servo following cutting device	1 unit
3 meters auto stacker	1 unit

Product Display

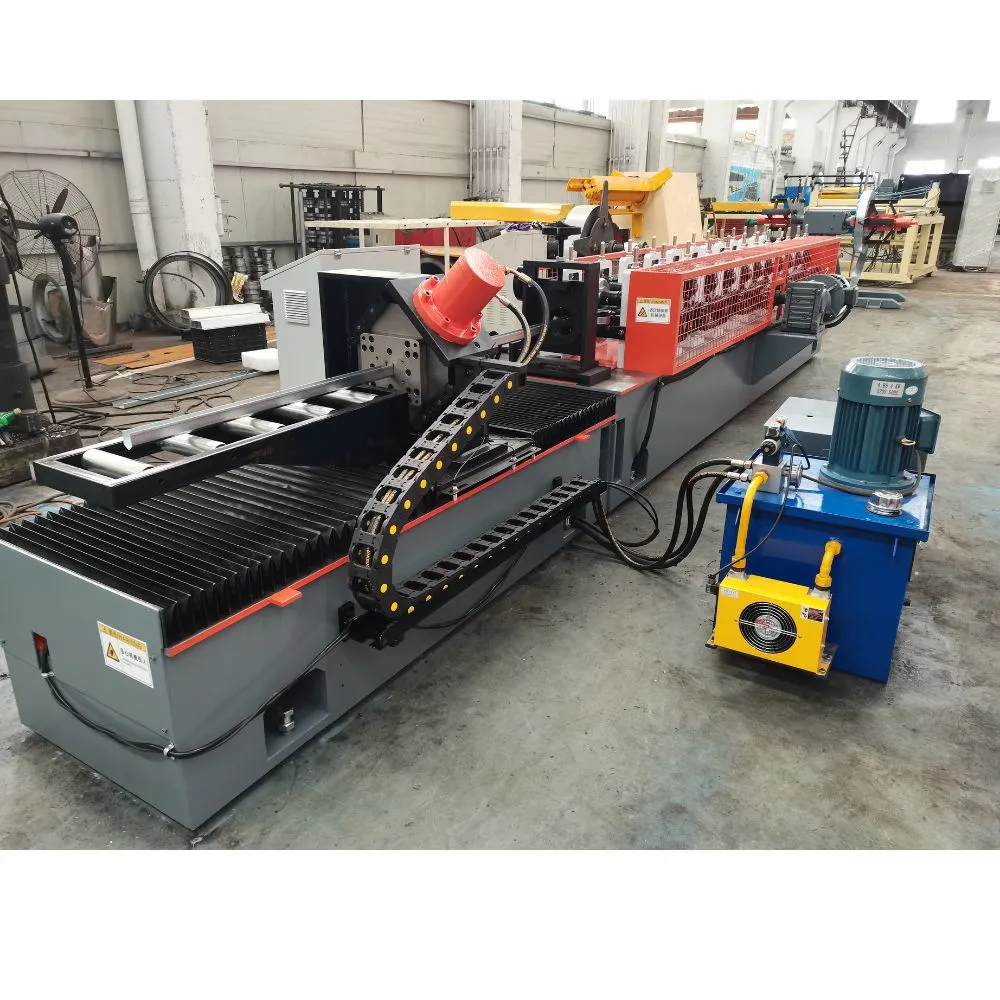

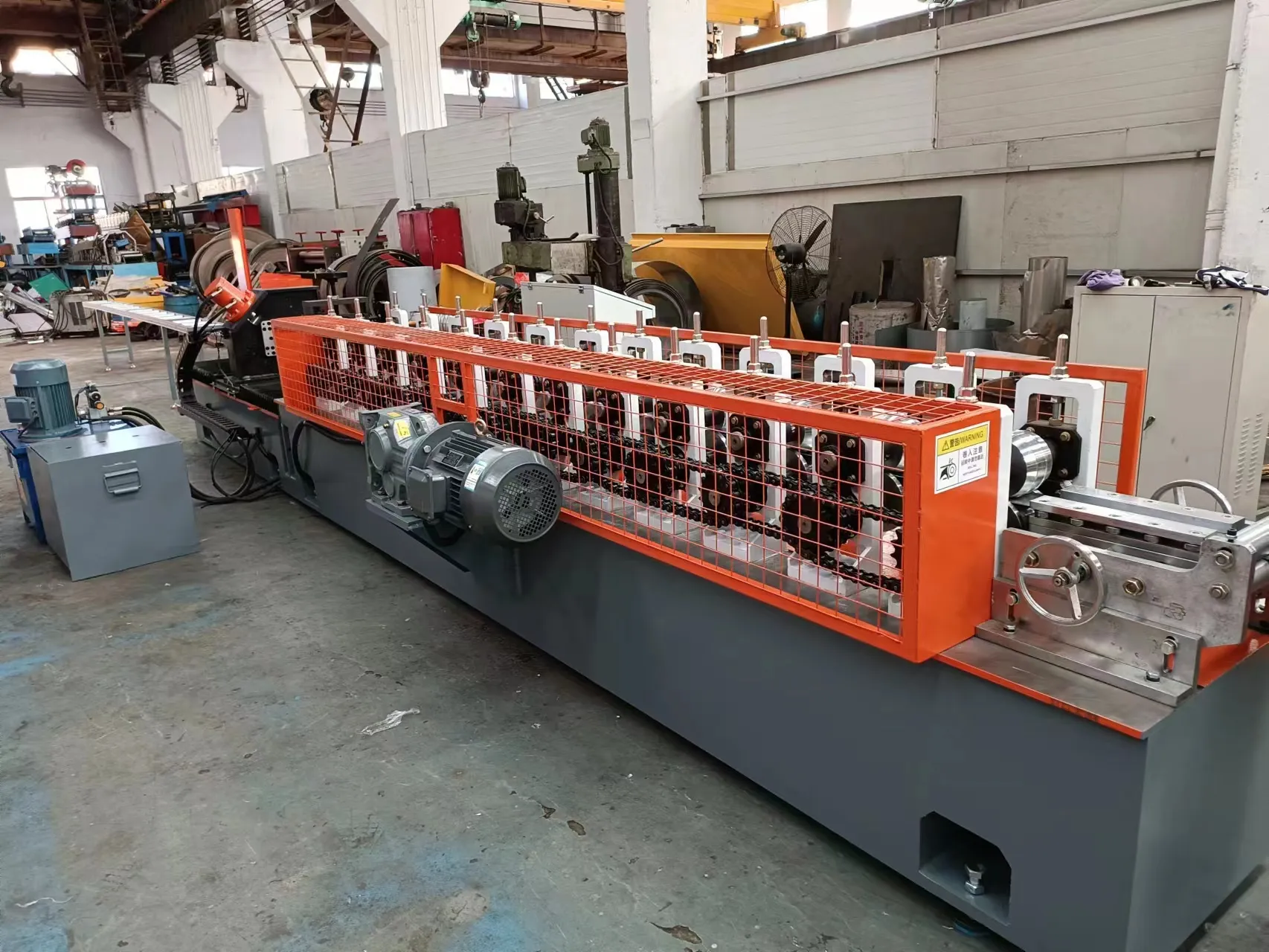

Roll Forming Machine

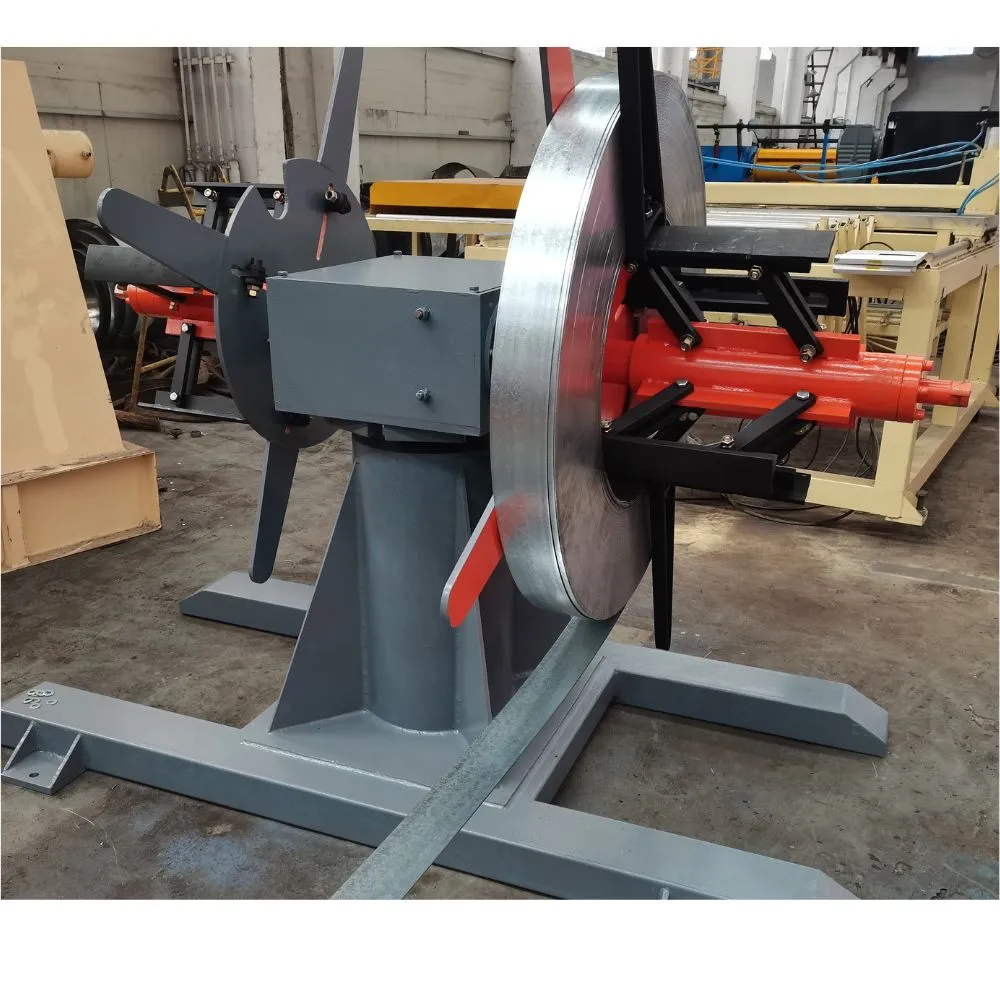

Two ton double heads decoiler

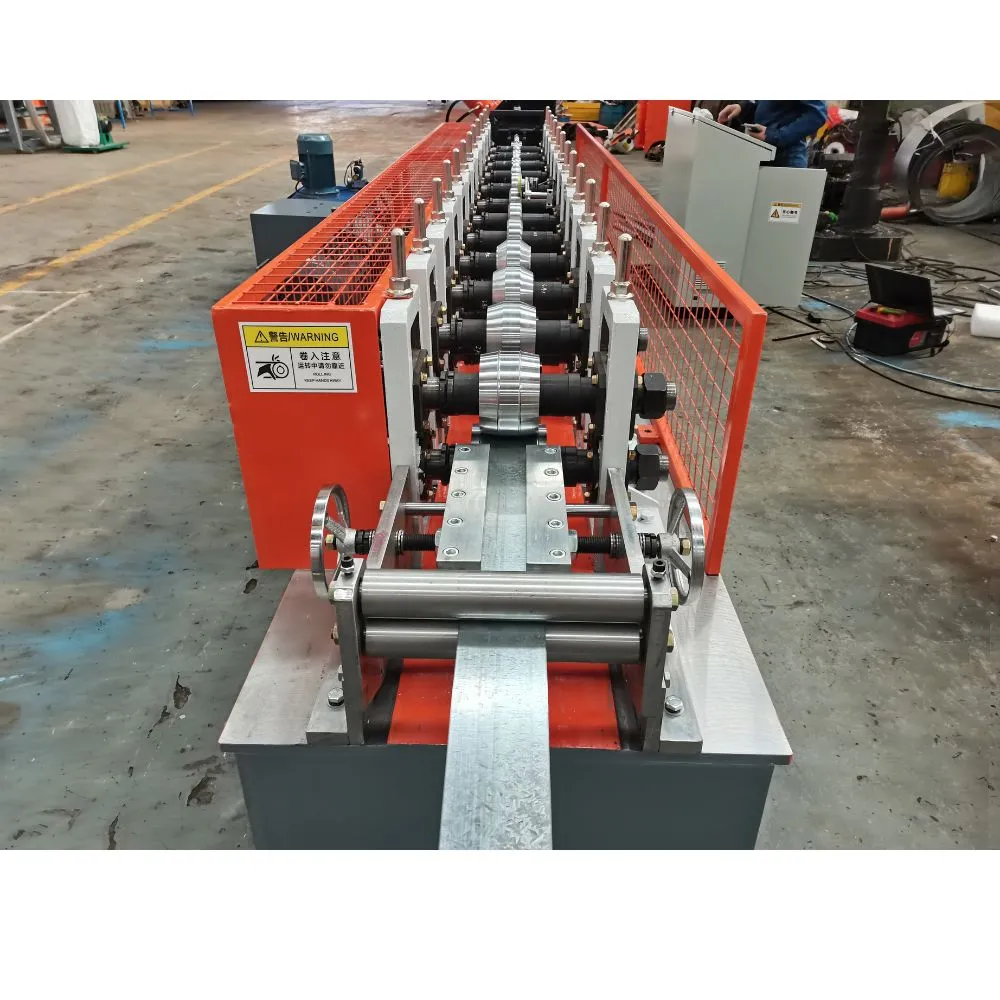

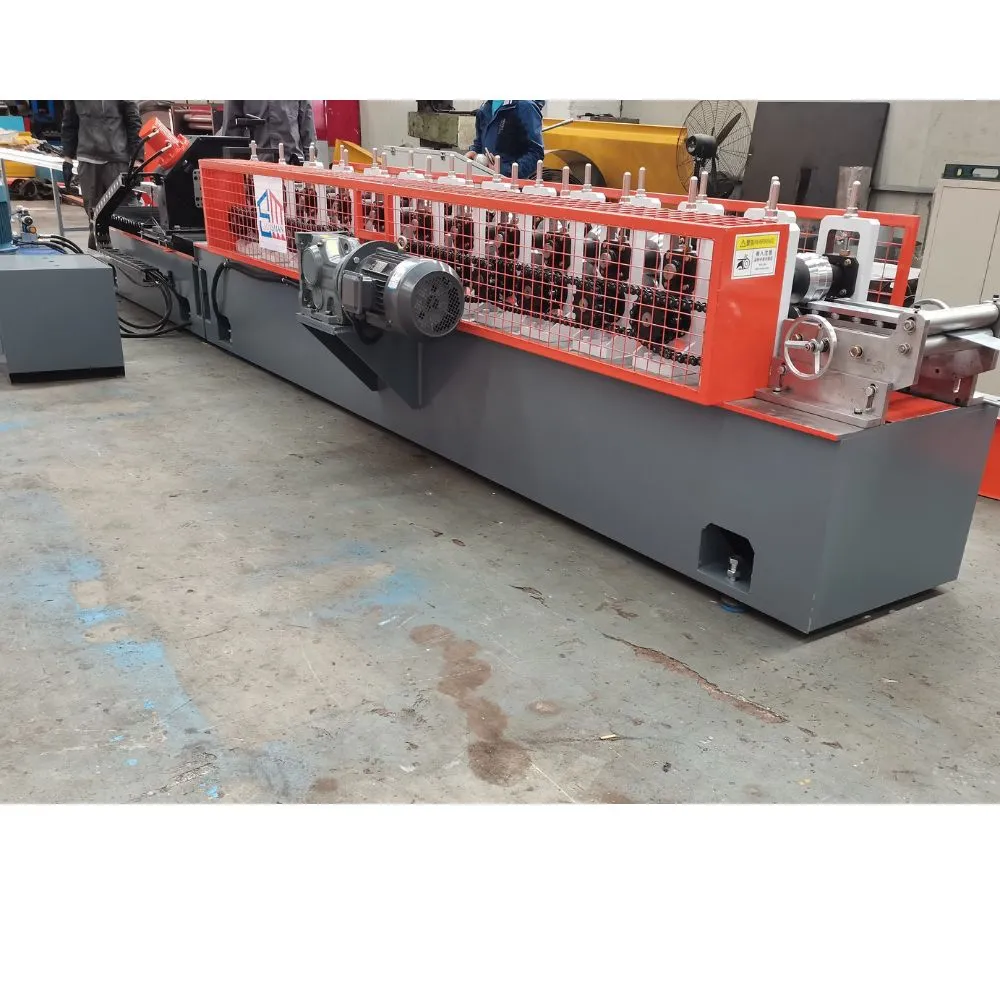

Main roll forming machine

Thickness of sheet: 1.5-2.0mm
Motor Power:5.5kw forming system
Roller material: C45 steel
Base Frame: 300 H steel welded
Roller Stations About 11 stations forming
Roller Material 45# Steel with quenching
Shaft Material 45# Steel Diameter 60mm shaft

Hydraulic cutting

Cutting way: servo following cutting.

Oil pump statio:1set.

Hydraulic power: 4 kw hydraulic system.

Blade Material: CR12Mov with heat treatment HRC58-62.

Tolerance: +-1.5mm

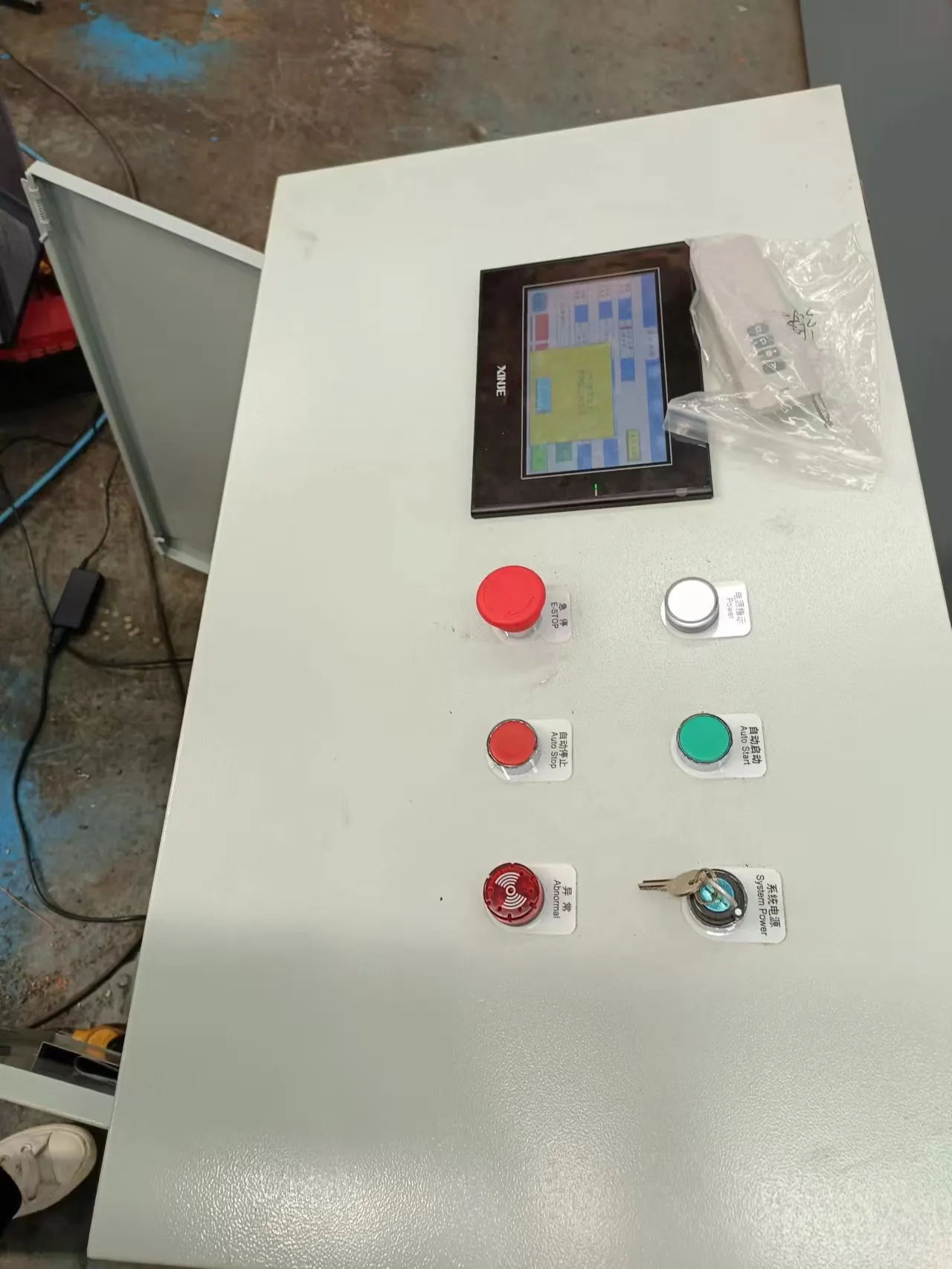

Control box

Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese
Unit of length: millimeter (switched on the control panel)

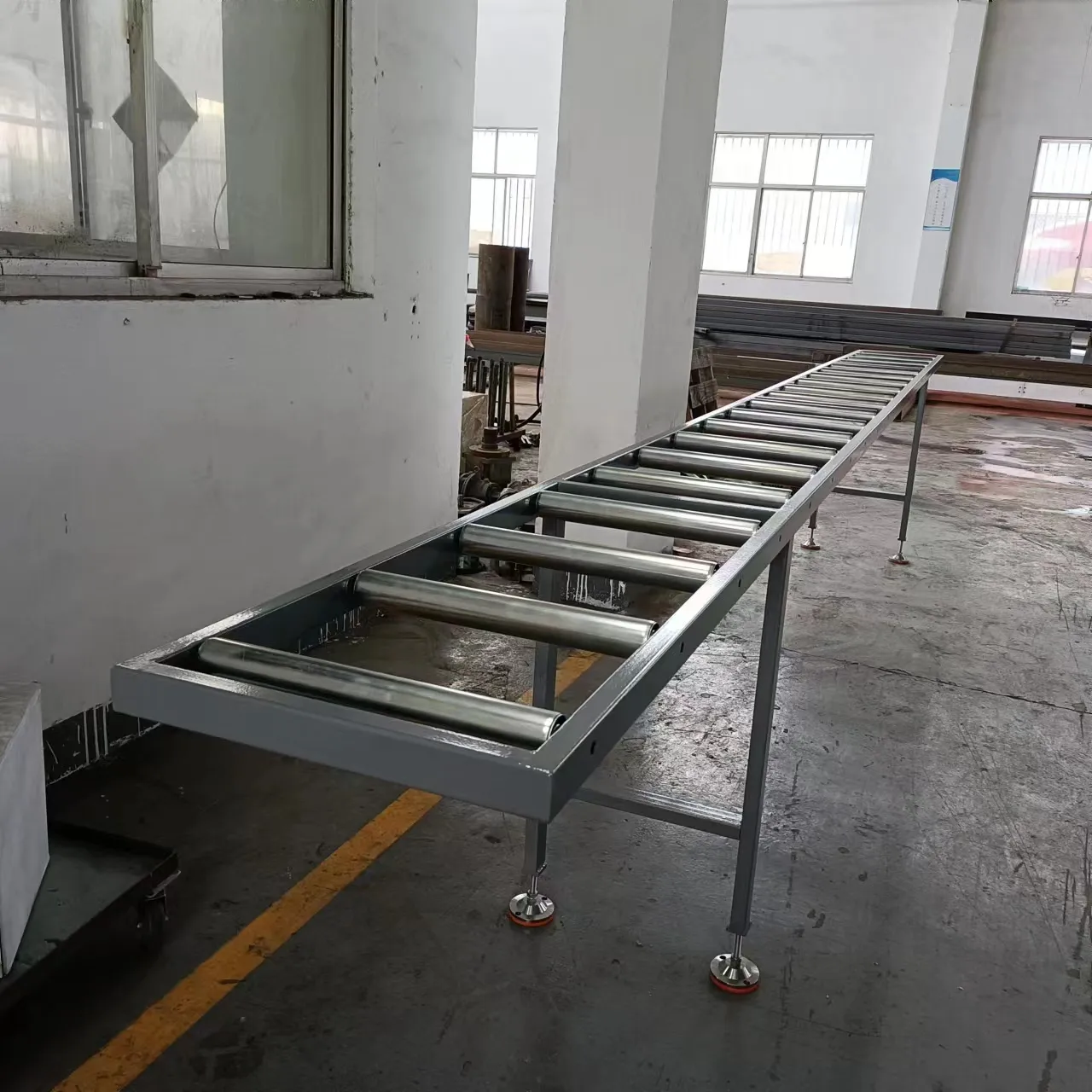

Passive output table

It adopts welded steel and supported roller to transmit the products.

Length：6000mm

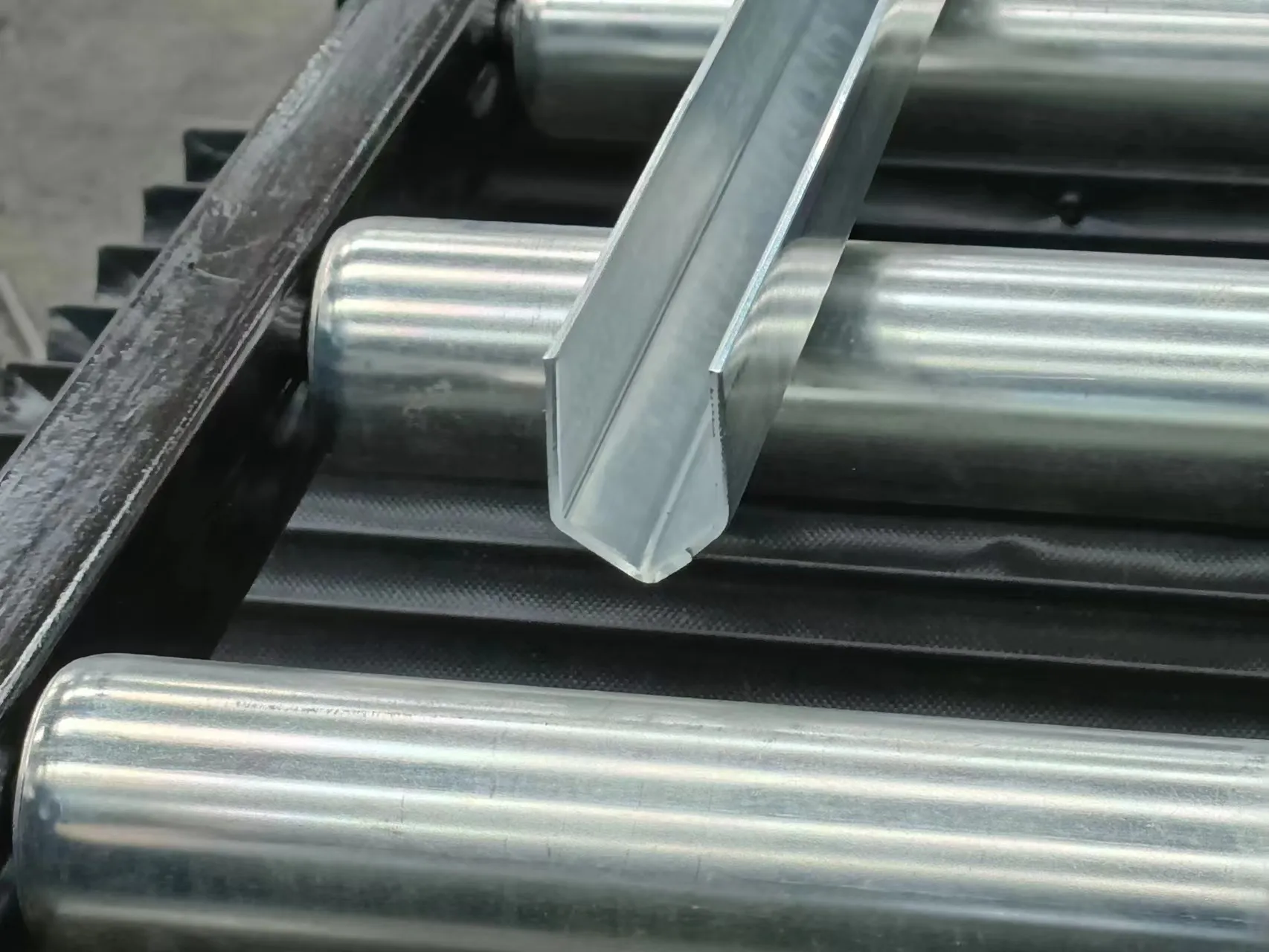

Application

Company Profile

We, Sussman Modular House(Wuxi)Co.,Ltd is one company who has more than 100 workers, and We ship to more than 80 countries, and our factory is about 5000m2, and We have more than 5 production lines, our main products are the modular house, light gauge steel house and container houses.

Light gauge steel roll forming machine is the most popular machine and its product includes C U stud, track, furring channel, main channel (primary channel), carrying channel, wall angle, corner angle, edge bead, shadow line wall angle, top hat, T bar machine, etc. Our machine has an extensive use in Drywall system, Ceiling system and Floor system. Thickness is normally 0.5-0.9mm or up to 1.2mm. Raw material could be: cold-rolled steel, Galvanized steel, PPGI, high-tensil steel. In Drywall system and drywall partition system, we could provide roll forming machine as following: 1. Metal stud roll forming machine 2. Metal track roll forming machine 3. Main Channel roll forming machine 4. Omega hat furring channel roll forming machine 5. Conner bead (Angle bead) roll forming machine 6. T grid bar roll forming machine In Construction Industries, we are able to manufacture more machines like C Z purlin roll forming machine, metal deck(floor deck) roll forming machine, vigacero roll forming machine, roof/wall panel roll forming machine, roof tile roll forming machine, etc.

Certifications

Our Customers

Feedback

Packing & Delivery

Before loading to the container, we will check the machine first

Second, make some protection on the machine, Such as, we will mpaint the coil on the roller and shaft, in case the roller and shast got corrosion and rusty during long time delivery

Third, we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not damage when shaking on sea.

At last, we will take photos for customer when loading to container
