TIME5100 Convenient Portable Leeb Hardness Tester for Hardness Testing 0.1+HLD, HB, HRC, HRB, HV, HS

TIME5100 Convenient Portable Leeb Hardness Tester for Hardness Testing 0.1+HLD, HB, HRC, HRB, HV, HS

Name: TIME5100 Convenient Portable Leeb Hardness Tester for Hardness Testing 0.1+HLD, HB, HRC, HRB, HV, HS
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT61565662

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

accuracy:

0.1

measurement range:

HLD, HB, HRC, HRB, HV, HS

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Type
Portable Hardness Tester, Other

Products Description

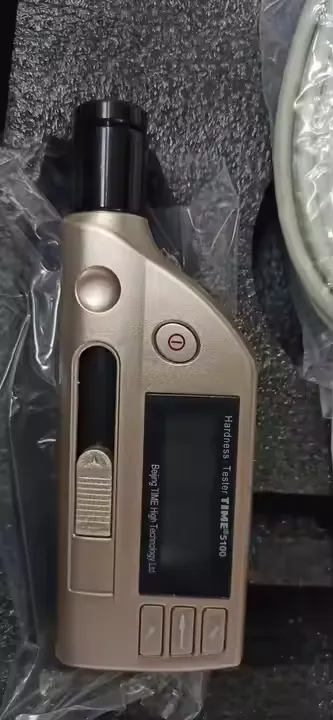

TIME5100
PORTABLE HARDNESS TESTER

Feature：
●Light Mini Unit with simple menu, easy and convenient to use ●Conversion of hardness scales(HL, HV, HB, HRC, HRB and HS) ●USB interface to connect the PC, assisted by Software Dataview TH51X (especially for TH51X series Hardness Test) with both online measurement and offline data analysis mode: curve chart, data sheet, setting of tolerance limit and data report are available. ●Connected to Printer by RS 232 and test values can be printed directly ●Measuring direction: any direction 360° ●Automatic identification of impact test direction ●Memory of 270 data in 9 group ●Backlight for convenience in darkness ●Upper / lower limits setting ●AAA 1.5V battery, whose capacity shown in display ●Auto power off

●TIME5100: integrated with D impact device for the majority of hardness testing requirements ●TIME5102: integrated with C impact device for hardness testing on thin, light and surface hardened components ●TIME5104: integrated with DL impact device for hardness testing of deep grooves and tooth surface

Technical parameters:

Model	TIME5100	TIME5102	TIME5104
Impact device	D integrated	C integrated	DL integrated
Hardness scale	HLD, HB, HRC, HRB,HV, HS	HLC, HB, HRC, HRB, HV,HS	HLDL, HB, HRC, HRB, HV, HS
Accuracy	±6HLD(760 ±30HLD)	±12HLC	±12HLDL
Memory	270 average readings in 9 group files
Output	RS 232 to printer	RS232 to printer	RS232 to printer
Min. surface roughness of work piece	1.6μm ( Ra)	0.4μm ( Ra)	1.6μm ( Ra)
Max. work piece hardness	960HLD	960HLC	950HLDL
Min. radius of work piece (convex/concave)	Rmin = 50mm (with support ring Rmin= 10mm)	Rmin=11mm (with support ring )	Rmin = 10mm (with support ring Rmin= 10mm)
Min. work piece weight	2~5kg on stable support 0.05~2kg with compact coupling	0.5~1.5kg on stable support 0.02~0.5kg with compact coupling	2~5kg on stable support 0.05~2kg with compact coupling
Min. work piece thickness coupled	5mm	1mm	5mm
Min. thickness of hardened layers	0.8mm	0.2mm	0.8mm
Indentation depth	Impact devices data	Impact devices data	Impact devices data
Continuous working time	8h (without backlight)
Power	AAA 1.5V batteries
Operating temperature	0~40℃	0~40℃	0~40℃
Dimensions (mm)	155×55×25	160×60×25	215×60×25
Weight (g)	180	180	180

Standard Delivery：

●Main unit 1 ●Test block HLD 1 ●USB connecting cable 1 ●Cleaning brush 1 ●Battery AAA 1.5V 2 ●TIME certificate 1 ●Warranty card 1 ●Instruction manual 1

Optional Accessory

●Dataview software

●Support rings

Why Choose Us

Qingdao Runlu Electromechanical Equipment Co., Ltd. was established on May 31, 2012. Over the years, it has been dedicated to the research and development, sales and maintenance of precision instruments for measurement and testing, and is a professional supplier of metrology, testing, analytical instruments and electronic equipment. Our products include various quality control equipment for metals and non-metals, such as portable hardness testers, micro-Vickers hardness testers, Vickers hardness testers, Rockwell hardness testers, Brinell hardness testers, metallographic microscopes, grinding and polishing machines, embedding machines, cutting machines, roughness testers, thickness gauges, flaw detectors,endoscope, testing machine,etc., as well as accessories for all these products, such as ultrasonic probes, test blocks, etc. Qingdao Runlu Electromechanical Equipment Co., Ltd. is located in Qingdao City, Shandong Province, China, with a business area of 1,600 square meters and a warehouse area of 1,200 square meters. All products are produced in accordance with ISO9001 standards and have been exported to most markets around the world in the past few years. We have a professional pre-sale, in-sale and after-sale service team to provide technical support for domestic and foreign users.

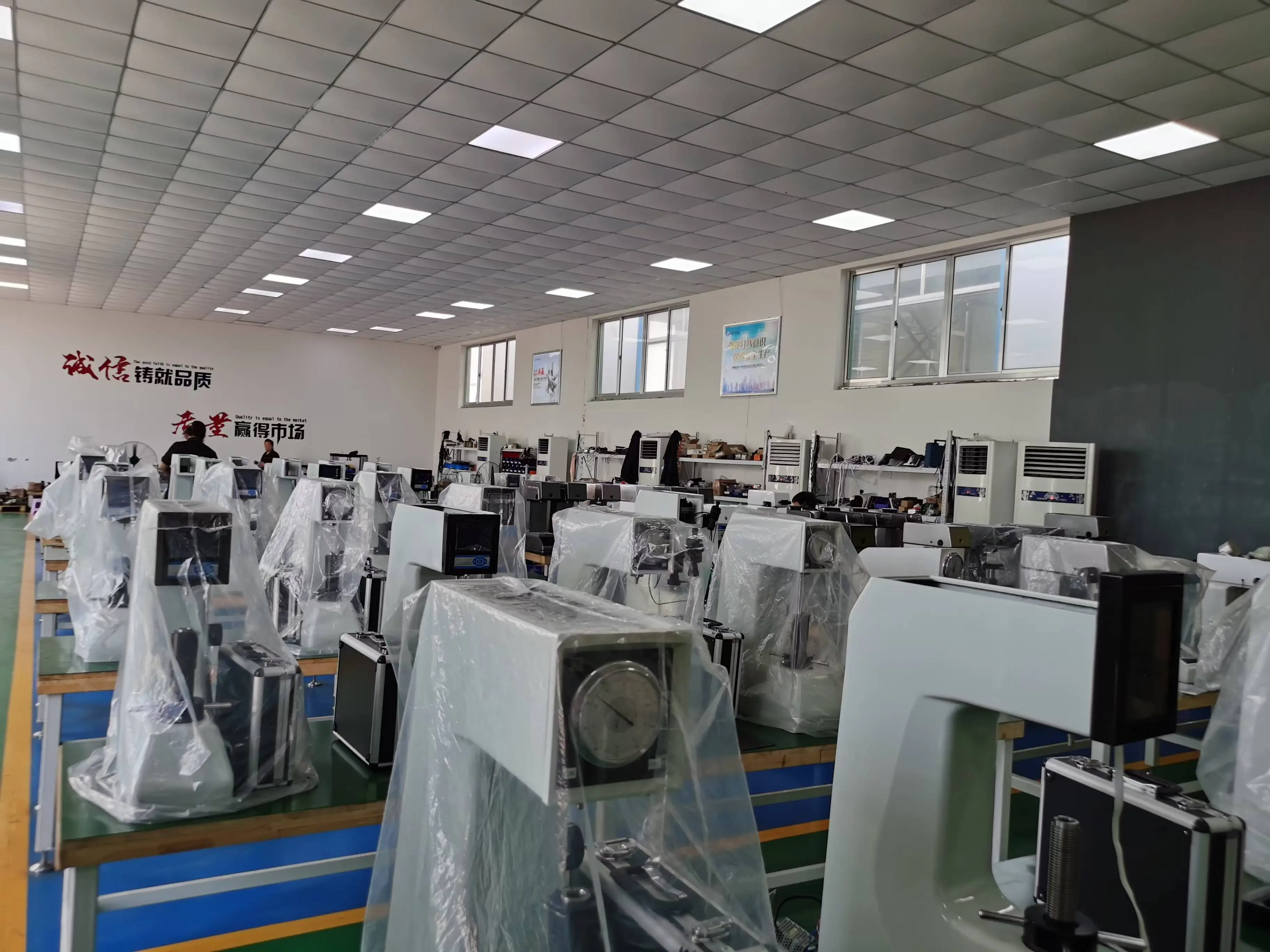

Sample Room

Production Line

Exhibition

Certifications

Customer Photos

FAQ

Q1:What about the warranty with after -sales services? A:The testing machine is guaranteed for 12 months by Runlu,we can help you to repair your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product,handles guest problems and complaints in a professional and timely。 Q2:What about the product' services and quality? A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. Products are widely recognized and trusted by users. Q3:After an order is placed, when to deliver? A:Generally about 10-25days, lf we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities. Q4:Do you accept customization service? A:Yes, for sure. We not only offer standard machines, but also do customized machines, our techinician will make the machine as your required. Just need to communicate before ordering.
