Products Description

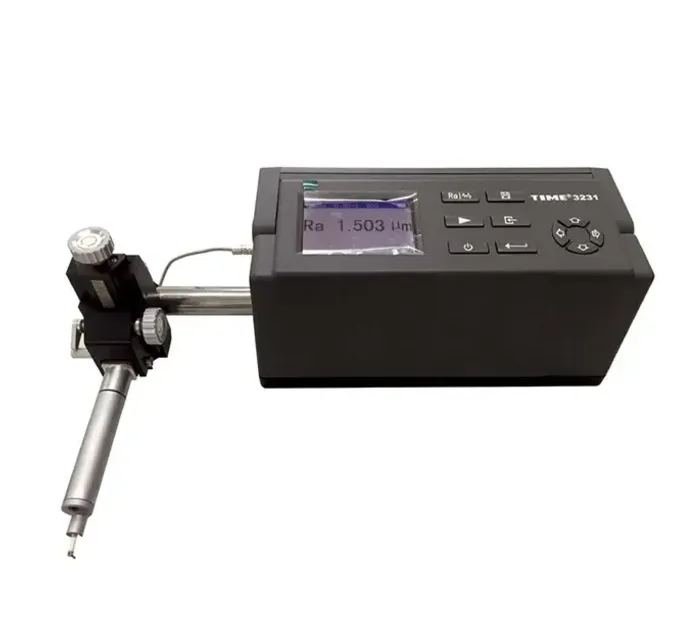

TIME®3231
SURFACE ROUGHNESS TESTE

Feature：
●Integrated design, easy and convenient to use, especially for narrow space down to 1.5mm ●55 kinds of measurement parameters conform to ISO/DIN/ ANSI/JIS standards for your convenience ●Rectangular driver for 90 angle measurements, even without lead ●High accuracy in the surface roughness, waviness and primary profile testing. ●LCD displays digital and graphic information ●Numerous optional sensors to approach even the most inaccessible places, with or without leads ●Transfer to PC via RS232 with advanced PC Software TIMESurf for more analyzing management, and data can be stored in Excel file. ●Printer can be connected to print the digital and graphic information ●Wide measurement range up to 800 um, with the Accuracy 5 % and Repeatability 3%

Technical parameters:

Assessed profile	R (Roughness), W (Waveness), P (Primary profile)
Measuring range	±400µm, ±25µm
Filtering	RC,PCRC,Gauss,D-P,ISO 13565
Parameters	R: Ra,Rp,Rv,Rt,Rz,Rq,Rsk,Rku,Rc,RS,RSm, Rlo,RHSC,Rpc,Rmr(c),RzJIS,R3y,R3z W: Wa,Wp,Wv,Wt,Wz,Wq,Wsk,Wku,Wc,WS, WSm, Wlo,WHSC,Wpc,Wmr(c),WzJIS P: Pa,Pp,Pv,Pt,Pz,Pq,Psk,Pku,Pc,PS,PSm, Plo,PHSC,Ppc,Pmr(c),PzJIS Rk: Rk,Rpk,Rvk,Mr1,Mr2
Cut-off length	0.08mm,0.25mm,0.8mm,2.5mm,8mm
Max. tracing length	40mm
Analysis graphs	ADC, BAC
Evaluation length	1L-5L
Resolution	0.001μm/50μm；0.016μm/800μm
Tolerance	±5%
Display	LCD
Memory	10 groups of primary data
Data output	RS232,USB
Power supply	Li battery / AC adapter
Dimensions (mm)	409×96×98
Weight (g)	2300

Optional Accessory

●PC software (TIMESurf for TIME®323X) ●RS232 communication cable
