Products Description

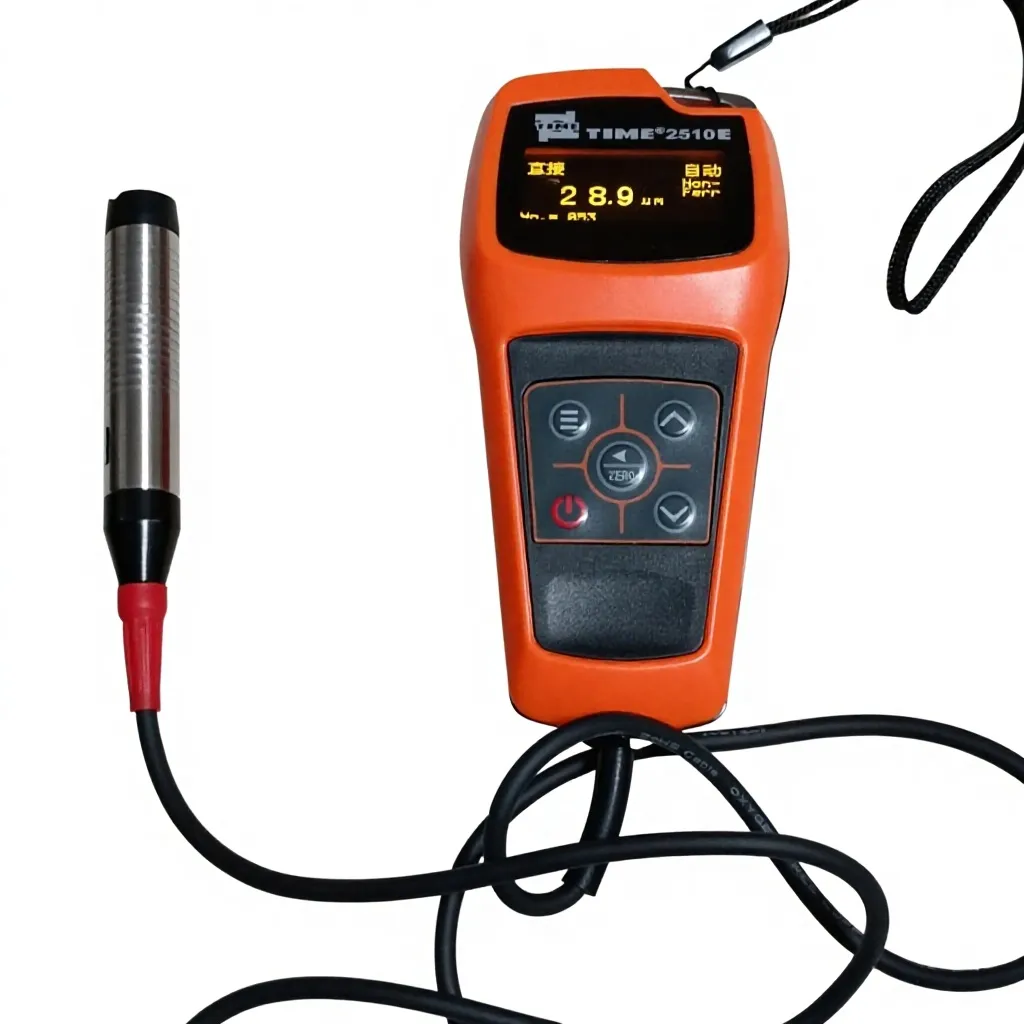

TIME®2510E
COATING THICKNESS GAUGE

Feature：
●Two operation principles are adopted: magnetic induction (ferrous) and eddy current (non-ferrous) to take non-destructive measurements ●Zero point calibration and two-point calibration to correct the system error of the probe ●Two working modes: DIRECT and BATCH & two measuring ways: CONTINUE and SINGLE ●Statistics include the mean, maximum, minimum, test numbers and standard deviation. ●Automatic recognition of the substrate. ●Memory of 600 data ●Deletion of current data, calibrated data, limit data and all data stored. ●Low battery indication and error alarm ●Buzz during operation for indication ●Auto or manual shutdown

Technical Specification:

Probe types			F	N
Working principle			Magnetic induction	Eddy current
Measuring range			0-1250 µm	0-1250 µm, 0-40µm (for chrome plate on copper)
Minimum resolution			0.1µm
Tolerance	Zero point calibration	±(3%H+1) µm	±(3%H+1) µm
				H means the thickness of tested piece
		Two points calibration	±{(1-3)%H+1}µm	±{(1-3)%H+1}µm
				H means the thickness of tested piece
Measuring condition	Min. curvatureradius	Convexity 1.5 mm	Convexity 3 mm
		Min. area diameter	Φ7 mm	Φ5 mm
		Critical thickness of the base	0.5 mm	0.3 mm
Operating environment			Temperature: 0℃ - 40℃
				Humidity: 20%-90%
				No strong magnetic field
Power			2 pcs AAA 1.5 V battery
Dimension			110 x 50 x 23 (mm)
Weight			100 g

Standard Delivery：

●Main unit 1 ●Substrate 2 ●Calibration foil 1 ●AAA 1.5V battery 2 ●TIME certificate 1 ●Warranty card 1 ●Instruction manual 1

Optional Accessory ●Connecting cable ●Dataview
