Other Industrial Equipment > Inspection Instruments > Thickness Gauge

TIME2130 High Quality Automatic Ultrasonic Thickness Gauge TIME2130

General Industrial Supplies Co., Ltd.

Supplier Qualification

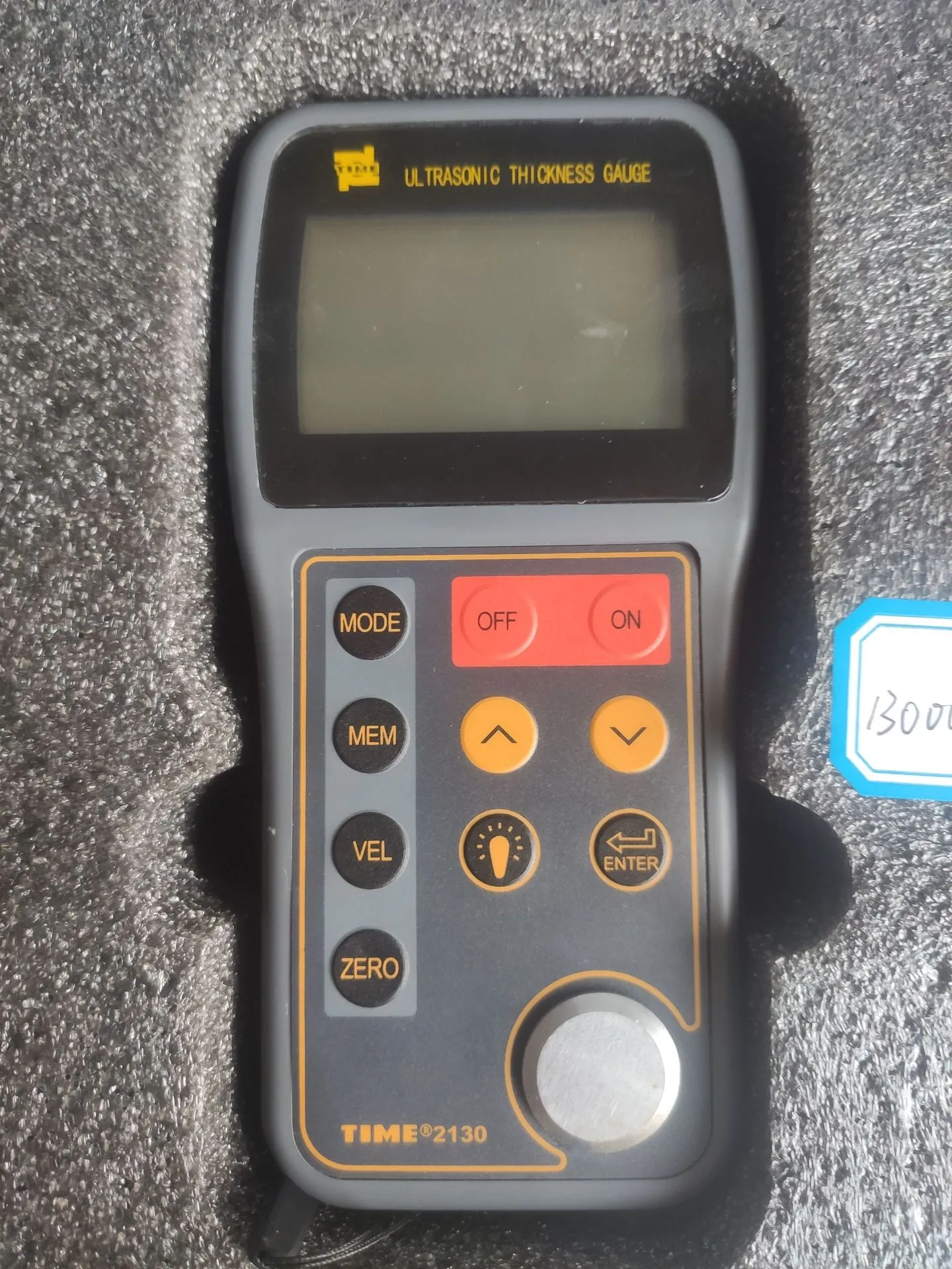

TIME2130 High Quality Automatic Ultrasonic Thickness Gauge TIME2130

Name: TIME2130 High Quality Automatic Ultrasonic Thickness Gauge TIME2130
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT58943804

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

model number:

TIME2130

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Type
Testing Machine
Protection Class
other
Voltage
Other

Products Description

TIME®2130/2132/2134
ULTRASONIC THICKNESS GAUGE

Feature：
●TIME®2130: Equipped with RS232 interface to connect printer and PC with optional software. 5PФ10/90° transducer for normal purpose and optional TSTU32 transducer for casting iron. ●TIME®2132: Anti-high-temperature reaching up to 300°C ●TIME®2134: equipped with TSTU32 transducer for casting iron ●Free conversion between metric and imperial ●Automatic calibration of zero point: automatically correct the system errors ●Gain adjustment, Low voltage indication and automatic turn-off ●500 test data and 5 sound velocity can be stored, delete and review ●Big LCD screen with back-light and adjustable contrast ratio ●Equipped with the mode to capture the minimum

●Two display modes: current thickness or minimum thickness ●Two point calibration for high accuracy ●Upper / lower limits pre-setting and sound alarm ●Resolution 0.001mm and 0.01mm selectable

Technical Specification:

	TIME®2130	TIME®2132	TIME®2134
Measuring range	0.75mm-300.00mm(steel) (depend on probe)	1.2mm-225.0mm (steel) 5.0mm-80.0mm (steel high-temp)	1.2mm-300.00mm 5.0mm-40.0mm (casting iron)
Measuring accuracy	±(1%H+0.1)mm (H means the thickness of tested piece)
Lower limits of steel pipes	φ20mm x 3.0mm
Display resolution	0. 1mm/0.01mm or 0.01/0.001inch	0. 1mm or 0.01inch
Data output	RS232 Output for printer or pc	----
Sound velocity	1000m/s~9999m/s
Power supply	AA batteries (2pcs) 1.5V
Battery life	100 hours without backlight
Sound speed	1000m/s~9999m/s
Unit scales	mm/inch
Operating temperature	-10℃~ +60℃	-10℃~ +300℃	-10℃~ +60℃
Dimensions (mm)	152 ×74 ×35
Weight (g)	370

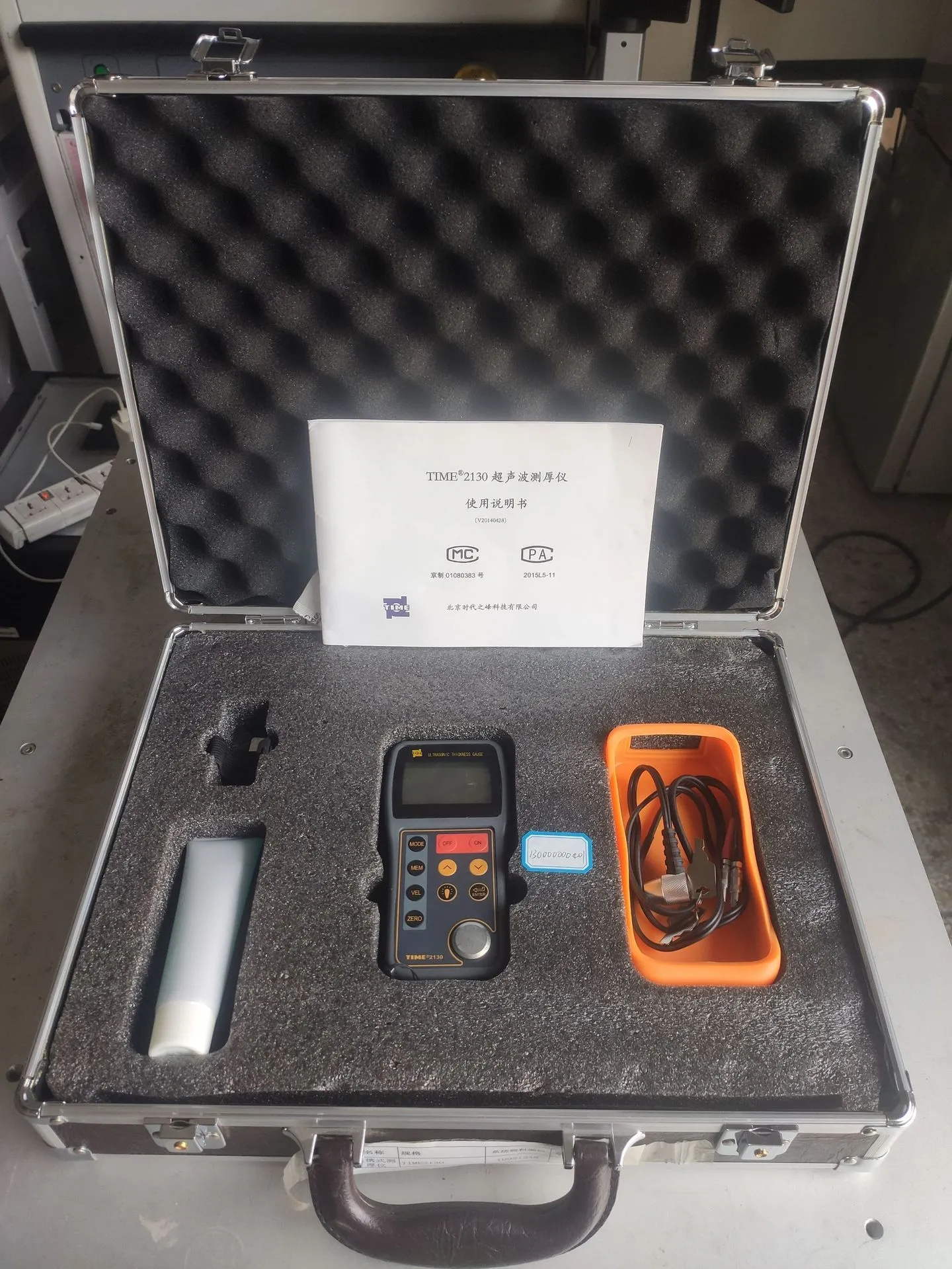

Standard Delivery：

●Main unit 1 ●Transducer 5PΦ10/90° 1 ●Transducer ZW5P for TIME®2132 1 ●Transducer TSTU32 for TIME®2134 1 ●Rubber jacket 1 ●Couplant 1 ●Batteries AA 1.5V 2 ●Screwdriver 1 ●TIME certificate 1 ●Warranty card 1 ●Instruction manual 1

Optional Accessory ●Optional transducers ●Dataview software for TIME®2130

Why Choose Us

Qingdao Runlu Electromechanical Equipment Co., Ltd. was established on May 31, 2012. Over the years, it has been dedicated to the research and development, sales and maintenance of precision instruments for measurement and testing, and is a professional supplier of metrology, testing, analytical instruments and electronic equipment. Our products include various quality control equipment for metals and non-metals, such as portable hardness testers, micro-Vickers hardness testers, Vickers hardness testers, Rockwell hardness testers, Brinell hardness testers, metallographic microscopes, grinding and polishing machines, embedding machines, cutting machines, roughness testers, thickness gauges, flaw detectors,endoscope, testing machine,etc., as well as accessories for all these products, such as ultrasonic probes, test blocks, etc. Qingdao Runlu Electromechanical Equipment Co., Ltd. is located in Qingdao City, Shandong Province, China, with a business area of 1,600 square meters and a warehouse area of 1,200 square meters. All products are produced in accordance with ISO9001 standards and have been exported to most markets around the world in the past few years. We have a professional pre-sale, in-sale and after-sale service team to provide technical support for domestic and foreign users.

Sample Room

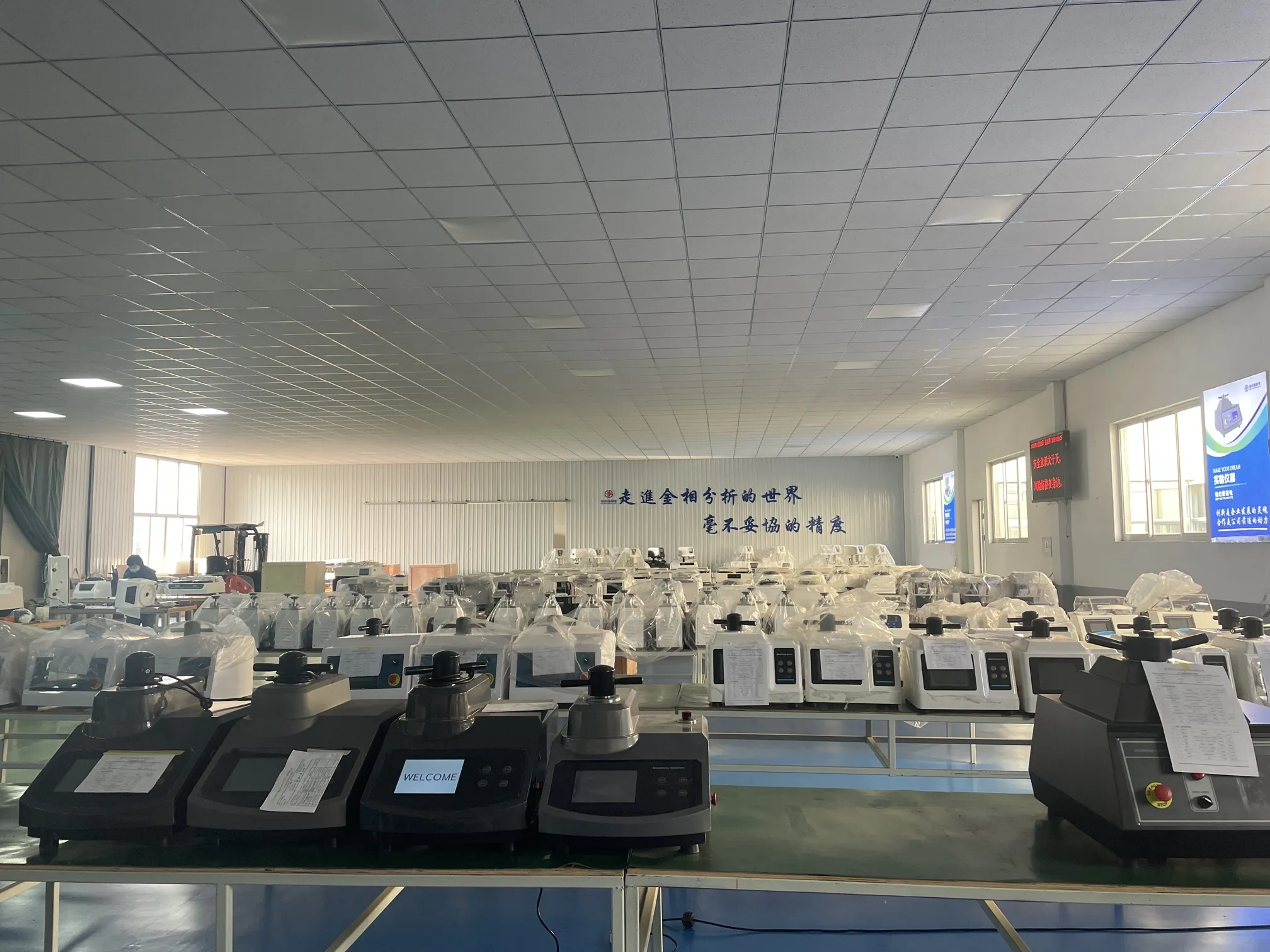

Production Line

Exhibition

Certifications

Customer Photos

FAQ

Q1:What about the warranty with after -sales services? A:The testing machine is guaranteed for 12 months by Runlu,we can help you to repair your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product,handles guest problems and complaints in a professional and timely。 Q2:What about the product' services and quality? A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. Products are widely recognized and trusted by users. Q3:After an order is placed, when to deliver? A:Generally about 10-25days, lf we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities. Q4:Do you accept customization service? A:Yes, for sure. We not only offer standard machines, but also do customized machines, our techinician will make the machine as your required. Just need to communicate before ordering.
