Square Downspout Roll Forming Machine for Gutter Systems 15-20m/min

Square Downspout Roll Forming Machine for Gutter Systems

The core process of this equipment is Cold Roll Forming, which involves physically extruding metal sheets through multiple sets of rollers at room temperature to induce plastic deformation and obtain the desired square pipes. The entire production process does not require heating and can preserve the original properties of the metal to the greatest extent possible.

A complete square tube downspout forming production line usually consists of the following core components:

1.Decoiler: used for carrying and unfolding metal coils.

2.Guide&Feeding System: Ensure that the sheet is smoothly and accurately fed into the forming machine.

3.Main Roll Forming: The core of the equipment, which includes multiple sets (usually 14 to 25 sets) of precision forming rollers. The board is gradually rolled and formed here.

4.Cutting Device: Accurately cuts the continuously formed downspout according to the preset length. There are two common methods: hydraulic cutting and pneumatic flying saw tracking cutting.

5.PLC control system: realizes full line automation control, including precise length measurement, production counting, automatic alarm and emergency stop functions.

6.Runout Table: Used for receiving and collecting finished products.

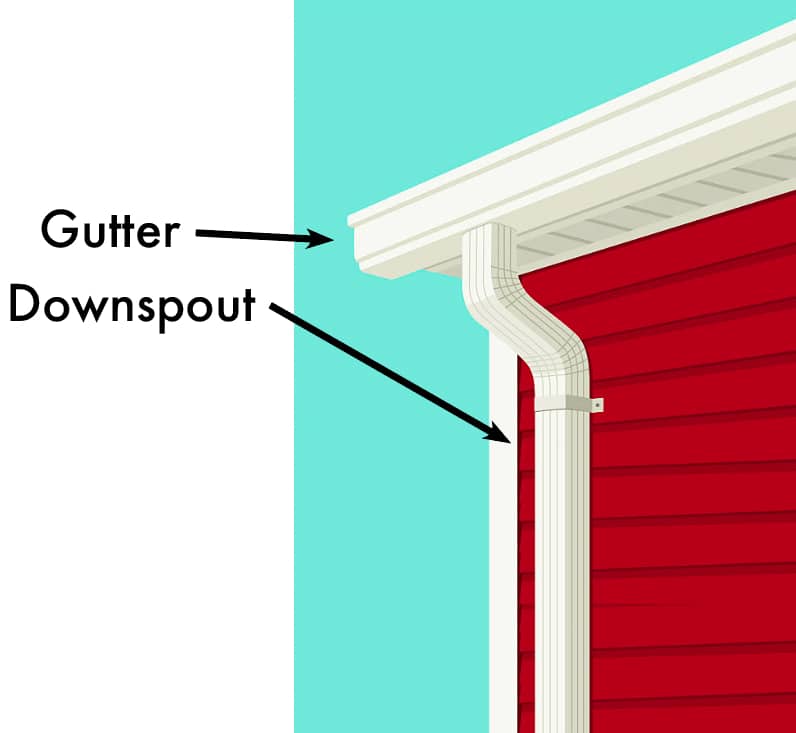

Pattern diagram:

Main Features：

1.Highly automated and intelligent:
The equipment generally adopts PLC control system and touch screen, which can achieve automatic operation, accurate length measurement and cutting to length. Some advanced models can quickly switch between producing products of different specifications.

2.Durable and sturdy, stable operation:
The equipment often adopts a sturdy steel frame structure, and the body and formed frame are tempered to eliminate internal stress and prevent deformation, ensuring long-term stable operation.

3.High precision and good quality of products:
The forming molds and roller shafts are usually made of high-quality steel (such as 45 # steel, 40Cr, GCr15) and treated with quenching, hard chrome plating, etc. to ensure accurate product dimensions, smooth surface, and uniform wall thickness.

4.One machine with multiple uses and strong flexibility:
By changing different molding molds, the same host can produce downspouts of different sizes (such as 60x80mm, 80x100mm) and even different shapes (such as square and round pipes).

5.Wide range of applicable materials:
Machinable materials include galvanized steel, color coated steel (PPGI), stainless steel, and aluminum magnesium manganese alloys. The commonly used board thickness ranges from 0.5mm to 1.2mm.

Application Scenarios：

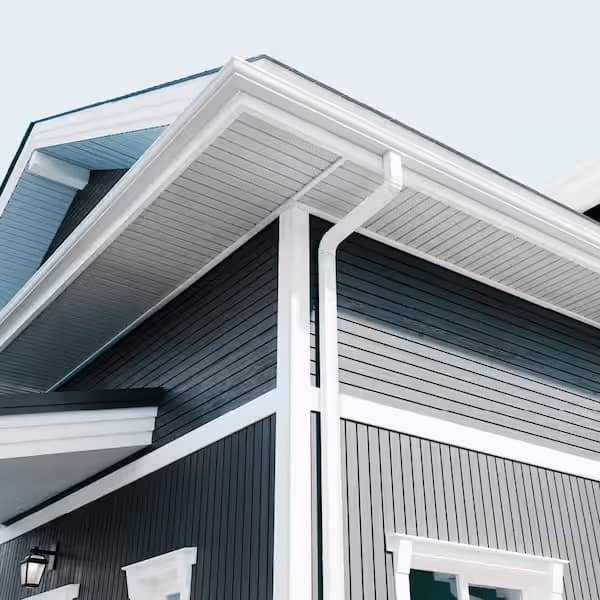

Square tube downspouts, with their simple lines and modern feel, have more architectural aesthetic advantages than traditional circular pipes, and are therefore widely used in various scenarios:

● Modern high-rise residential and commercial complexes:
The straight lines of square pipes can perfectly blend with modernist architectural styles, and can be hidden in curtain wall grooves or sprayed in the same color as the exterior walls, achieving a unity of functionality and aesthetics.

● Industrial plants and logistics warehouses:
These types of buildings have large roof areas and high drainage requirements. Square downspouts have a larger drainage cross-sectional area and higher drainage efficiency than circular pipes of the same diameter. Meanwhile, high-strength steel enables it to resist the impact of harsh industrial environments such as forklift operation and mechanical handling.

● Prefabricated buildings and modular houses:
In response to the demand for standardized and rapid construction, the square tube downspout forming machine can achieve online fixed length production, greatly reducing on-site cutting and connection work and improving efficiency.

Product Attributes:

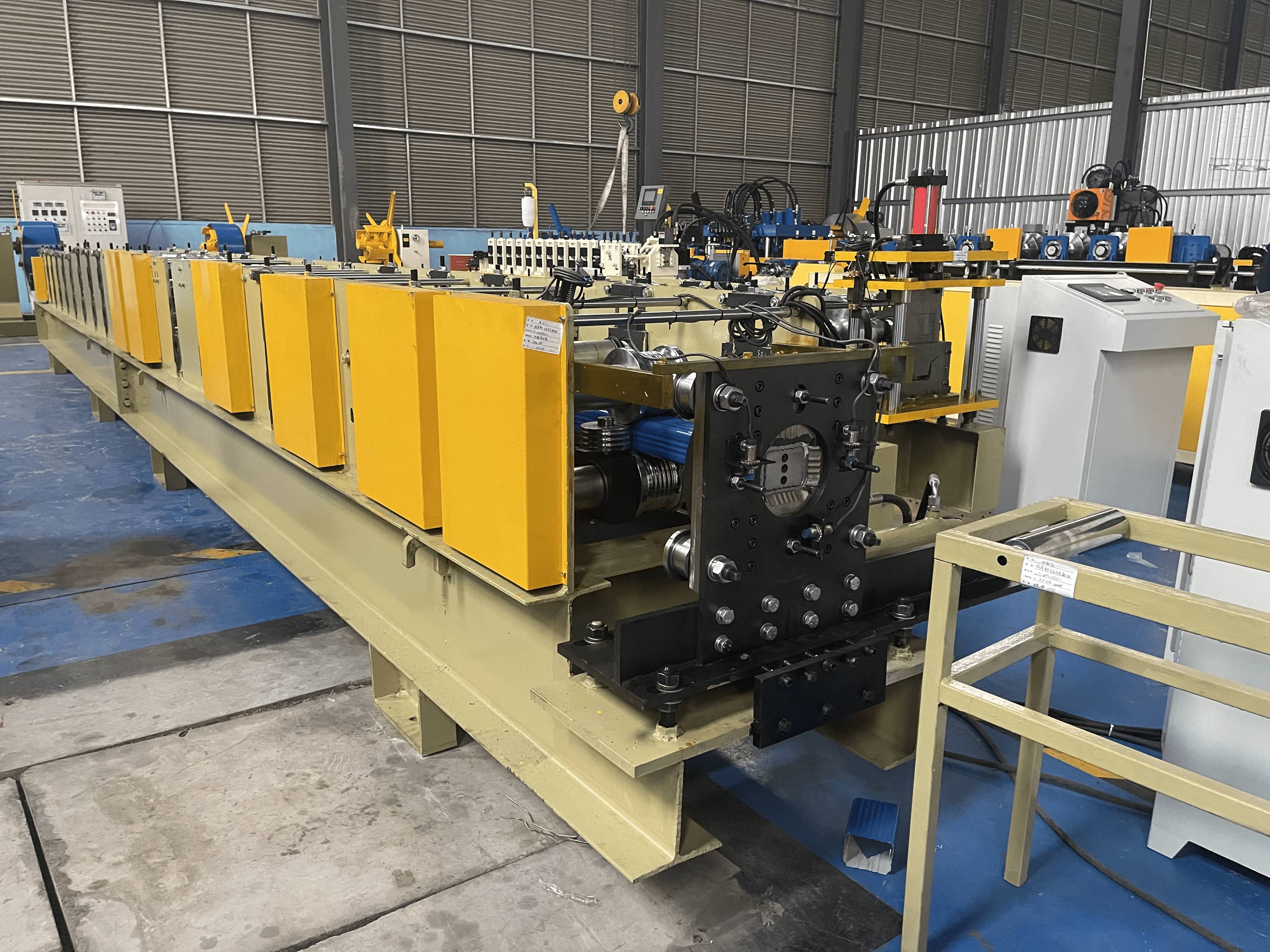

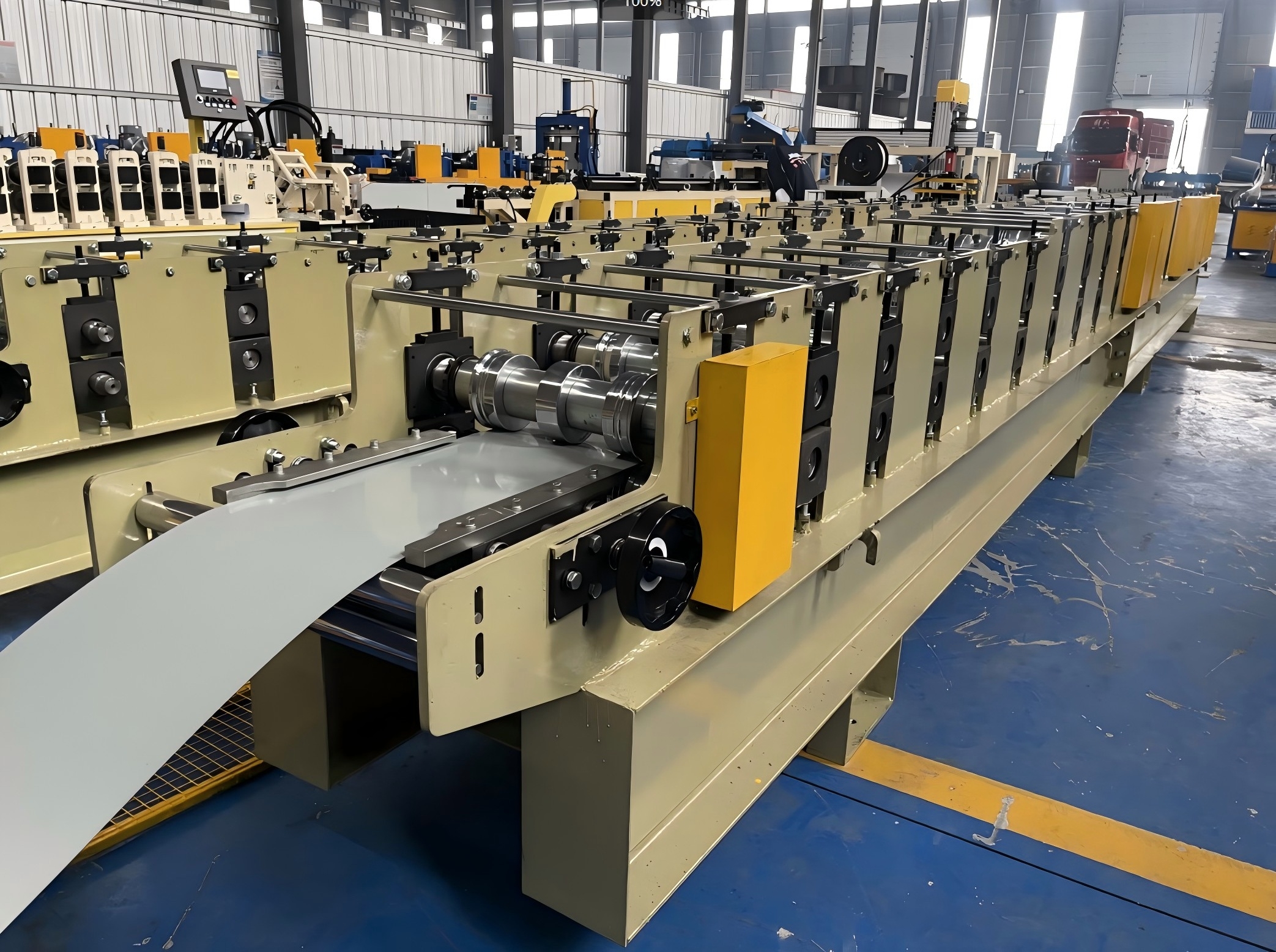

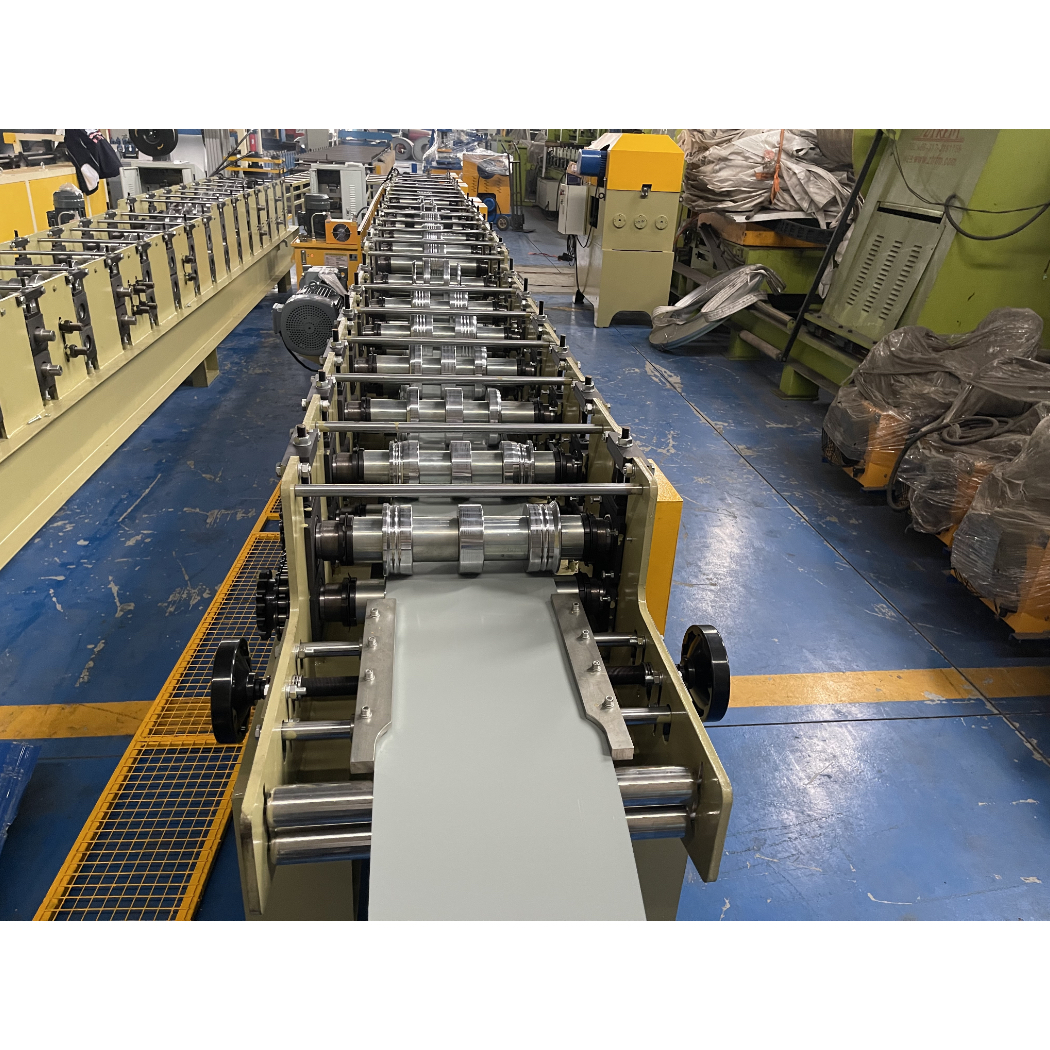

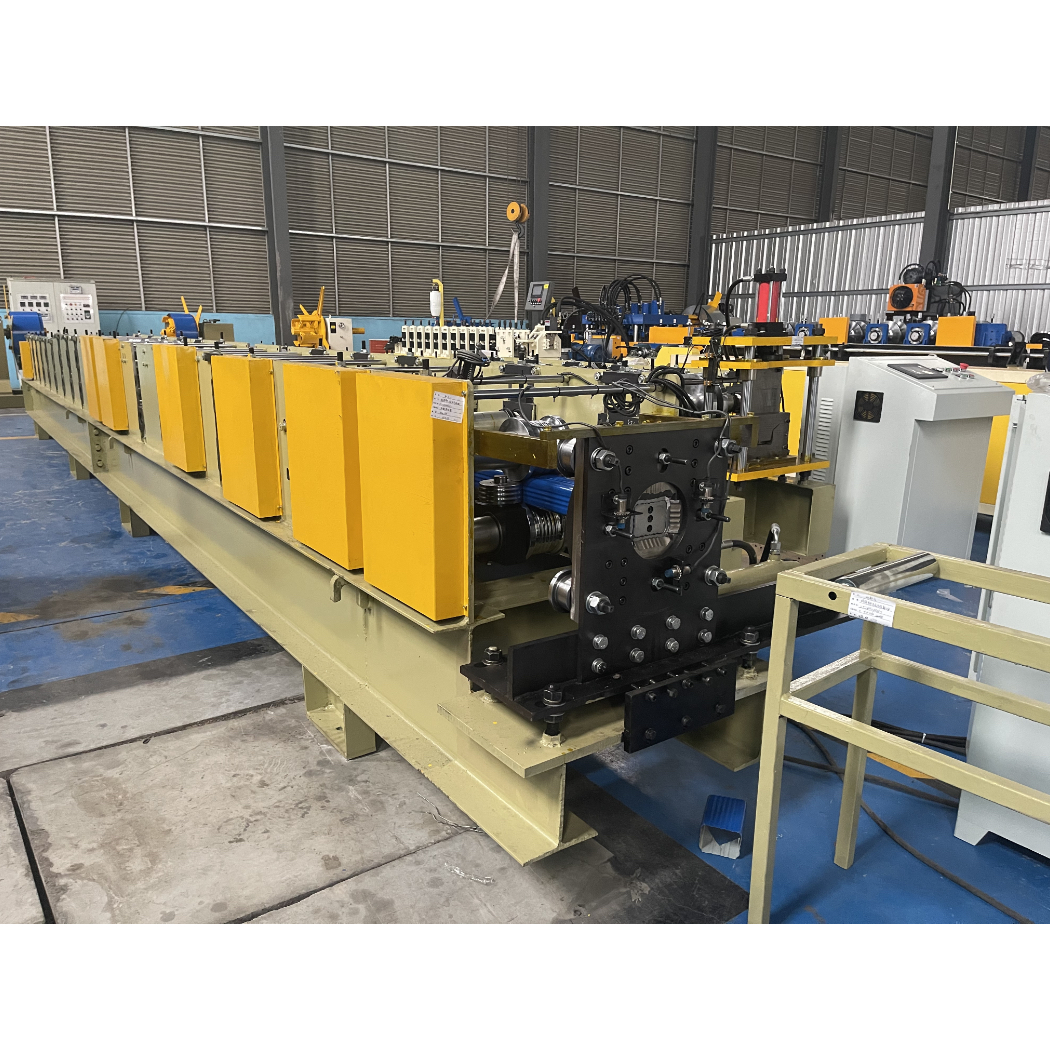

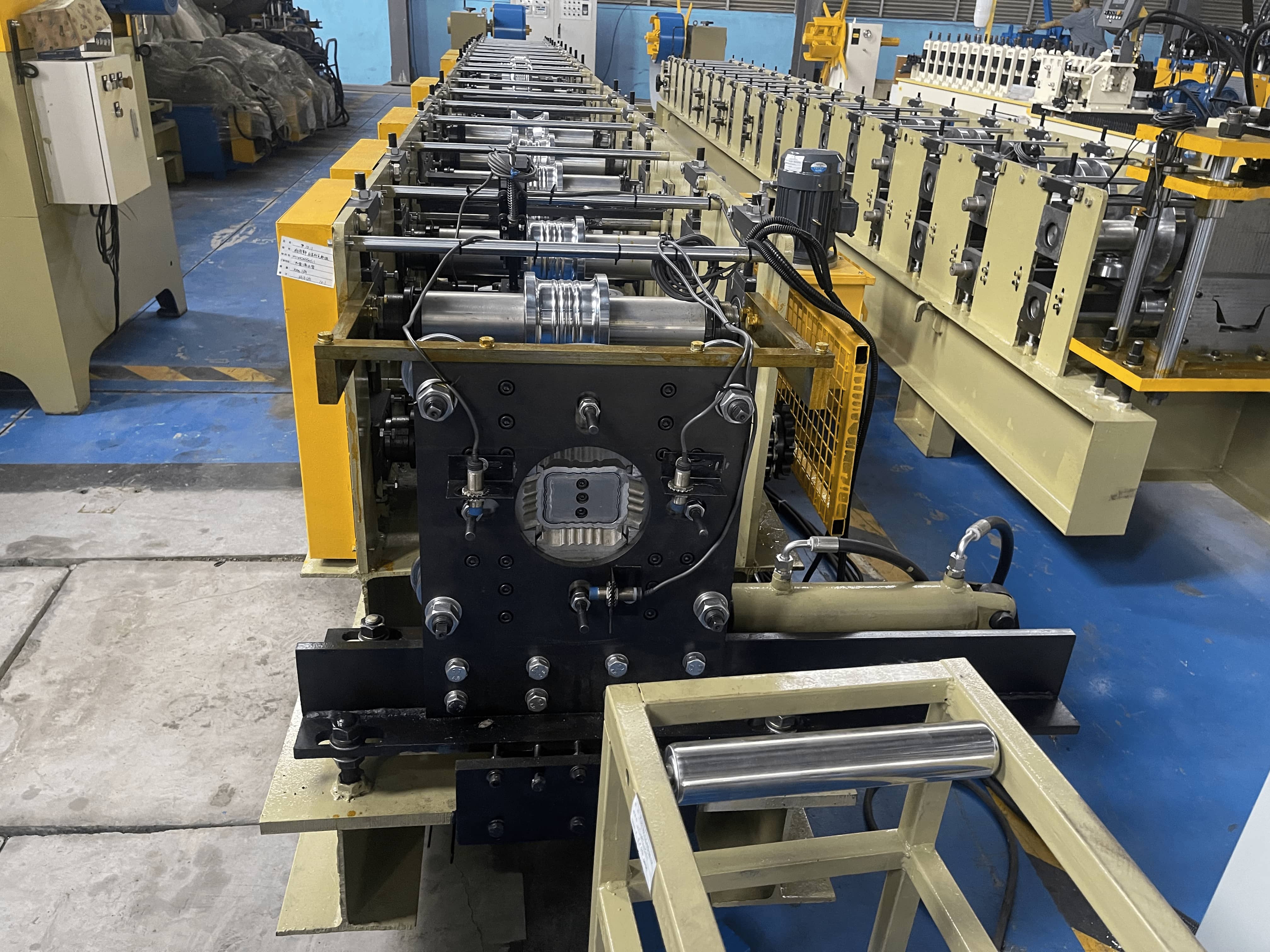

Machine photos:

Contact Us:

In summary, the square tube downspout forming machine is a core equipment that meets the modern building's requirements for efficient, aesthetically pleasing, and durable drainage systems.

If you have a deeper understanding of the specific model, parameters, or price of the device, please contact me to send you more detailed information.
