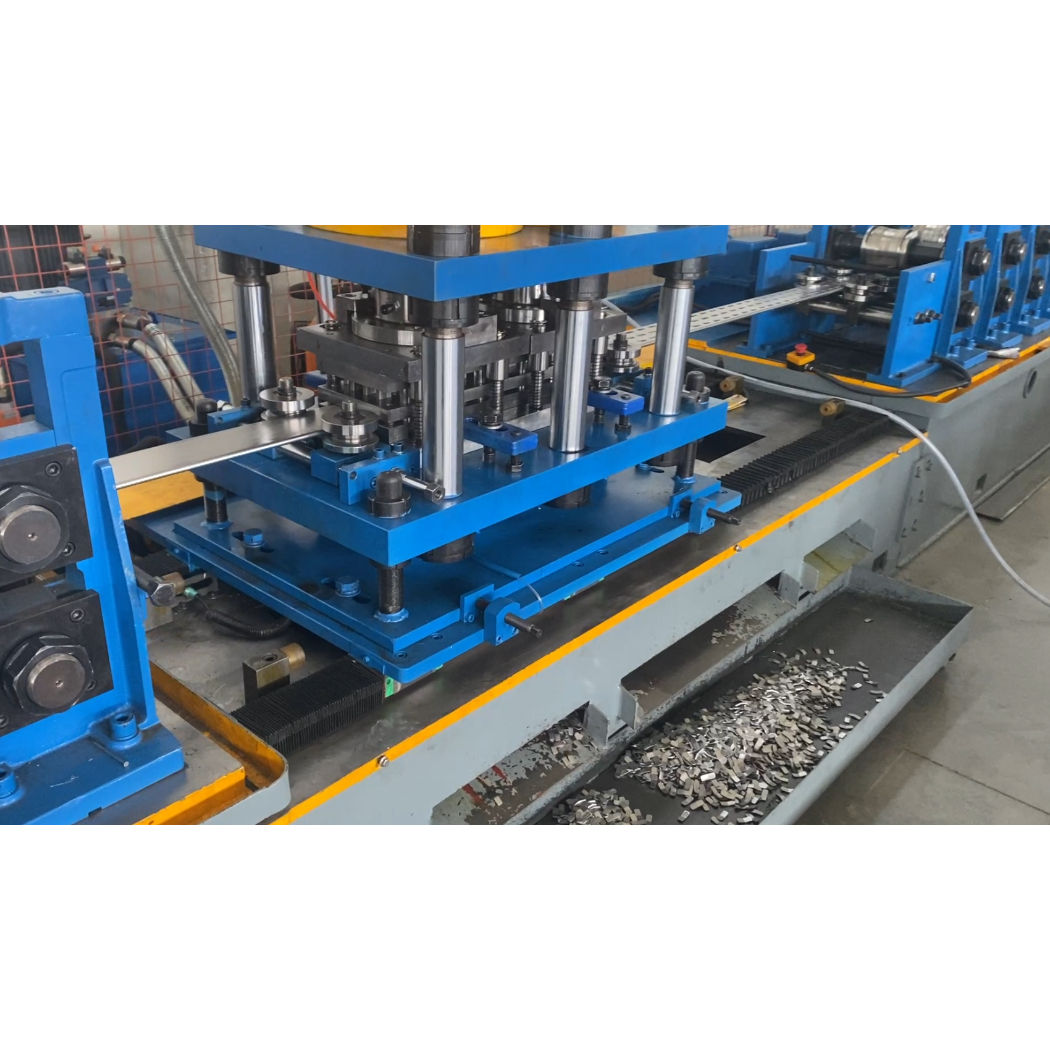

Solar Structure Channel Roll Forming Machine With Punch Press ZTRFM-solar panel bracket

Product Overview

This Automatic Solar Panel Bracket Machine is a high-efficiency production line specially designed for manufacturing photovoltaic (PV) mounting systems, solar strut channels, and brackets. It offers continuous, high-speed production with precise forming and cutting. It is an ideal equipment for solar mounting system manufacturers.

Key Features

• High Efficiency: Production speed of 0-20 meters per minute, greatly improving output.

• Precise Cutting: Equipped with a high-precision hydraulic cutting system, ensuring smooth edges and accurate lengths.

• Stable Performance: The main frame is made of high-quality steel, welded and treated to eliminate internal stress, ensuring long-term stability.

• Advanced Control: Adopts famous brand PLC (Programmable Logic Controller) and touch screen for easy operation and monitoring.

• Customizable: We can design and manufacture the machine according to your specific profile drawings and requirements.

Technical Specifications (Example - Customizable)

• Raw Material: Galvanized Steel, Carbon Steel

• Material Thickness: 1.5mm - 2.5mm (Customizable)

• Forming Stations: 16 - 20 Stations (Depends on profile design)

• Main Motor Power: 7.5 kW

• Hydraulic Motor Power: 7.5 kW

• Voltage: 380V, 50Hz, 3Phase (Or customized)

• Control System: PLC Control with Touch Screen

• Cutting Type: Hydraulic Cutting

• Machine Weight: About  1 TON

• Warranty: 1 Year for core components

Working Process

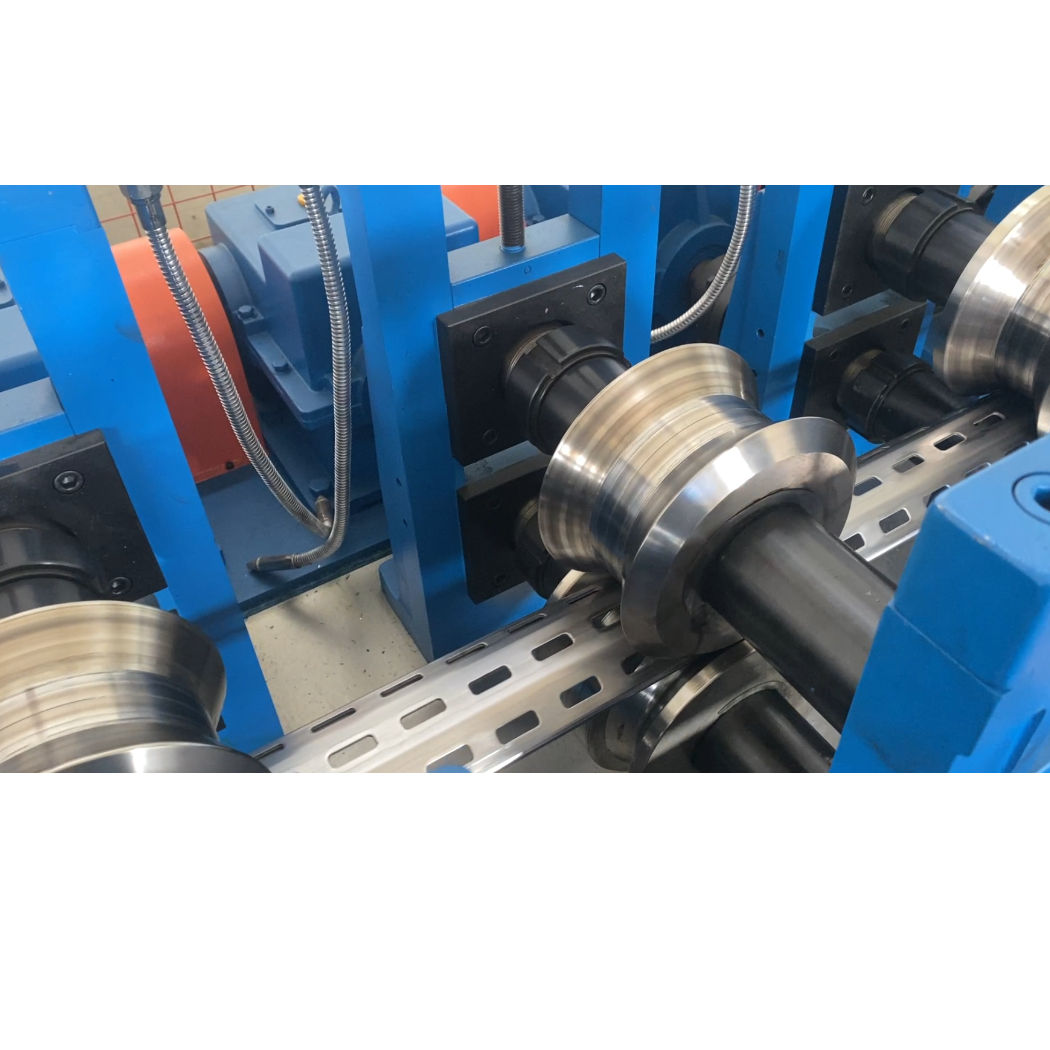

Manual Decoiler -> Feeding Guide -> Main Roll Forming Machine -> Hydraulic Cutting System -> Output Table

After-Sales Service

• Installation & Training: We can provide a detailed operation manual and video. If needed, we can send engineers to your factory for installation and training (Buyer covers related travel expenses).

• Warranty: 1-year warranty for the whole machine. During the warranty period, any non-human damaged parts will be provided for free.

• Technical Support: 24/7 online technical support to solve any problems you may encounter.

FAQ

Q1: Are you a manufacturer or trading company?
A: We are a professional manufacturer with our own factory. We have rich experience in producing roll forming machines.

Q2: Can you make the machine according to our profile drawing?
A: Yes, definitely. We can customize the machine based on your detailed profile drawings and specific requirements.

Q3: How long is your delivery time?
A: Usually it takes about 30-45 working days after receiving your deposit.

Q4: What is your payment term?
A: 30% T/T as deposit, and 70% balance before shipment.
