ZhongTuo High Speed Roller Shutter Door Frame Roll Forming Machine Production Line standard type

Product Description

High Speed Roller Shutter Door Frame Roll Forming Machine

Our Roller Shutter Door Frame Roll Forming Machine is designed for continuous and efficient production of door frames. It features high automation, stable performance, and easy operation. The produced frames are widely used in garages, warehouses, and commercial buildings.

Technical Parameters:

1. Raw Material: Galvanized Steel Coil, Cold Rolled Steel Coil

2. Material Thickness: 0.5mm - 1.2mm (Customizable)

3. Rolling Speed: 25 m/min

4. Roller Stations: About 14  Stations (Depends on final profile)

5. Main Motor Power: 5.5KW (Customizable)

6. Hydraulic Cutting Power: 5.5KW

7. Control System: PLC Control System (Siemens)

8. Voltage: 380V, 50Hz, 3Phase (Or customized according to customer's local voltage)

9. Machine Dimensions: Customized according to customer's workshop space.

Working Flow:
Manual Decoiler -> Feeding & Guiding -> Roll Forming -> Hydraulic Cutting -> Output Table

Main Components:

• Decoiler: 1.5 Tons manual decoiler.

• Main Forming Machine: High-quality steel frame, precision-machined rollers (Cr12 material).

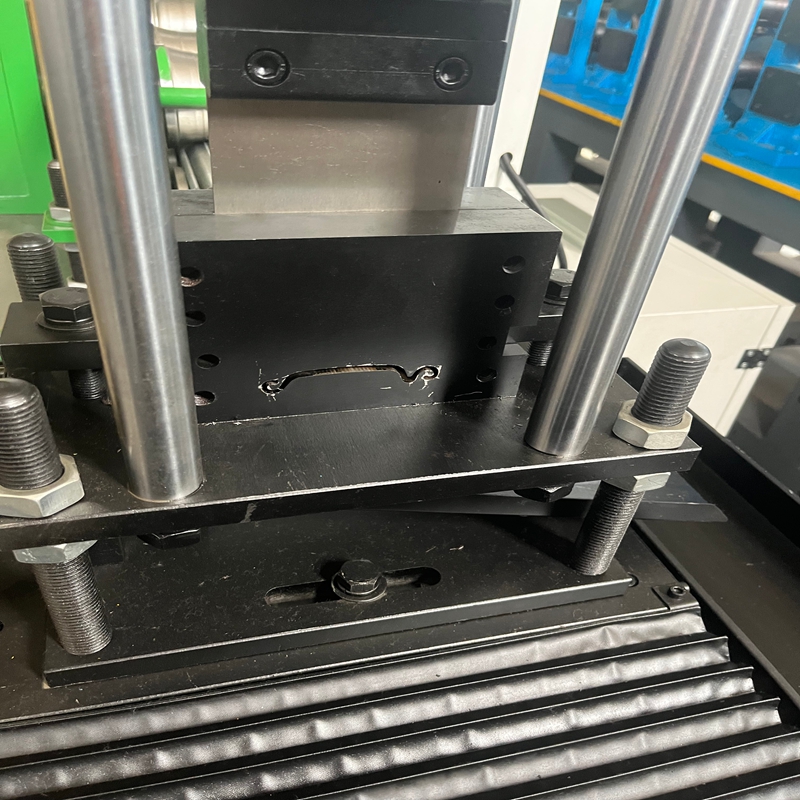

• Cutting Device: Hydraulic driven, stop-cut.

• PLC Control Cabinet: Easy operation with English interface.

• Hydraulic Station: Reliable performance.

Our Advantages & Services:

• High Efficiency: High speed rolling ensures large output.

• Stable Performance: Heavy-duty frame and precise rollers ensure long service life.

• Customization: We can design the machine according to your specific door frame drawings.

• After-sales Service: One-year warranty for the main machine, lifetime technical support.

FAQ:
Q1: Are you a factory or trading company?
A: We are a professional manufacturer with our own factory. Welcome to visit us.

Q2: How long is your delivery time?
A: Usually 30-45 days after receiving the deposit.
