Rectangular Downspout Making Machine Roll Forming Machine Standard

Name: Rectangular Downspout Making Machine Roll Forming Machine Standard
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT119531503

Roller Stations22 stations

Control SystemPLC (imported brand)

Machine Weight8000 kg

WarrantyMore Than 5 Years

CertificationCE, BV, STV, ISO

Place Of OriginChina

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model:

Standard

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Roller Stations
22 stations
Control System
PLC (imported brand)
Machine Weight
8000 kg
Warranty
More Than 5 Years
Certification
CE, BV, STV, ISO
Place Of Origin
China
Model
Rectangular Downspout Making Machine
Forming Speed
20 m/min
Max Profile Width
500 mm
Power
11 kW
Voltage
220 V / 380 V / 440 V / Customized
Roller Material
45# steel Chrome Plated
Shaft Material
45# steel, Outer Diameter 70 mm
Cutting Blade Material
Cr12 High Grade Steel

Rectangular downspout making machine with 22 forming stations

Product Overview

The rectangular downspout making machine is a roll forming line that produces rectangular downspout profiles from metal coil for rain gutter drainage systems. It runs at a forming speed of 20 m/min with a maximum profile width of 500 mm, driven by a 22-station forming line and a PLC control system.

22 forming stations for a precise rectangular downspout profile
Forming speed up to 20 m/min
PLC control system with imported brand components
Chrome-plated 45# steel rollers and Cr12 high grade steel cutting blades
Easy to operate; formed pipe without surface damage
CE certified, video outgoing-inspection and machinery test report provided

Key Features

22-Station Forming Line - Each station progressively shapes the metal coil into the final rectangular downspout profile with consistent geometry.
PLC Control System - Imported brand PLC provides stable automatic control of the forming and cutting sequence.
Durable Tooling - Rollers are made of chrome-plated 45# steel with 70 mm outer diameter shafts; cutting blades use Cr12 high grade steel for long service life.
Core Components - PLC, engine, gearbox, bearing, motor, pressure vessel, gear and pump build a reliable drive and power system.
Easy Operation - Simple control layout for quick setup and changeover; formed pipe exits without surface damage.
Customizable Voltage - Available in 220 V, 380 V or 440 V, with customized options supported.

Technical Specifications

Item	Specification
Product name	Rectangular Downspout Making Machine
Forming speed	20 m/min
Max profile width	500 mm
Roller stations	22 stations (for final rectangular downspout profile)
Roller material	45# steel, chrome plated
Shaft material	45# steel, outer diameter 70 mm
Cutting blade material	Cr12 high grade steel
Control system	PLC (imported brand)
Power	11 kW
Voltage	220 V / 380 V / 440 V / customized
Machine weight	8000 kg
Core components	PLC, engine, gearbox, bearing, motor, pressure vessel, gear, pump
Warranty	More than 5 years
Certification	CE, BV, STV, ISO
Video outgoing-inspection	Provided
Machinery test report	Provided
After-sales service	Service machinery overseas; remote warranty supported
Place of origin	China

Machine Structure

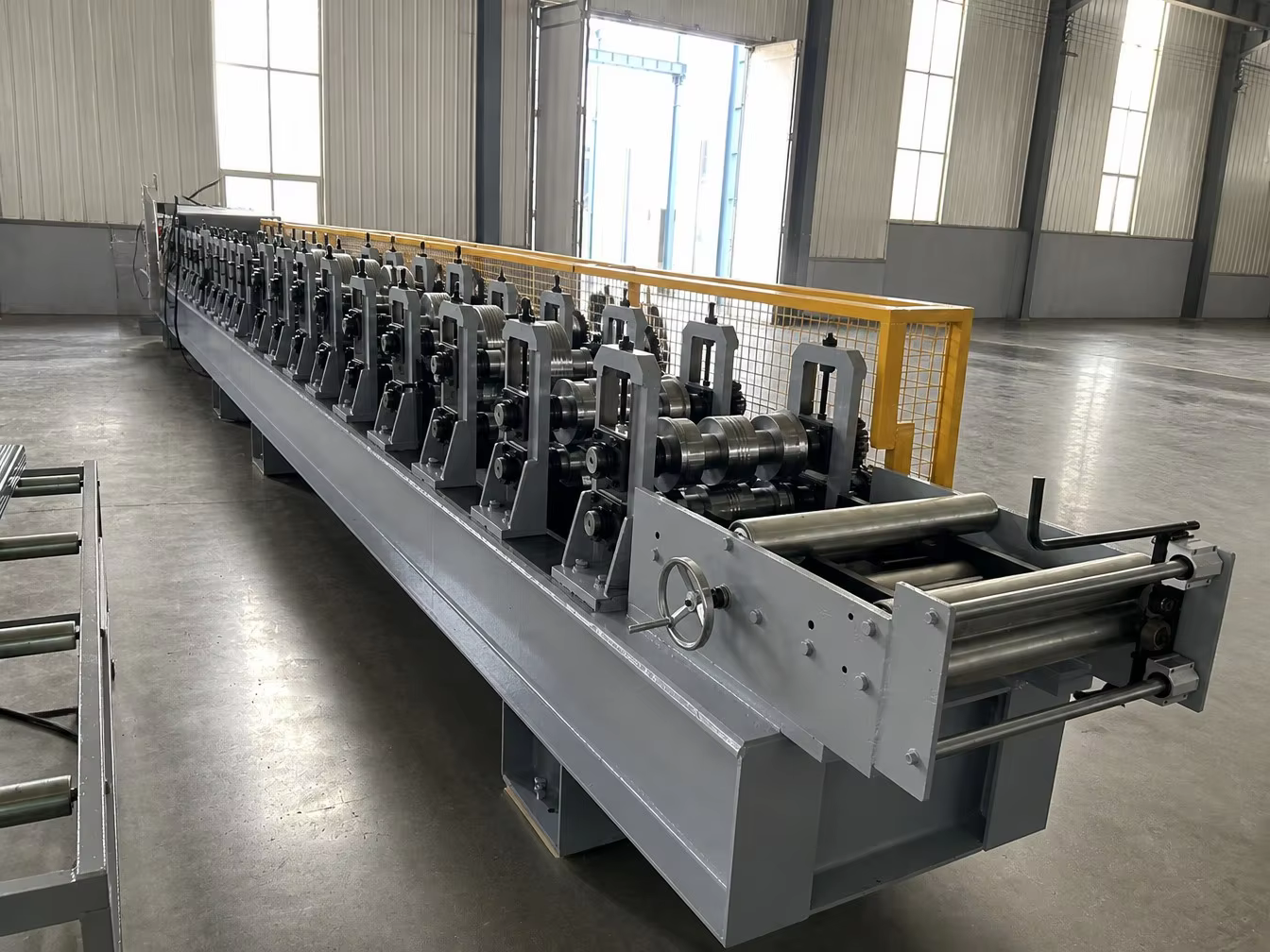

Roll forming stations with rollers, handwheel and safety guard

The machine line consists of sequential forming stations mounted on a heavy-duty steel base. Each station carries a pair of shaped rollers that bend the metal strip step by step, with a manual handwheel for quick roller adjustment and a mesh safety guard covering the moving parts.

Applications

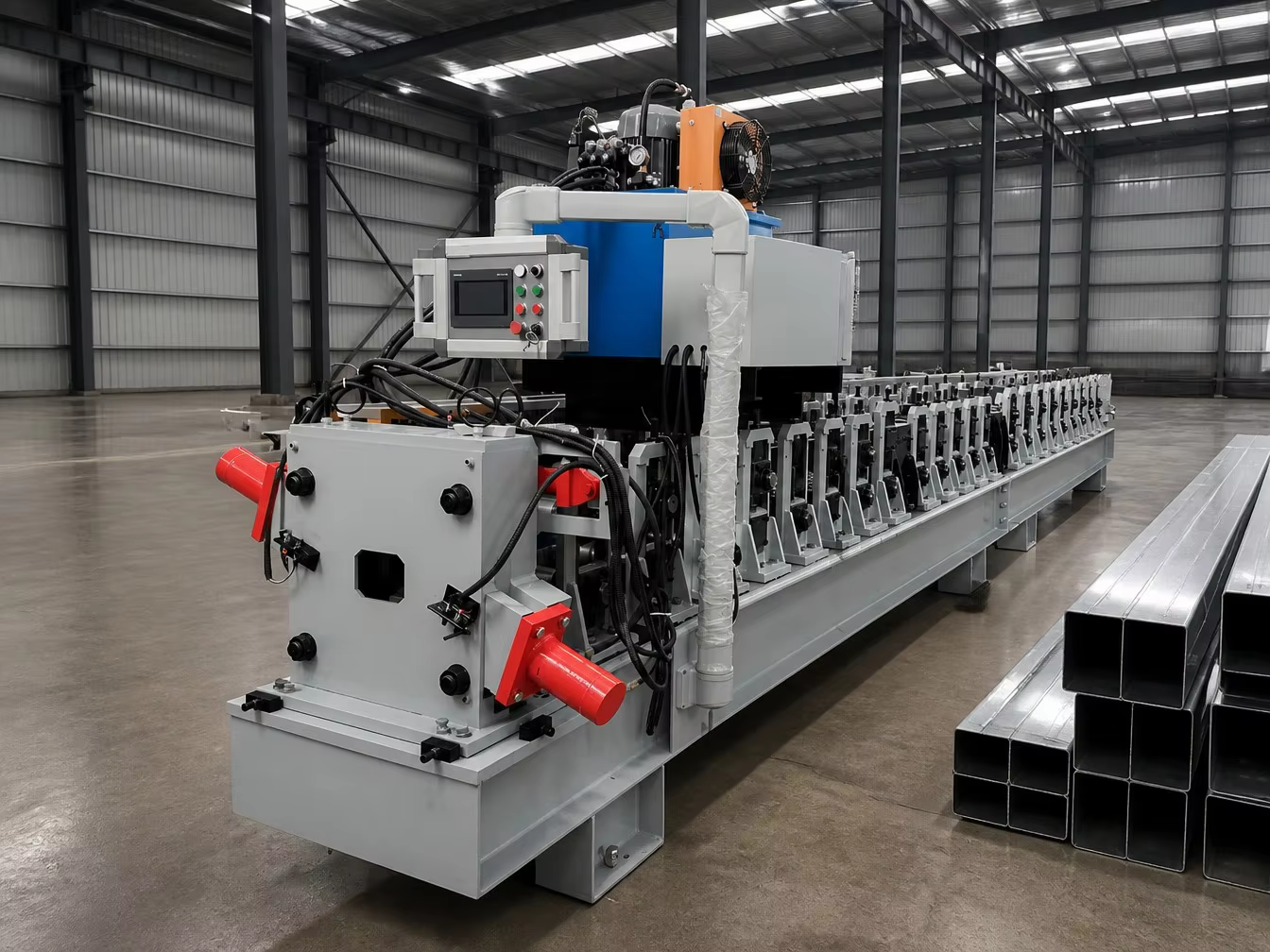

Rectangular downspout making machine in a metal fabrication workshop

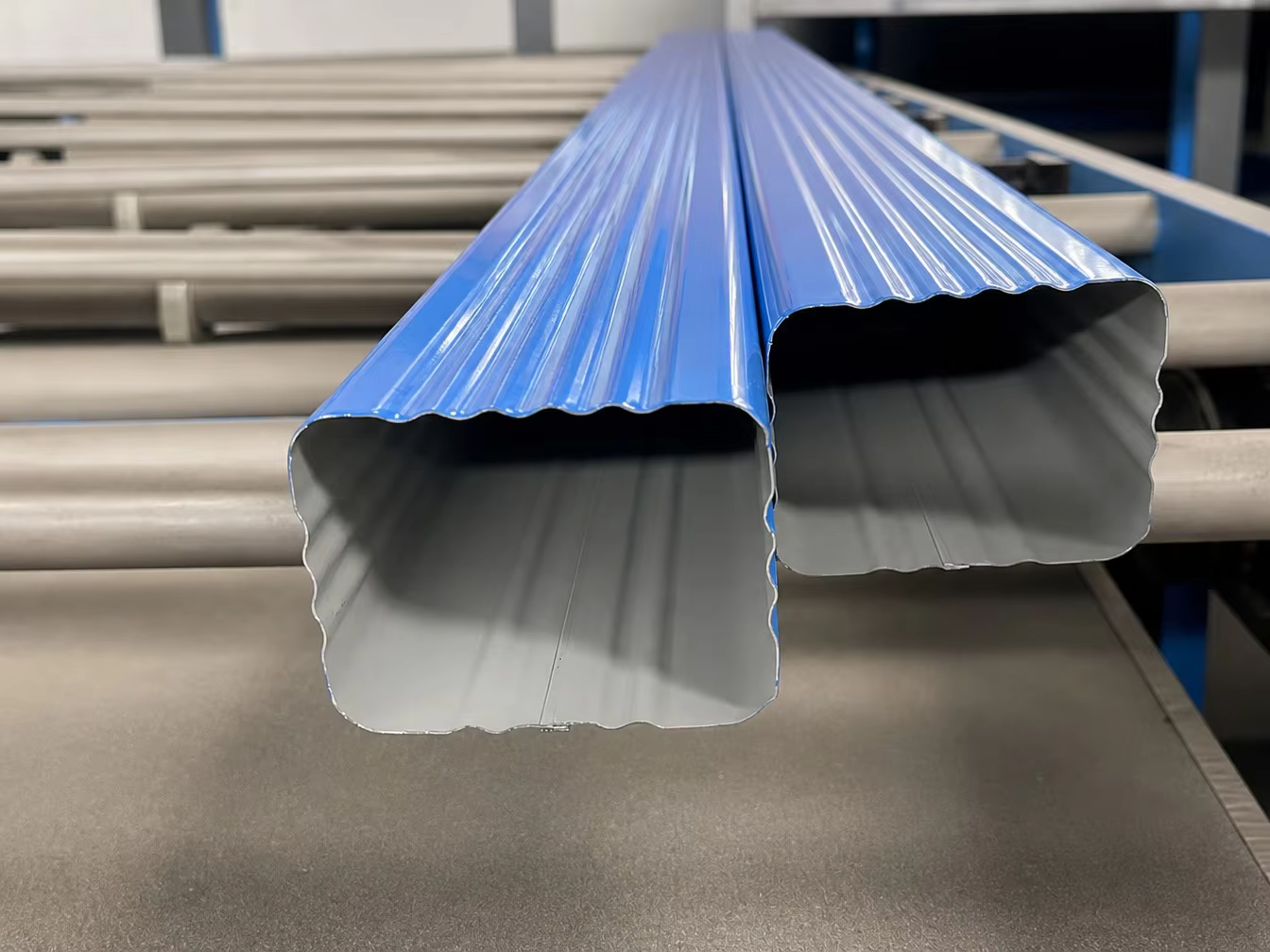

Finished rectangular downspout profiles with corrugated surface

The machine is used to produce rectangular downspout profiles for building rainwater drainage systems, commonly combined with gutter production lines in roofing and facade projects.

Packing & Supply

Item	Detail
MOQ	1 set
Delivery time	50 days for 1 set; 66 days for 2 sets
Package dimensions	850 x 100 x 100 cm
Package weight	8000 kg
Customization	Packaging (PP bag), name plate (laser carving), logo/graphic design (digital printing)

FAQ

What is the minimum order quantity? The MOQ is 1 set.
What is the forming speed? The machine forms at up to 20 m/min.
Which voltages are supported? 220 V, 380 V and 440 V are available; customized voltage is supported.
Is the machine certified? Yes, it carries CE, BV, STV and ISO certification; a machinery test report and video outgoing-inspection are provided.
What is the warranty period? More than 5 years, with overseas machinery service support.
Can the machine be customized? Packaging, name plate and logo design can be customized to your requirement.
