ODM/OEM Factory Ip54 Customized Cheap Price Vacuum Pump Plc Vfd Hmi Electric Control Cabinet Box Panel Henan, China+customized+customized+Silver+OEM.ODM

ODM/OEM Factory Ip54 Customized Cheap Price Vacuum Pump Plc Vfd Hmi Electric Control Cabinet Box Panel Henan, China+customized+customized+Silver+OEM.ODM

Name: ODM/OEM Factory Ip54 Customized Cheap Price Vacuum Pump Plc Vfd Hmi Electric Control Cabinet Box Panel Henan, China+customized+customized+Silver+OEM.ODM
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT81937742

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Application
Power Station, Building, Industrial Equipment, Electronic Equipment, Cnc Machine, Electric Power Transmission
Material
Stainless Steel, Plastic, Steel , Copper

Product Description

Application direction:

In the process of anode material stirring, cathode material stirring, liquid injection and packaging, high vacuum degree is required to ensure that no impurities such as water vapor enter, thus ensuring the stability of the cell quality.Now the scheme adopts a set (one) of vacuum pumps at each vacuum demand point. The vacuum pumps are controlled by relays. Unable to monitor the running state of the equipment, unable to obtain maintenance information, unable to access the MES system. The intelligent control cabinet adopts intelligent control based on PLC, which can monitor the temperature, vacuum degree, motor current and other information of the equipment in real time, record and remind the equipment maintenance information, and access MES system through ModBus RTU/S7/ProfiNet and other communication interfaces, thus providing differentiated optimization services for customers.

Functional performance description:
1. Brand components are adopted to ensure the quality; Flexible configuration can be considered based on cost;
2. Touch screen control, more intuitive data display, more convenient operation, real-time monitoring of device status;
3. small and medium-sized PLC as the control core, stable and reliable operation, high cost performance.

Our strengths：
1、The products have been used for a long time in many famous manufacturers of electric cells, with stable and reliable operation and low failure rate。
2、The vacuum degree stability is improved significantly, the equipment operation and maintenance requirements are significantly reduced, the equipment maintenance rate on time, and the service life is significantly improved。
3、It can dock with various communication interfaces and MES system to facilitate the realization of industry 4.0 and intelligent factory.
4、We can provide turnkey projects, and customers can express their requirements clearly. We can provide scheme design, production and delivery, which can be directly used by customers.

Specification

Technical indicator
Mode of production	Relay control	Our control system	contrast
Vacuum stability	±5mbar	±0.5mbar	900% increase
Same system, power consumption at rated vacuum	15KW	10KW	33% reduction
Number of maintenance personnel required for 1 vacuum system (30 vacuum points)	Three operation and maintenance personnel	one operation and maintenance personnel	Maintenance staff reduced by 200%
Equipment maintenance rate on time	60% On-time maintenance	98% On-time maintenance	38% increase
Equipment service life	20000 hour	30000 hour	50% increase

Cabinet parameter table
Cabinet size	Height	800mm
		Depth	400mm
		Width	600mm
Structure	Material	201/304/316 stainless steel；Metal cabinet
		Single-layer door	Outer layer with lock
		Double door	Outer layer with glass inner layer with lock
		Bottom	Rubber ring, protective cable
		Top	With lifting ring, easy to lift
		Rubber seals are installed on the contact parts between the Cabinet body and the cabinet door for sealing.
		Detachable connectors are set on cabinets and doors for installing ground wires.
Surface Treatment	Mounting plate	GI processing
Cabinet identification	• Configure the nameplate according to the customer's needs.
		• All components in the cabinet are marked with text or symbols.
		• All input and output terminals are marked.
		• All input and output cables are marked.
		• All languages, texts, symbols used and other norms shall be based on Chinese and equivalent national standards.
Component installation	• The components are installed firmly and the layout is reasonable.
		• The installation of components/electrical components is consistent with the design drawings.
		• Wires and Cables conform to international or national standards.
		• The cable connector adopts cold-pressed terminals, and the wiring is neat and firm.
		• Power cable, analog signal cable, digital the signal line should be placed in different trunks as far as possible.
Benefits	High reliability, multi-function, easy to install
Benefits		Beautiful appearance, dust-proof and rust-proof
If you have any special requirements, please feel free to let me know. We can customize it for you.

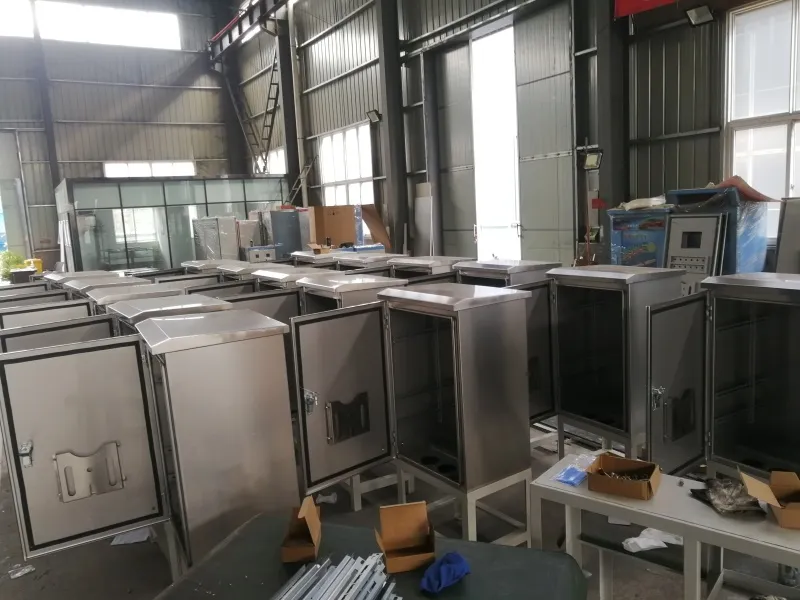

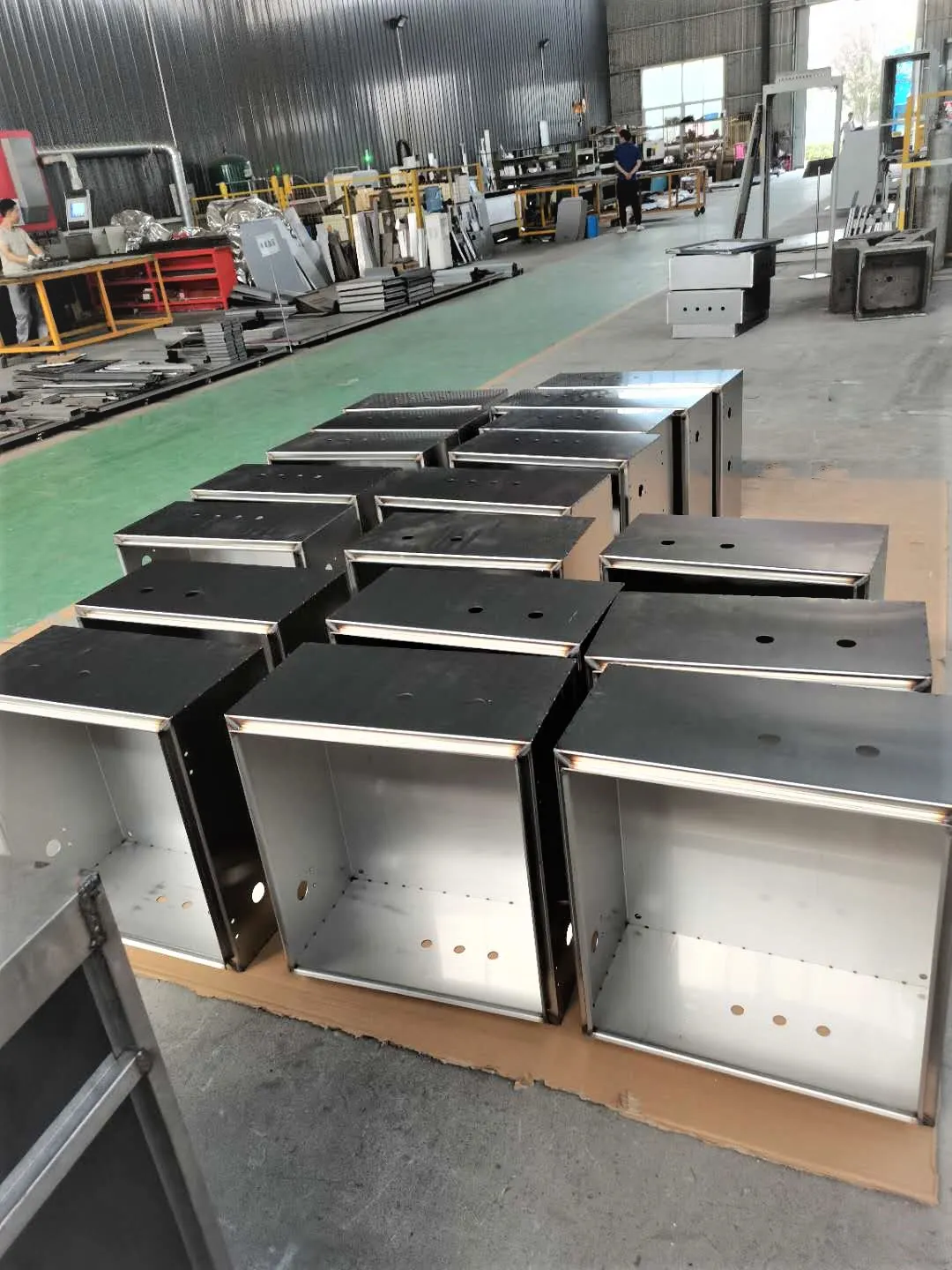

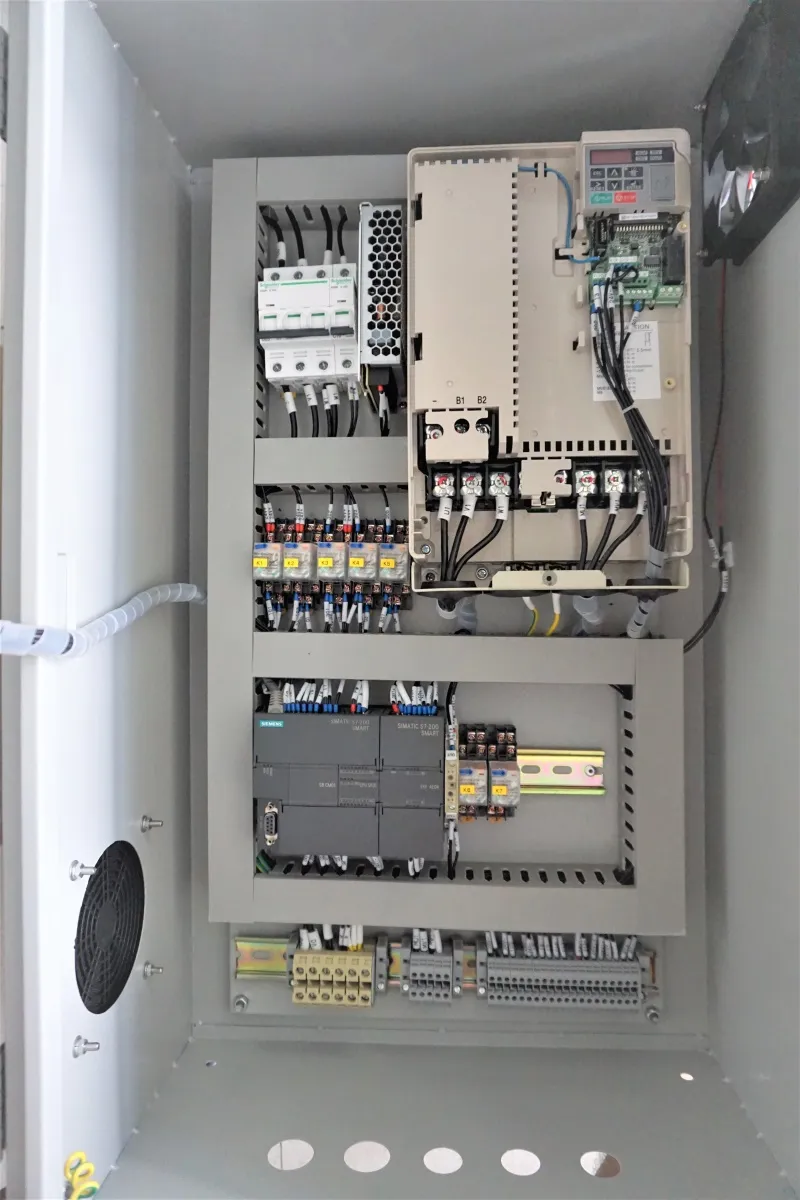

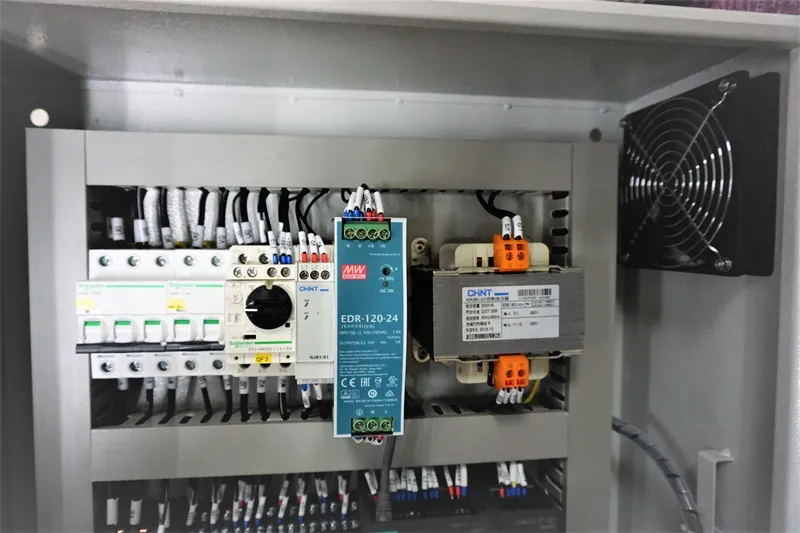

Details Images

Recommend Products

Packing & Delivery

Company Profile

Luoyang Bozhi Automatic Control Technology Co., Ltd. was established in January 8, 2013, and its office address is Luoyang high-tech zone, Henan province, China. Its main businesses include robots, automation equipment, simulation training equipment, mechanical equipment and accessories, electronic products, computer software development, processing, sales, automation system integration.

Our company is A Class A enterprise, A high-tech enterprise, A double-soft Enterprise, A provincial-level enterprise that "adheres to contracts and attaches great importance to credit", and has established A research and development center for parallel robot enterprises in Luoyang city, it was listed on the provincial New fourth board display board in November 2017; It passed the certification of intellectual property management system in May 2019. So far, the company has applied for 41 intellectual property rights, of which 29 have been authorized, including 3 invention patents, 11 utility models, 14 computer software copyrights and 1 trademark.

The company has a young staff team, majoring in mechanical design and manufacturing and automation, electrical engineering and automation, electronic information engineering, process equipment and control engineering, etc, can provide customers with all-round project services in a timely and efficient manner.

The company now has a number of research and development and production equipment, such as oscilloscope, equipment remote debugger, tin furnace, flux sprayer, full-automatic Mounter, semi-automatic screen printing table, reflow soldering machine, full-automatic feeder, etc., to meet the needs of customers.

Certifications

FAQ

1. When is the delivery time? Delivery will occur between 15 and 20 days from order date. Faster delivery time can be arranged if needed. 2. Do you have any MOQ limit? Yes it depends on the products’ size and production process. 3. What’s your payment method? Paypal, T/T, L/C, Western Unions, are available.
