Product Details
Reviews(0)

Technical Specifications

Grade
3000 Series
Surface Treatment
Coated
Tolerance
±1%

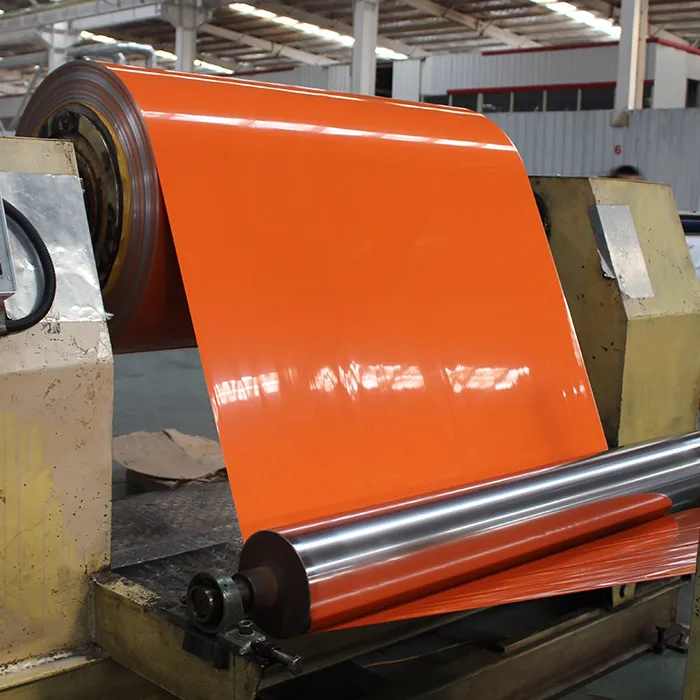

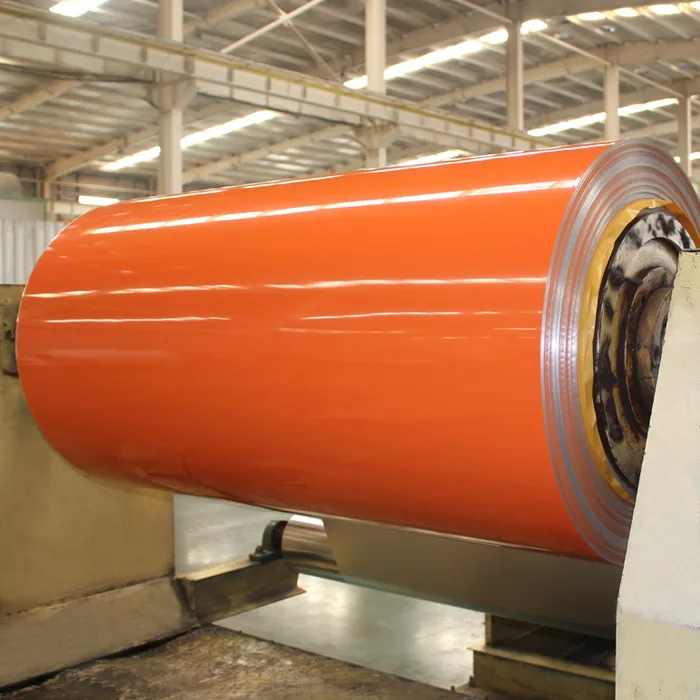

Color coated aluminum coil (painted aluminum roll)

Color coated aluminum coil, as its name suggests, is the product after coloring the surface coating of aluminum plate or aluminum roll, mainly divided into PVDF(fluorine-carbon) color coated aluminum coil, PE(polyester) color coated aluminum coil.

Product Paramenters

Product parameters
Aluminum Alloy			AA1100,AA3003，...
Coil thickness			0.018mm-0.5mm
Coil width			MAX 2000mm
Coating thickness			14-28 microns（PE：≥14micron，pvdf：≥25micron）
Coils core diameter			150mm,405mm,505mm
Coil weight			1.0 to 3.0 tons per coil
Coating paint			PE, PVDF,Double-PE,HDPE,FEVE
Color			white series,metallic series,dark series,gold series(accept color customs)
Temper			O - H112
Surface			Embossed, mill finish, coated
Brand Name			JINHU
gloss			20-100%(matte:≥20，glossy：≥60）

ACCEPT OEM AND ODM

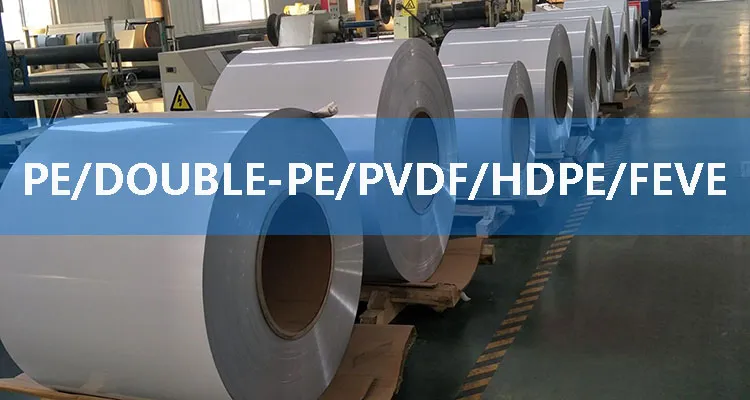

We can produce the thickness from 0.018mm to 1.5mm, the width from 40mm to 2000mm, the paint including PE/DOUBLE-PE/PVDF/HDPE/FEVE. The Alloy No. is 1000 series, 3000 series,8000 series and etc.

Color Coated Aluminium Foil&Coil For gutter

Color Coated Aluminium Foil&Coil for sun louver system,for ceiling system,for gutter system,for home appliances board.

Application

Color coated aluminum coil is widely used in the roofing and cladding system, ceiling system, curtain wall plate, shutter, gutter, composite panel, Honeycomb panel,Advertising sign,home appliances board and embossed aluminum coil.

For Aluminium Composite Panel

For Aluminium Honeycomb Panel

For Advertising Sign

For Gutter System

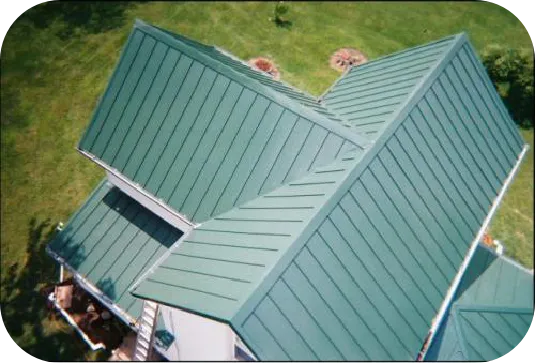

For Roofing System

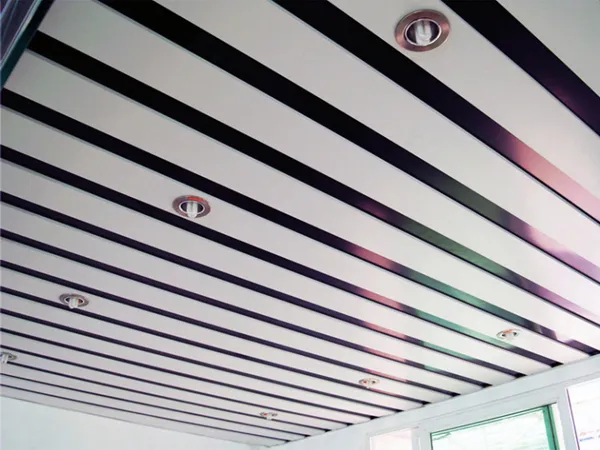

For Ceiling System

For Window Shades

For Curtain Wall Panels

For Home Appliances Board

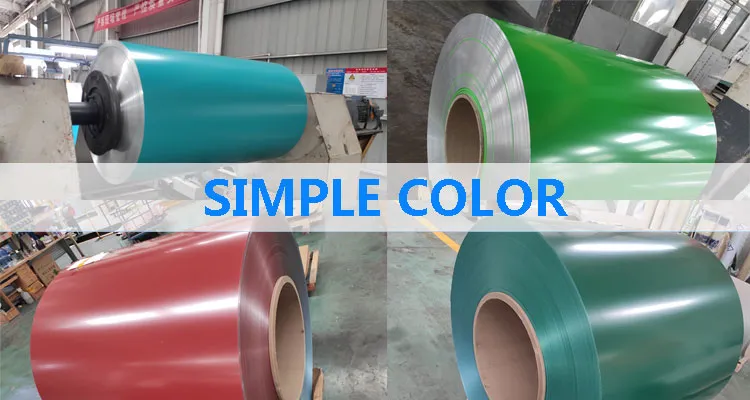

Color Chart of color coated aluminium coil

The color can be customized according to your requirements.

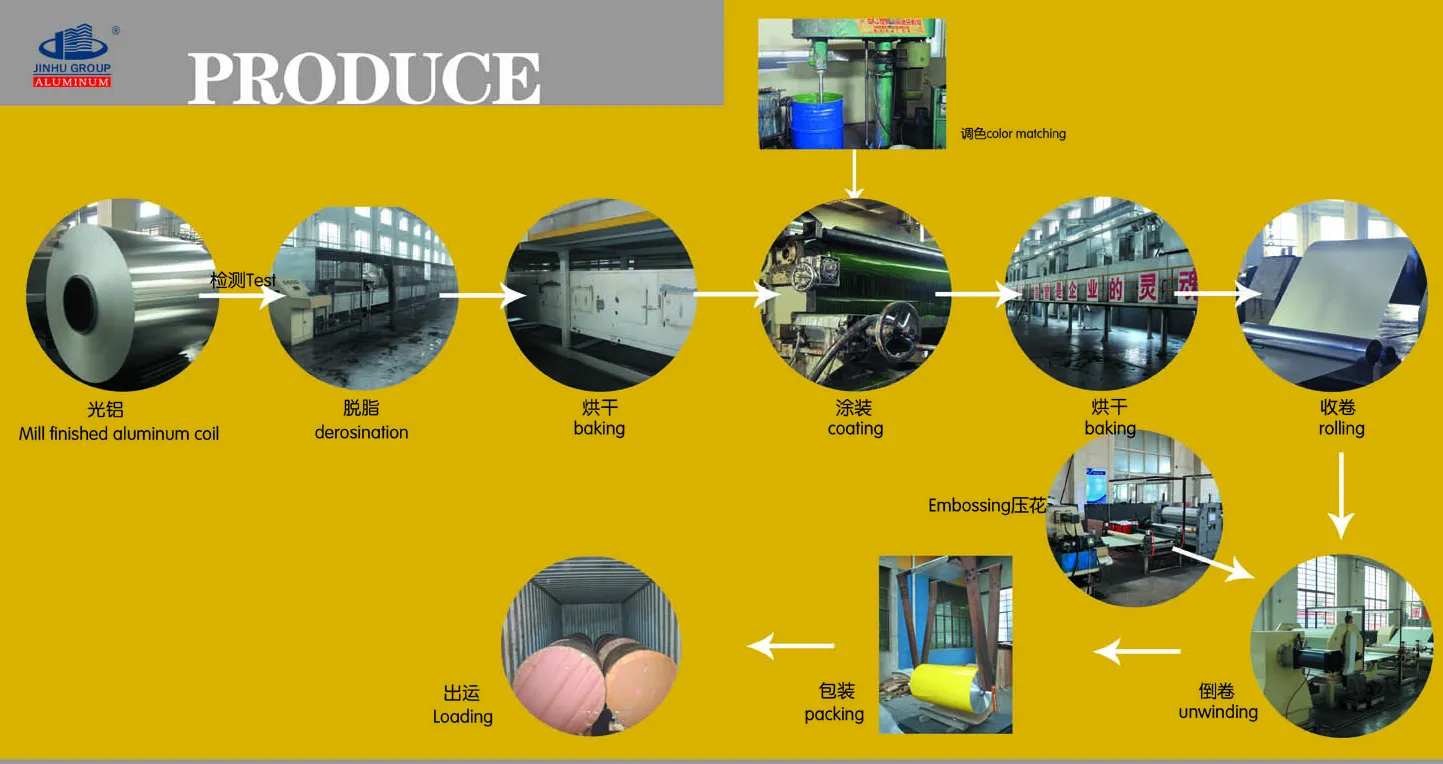

Manufacturing Technique

First, The Raw Material Coil Input, Is The Uncoiler Continuous Rewinding To Ensure Continuous Transmission Of The Coil With A Stable Inputting To Production Line. Second, Surface Cleaning And Chemical Treatment, Is To Clean And Chemical Pretreatment The Top And Bottom Faces Of The Aluminum Coil In Order To Ensure That The Paint Can Be Firmly Attached The Coil. The Third Is Painting. Each Production Line Should Have At Least Two Roller Coating Machine To Ensure Prime And Top Coats Can Be Two Layers Coated. Forth Is The Paint Layer Curing That Is The Roll Coil Which Is Finished Painted Just Now Should Be Completed Curing Before Touch The Next Roller To Avoid Mutual Adhesion And Destruction. Generally, It Has At Least Two Curing Boxes In A Production Line. Fifth, Refers To Finished Products Output. It Should Ensure The Production Line’s Speed And Finished Coil Transfer Synchronization.

Testing

POLYESTER
Item	Techinical requirements	Item	Techinical requirements
Thickness of coating film	≥18	Flexibilty	≤2T
Gloss deviation	Gloss<70.Limit of error≤10% Gloss≥70.Limit of error≤5%	Boiling water resisitance	2H No color change
Hardness pf pencil	≥2H	Color difference	△E≤2.0
Adhesion	≥1Lever	MEK	≥150 Times

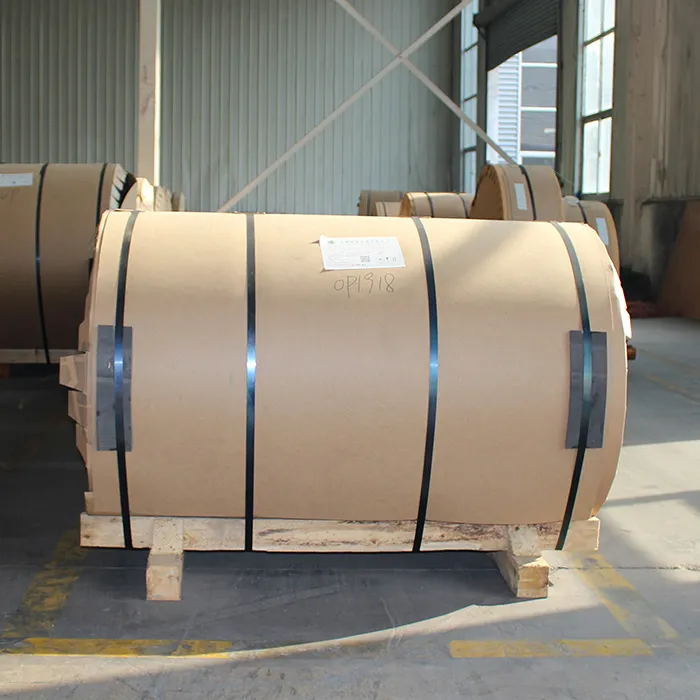

Product packaging

Recommend Products

Jinhu Aluminum Group

SHANDONG JINHU ALUMINUM GROUP Shandong Jinhu Aluminum Group is the leading manufacturer of metal decorative building materials for over 16 years in China, which have been specializing in Color Coated Aluminum Coil, Aluminium Composite Panel (ACP), Fireproof A2 Core Coil, Fireproof A2 Metal Composite Panel, Stone Coated Metal Roof Tile, etc. Currently, we have 3 factories, more than 10 sales branches, 16 color coating lines, 7 ACP lines, 3 FR A2 ACP lines, 3 polymer membrane lines, 1 protective film line, 8 stone coated metal roof tile lines. -Linyi Jinhu Color Coating Aluminum Industry Co.,Ltd

-Shandong Golden Sunshine Building Materials Co.,Ltd

-Shandong Baisheng Metal Technology Co., Ltd Our production capabilities for main products : - Coated Aluminium Coils. Capacity: 150,000 Tons - Aluminium Composite Panels. Capacity: 10,000,000 m ² - Stone Coated Metal Roofing Tiles. Capacity: 5,000,000 m ² We have attached great importance to quality and took the leadership in the industry. The group have passed ISO9001:2008 international quality management system, all our product is with CE certification and have been certified by international certification authorities, such as SGS, Intertek, etc.

Our Advantages

1.16 years of production experience

2.12 years experience in foreign trade

3.16 high-speed fully automatic production lines.

4.Annual Capacity:about 150,000 tons.

5.Annual Capacity:about 100 million dollars.

6.We are ranked one of the top 100 color-metal exporting companies.

7.Our new factory located in Linyi comprehensive free trade zone,which was strongly supported by the government, saved tax revenue and greatly reduced production costs.

8.The thickness ranging from 0.024mm to 1.5mm and the maximum width reaching 2020mm.(Produce according to customer's requirement）

9.Can produce a variety of surface treatment of color coated aluminum coil.such as wood series, mirror, stone series, bush series, embossing and so on.

FAQ

FAQ: Q: Are you trading company or manufacturer ? A: We are manufacturer. Q: How soon can I get a price quote? A: Once we know the specification and quantity,We can provide you with one competitive price quote within 24 hours. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.But the exact delivery time might be different for different orders or at different time. Q: Can I mix different colors or specifications in one container? A: Yes, different colors or specifications can be mixed in one container, but the quantity of each colors or specifications should not be less than MOQ. Q: How can my order produced by my brand? A:Yes,you can.Pls offer your brand or LOGO design to me,then we could produce all goods brand or LOGO. Q: What is the MOQ? A:Due to high machine setup cost and shipping freight,our minimum order quantity is 5 Metric Ton, recommended for you to order a 20''GP to reduce the unit and shipping cost. Q: What is your terms of payment ? A: 30%T/T in advance,rest 70% when receive the copy of B/L or L/C .
