Door Roll Forming Machine System > Production Equipment > Roller Shutter Door Frame Roll Forming Machine

Metal Roller Shutter Door Guide Rails Roll Forming Machine 12 m/min+door frame+5.5kw

Cangzhou Zhongtuo International Trade Co., Ltd

Metal Roller Shutter Door Guide Rails Roll Forming Machine 12 m/min+door frame+5.5kw

Name: Metal Roller Shutter Door Guide Rails Roll Forming Machine 12 m/min+door frame+5.5kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT82281457

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

12 m/min

Model Number:

door frame

Power(W):

5.5kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Steel
Use
door fram
Voltage
380V or as required
Rolling Thinckness
0.3-0.8mm
Feeding Width
1000mm

Metal roller shutter door guide rails roll forming machine

Machine Technical Parameter

No.	Item	parameter
1	Machine size	890013001200mm
2	Machine weight	6000kg
3	Machine power	4kw
4	Hydraulic engine	3KW
5	Roll speed	8-15M/Min
6	Roll stations	14
7	Roller material	GCr15
8	Effective width	60mm
9	Feeding width	100mm
10	Voltage	308V 60Hz 3PH/Customized
11	Material thickness	1.2-1.5mm/Customized
12	Control System	Schneider/Delta/Customized

Profile drawing for reference:

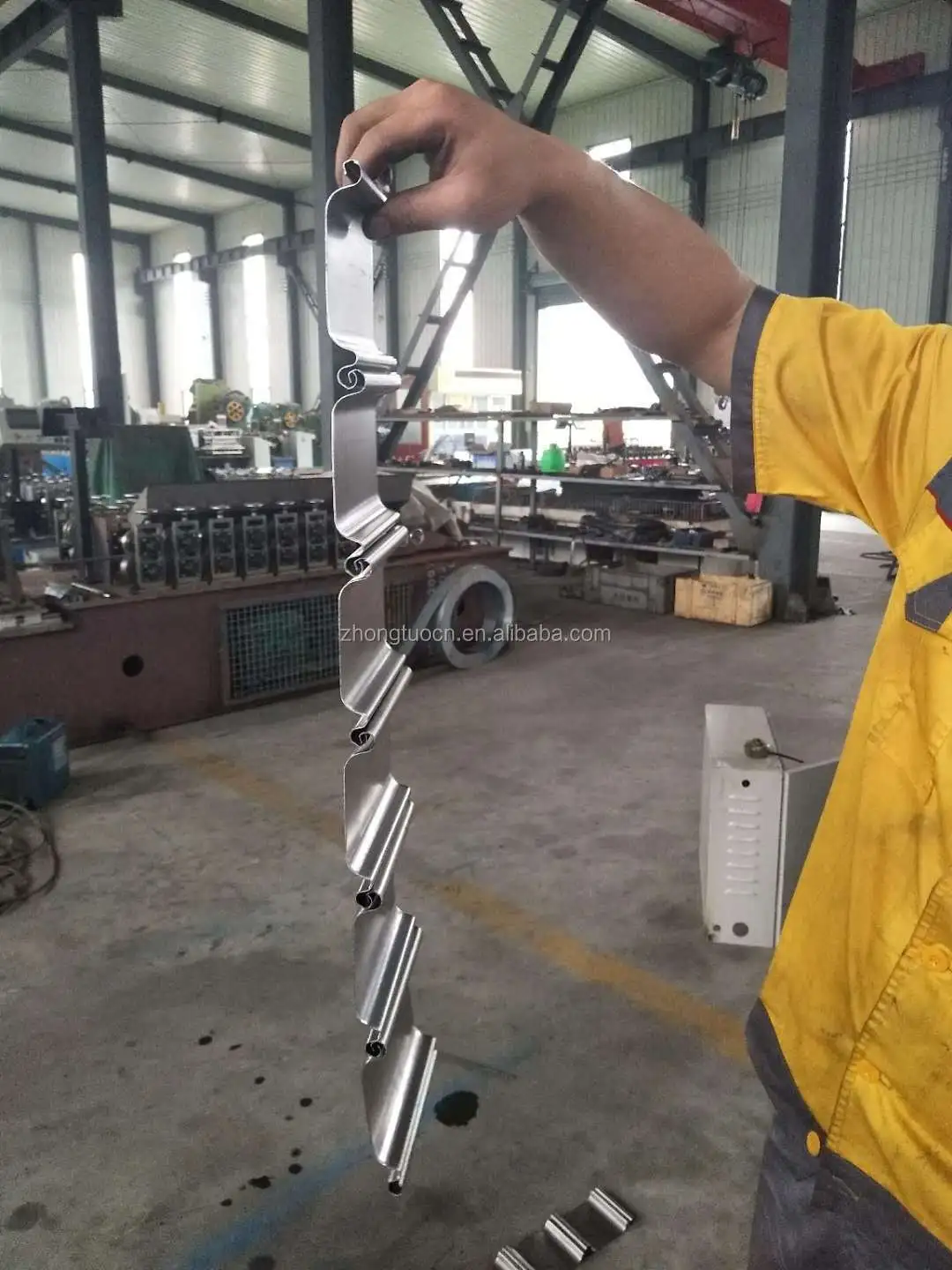

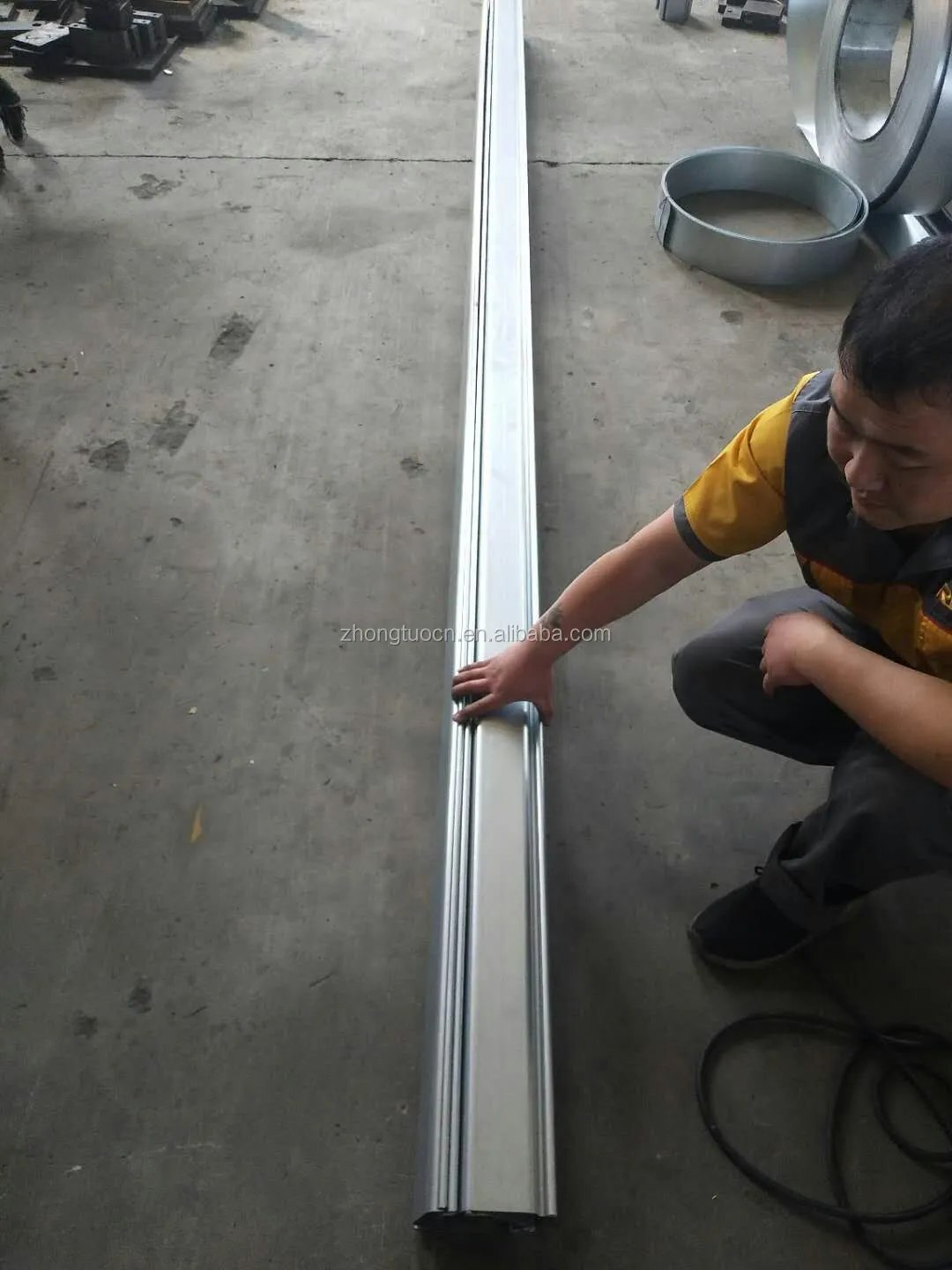

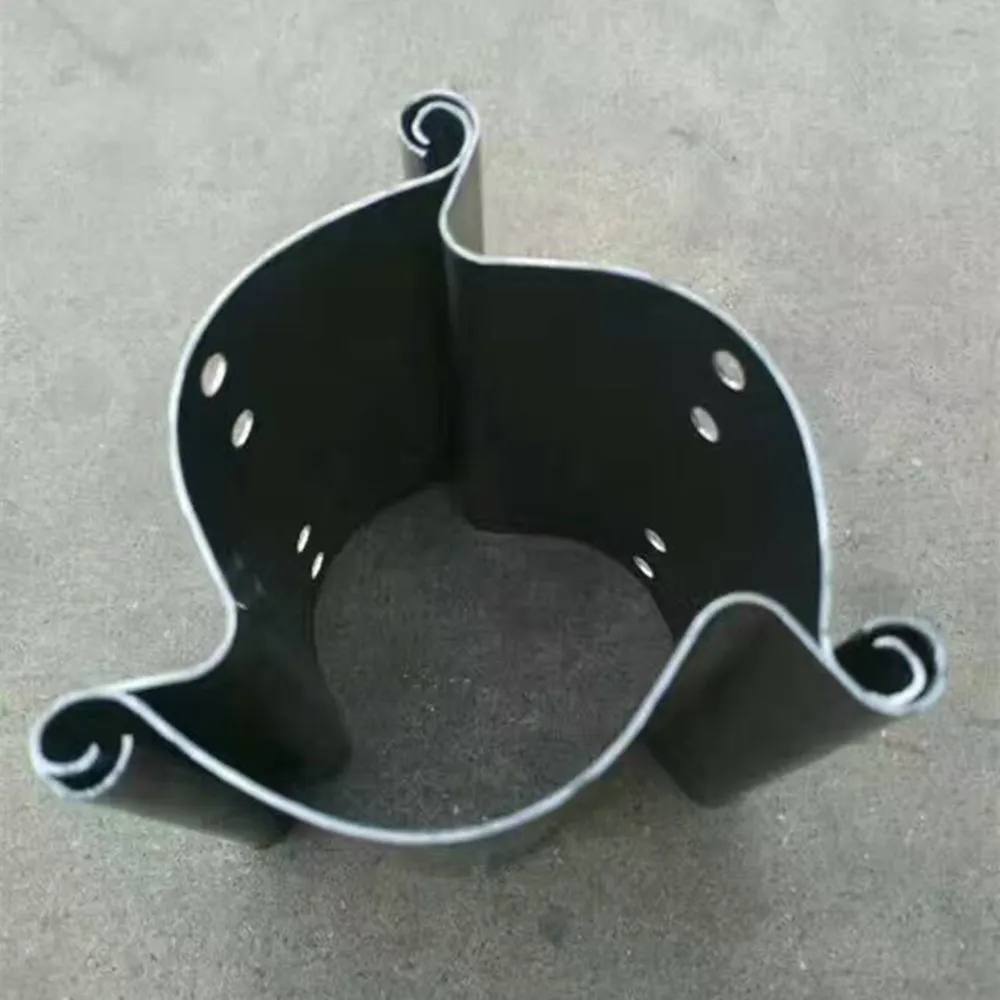

Finished product:

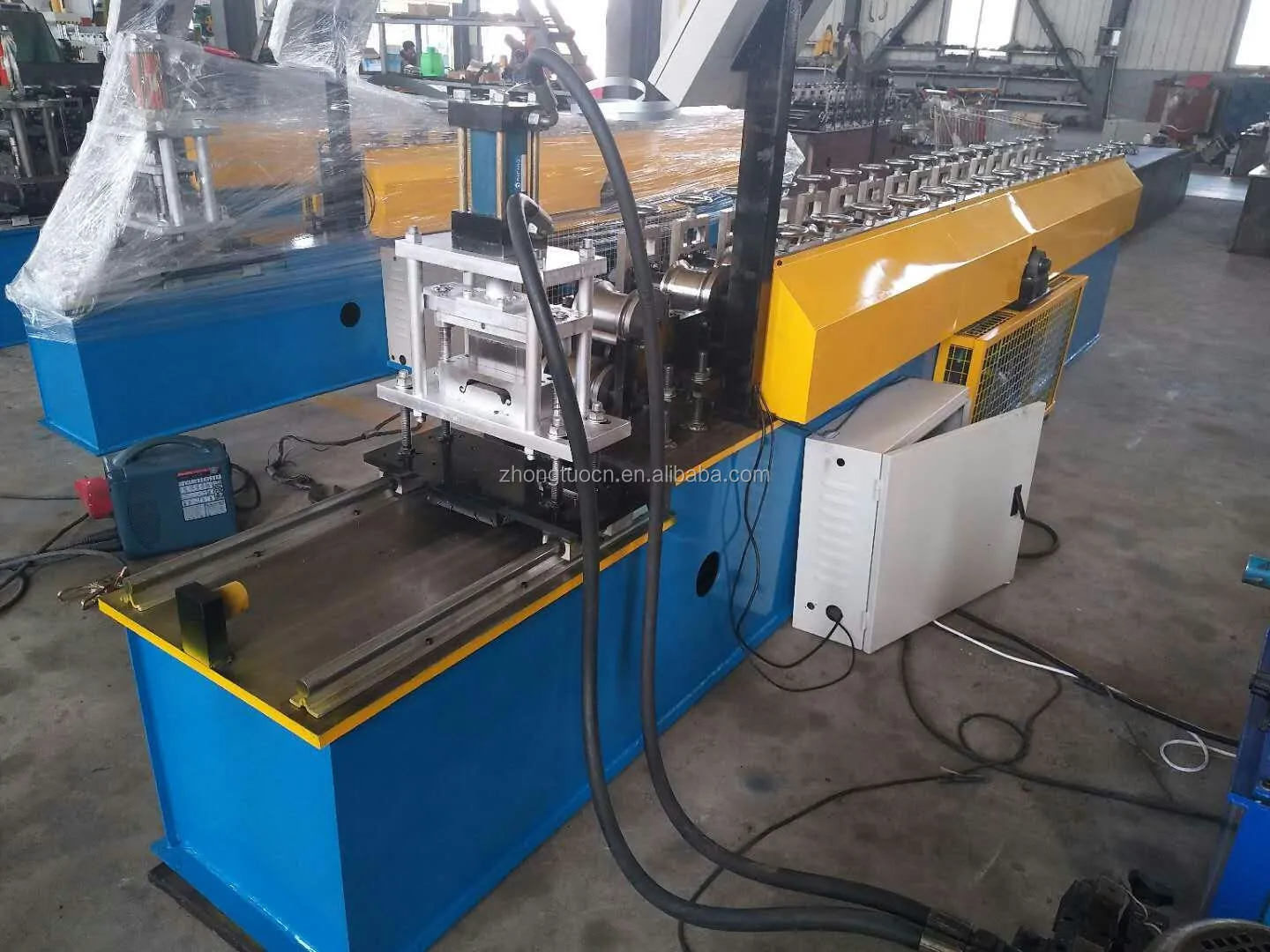

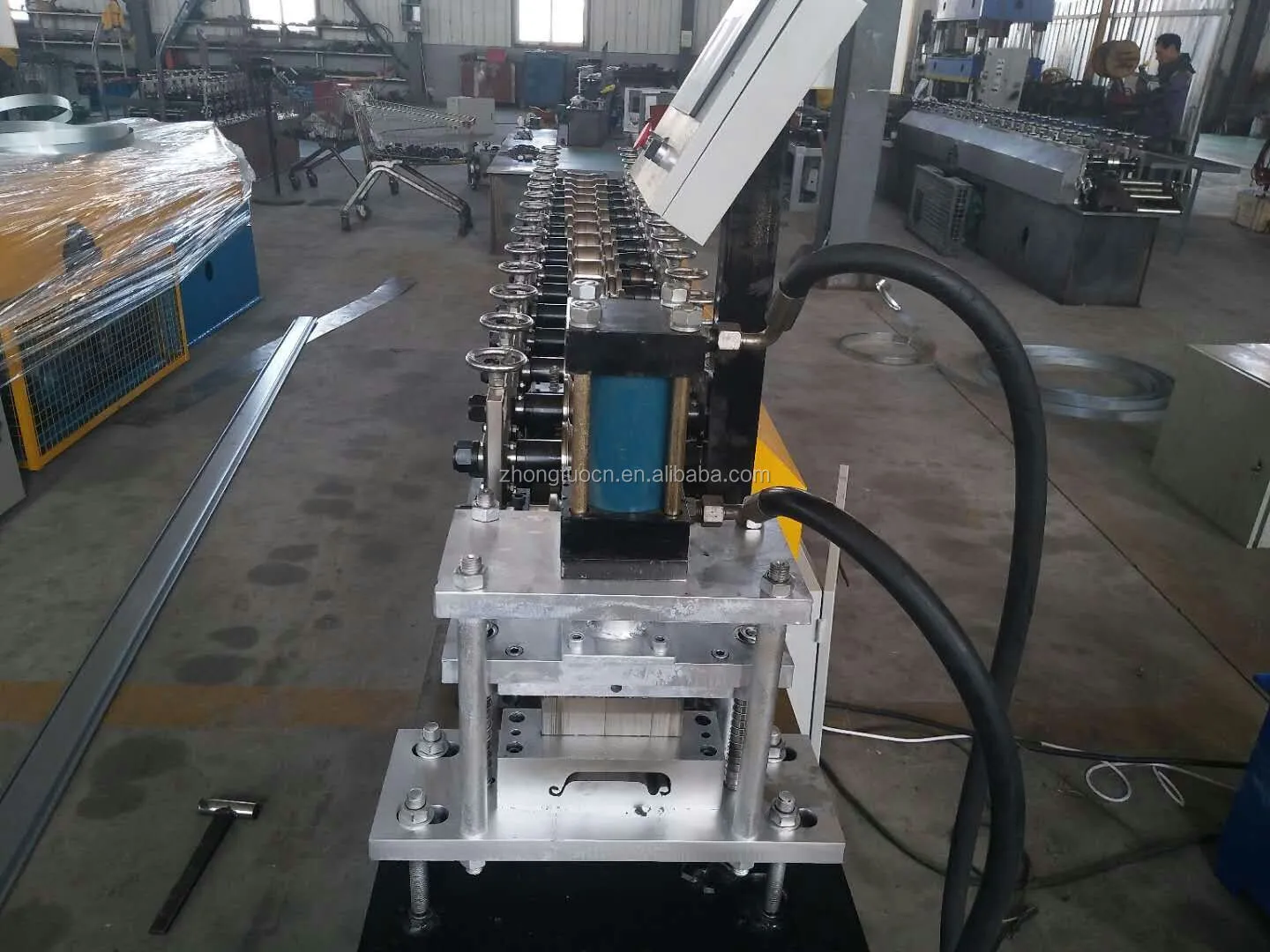

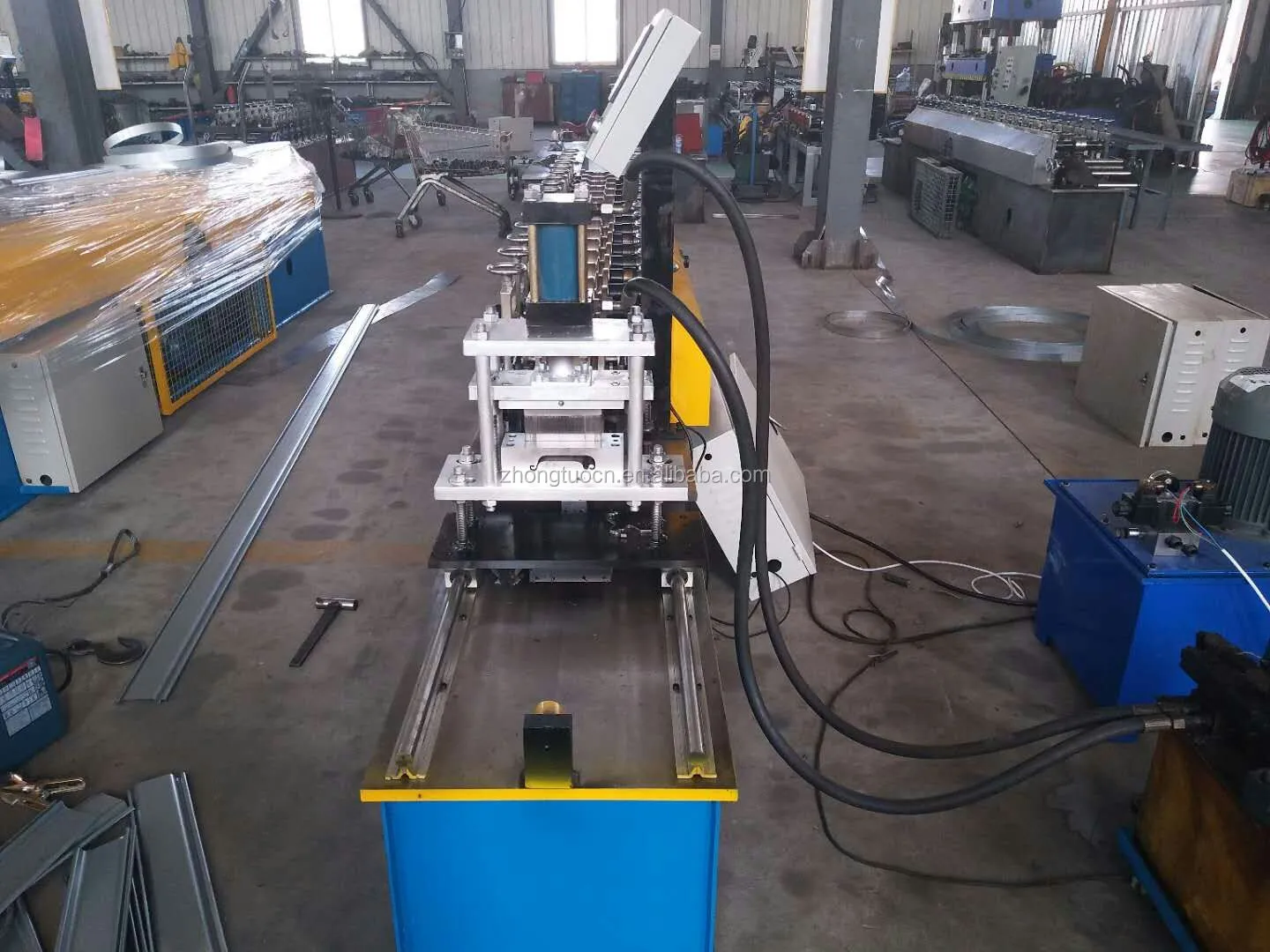

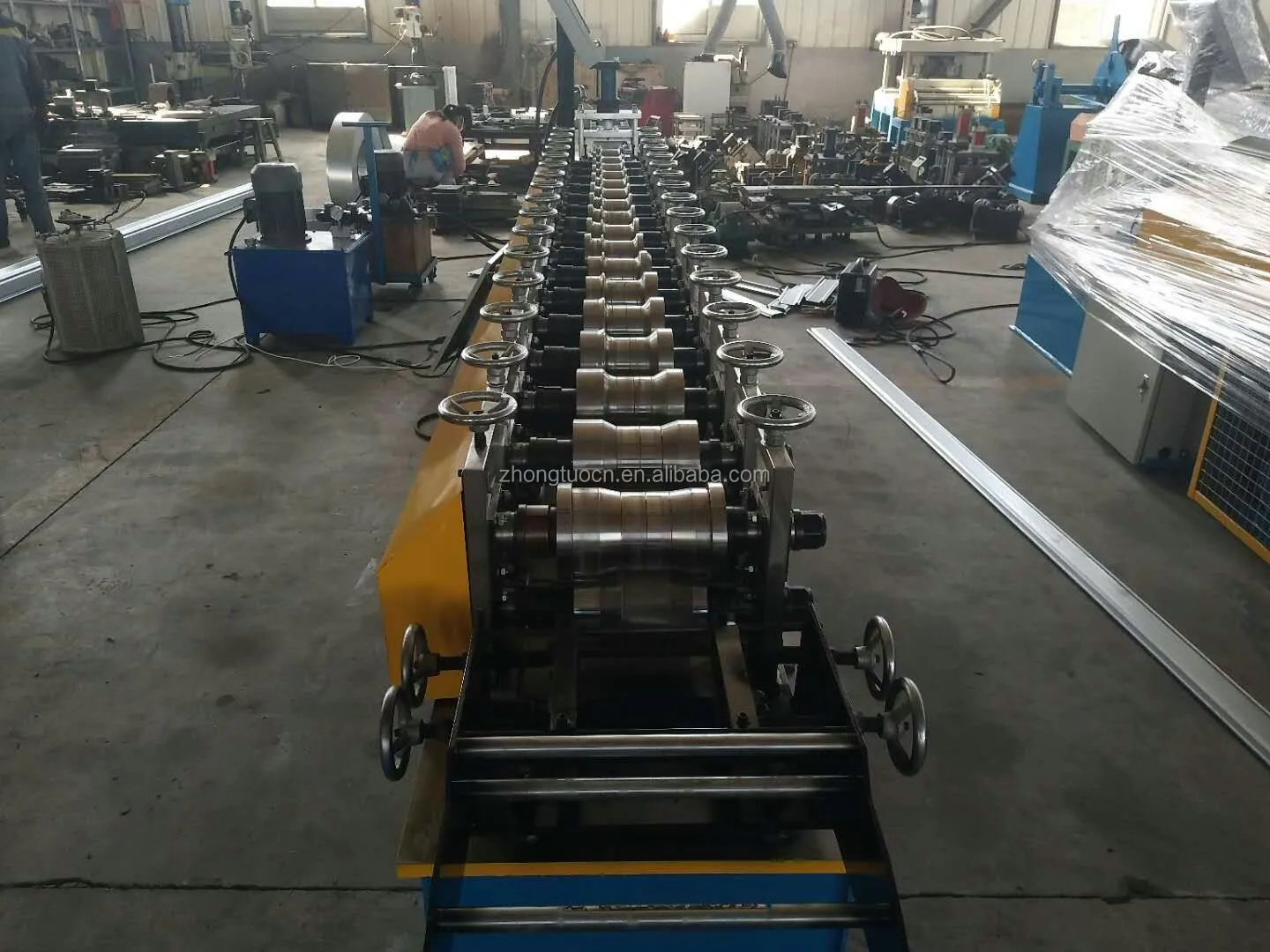

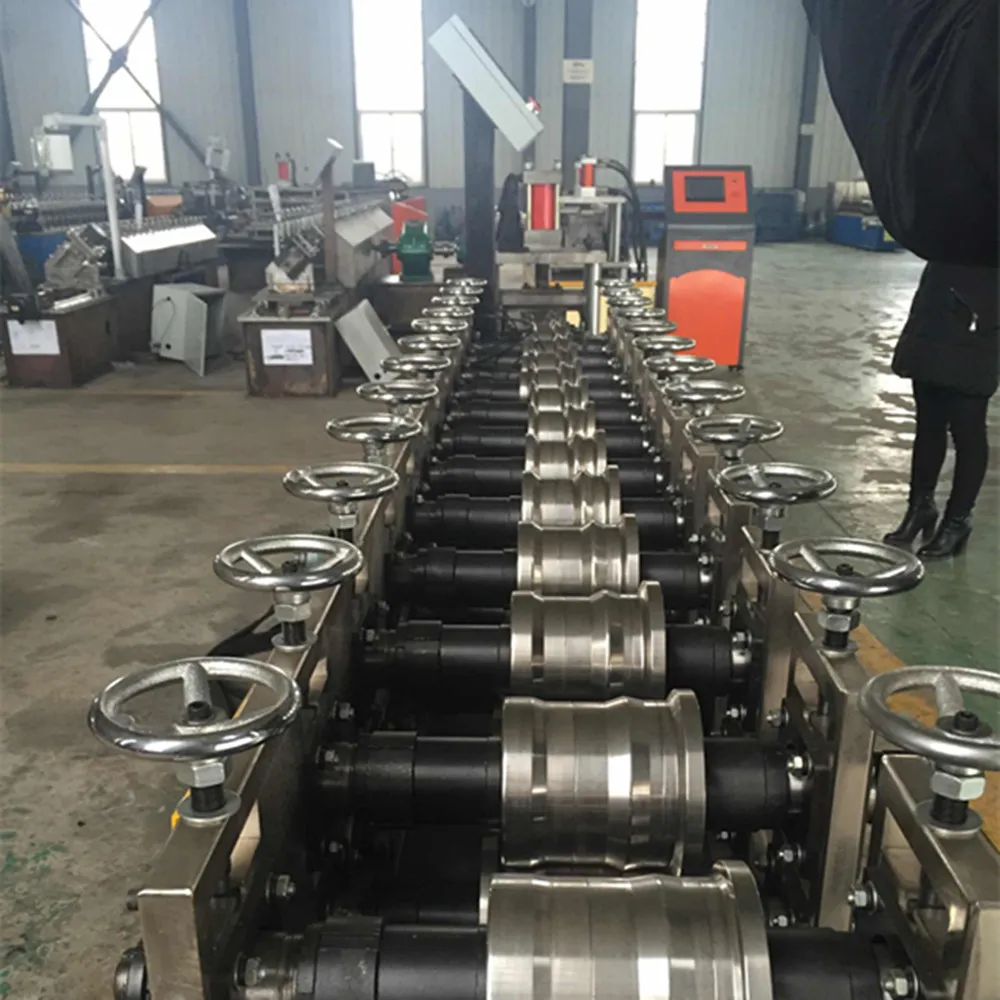

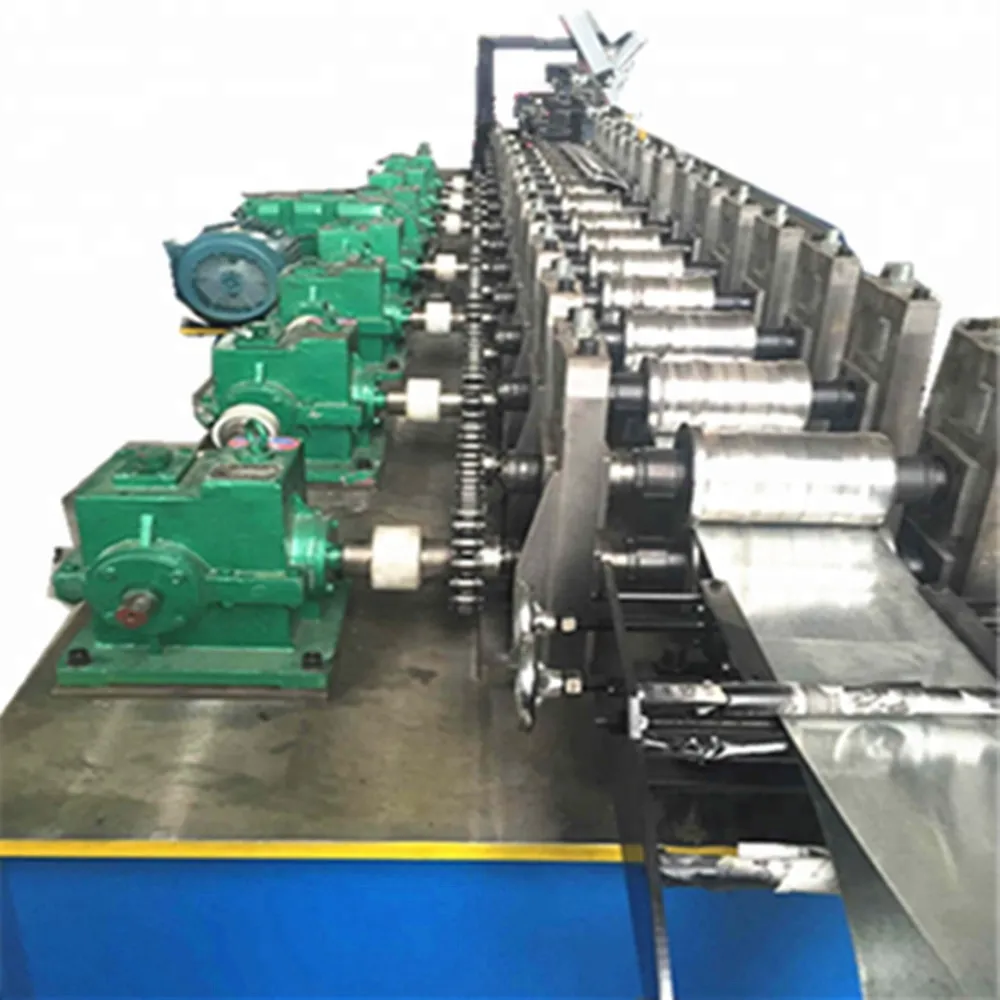

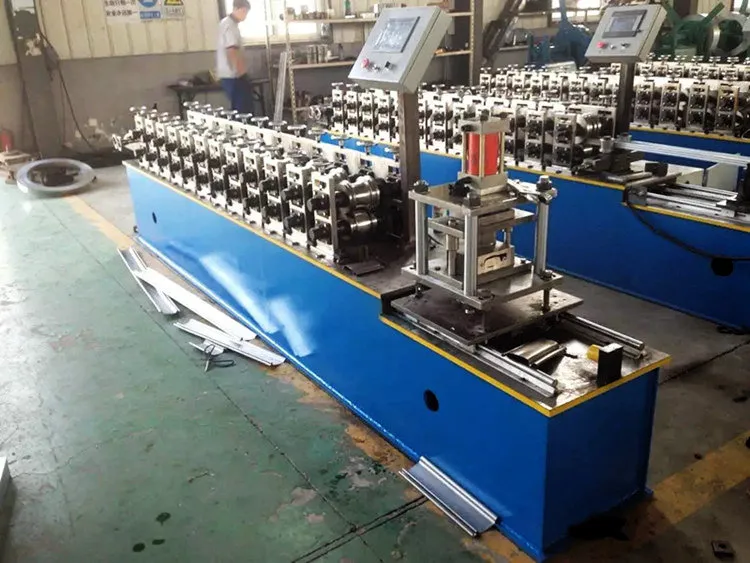

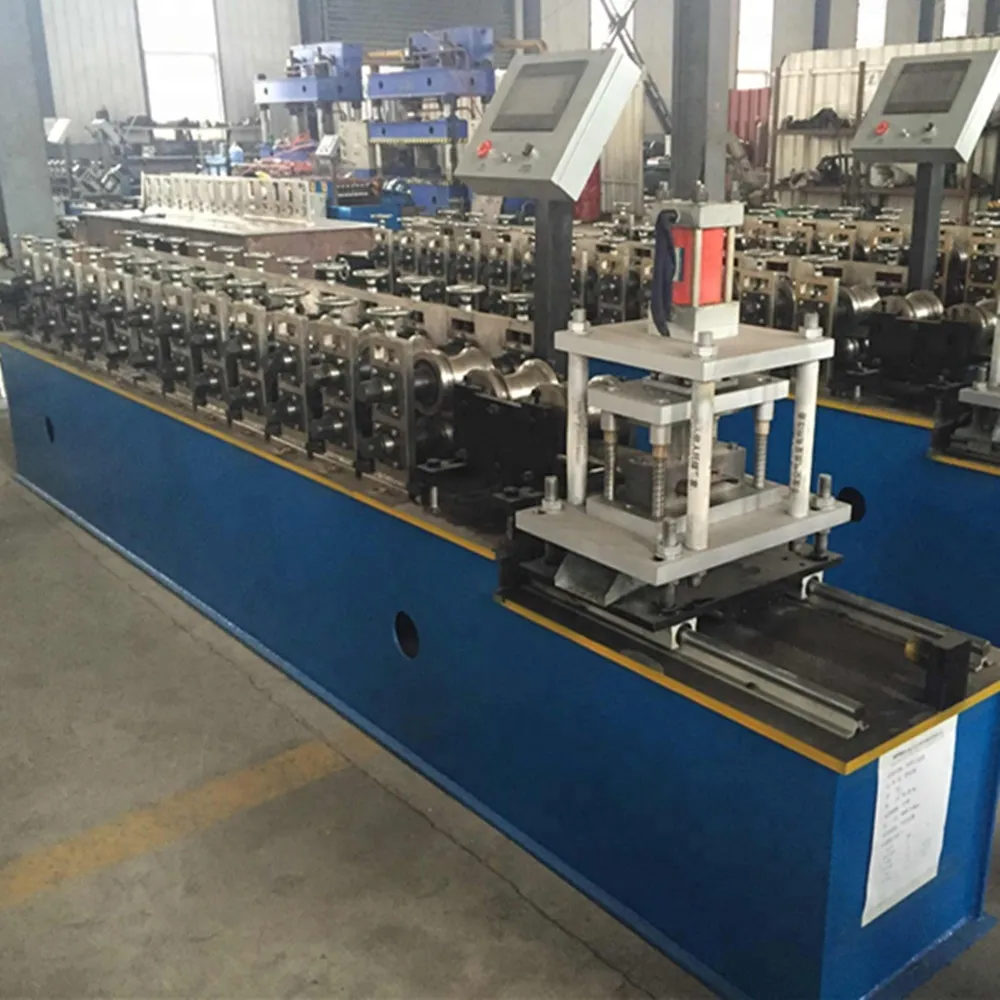

Our Machine Main Accesories Main machine

The function of the main machine is roll forming the steel sheet to the profile customer the steel sheet to the profile customer want and then cut the steel sheet into piece.

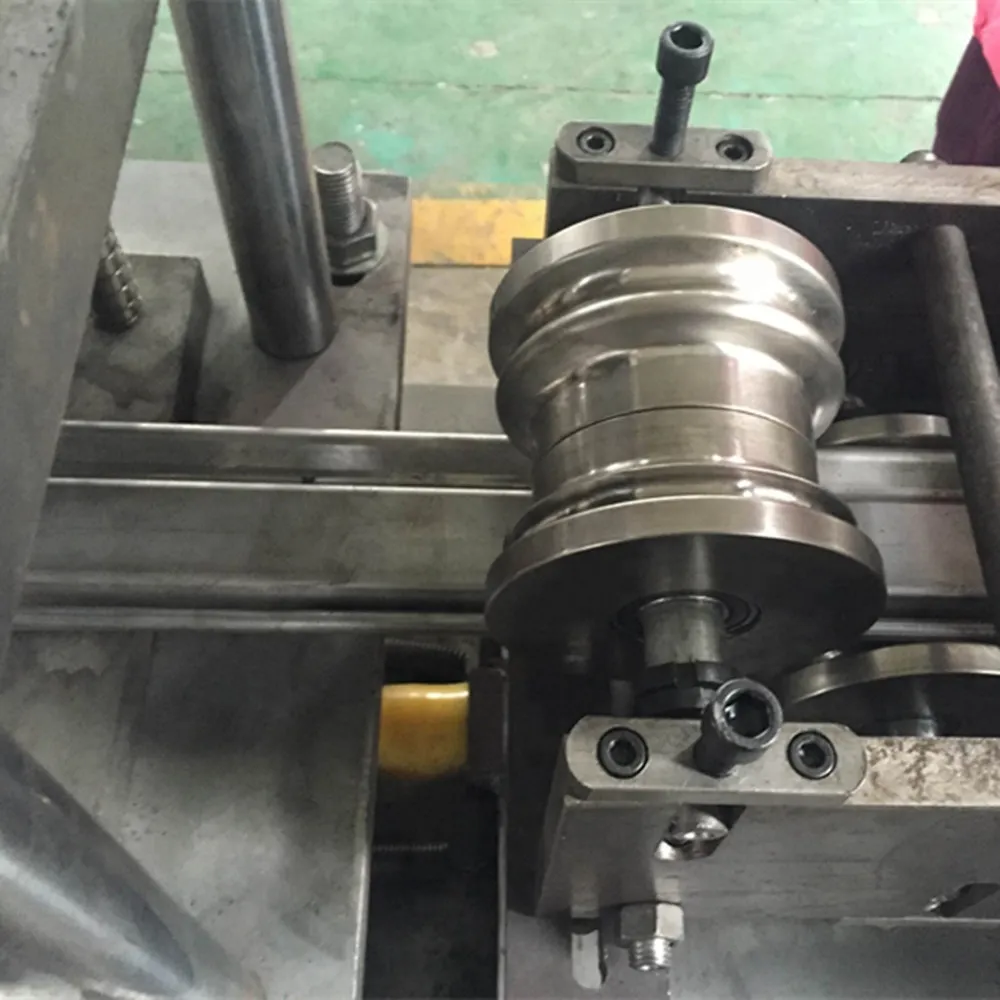

The material of our roller is GCR15/CR12/CR12MOV,and our shaft and roller all be electroplate to keep from rust.

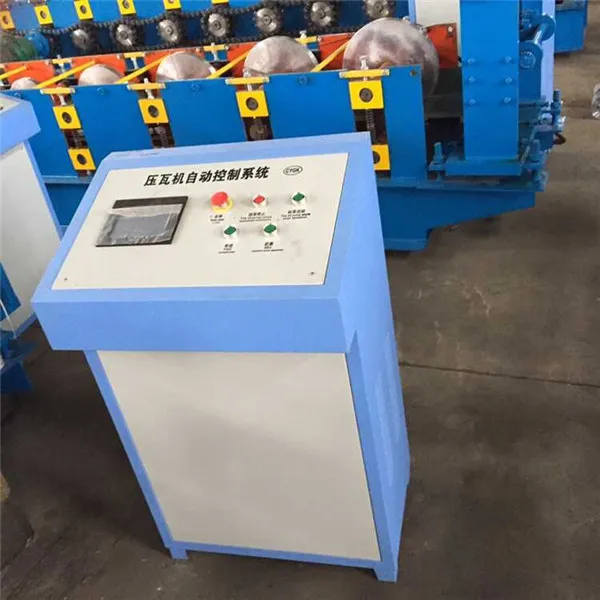

PLC computer controlling system

You can set the running speed/length/batch/pieces of the steel sheet on the PLC computer touch screen,Then the machine can running auto or you can choose the manual mode. The whole operation process are easy to understand.

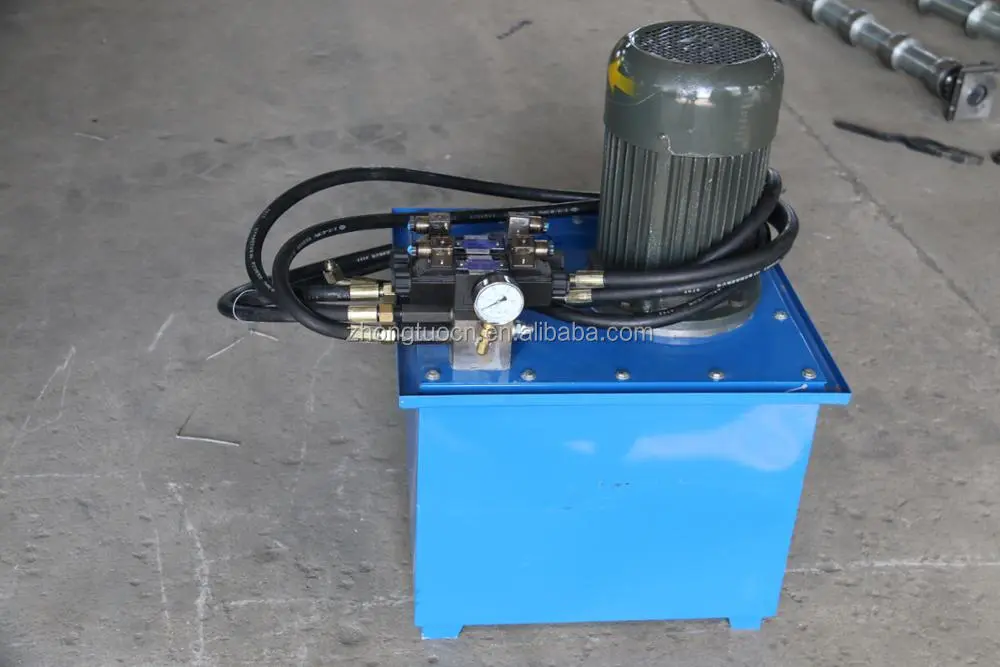

Hydraulic system

Using for punching holes/punching logo/cutting steel sheet need put hydraulic oil into the oil tank.

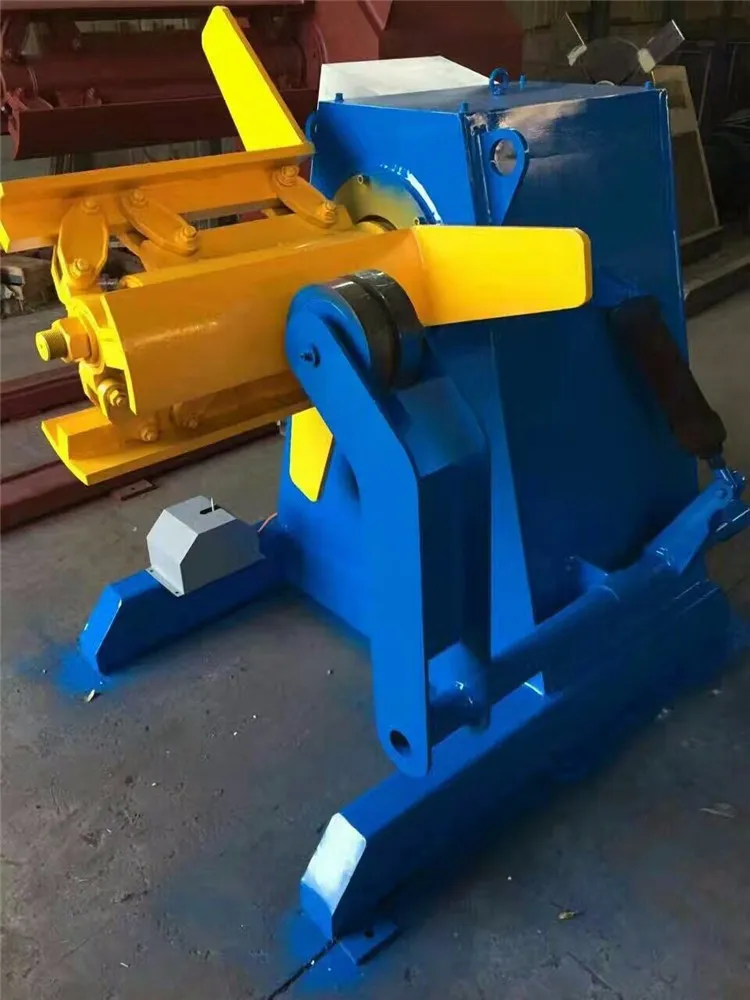

Decoiler

This one is 3 ton hydraulic decoiler with coil car. There are still manual decoiler.you can choose what you need hydraulic decoiler can improve the production efficiency by feeding the material automatic.

The advantage of guide rail roll forming machine:

1.Good quality: We have a professional designer and experienced engineer team.And

the raw material and accessories we use are good.

2.Good service: we provide the technical support for whole life of our machines.

3.Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.

4.Easy operation:All machine cotrolling by PLC computer controlling systerm.

5.Elegant apperance:Protect the machine from rust and the painted colour can be customized

6.Reasonable price:We offer the best price in our industry

Our Services

1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.

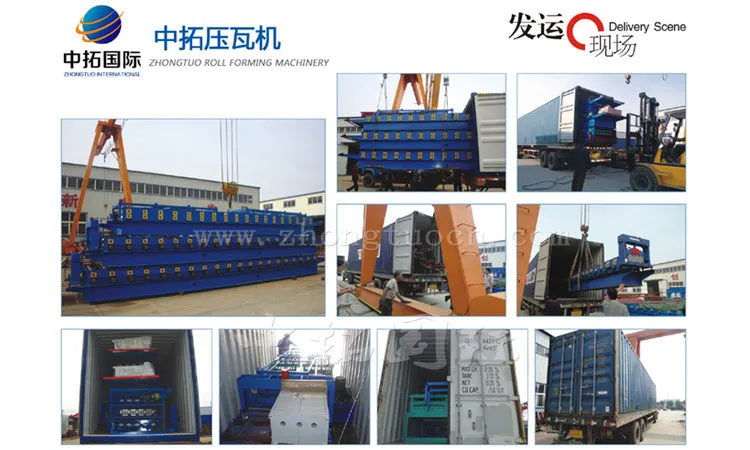

Packaging & Shipping

the machine naked in the container or packing as your required.

Delivery: 60 days after receipt of advance payment

FAQ

1.You are trade company or factory?

- We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.

2. Why your price is higher than others?

- As we persist on that each factory should put quality at the first place. We spend time and money on developing

how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.

3. How long the machine could be made?

- Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines

in a hurry, we can make it for you less than a month.

4. How to visit your company?

-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can

pick up you.
