The Heavy Duty Metal Embossing Machine is an industrial-grade solution developed for producing textured and patterned steel sheets from 1.2–5.0 mm mild carbon steel. Designed for demanding metal processing applications, the machine combines high embossing pressure, robust construction, and precision roller manufacturing to achieve consistent surface patterns.

The equipment is fitted with integrally forged 42CrMo alloy steel embossing rollers, which provide excellent strength, wear resistance, and long-term dimensional stability. After heat treatment and chrome plating, the roller surface reaches HRC 55–60, helping maintain stable embossing quality during continuous production.

With a maximum material feeding width of 1520 mm and a working speed of approximately 5 m/min, this steel sheet embossing machine is particularly suitable for manufacturers processing wide and relatively thick steel plates.

Industrial Applications of the Steel Embossing Machine

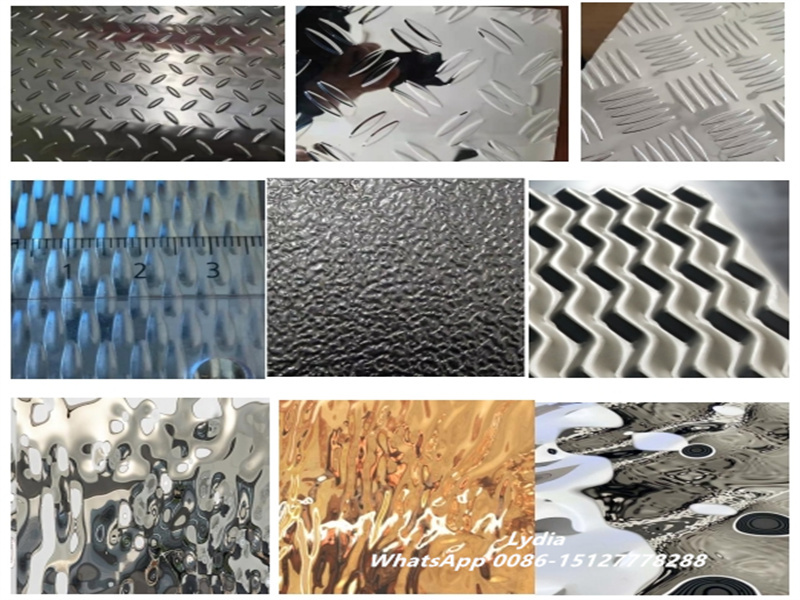

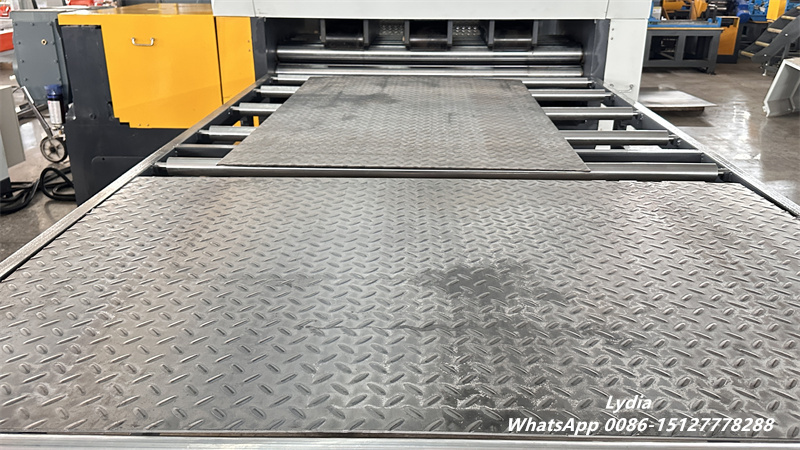

Embossed metal sheets combine functional performance with an attractive textured surface. Depending on the selected roller pattern, the finished products can be used in a wide range of industrial and architectural applications.

Common applications include:

• Architectural wall and ceiling panels

• Anti-slip steel flooring

• Elevator interior panels

• Truck and trailer body panels

• Industrial equipment covers

The textured surface can increase sheet rigidity while providing improved surface appearance. Certain embossing patterns can also provide enhanced anti-slip properties, making embossed steel suitable for flooring and other applications where additional surface traction is required.

Steel Plate Embossing Production Process

The metal plate embossing line uses a continuous forming process to create the required pattern on the steel surface.

1. Material Feeding

The steel coil or sheet material is positioned on the input coil supporting table. The supporting structure helps hold heavy material securely and provides a stable entry point for the embossing section.

2. Continuous Embossing

The steel sheet is guided between the upper and lower embossing rollers. As the material passes through the rollers, controlled pressure transfers the engraved pattern onto the steel surface.

The large-diameter rollers provide sufficient contact pressure for processing relatively thick material from 1.2 to 5.0 mm.

3. Pattern Formation

The 42CrMo forged embossing rollers are manufactured for heavy-duty operation. Their heat-treated and chrome-plated surfaces offer high wear resistance, helping maintain pattern consistency over extended production periods.

4. Sheet Cutting

After embossing, the finished steel sheet can be cut into the required lengths according to the customer's production specifications.

This continuous method allows manufacturers to produce patterned steel sheets efficiently without repeatedly positioning individual plates.

Technical Specifications of the Heavy Duty Embossing Machine

Item	Specification
Processing Material	Mild Carbon Steel
Material Thickness	1.2–5.0 mm
Maximum Feeding Width	≤1520 mm
Production Speed	5 m/min
Finished Sheet Length	Adjustable
Embossing Roller Material	42CrMo Forged Alloy Steel
Embossing Roller Diameter	Φ450 mm
Embossing Roller Length	1700 mm
Roller Hardness	HRC 55–60
Concave Roller Engraving Depth	2.5 mm
Main Motor	15 kW
Pressure Adjustment	Manual Screw Adjustment

Machine specifications can be customized according to material, sheet width, embossing pattern, and production requirements.

Main Components of the Metal Embossing Production Line

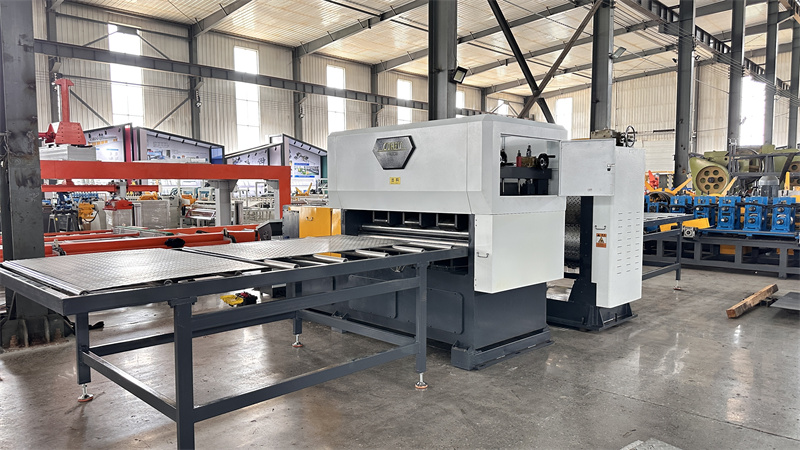

1. Heavy-Duty Coil Supporting Table

The coil supporting table is positioned at the feeding side of the production line. It provides stable support for heavy steel material and helps operators guide the sheet into the embossing section.

A stable feeding system is particularly important when processing thick steel sheets because it helps minimize material movement and improves the consistency of the embossing process.

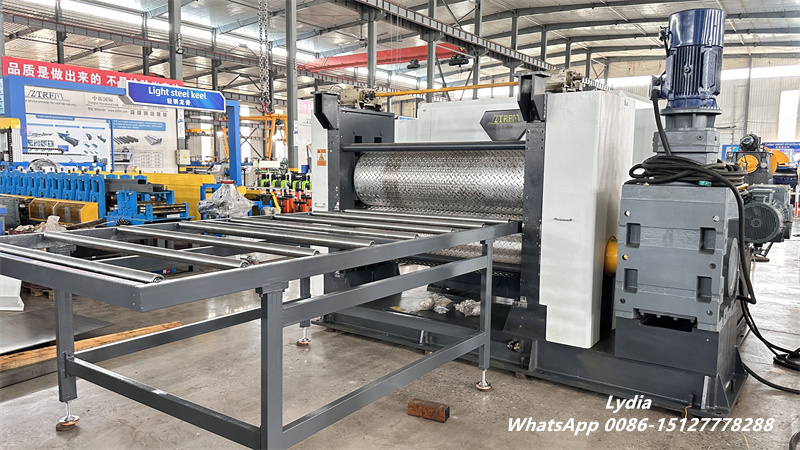

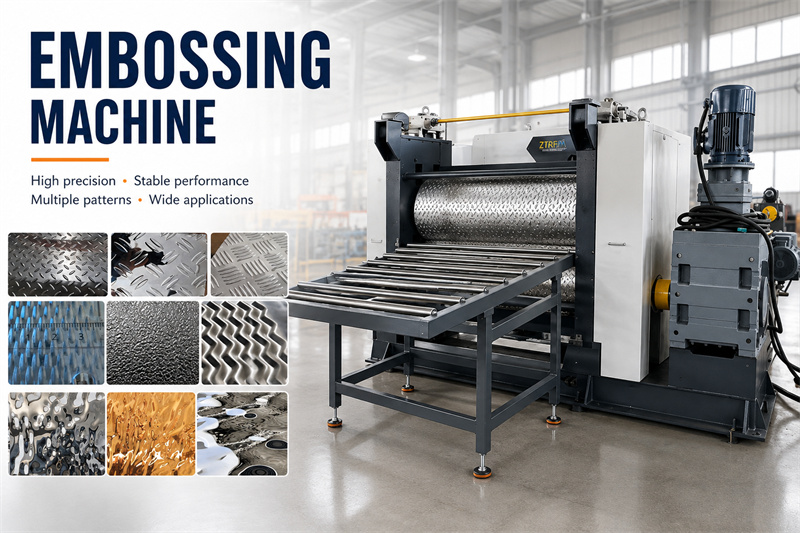

2. Industrial Steel Sheet Embossing Unit

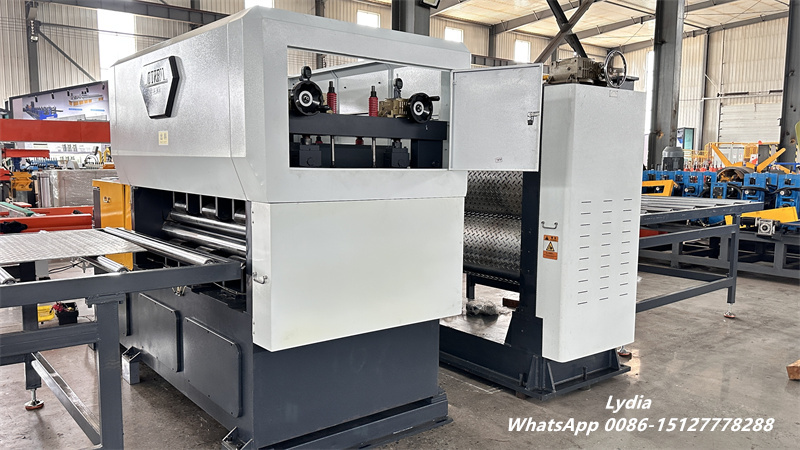

The main embossing unit is manufactured with a heavy welded steel frame and reinforced side structures. The integrated construction provides excellent rigidity and helps reduce vibration during high-pressure embossing.

The machine uses large Φ450 × 1700 mm embossing rollers, providing a substantial working surface for wide steel sheets.

The upper and lower rollers are manufactured from forged 42CrMo alloy steel. Following heat treatment, the roller surface reaches approximately HRC 55–60, and chrome plating is applied to further improve wear resistance.

The roller specifications are:

• Diameter: Φ450 mm

• Length: 1700 mm

• Material thickness: 1.2–5.0 mm

• Concave roller engraving depth: 2.5 mm

3. Pressure Adjustment System

The embossing pressure can be adjusted through a manual screw lifting mechanism.

A gear-and-turbine transmission system synchronizes the adjustment on both sides of the machine. A reference scale is also provided to help operators establish suitable pressure settings for different steel thicknesses.

This design makes it easier to adjust the embossing depth and maintain uniform pressure across the working width.

4. Drive System

The steel embossing machine is equipped with a 15 kW national-standard motor and heavy-duty reducer.

The drive system is designed to provide stable torque during continuous operation, particularly when embossing thicker steel materials.

The standard working speed is approximately 5 m/min, providing a balance between embossing quality and production efficiency.

Advantages of the Heavy Duty Steel Embossing Line

The Heavy Duty Coil Embossing Machine is designed around the requirements of thick-sheet metal processing.

Heavy Material Processing

The machine can process 1.2–5.0 mm mild carbon steel, making it suitable for applications where conventional light-duty embossing equipment may not be sufficient.

Large Embossing Rollers

The Φ450 mm diameter rollers provide a strong and stable embossing structure for heavy-gauge steel sheets.

Wear-Resistant 42CrMo Rollers

The integrally forged 42CrMo alloy steel rollers are heat-treated and chrome-plated to improve durability and maintain pattern quality.

Rigid Machine Construction

The integrated welded frame and reinforced side walls provide high structural rigidity and help reduce vibration during operation.

Adjustable Embossing Pressure

The manual screw adjustment system allows the operator to change embossing pressure according to the material thickness and required pattern.

Wide Processing Capacity

With a maximum feeding width of 1520 mm, the machine can accommodate relatively wide steel sheets for industrial production.

Stable Production

The 15 kW drive motor and heavy-duty reducer provide reliable power transmission for continuous embossing operations.

Custom Embossing Patterns

The embossing rollers can be customized according to the required surface pattern, product dimensions, and application.

Customized Metal Plate Embossing Solutions

Different industries require different embossed patterns, sheet widths, material thicknesses, and production speeds. Therefore, the Metal Plate Embossing Machine can be configured according to the customer's specific production requirements.

Customization options can include:

• Embossing pattern

• Roller engraving design

• Working width

• Material thickness

• Sheet cutting length

• Feeding configuration

Customers can provide a finished product sample, technical drawing, or embossing pattern, and our engineers can recommend a suitable roller design and machine configuration.

Why Choose Zhongtuo Metal Embossing Equipment?

Zhongtuo specializes in the design and manufacture of metal forming and sheet processing machinery for international customers. Our equipment is developed with a focus on structural strength, processing accuracy, component durability, and stable long-term operation.

For customers producing embossed steel sheets, anti-slip flooring, decorative panels, industrial panels, or construction materials, our heavy-duty embossing equipment provides a reliable production solution.

From roller pattern design to machine configuration and production testing, we can provide an integrated solution based on the customer's material and finished-product requirements.

If you are looking for a Heavy Duty Metal Embossing Machine for 1.2–5 mm steel sheets, send us your material thickness, maximum sheet width, embossing pattern, and required production capacity. Our engineers can recommend a suitable configuration for your project.

FAQ

What thickness of steel can this embossing machine process?

The standard configuration is designed for 1.2–5.0 mm mild carbon steel sheets.

What is the maximum feeding width?

The maximum feeding width is 1520 mm.

What material are the embossing rollers made from?

The rollers are manufactured from integrally forged 42CrMo alloy steel, followed by heat treatment and chrome plating.

What is the embossing roller diameter?

The standard embossing rollers have a diameter of Φ450 mm and a working length of 1700 mm.

Can the embossing pattern be customized?

Yes. The roller engraving and embossing pattern can be customized according to the customer's finished-product requirements.

What is the production speed?

The standard working speed is approximately 5 m/min, while the final configuration can be adjusted according to the material and embossing requirements.
