HRS-150 Digital Display Hardness Tester Advanced Rockwell Tester 0.1HR+20-88HRA,20-100HRBW,20-70HRC

HRS-150 Digital Display Hardness Tester Advanced Rockwell Tester 0.1HR+20-88HRA,20-100HRBW,20-70HRC

Name: HRS-150 Digital Display Hardness Tester Advanced Rockwell Tester 0.1HR+20-88HRA,20-100HRBW,20-70HRC
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT60912227

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

accuracy:

0.1HR

measurement range:

20-88HRA,20-100HRBW,20-70HRC

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Type
Rockwell Hardness Tester

Products Description

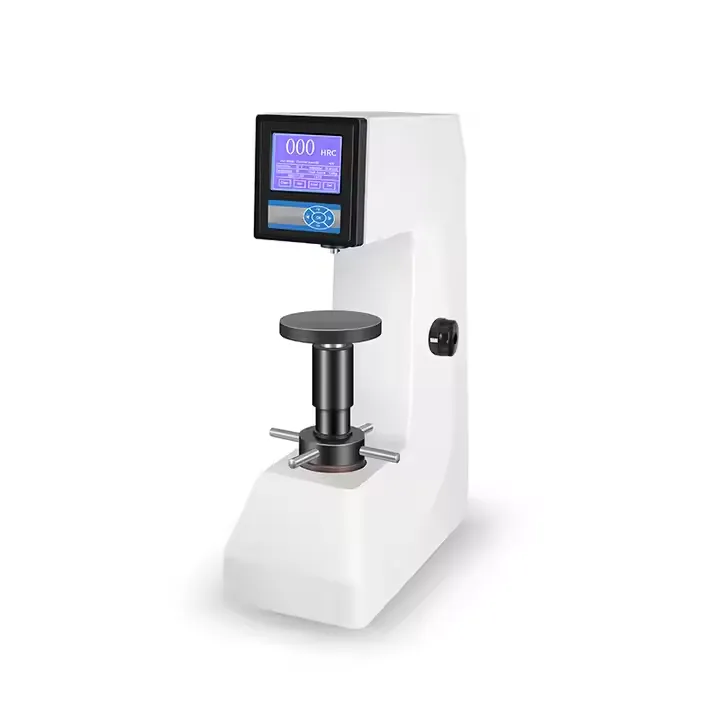

HRS-150 Digital display Rockwell hardness tester

Functional Characteristics： The HRS-150 digital display Rockwell hardness tester uses a large screen key control, easy to understand. The equipment has good reliability, operability and intuitiveness, and is a high-tech product integrating mechanical and electrical equipment. Can display and set the current test scale, load retention time, hardness conversion value, etc., and can print out the test results; The hardness test results are saved in real time, and the operation interface is intuitive and clear, easy to use. Applied range: Suitable for hardening, tempering, annealing, chilled castings, malleable castings, hard alloy steel, aluminum alloy, copper alloy, bearing steel and other hardness determination.

Technical parameters:

Model	HRS-150
Initial test force	10kgf (98.07N)
Total test force	60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter specification	Diamond Rockwell indenter, ф1.588mm ball indenter
Test force application	Automatic (load/hold/unload)
Measuring scale	HRA、HRB、HRC、HRD、HRE、 HRF、 HRG、 HRH 、HRK 、HRL 、HRM、 HRP、 HRR、HRS 、HRV
Conversion scale	HRA、HRB、HRC、HRD、HRF、HV、HK、HBW、HR15N、HR30N、HR45N、HR15T、HR30T、HR45T
Data output	Built-in printer
Resolution ratio	0.1HR
Dwelling time	0~60s
Maximum sample height	210mm
Distance from indenter to the inner machine wall	165mm
Power supply	AC220V，50Hz
Executive standards	ISO 6508，ASTM E-18，JIS Z2245，GB/T 230.2
Overall dimensions	220510694mm
Net weight	98kg

Standard configuration：

Name	Quantity	Name	Quantity
Hardness tester host	1Set	Diamond indenter	1 Pc
ф1.588mm Ball indenter	1 Pc	Big workbench/ Small workbench/ V-shaped workbench	1pc of each
Hardness standard block 80~88 HRA	1 Pc	Hardness standard block 60~70 HRC	1 Pc
Hardness standard block 40~50 HRC	1 Pc	Hardness standard block 20~30 HRC	1 Pc
Weight A, B, C	1pc of each	Hardness standard block 80~100 HRB	1 Pc
Fuse 2A	2 Pcs	Power cord	1 Pc
Horizontal adjusting screw	4 Pcs	Gradienter	1个
Dust cover	1 Pc	Screwdriver	1 Pc
Product manual	1 Pc	Product certificate	1 Pc

Why Choose Us

Qingdao Runlu Electromechanical Equipment Co., Ltd. was established on May 31, 2012. Over the years, it has been dedicated to the research and development, sales and maintenance of precision instruments for measurement and testing, and is a professional supplier of metrology, testing, analytical instruments and electronic equipment. Our products include various quality control equipment for metals and non-metals, such as portable hardness testers, micro-Vickers hardness testers, Vickers hardness testers, Rockwell hardness testers, Brinell hardness testers, metallographic microscopes, grinding and polishing machines, embedding machines, cutting machines, roughness testers, thickness gauges, flaw detectors,endoscope, testing machine,etc., as well as accessories for all these products, such as ultrasonic probes, test blocks, etc. Qingdao Runlu Electromechanical Equipment Co., Ltd. is located in Qingdao City, Shandong Province, China, with a business area of 1,600 square meters and a warehouse area of 1,200 square meters. All products are produced in accordance with ISO9001 standards and have been exported to most markets around the world in the past few years. We have a professional pre-sale, in-sale and after-sale service team to provide technical support for domestic and foreign users.

Sample Room

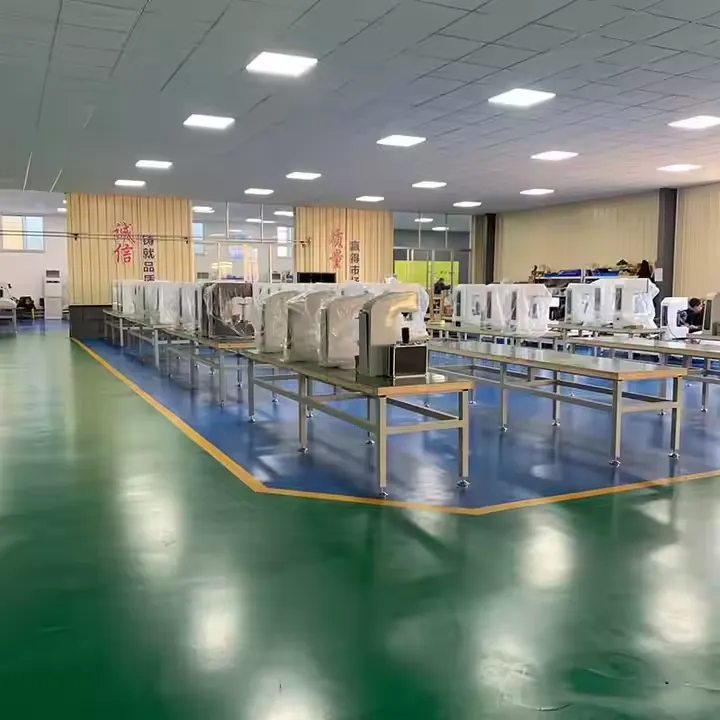

Production Line

Exhibition

Certifications

Customer Photos

FAQ

Q1:What about the warranty with after -sales services? A:The testing machine is guaranteed for 12 months by Runlu,we can help you to repair your problem controller freely,even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product,handles guest problems and complaints in a professional and timely。 Q2:What about the product' services and quality? A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. Product use training, each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. Products are widely recognized and trusted by users. Q3:After an order is placed, when to deliver? A:Generally about 10-25days, lf we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities. Q4:Do you accept customization service? A:Yes, for sure. We not only offer standard machines, but also do customized machines, our techinician will make the machine as your required. Just need to communicate before ordering.
