EPS/EPU Sandwich Panel Production Line > Production Equipment > EPS/PUR Sandwich Panel Automatic Production Line
You can log in to view more discounted prices.Login Now
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

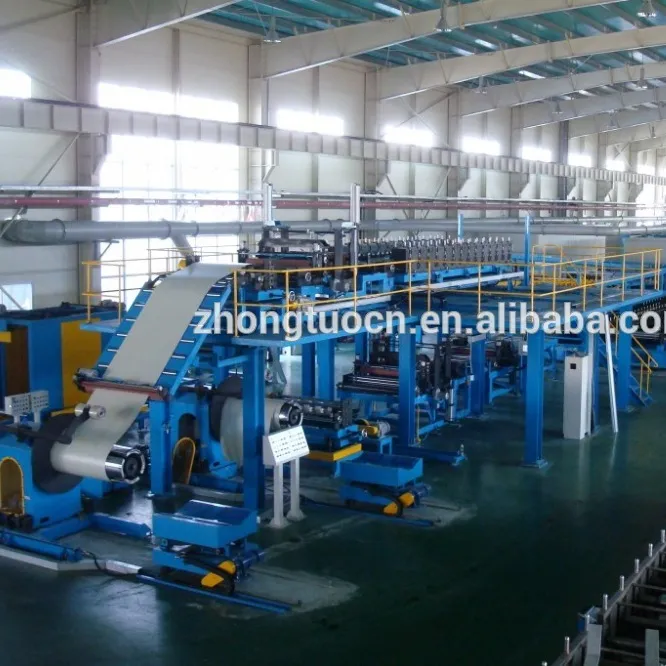

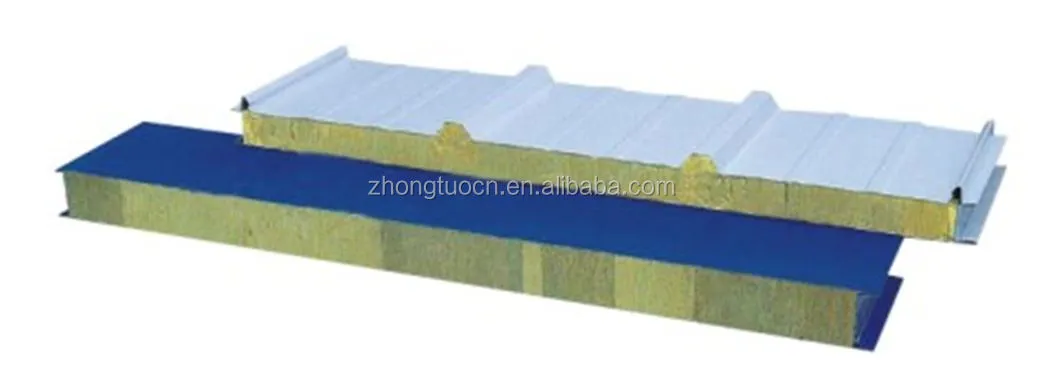

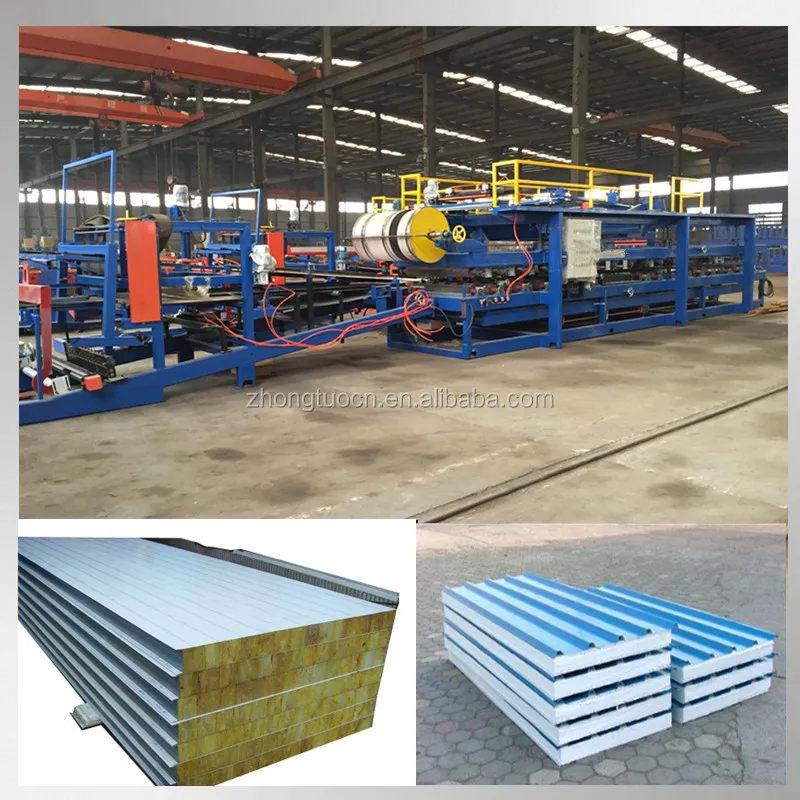

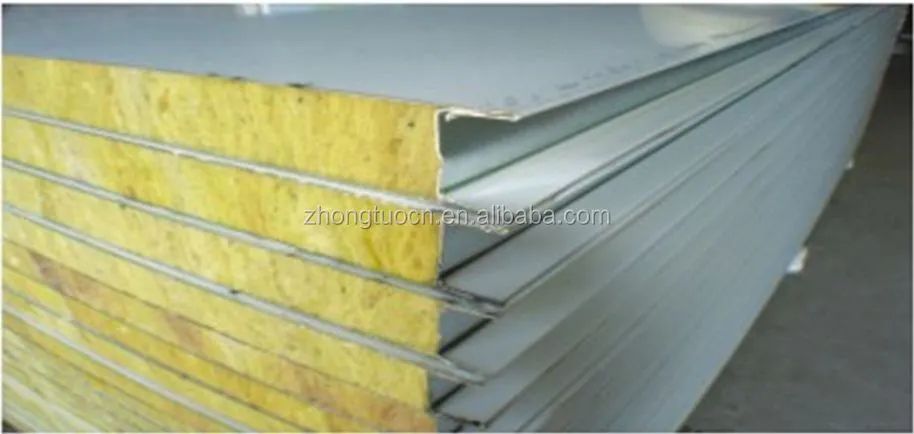

eps epu mineral wool insulated roof panel making machine consists of single level roll forming machine,composite equipment and cutting equipment,it integrates the technology of cold roll and compositing,this product line can make composted corrugated roof sandwich panel at a time.It also can make wall sandwich panel. the core material can be chosen Polystyrene(EPS)and mineral wool. The roll forming machine and composite equipment can separately produce.

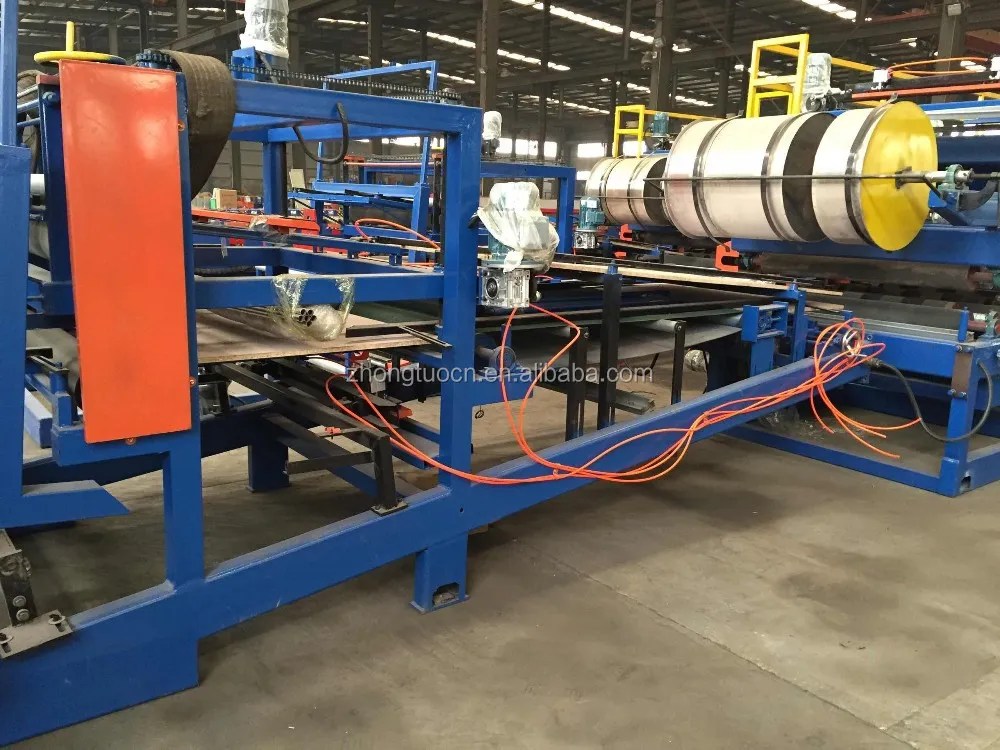

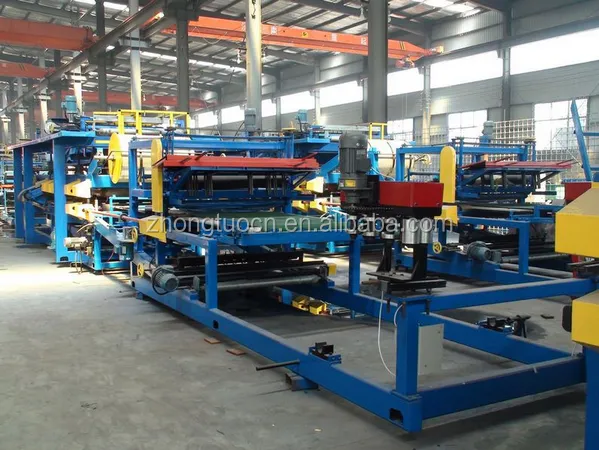

EPS/mineral wool sandwich panel production line consists of uncoiling system,film covering and shearing system,roll forming system,compositing system,heating system,glue scratching system,shearing system,conveying rollers,electric controlling system,pneumatic system and so on.We can design different kinds of profile and fittings for machine,as per customers’ requirements.
Working Flow
Uncoiling-Roll Forming-Pre-cutting(if needed)-Heating-Glue Scratching-EPS Feediong-Compositing-Measuring Length&Shearing-Sheet to support table
Technique parameters of the processing line
(1) Coil material: EPS, mineral wool, glass silk floss and so on
(2) Thickness of the plate: 0.3-0.8mm
(3) Core thickness: 20-300mm
(4) Production capacity (according to your glue):
4-4.5m/min (the fastest), 2-2.5m/min(the slowest)
(5) Total power: about 30KW
(6) Weight: 25ton
(7) PLC control systerm, easy to operate, high precision and work stably.
(8) Dimensions of whole production line:
About Length45000mm × Width3600mm × Height3300mm
1). One year, and we will provide the technical support for the whole life.
2).Training: the buyer should charge of visa, return ticket, food and accommodation
overseas and USD50/person/day for salary.
3). Need one technicians
4).Training time: one week (contains the time of installation and adjustment)
Payment Terms: 30%T/T after signed the contract,balanced before delivery
1.You are trade company or factory?
- We are trade company but we also have own factories. Building trade company is just for
exporting various types of cold roll forming machines.
2. Why your price is higher than others?
- As we persist on that each factory should put quality at the first place. We spend time
and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free quality assurance.
3. How to visit your company?
-a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can pick up you.
4.How to get a quotation?
a.Give me the profile drawing and thickness,this is the important.
b.Other spicific requirements is welcome,such as the speed,power and voltage you want.
