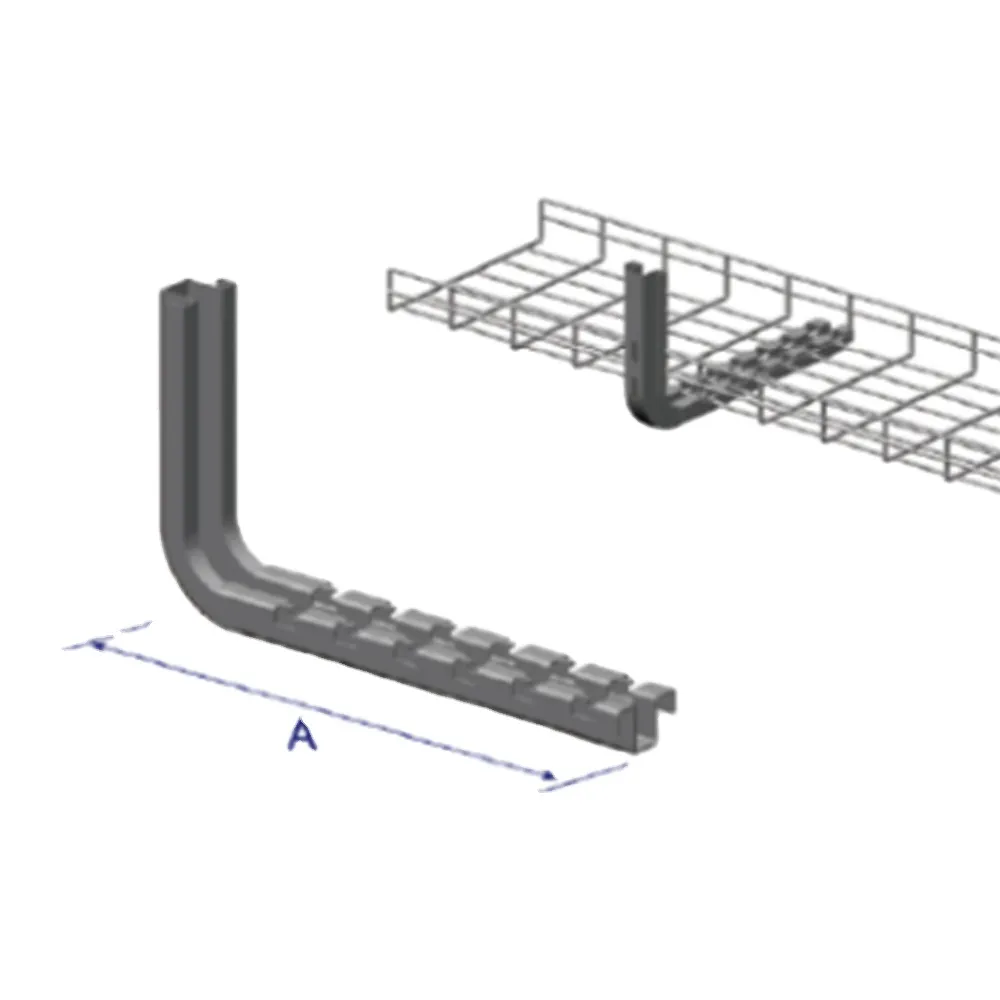

Cable Tray Wire Mesh Type L and U Bracket Without Cover Made in 5mm with Rods Stainless Steel 304 Complete with Couplers Bolts Jiangsu, China+BM+BESCA+1-6m+50-1000 mm

Cable Tray Wire Mesh Type L and U Bracket Without Cover Made in 5mm with Rods Stainless Steel 304 Complete with Couplers Bolts Jiangsu, China+BM+BESCA+1-6m+50-1000 mm

Name: Cable Tray Wire Mesh Type L and U Bracket Without Cover Made in 5mm with Rods Stainless Steel 304 Complete with Couplers Bolts Jiangsu, China+BM+BESCA+1-6m+50-1000 mm
Brand: ZTRFM
SKU: ZT100632612
Availability: InStock

$10.00/ Set

Min. Order:300 Set

You can log in to view more discounted prices.Login Now

Price:

$10.00

Quantity:

≥300Set

Order CodeZT100632612

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Material
Steel
Max. Working Load
300 kg
Side Rail Height
12-200 mm
Type
Wire Mesh

Detailed Images

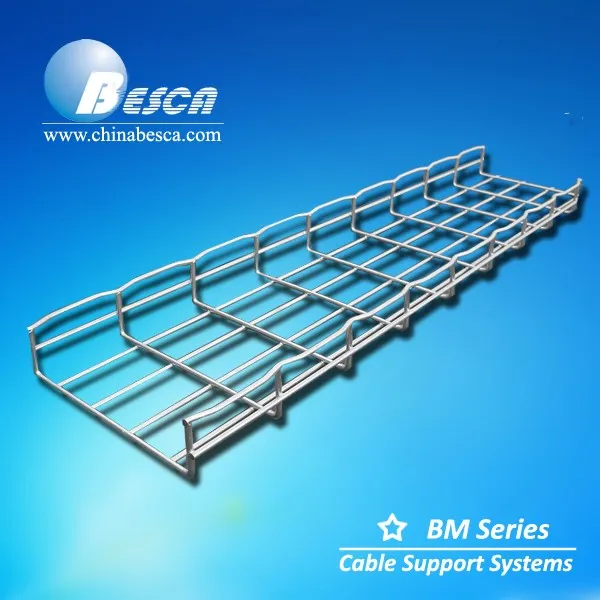

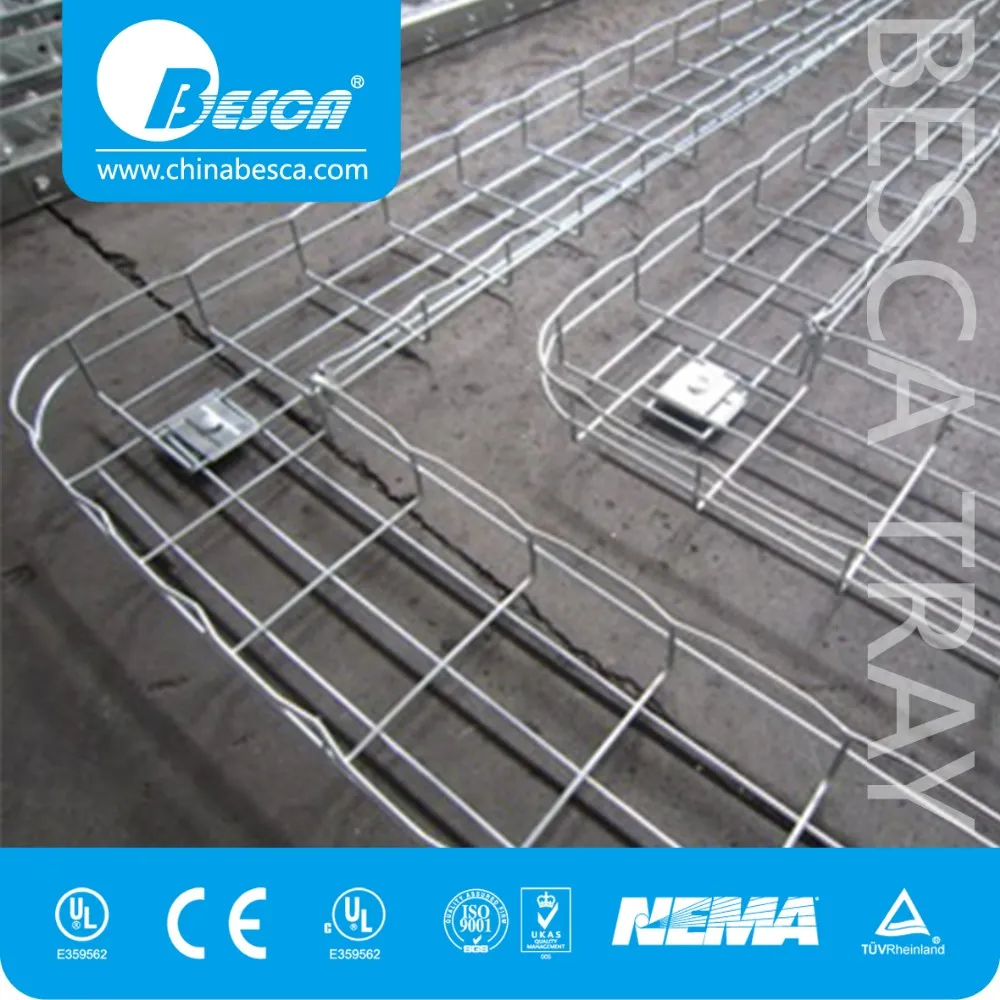

Besca Wire Mesh Cable Tray provides premium performance in commercial and light industrial applications.

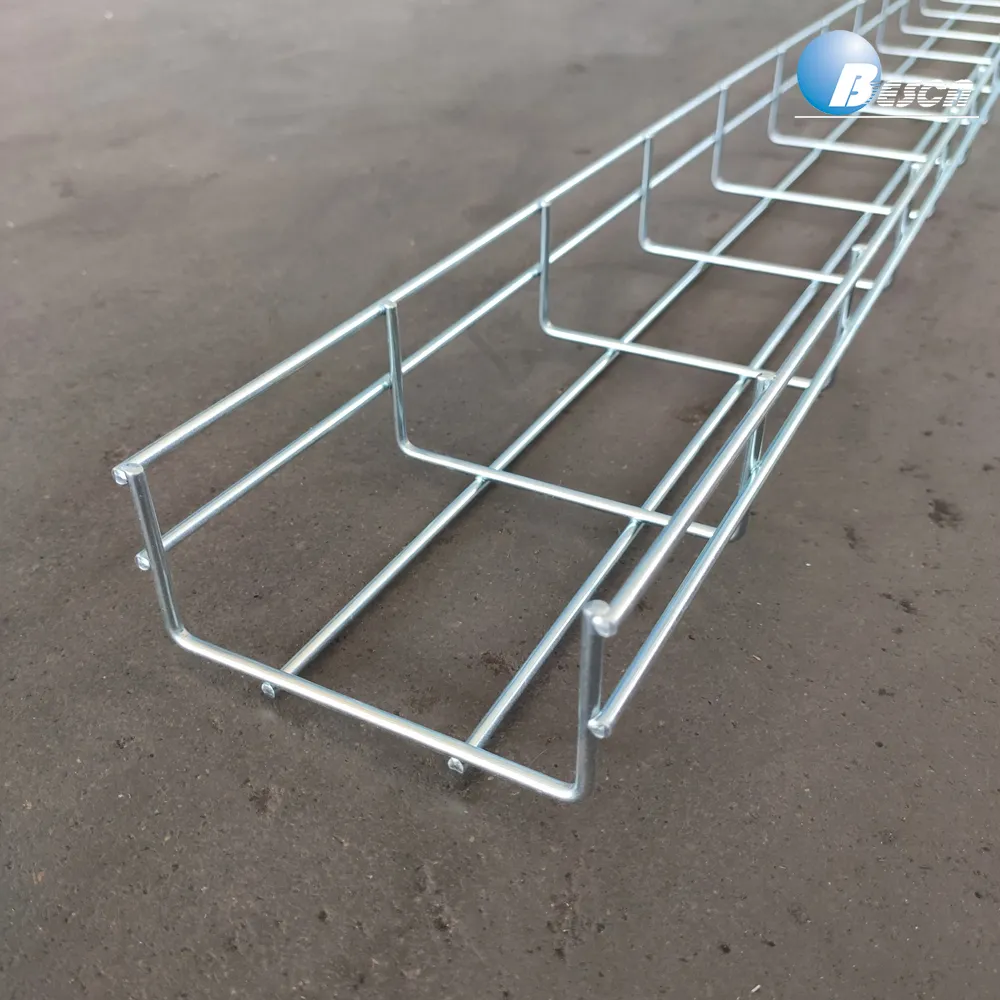

Cable Tray Wiremesh type without cover made in 5mm with rods stainless steel 304 complete with couplers bolts
Strong, versatile, and easy to install, Besca Wire Mesh Cable Tray is complimented with all the accessories you need.
With no need for separate bends, risers, tees and crosses, Besca Wire Mesh Cable Tray lengths can be fabricated to suit the application on site. Tested to NEMA Standard VE1-2002.
Besca Wire Mesh Cable Tray is available in stainless steel against firm orders only. - Minimum production may quantities apply.

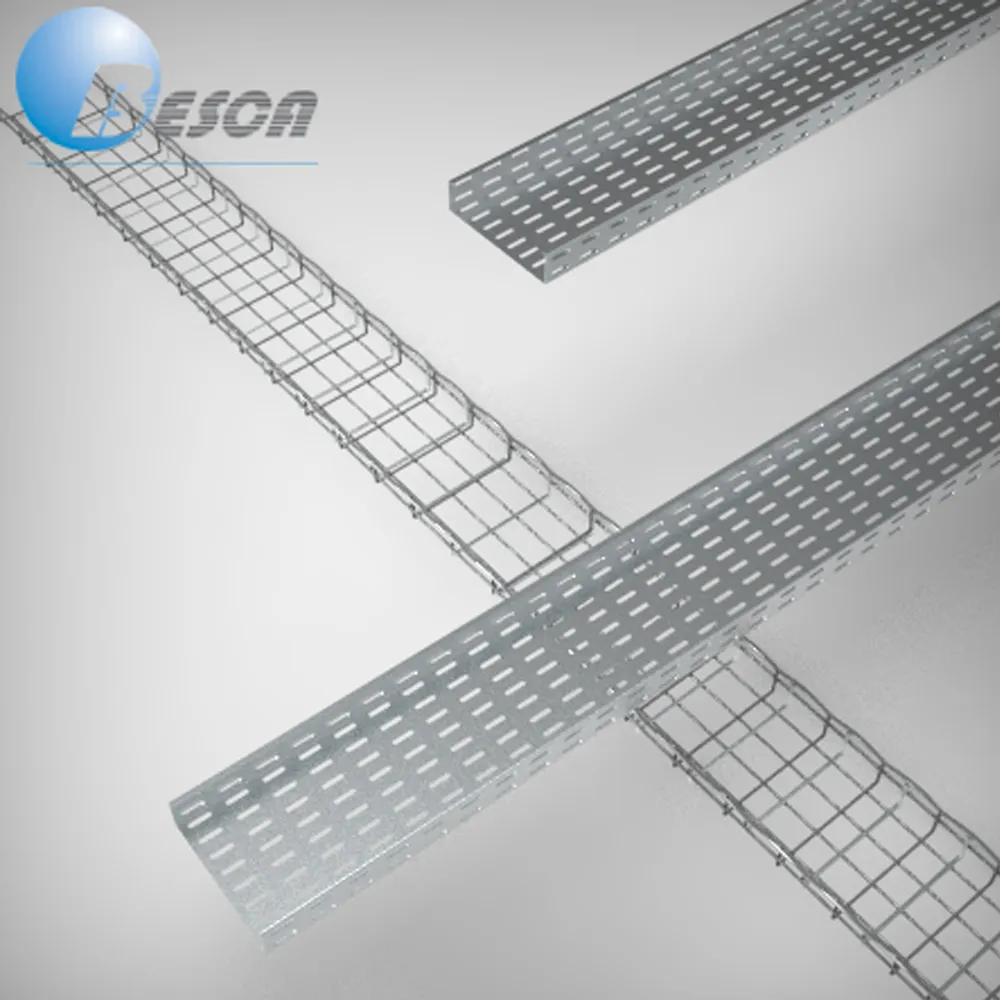

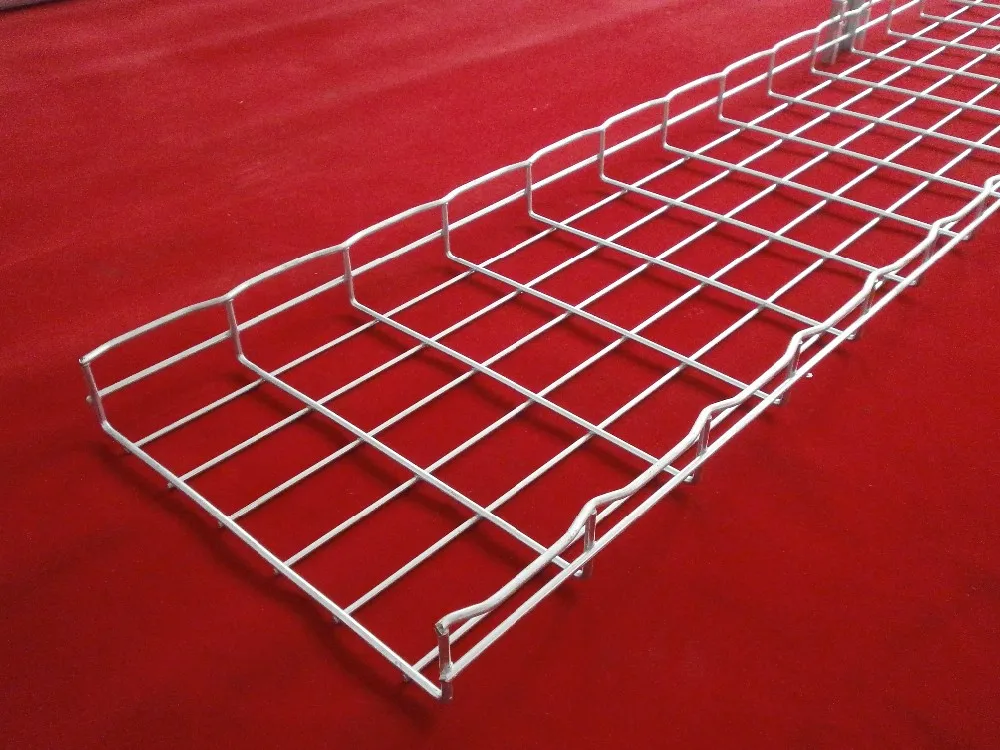

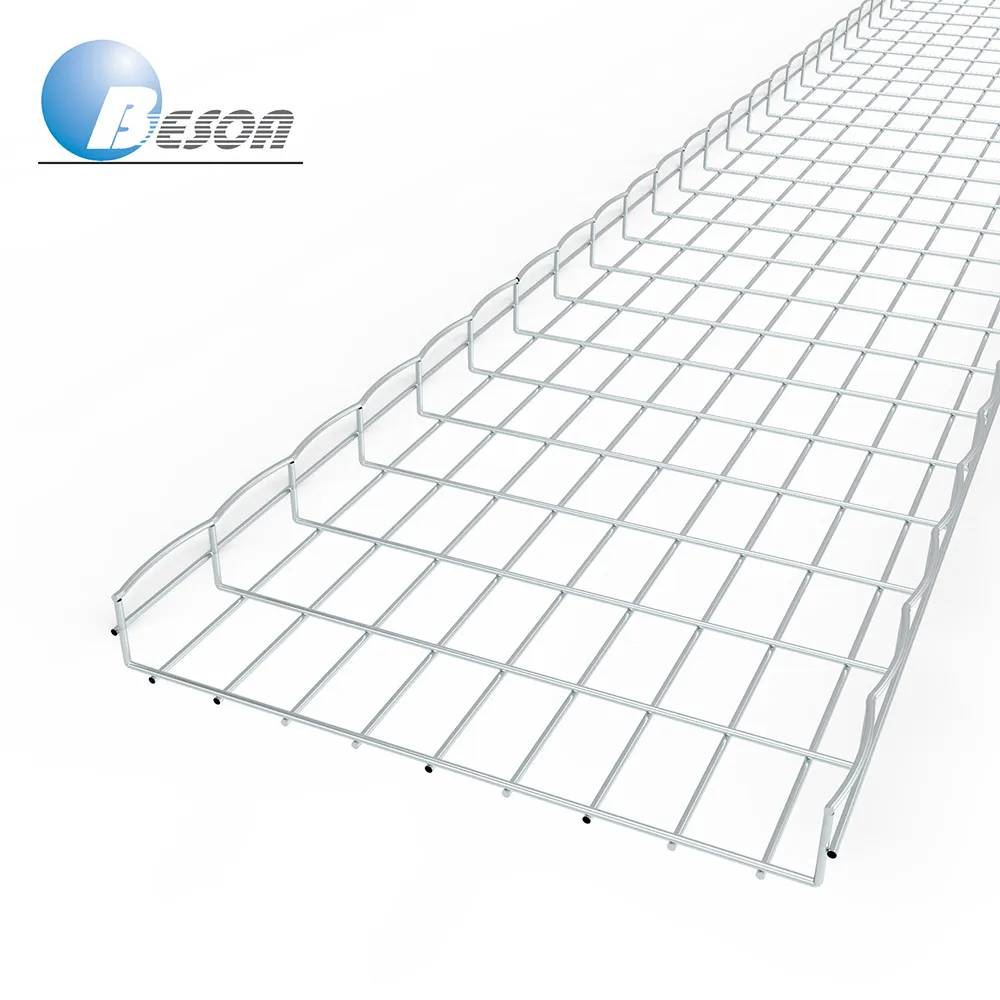

WAVE TYPE (CABLOFIL TYPE)

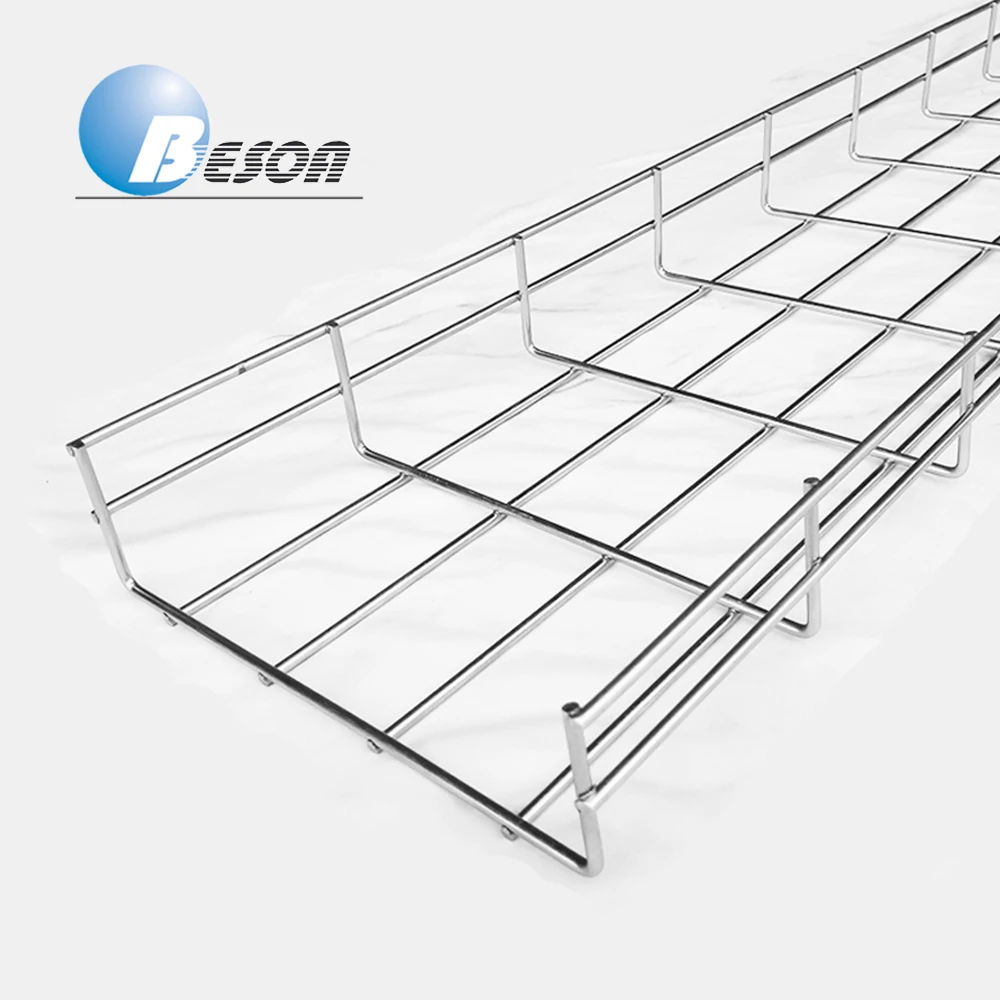

STRAIGHT TYPE

Accessories

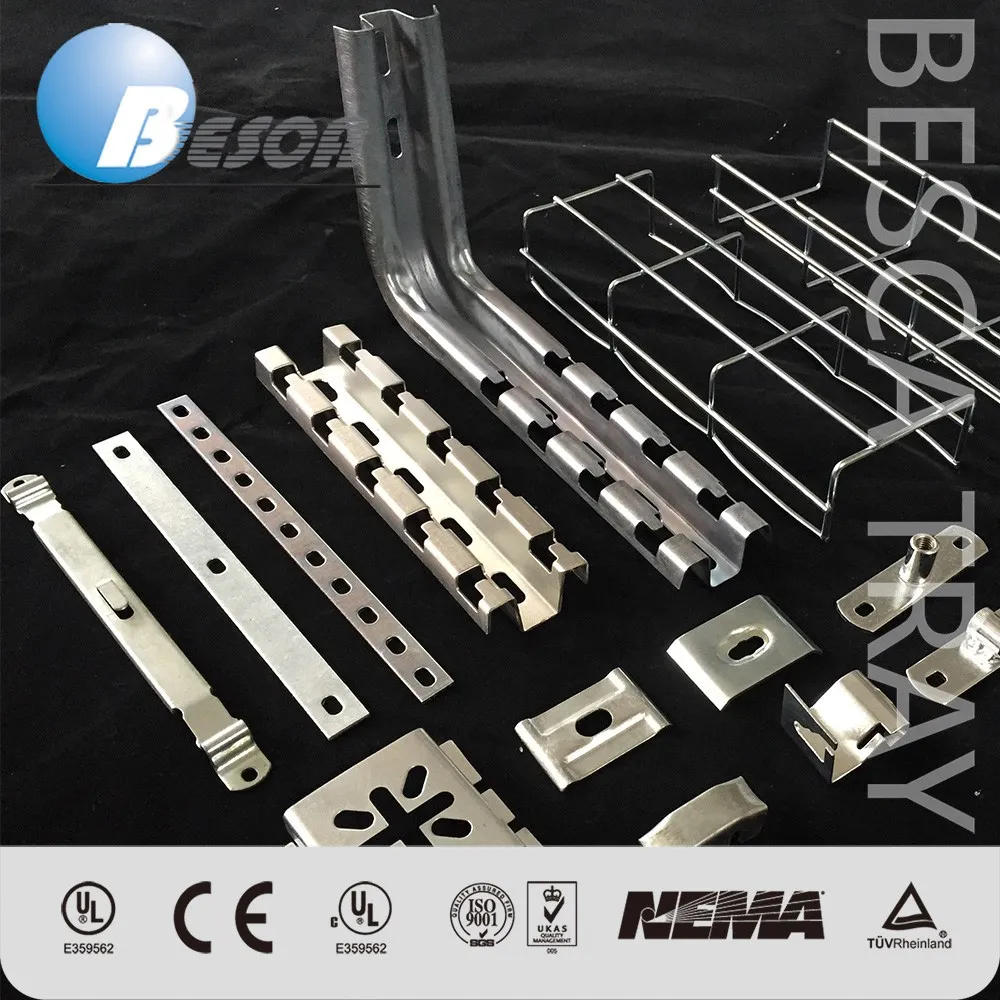

Accessories for Wire Mesh Cable Tray for choosing.

Connect Assembly, brackets, Splice, Faster Connector, Hold Down Plate , Over head clip, Drop Out, Separator, Grouding Clamp, Under floor stand, etc...

Standard material is electro-zinc plated

Installation Instructions

BESCA Wire Mesh Cable Tray

Besca Wire Mesh Cable Tray systems are produced from ASTM A510 high strength steel wires. A fully automated welding process produces continuous wire mesh, which is formed into our Wire Mesh Cable Tray system.

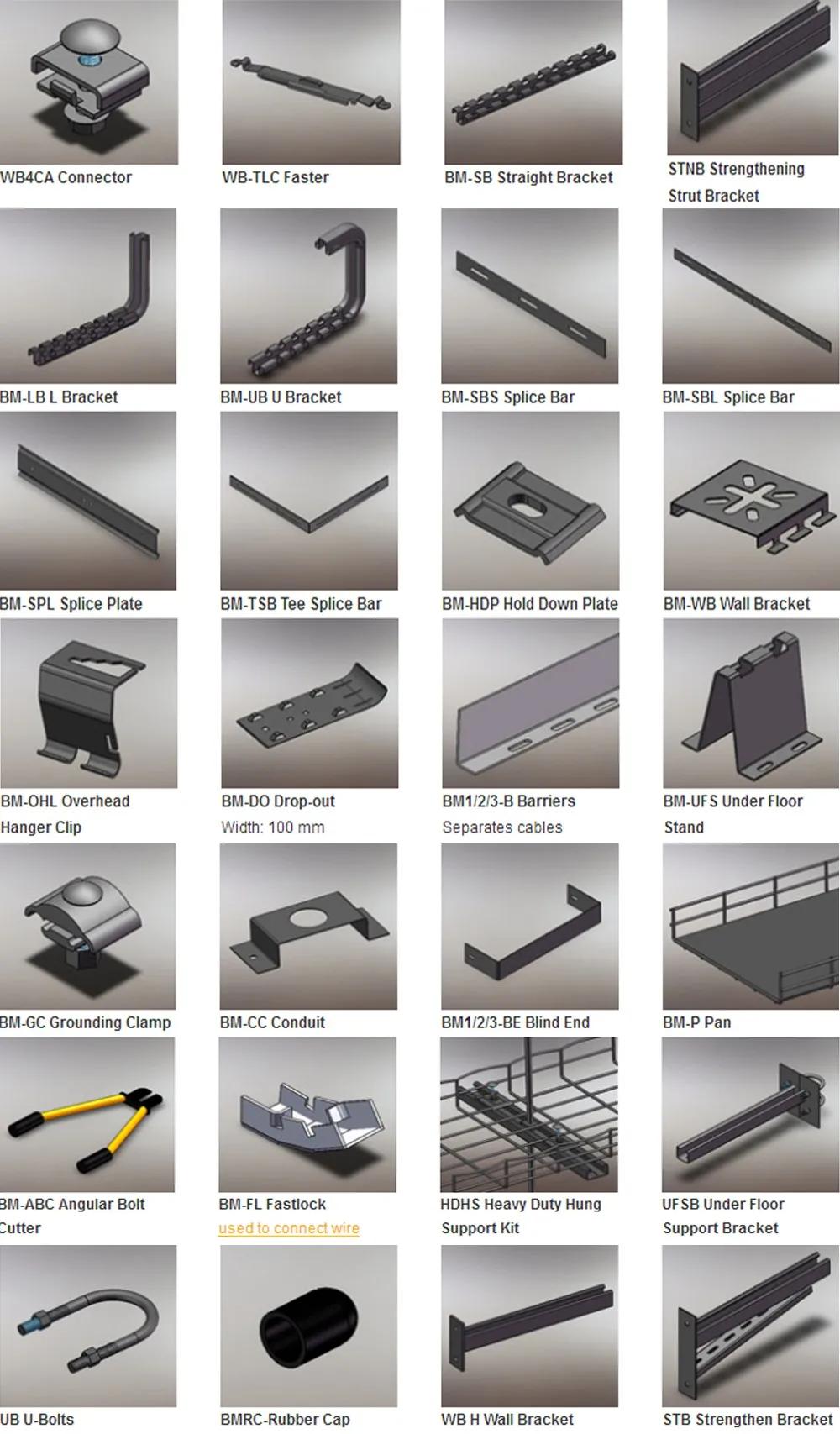

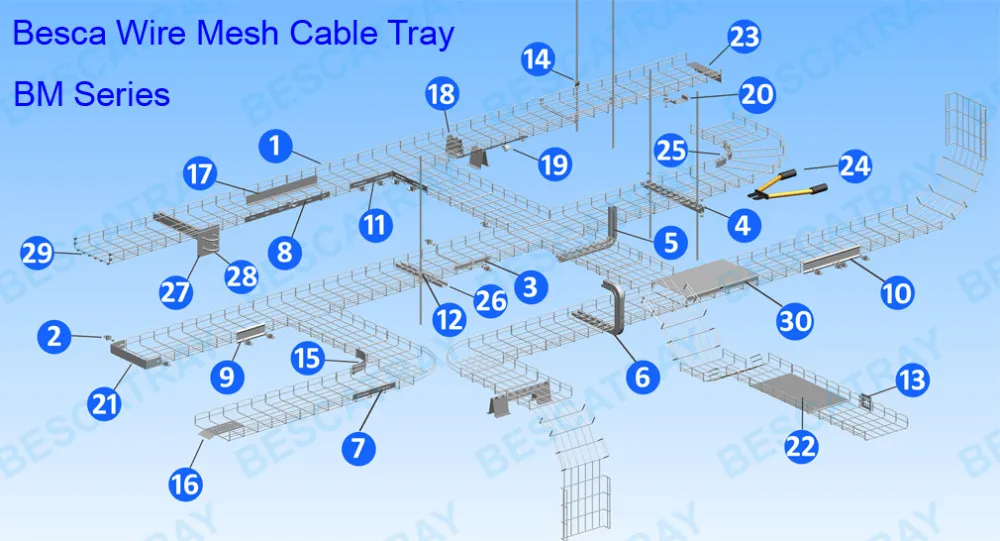

1. Wire meshcable tray straight(BM*)	2. Connector assembly(WB4CA)	3. Faster connector(WB-TCL)	4. Straight bracket(BM*-SB)	5. L Bracket(BM-LB)
6. U Bracket(BM-UB)	7. Splice bar(short)(BM-SBS)	8. Splice bar(long)(BM-SBL)	9. Splice plate(short)(BM-SPS)	10. Splice plate(long)(BM-SPL)
11. Tee splice bar(BM-TSB)	12. Hold dowm plate(BM-HDP)	13. Wall bracket(BM-WB)	14. Overhead hanger clip(BM-OHL)	15. Radius shield(BM*-RS)
16. Drop-out(BM-DO)	17. Barriers(BM*-B)	18. Under floor stand(BM-UFS)	19. Grounding clamp(BM-GC)	20. Conduit connector(BM-CC)
21. Blind end(BM*-BE)	22. Pan(BM-P)	23. Wall termination kit(BM-WTK)	24. Angular bolt cutter(BM-ABC)	25. Fastlock(BM-FL)

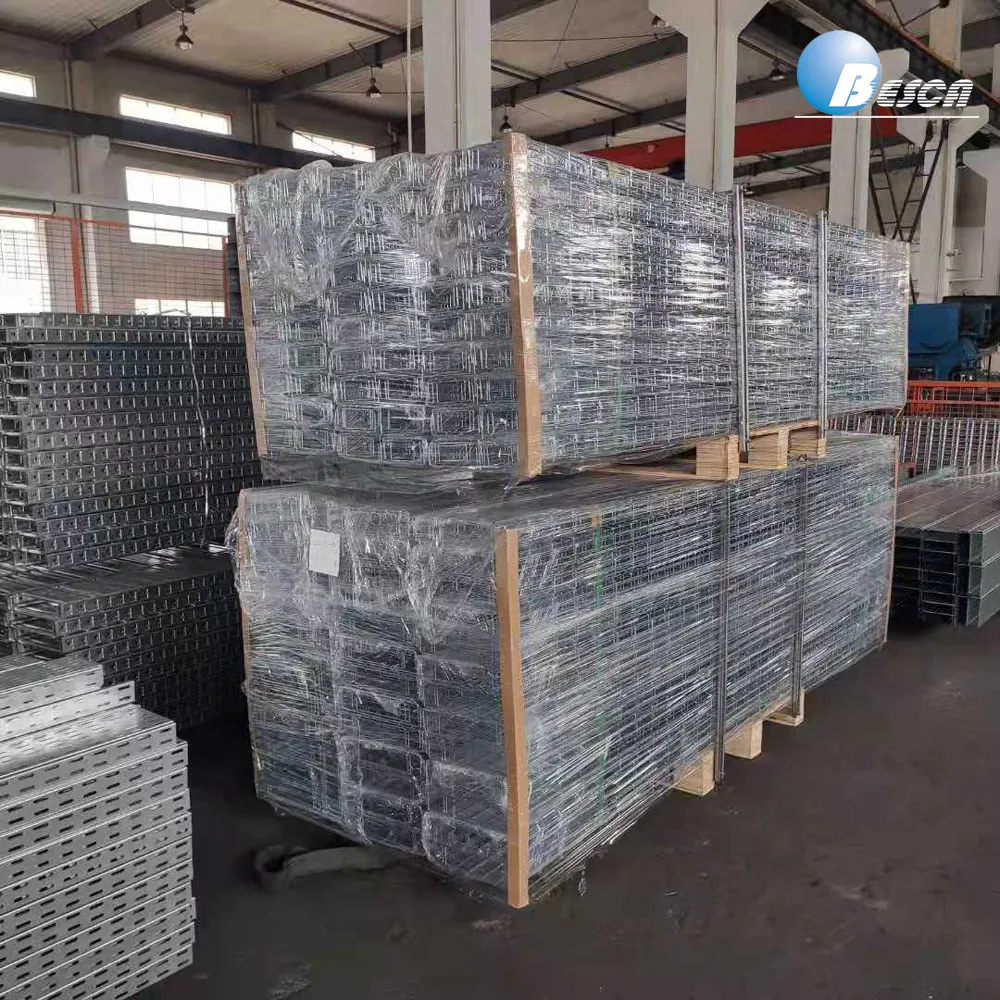

Packing & Delivery

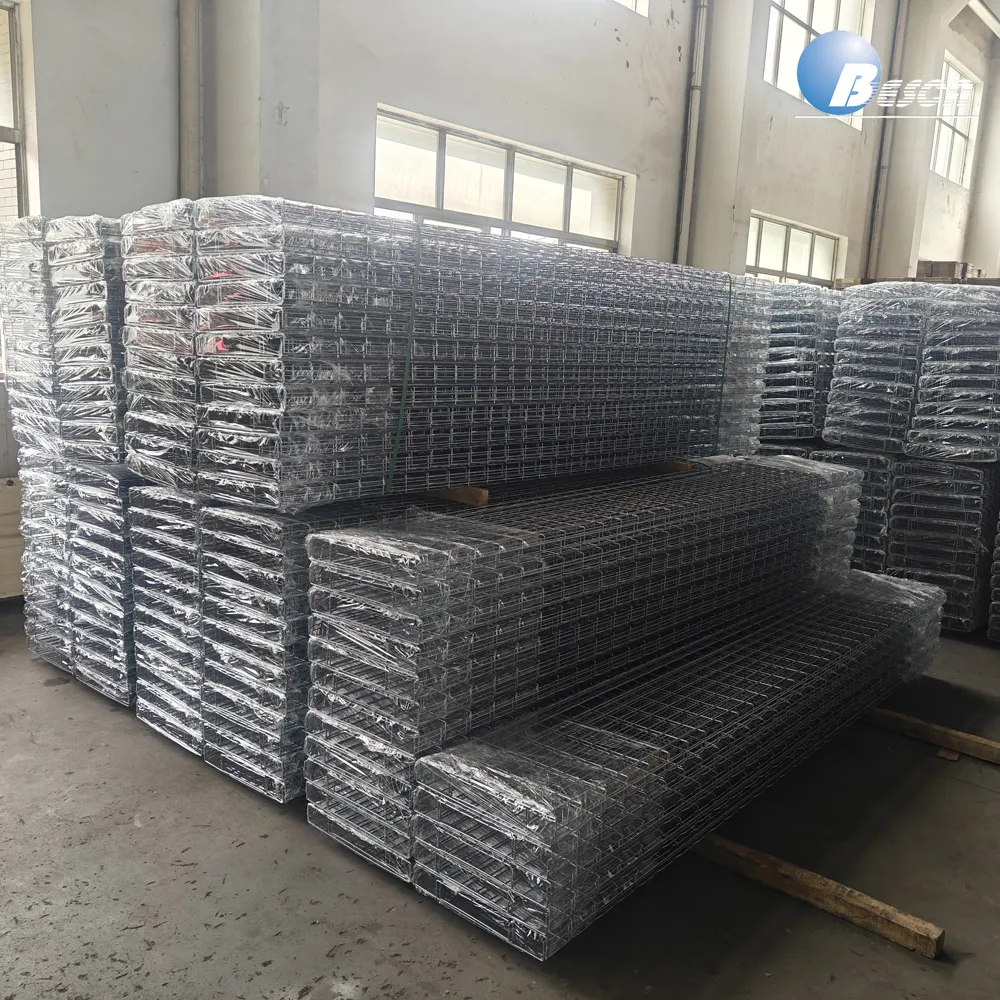

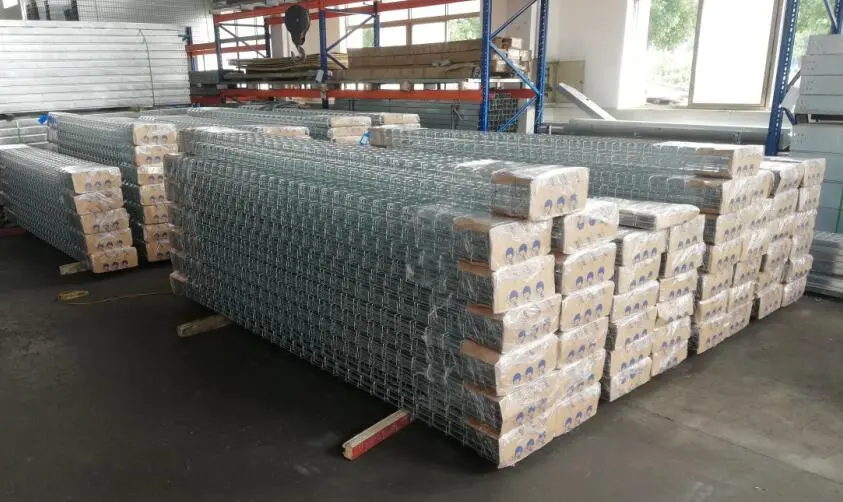

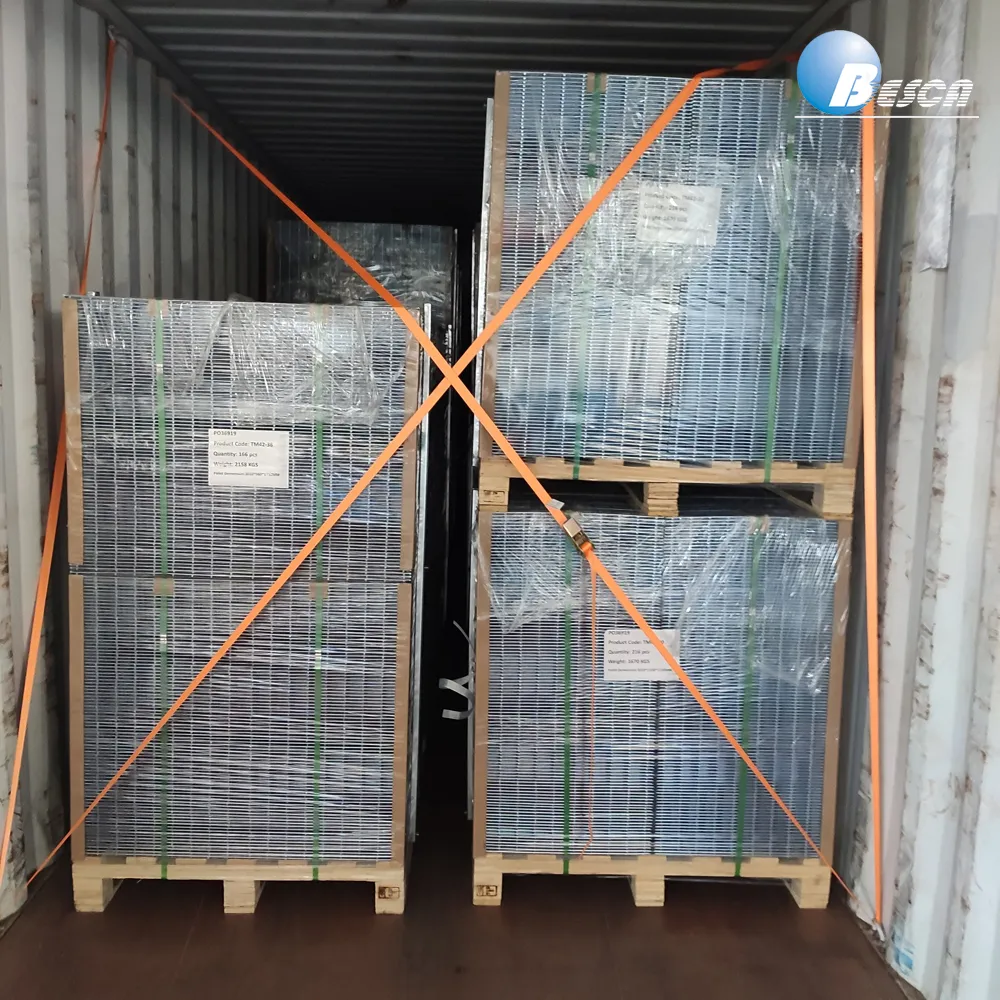

Wire Mesh Cable Tray Besca Standard Packages

We have our standard packages, but if you have any other special package requirements, we can also meet your demand.

Usually, all the orders can be completed production less than 30 days after receiving deposit payment.

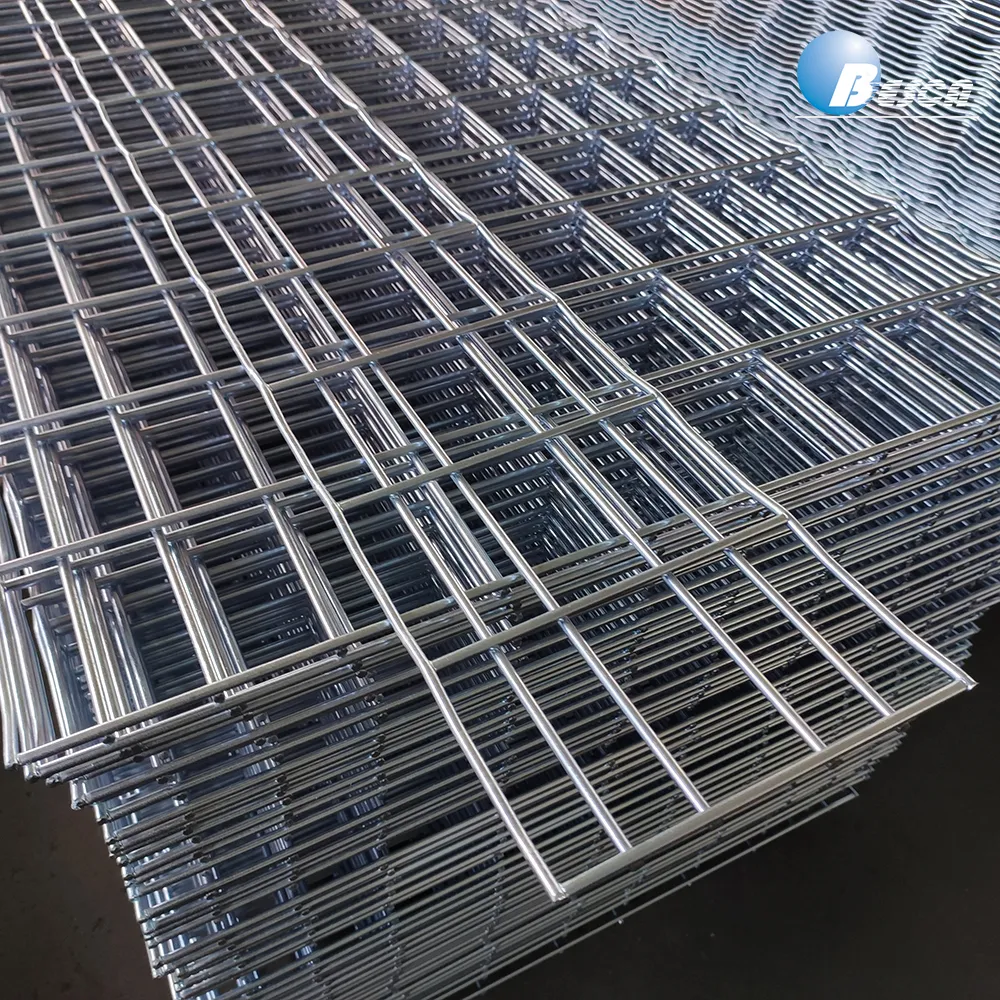

We also can sell wire mesh cable tray in flat to save much space in container.

Dimension

Ordering Code	W(mm)	H(mm)	L(mm)
BM1-50H	50	35	3000
BM2-50H	50	50	3000
BM3-50H	50	100	3000
BM1-100H	100	35	3000
BM2-100H	100	50	3000
BM3-100H	100	100	3000
BM1-150H	150	35	3000
BM2-150H	150	50	3000
BM3-150H	150	100	3000
BM1-200H	200	35	3000
BM2-200H	200	50	3000
BM3-200H	200	100	3000
BM1-300H	300	35	3000
BM2-300H	300	50	3000
BM3-300H	300	100	3000
BM1-400H	400	35	3000
BM2-400H	400	50	3000
BM3-400H	400	100	3000
BM1-450H	450	35	3000
BM2-450H	450	50	3000
BM3-450H	450	100	3000
BM1-600H	600	35	3000
BM2-600H	600	50	3000
BM3-600H	600	100	3000
