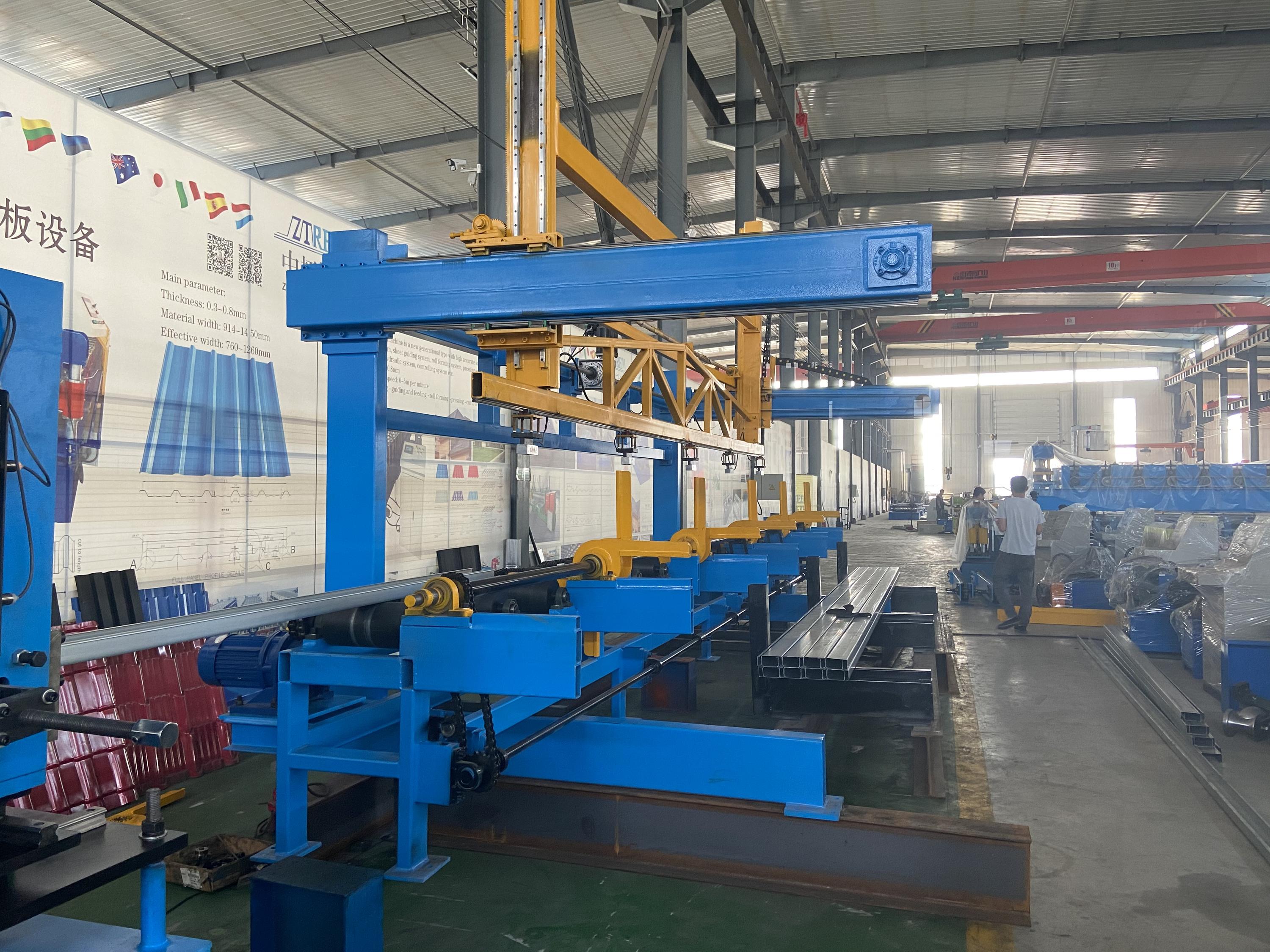

Automatic U Shape Purlin Strut Channel Roll Forming Machine ZTRFM-

Product Overview

This Automatic C/Z/U Strut Channel Roll Forming Machine is a high-efficiency production line specially designed for manufacturing solar mounting strut channels and purlins. It is widely used in photovoltaic (PV) mounting systems and steel structure buildings. The machine features adjustable sizes, precise forming, and stable performance.

Key Features

• Adjustable Size: The machine can produce different sizes of C, Z, and U profiles by simply adjusting the rollers or spacers, meeting various construction requirements.

• High Efficiency: Production speed of 20 meters per minute, greatly improving your production capacity.

• Precise Cutting: Equipped with a high-precision hydraulic cutting system, ensuring smooth edges and accurate lengths without deformation.

• Stable Performance: The main frame is made of high-quality steel, welded and treated to eliminate internal stress, ensuring long-term stability.

• Advanced Control: Adopts famous brand PLC control system and touch screen for easy operation and monitoring.

• Customizable: We can design and manufacture the machine according to your specific profile drawings and requirements.

Technical Specifications (Example - Customizable)

• Raw Material: Galvanized Steel, Carbon Steel

• Material Thickness: 1.5mm - 3.0mm (Customizable)

• Forming Stations: 16 - 20 Stations (Depends on profile design)

• Main Motor Power: 11 kW - 15 kW

• Hydraulic Motor Power: 5.5 kW - 7.5 kW

• Voltage: 380V, 50Hz, 3Phase (Or customized)

• Control System: PLC Control with Touch Screen

• Cutting Type: Hydraulic Cutting

• Machine Weight: About 7Tons

• Warranty: 1 Year for core components

Working Process

Manual Decoiler -> Feeding Guide -> Main Roll Forming Machine -> Hydraulic Cutting System -> Output Table

After-Sales Service

• Installation & Training: We can provide a detailed operation manual and video. If needed, we can send engineers to your factory for installation and training (Buyer covers related travel expenses).

• Warranty: 1-year warranty for the whole machine. During the warranty period, any non-human damaged parts will be provided for free.

• Technical Support: 24/7 online technical support to solve any problems you may encounter.

FAQ

Q1: Can this machine produce C, Z, and U profiles?
A: Yes, it can. By changing the spacers or adjusting the rollers, the machine can produce C, Z, and U profiles.

Q2: Can you make the machine according to our profile drawing?
A: Yes, definitely. We can customize the machine based on your detailed profile drawings and specific requirements.

Q3: How long is your delivery time?
A: Usually it takes about 30-45 working days after receiving your deposit.

Q4: What is your payment term?
A: 30% T/T as deposit, and 70% balance before shipment.
