ZhongTuo Automatic Downspout Pipe Roll Forming Machine ZTRFM-down spout

Product Overview

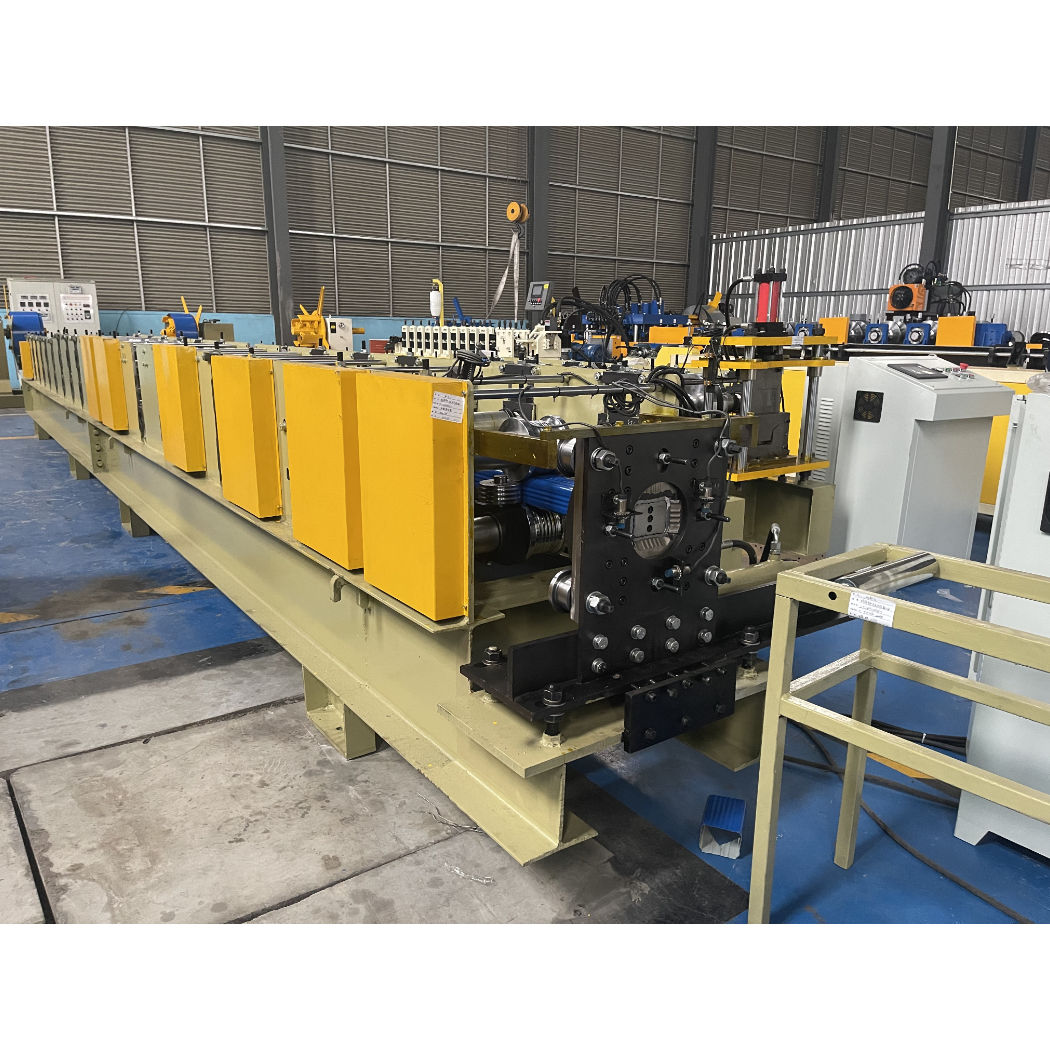

This Automatic Downspout Pipe Roll Forming Machine is a high-efficiency production line specially designed for manufacturing metal rain downspouts. It is widely used for roof drainage systems in residential and commercial buildings. The machine features precise forming, stable performance, and easy operation.

Key Features

• High Efficiency: Production speed of 10-20 meters per minute, ensuring high output for your business.

• Precise Forming: Adopts high-quality rollers and precise processing, ensuring the finished pipes are straight and accurate.

• Stable Performance: The main frame is made of high-quality steel, welded and treated to eliminate internal stress, ensuring long-term stability.

• Advanced Control: Adopts famous brand PLC control system with a touch screen for easy operation and parameter setting.

• Customizable: We can design and manufacture the machine according to your specific pipe profile drawings and requirements.

Technical Specifications (Example - Customizable)

• Raw Material: Galvanized Steel, Aluminum, Copper

• Material Thickness: 0.5mm - 1.2mm (Customizable)

• Forming Stations: 12 - 18 Stations (Depends on profile design)

• Main Motor Power: 7.5 kW

• Hydraulic Motor Power:  5.5 kW

• Voltage: 380V, 50Hz, 3Phase (Or customized)

• Control System: PLC Control with Touch Screen

• Cutting Type: Hydraulic Cutting

• Machine Weight: About 5000kg

• Warranty: 1 Year for core components

Working Process

Manual Decoiler -> Feeding Guide -> Main Roll Forming Machine -> Hydraulic Cutting System -> Output Table

After-Sales Service

• Installation & Training: We can provide a detailed operation manual and video. If needed, we can send engineers to your factory for installation and training (Buyer covers related travel expenses).

• Warranty: 1-year warranty for the whole machine. During the warranty period, any non-human damaged parts will be provided for free.

• Technical Support: 24/7 online technical support to solve any problems you may encounter.

FAQ

Q1: Can this machine produce different sizes of downspouts?
A: Yes, it can. By changing the cutting molds or adjusting the rollers, the machine can produce different sizes of downspouts.

Q2: Can you make the machine according to our profile drawing?
A: Yes, definitely. We can customize the machine based on your detailed profile drawings and specific requirements.

Q3: How long is your delivery time?
A: Usually it takes about 30-45 working days after receiving your deposit.

Q4: What is your payment term?
A: 30% T/T as deposit, and 70% balance before shipment.
