Zhongtuo Tophat Purlin Roll Forming Machine Automatic Tophat Steel Purlin Production Line for 100-150mm Profiles Machine

Tophat purlins provide a practical alternative to conventional C and Z purlins in many structural applications. Their symmetrical profile offers good stability during installation, while the nested shape makes transportation and storage more efficient. For manufacturers looking to produce these sections consistently and economically, a Tophat Purlin Roll Forming Machine provides an automated solution from coil feeding to finished-length cutting.

Designed for continuous cold forming, the machine gradually shapes steel strip through a series of precision rollers. As a result, manufacturers can produce accurate Tophat profiles while maintaining stable production efficiency and reducing unnecessary material waste.

What Is a Tophat Purlin Roll Forming Machine?

A Tophat Purlin Roll Forming Machine is specialized equipment for manufacturing hat-shaped structural sections from galvanized steel, carbon steel, or other suitable coil materials. During operation, the machine feeds the strip through multiple forming stations, progressively creating the required profile without damaging the material surface.

Unlike conventional C or Z sections, the symmetrical Tophat profile can remain stable while workers position and fasten it. In addition, manufacturers can produce long sections and cut them according to project requirements. This makes the machine particularly suitable for structural framing, shed construction, roofing systems, and other applications where lightweight yet strong sections are required.

The forming process can also incorporate punching and automatic cutting when projects require holes or predefined lengths. Therefore, users can configure the production line around their actual profile and fabrication requirements rather than relying on a one-size-fits-all setup.

Key Benefits of Tophat Purlin Production

Tophat purlins offer several practical advantages throughout fabrication, transportation, and installation. First, the symmetrical section provides inherent stability and helps reduce the need for additional bracing against twisting. The rigid lips also provide convenient fixing points, allowing installers to connect the section efficiently to its supporting structure.

Moreover, manufacturers can lap Tophat sections when longer structural spans or stronger joints are required. Because the sections can be manufactured in extended lengths, production can also reduce the number of joints required on larger projects.

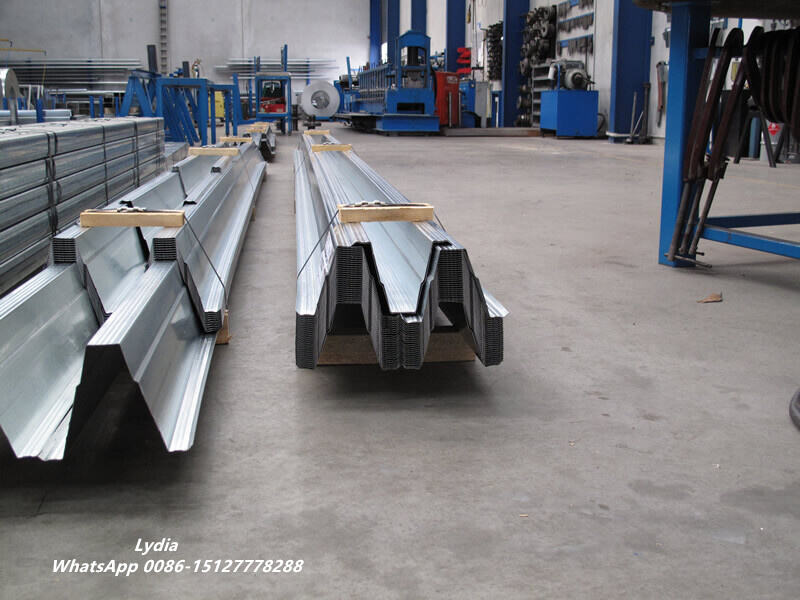

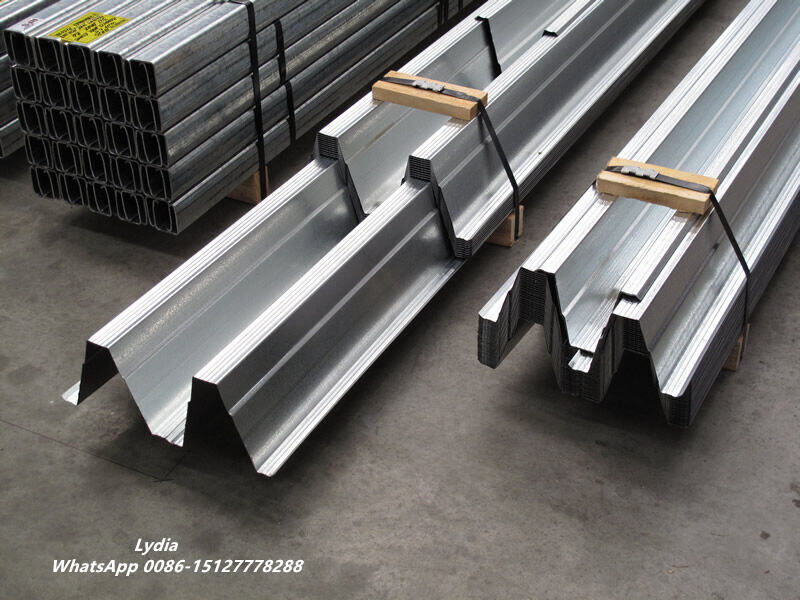

Another important advantage appears during logistics. Tophat profiles can be nested together, allowing more finished sections to occupy the same transportation space. This characteristic can help simplify handling and improve shipping efficiency, particularly when supplying large construction projects.

Technical Specifications and Typical Applications

The following specifications provide a reference for a Tophat purlin production line. Actual dimensions, thicknesses, punching patterns, and production speed can be customized according to the required profile and project conditions.

Item	Typical Configuration
Product	Tophat Purlin

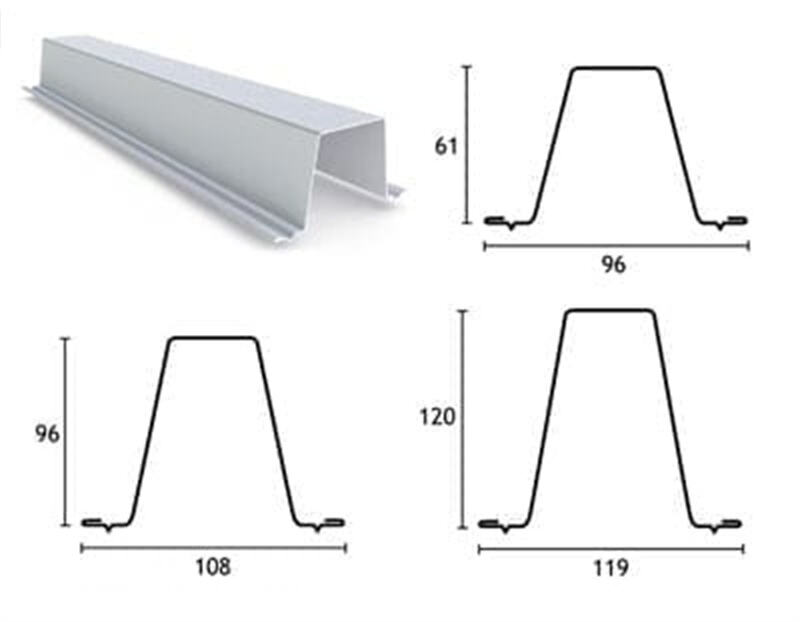

Profile Sizes	100 mm / 120 mm / 150 mm
Material Thickness	0.95 mm / 1.15 mm
Forming Method	Continuous cold roll forming
Material	Galvanized steel or suitable structural steel coil
Cutting	Automatic length cutting
Control System	PLC-based automatic control
Profile Adjustment	Customized according to production requirements
Typical Uses	Sheds, roofing, walls, structural framing, agricultural buildings

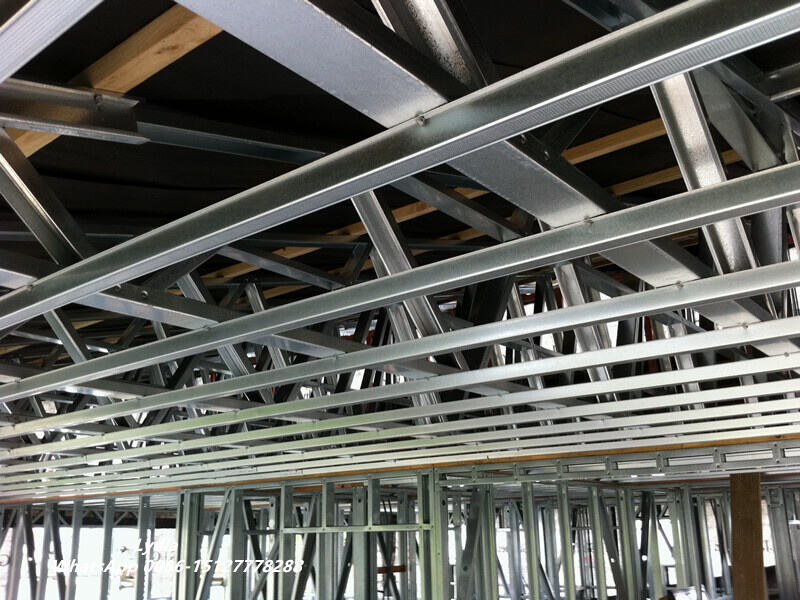

In practical construction, Tophat purlins can achieve considerable spans while keeping material consumption relatively low. As a reference, typical NZ Standard span information indicates approximately 3.5 m for 100 mm sections, 5 m for 120 mm sections, and up to 7 m for 150 mm sections, depending on the design and structural conditions. These values should be verified by the relevant structural engineer for each project.

The machine is therefore well suited to manufacturers producing purlins for industrial sheds, warehouses, commercial roofing, agricultural buildings, prefab structures, and general structural steel fabrication.

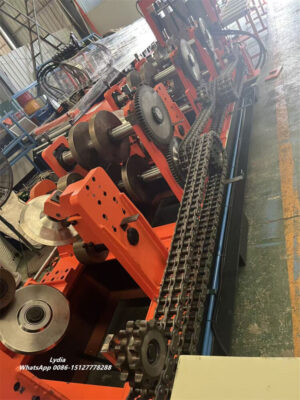

How the Tophat Purlin Roll Former Works

The production process starts with a steel coil loaded onto the decoiler. The decoiler releases the strip at a controlled rate and sends it into the roll forming section. Before forming begins, the material can pass through a leveling or guiding system to maintain stable alignment.

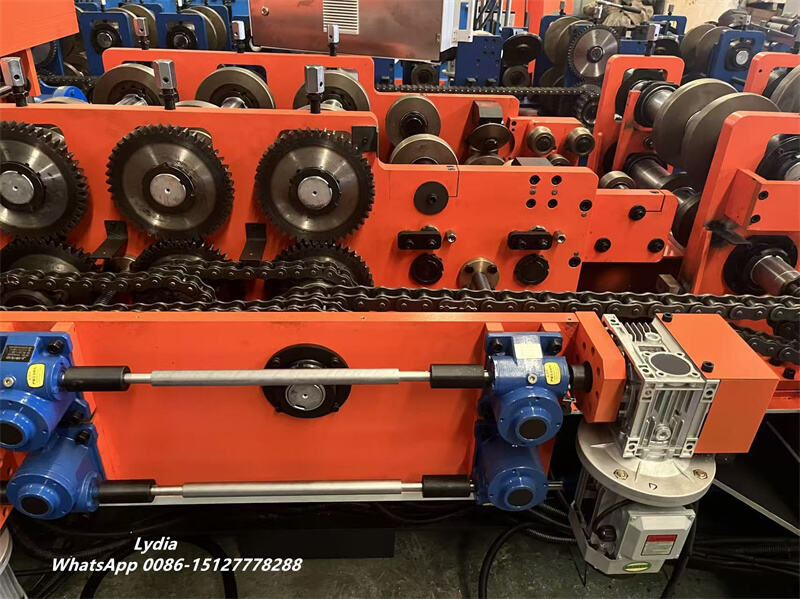

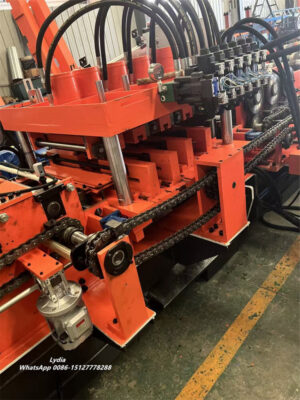

Next, the forming stations gradually bend the flat strip into the Tophat profile. Instead of creating the entire shape in one step, each roller station performs a controlled deformation. This progressive process helps maintain dimensional consistency and minimizes unnecessary stress on the material.

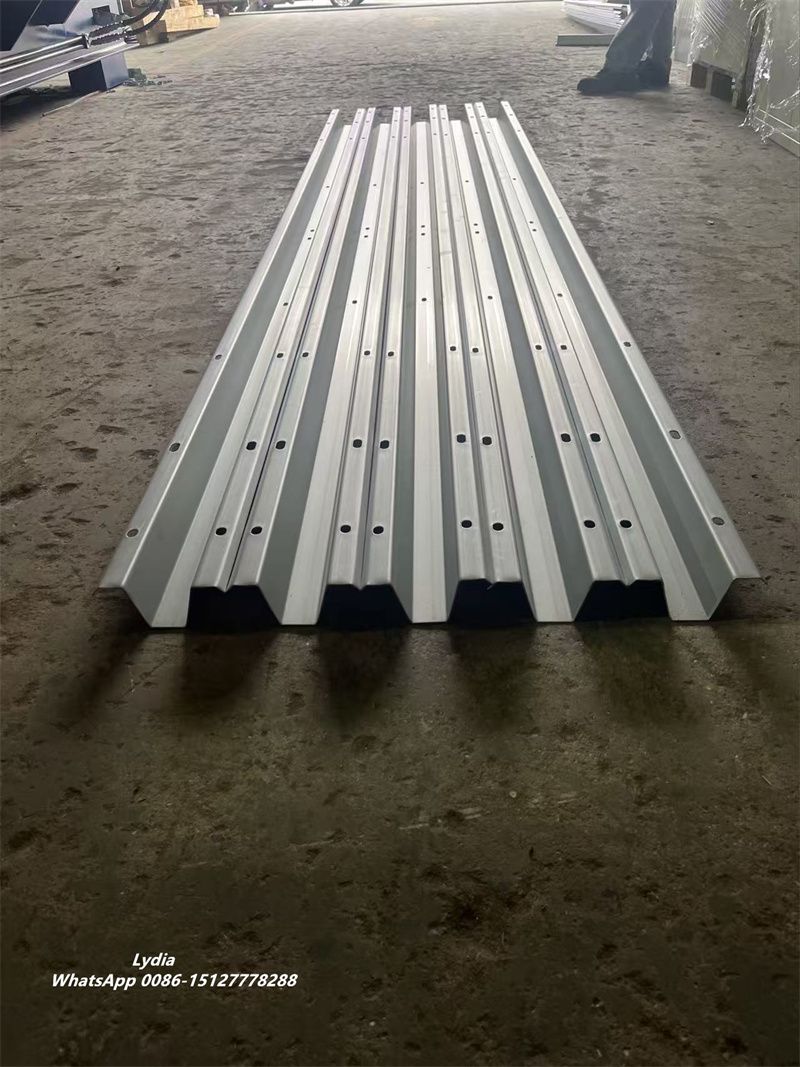

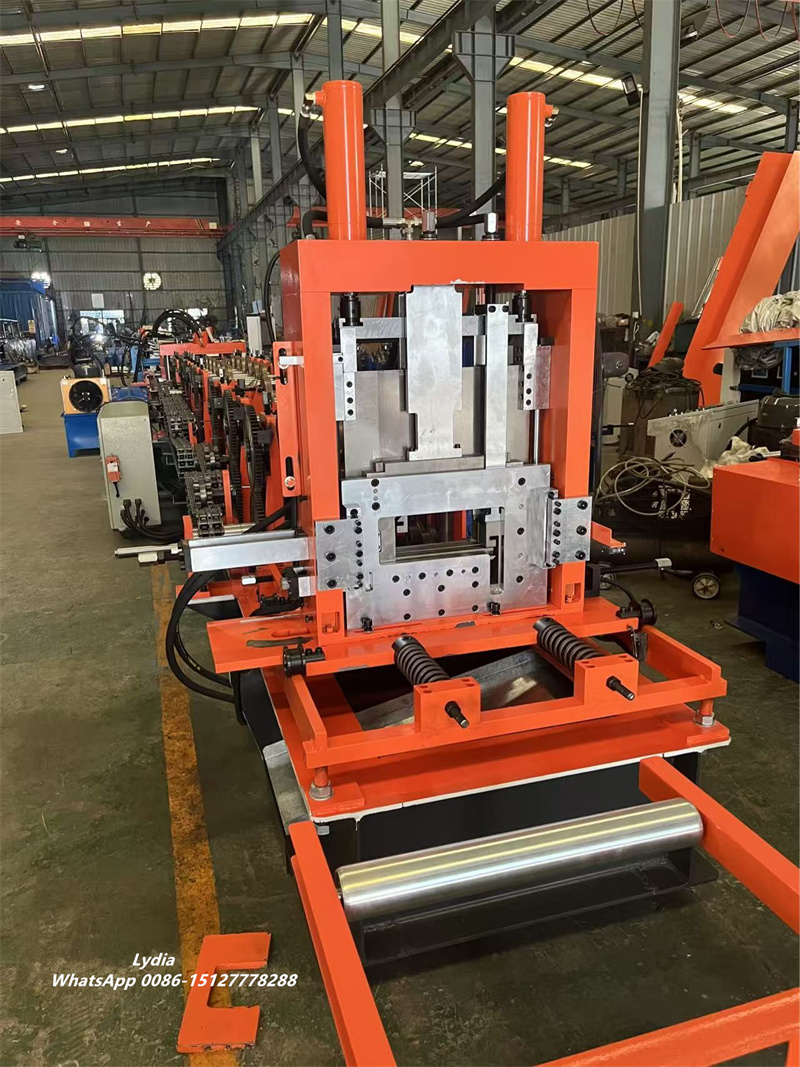

After the profile reaches its final shape, the cutting unit separates the continuous section into the required lengths. If the project requires fixing holes, the line can also integrate a punching system at the appropriate stage. Finally, the finished Tophat purlins move to the run-out table for collection and bundling.

With PLC automation, operators can set production parameters such as length, quantity, and operating sequence from the control panel. Consequently, the line can support repeatable production while reducing manual intervention.

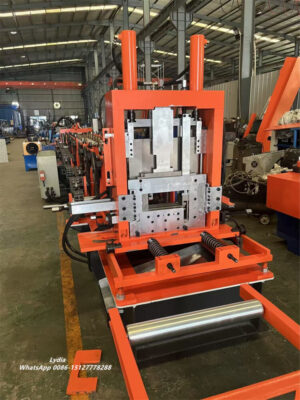

 Tophat Purlin Roll Forming Machine

A well-configured Tophat Purlin Roll Forming Machine does more than simply form a steel strip. It creates a complete production solution that connects profile accuracy, automation, material efficiency, and installation requirements.

For manufacturers serving shed and structural steel markets, the ability to produce 100 mm, 120 mm, and 150 mm Tophat sections provides greater product flexibility. At the same time, adjustable tooling and customized forming configurations can help the line accommodate different customer requirements.

Most importantly, the machine enables manufacturers to control production in-house. Instead of purchasing finished sections for every project, fabricators can produce the required lengths and specifications directly from steel coils. This approach can improve production flexibility and help reduce dependence on external suppliers.

Overall, Tophat purlins combine structural stability, convenient fixing, efficient transportation, and flexible joining. When paired with a precision Tophat Purlin Roll Forming Machine, these advantages translate into a practical manufacturing solution for modern structural steel fabrication. For projects that demand lightweight sections, long spans, and efficient installation, Tophat purlins remain a highly adaptable choice.
