Zhongtuo Storage Rack Upright Roll Forming Machine Pallet Rack Column Production Line roll forming machine

As modern warehousing continues to move toward higher storage density and greater automation, manufacturers need reliable equipment for producing strong and accurately formed warehouse rack uprights. The upright column is one of the most important structural components of a pallet racking system, directly affecting the stability, load capacity, and service life of the entire storage structure.

The Storage Rack Upright Roll Forming Machine is an automated production line developed for manufacturing high-strength steel rack columns and upright posts. The complete system can integrate coil decoiling, leveling, roll forming, punching, hole perforation, and automatic cutting, allowing manufacturers to produce finished rack uprights continuously and efficiently.

With precise forming technology and programmable control, the machine is suitable for producing different types of pallet rack uprights, warehouse rack columns, shelving uprights, and industrial storage rack profiles.

Wide Applications of Warehouse Rack Uprights

The finished profiles manufactured by the rack upright forming machine can be used in a wide range of storage and material-handling applications.

• Pallet Racking Systems – Heavy-duty upright columns provide the main vertical support for pallet storage structures.

• Warehouse Storage Systems – Suitable for distribution centers and industrial warehouses requiring durable and adjustable racking.

• E-Commerce Warehouses – High-density storage racks help maximize available warehouse space.

• Supermarket Shelving – Precisely punched upright profiles allow flexible adjustment of shelf levels.

• Logistics Centers – Strong rack columns support high-frequency loading and unloading operations.

• Manufacturing Facilities – Ideal for storing raw materials, spare parts, tools, and finished products.

• Cold Storage Facilities – Galvanized steel rack profiles can be used in demanding refrigerated storage environments.

Automatic Production of Pallet Rack Upright Profiles

A modern pallet rack upright roll forming machine combines several production processes into one continuous line. Steel coils are first loaded onto the decoiler and then guided into the forming section.

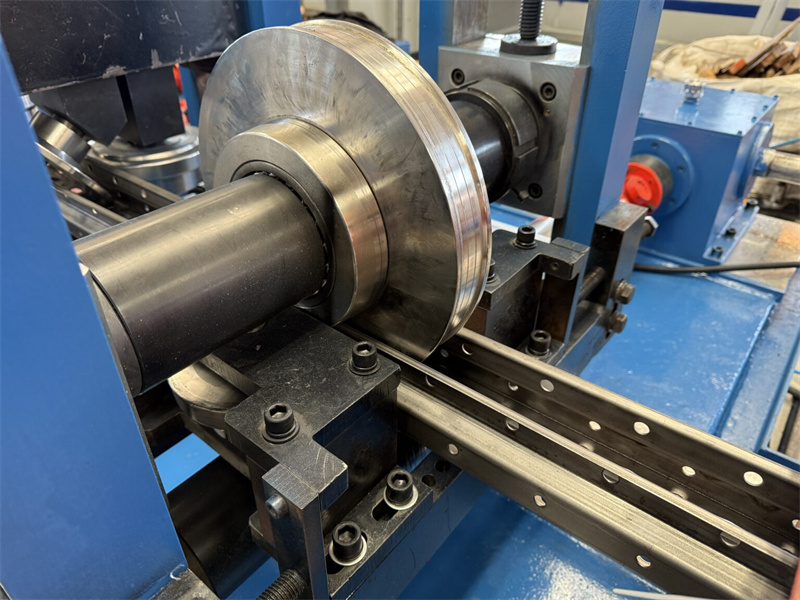

The rollers gradually shape the flat steel strip into the required upright profile while maintaining consistent dimensions throughout the production process. Depending on the rack design, an inline punching system can create mounting holes, keyholes, or other perforations before the finished profile is automatically cut to length.

This integrated production method reduces manual handling and secondary processing, making it particularly suitable for manufacturers producing storage rack columns in large quantities.

Main Features of the Rack Upright Production Line

Fully Automatic PLC Control

The production line is controlled by a PLC system, allowing operators to manage forming speed, punching parameters, cutting length, and other production settings through an intuitive control interface.

Precision Hole Punching

For warehouse racking systems, accurate hole positioning is extremely important. The inline punching system maintains consistent hole spacing and alignment, helping finished upright columns connect properly with beams and other rack components.

Heavy-Duty Roll Forming Structure

The forming section uses robust rollers and solid shafts to withstand continuous production. The machine can be configured according to the required rack upright profile, steel thickness, and production capacity.

Automatic Length Cutting

After forming and punching, the profile is automatically cut according to the preset length. This improves production consistency while reducing manual measuring and cutting operations.

Customized Rack Profiles

Different warehouse rack manufacturers may use different upright dimensions, hole patterns, and profile geometries. The equipment can therefore be customized according to customer drawings and production requirements.

Technical Specifications

Parameter	Specification
Machine Application	Warehouse Rack Upright / Pallet Rack Column
Processing Material	Carbon Steel / Galvanized Steel / PPGI
Material Thickness	1.5–2.7 mm
Forming Stations	16 Stations
Shaft Diameter	70 mm
Roller Material	Cr12 Heat-Treated Steel
Transmission	Gearbox Drive
Punching Method	Inline Hydraulic Punching
Cutting System	Automatic Hydraulic Cutting
Maximum Forming Speed	Up to 15 m/min
Control System	PLC Control
Main Motor	2 × 11 kW
Hydraulic Station	5.5 kW
Power Supply	380V / 50Hz / 3 Phase
Approx. Machine Weight	8 Tons
Customization	Available

Specifications can be modified according to the required rack profile, material, hole pattern, and production capacity.

Why Choose a Rack Upright Roll Former?

For rack manufacturers, investing in an automatic warehouse rack upright making machine can significantly improve production efficiency and product consistency.

Higher Production Efficiency
Continuous roll forming allows large quantities of upright columns to be manufactured with less manual intervention.

Consistent Profile Dimensions
Precision forming rollers help maintain stable profile dimensions throughout the production process.

Accurate Punching
Inline punching eliminates the need for separate hole-processing equipment and helps maintain consistent hole positions.

Lower Labor Requirements
Automatic feeding, forming, punching, and cutting reduce repetitive manual operations.

Flexible Product Manufacturing
The production line can be designed for different upright profiles, hole configurations, and material specifications.

Suitable for Heavy-Duty Racking
Strong steel profiles provide reliable vertical support for pallet racks and industrial storage structures.

Complete Solution for Storage Rack Manufacturers

A warehouse storage rack roll forming machine is more than a profile-forming device. It is an integrated production solution that can help manufacturers streamline the entire upright manufacturing process.

From the initial steel coil to the finished rack upright post, the production line can combine material feeding, leveling, forming, punching, and cutting into a coordinated workflow. This makes it suitable for companies producing pallet racks, supermarket shelving, industrial storage systems, and customized warehouse racking.

Based in Hebei, China, ZTRFM provides customized cold roll forming equipment for storage rack components and other metal profiles. Machine configurations can be developed according to customer drawings, material specifications, profile dimensions, and production requirements.

Whether you are establishing a new pallet racking production line or upgrading an existing manufacturing facility, the right roll forming solution can help improve productivity, reduce processing costs, and achieve more consistent finished products.

Contact ZTRFM today to discuss your rack upright profile, punching pattern, machine configuration, and production requirements. We can provide a customized rack upright roll forming machine solution based on your drawings and target output.
