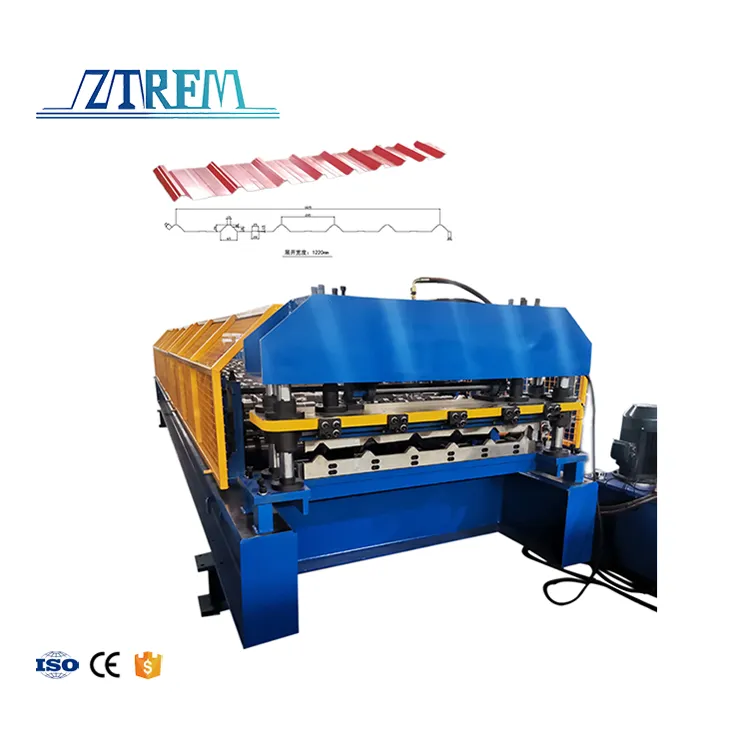

Zhongtuo Popular Sale Chile Peru TR4 TR5 Single Layer Zinc Aluminium Roofing Sheet Making Machine 15 m/min+IBR roofing sheet machine+7.5kw

Cangzhou Zhongtuo International Trade Co., Ltd

Zhongtuo Popular Sale Chile Peru TR4 TR5 Single Layer Zinc Aluminium Roofing Sheet Making Machine 15 m/min+IBR roofing sheet machine+7.5kw

Name: Zhongtuo Popular Sale Chile Peru TR4 TR5 Single Layer Zinc Aluminium Roofing Sheet Making Machine 15 m/min+IBR roofing sheet machine+7.5kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT51728001

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

15 m/min

Model Number:

IBR roofing sheet machine

Power(W):

7.5kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Aluminum
Use
ROOF
Voltage
230V/50HZ
Rolling Thinckness
0.3-0.8mm
Feeding Width
1250 mm

Product Description

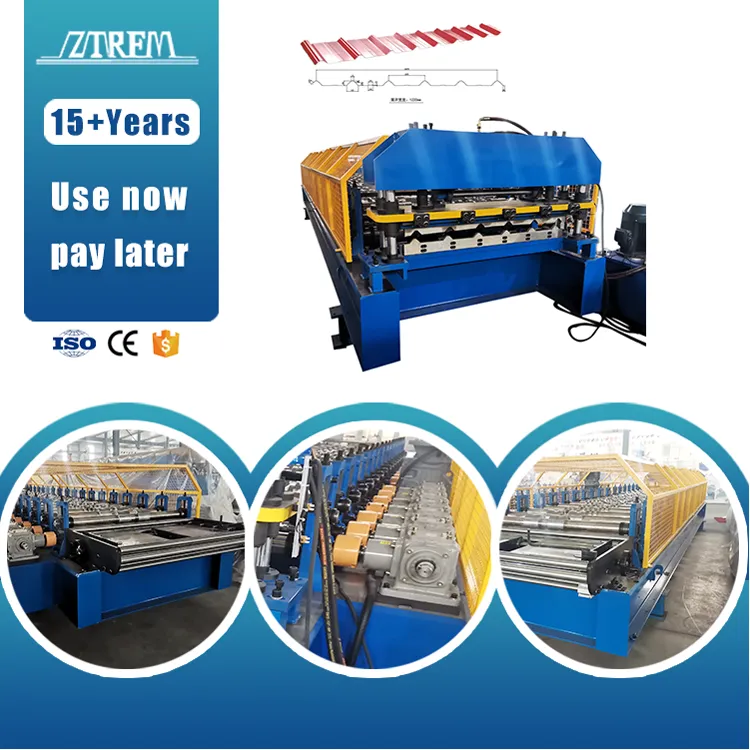

Full Automatic Metal Trapezoid Roof Sheet Making Machine R Panel Roll Forming Machine Hot Sale To America

Design Idea：
Stable Transmission: Gearbox driving type, with iron cast arch construction. Provide stable power to each forming stations.

Full Automatic Easy Operation:Whole producing line just need one person for operation.

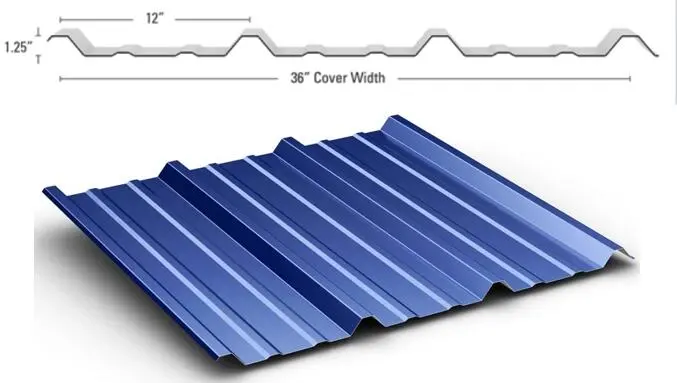

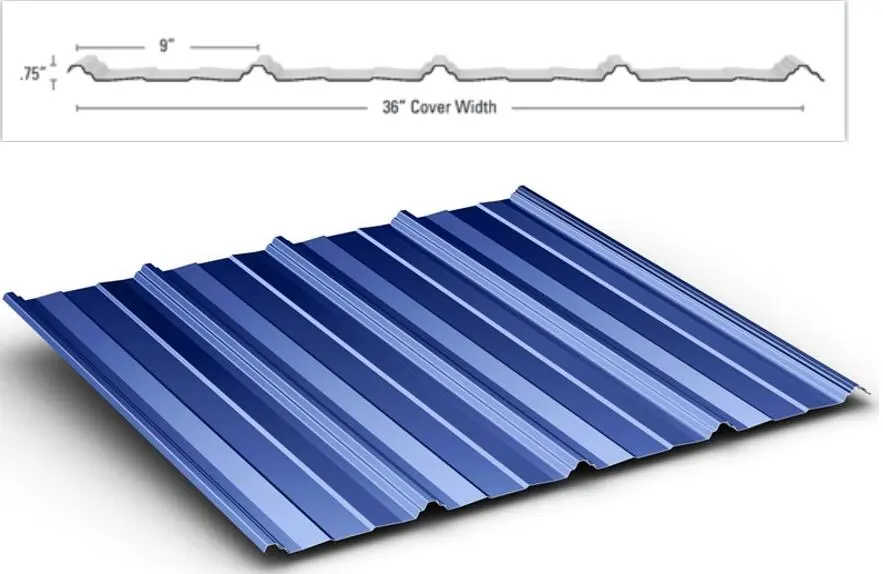

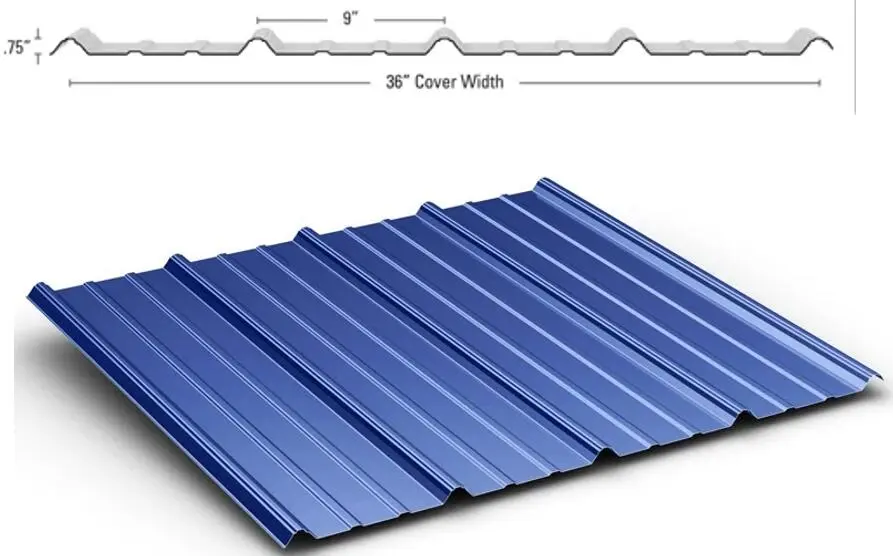

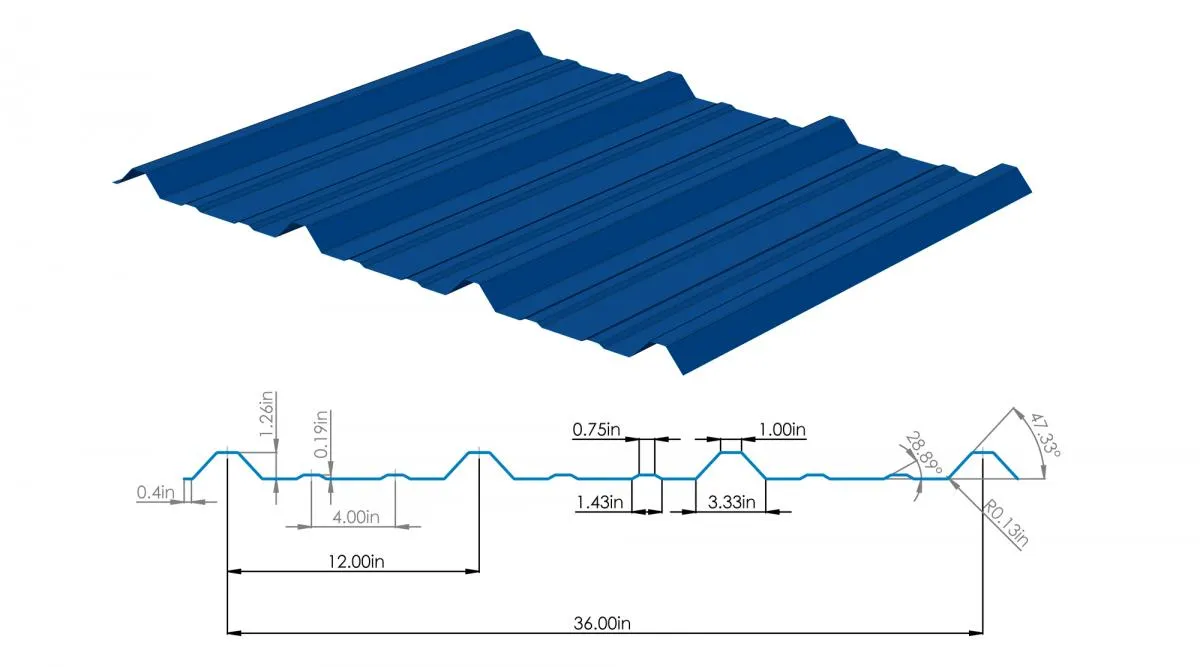

Profile drawing for reference:

this type R panel roof sheet very hot sale in US.As we sold many machines to America,we have rich experience on it to confirm the finished product good and suit for market.

Processing Flow

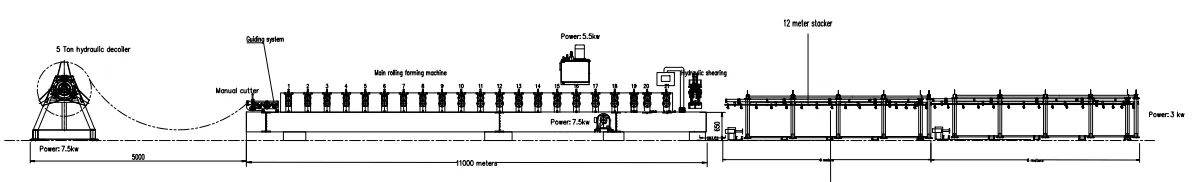

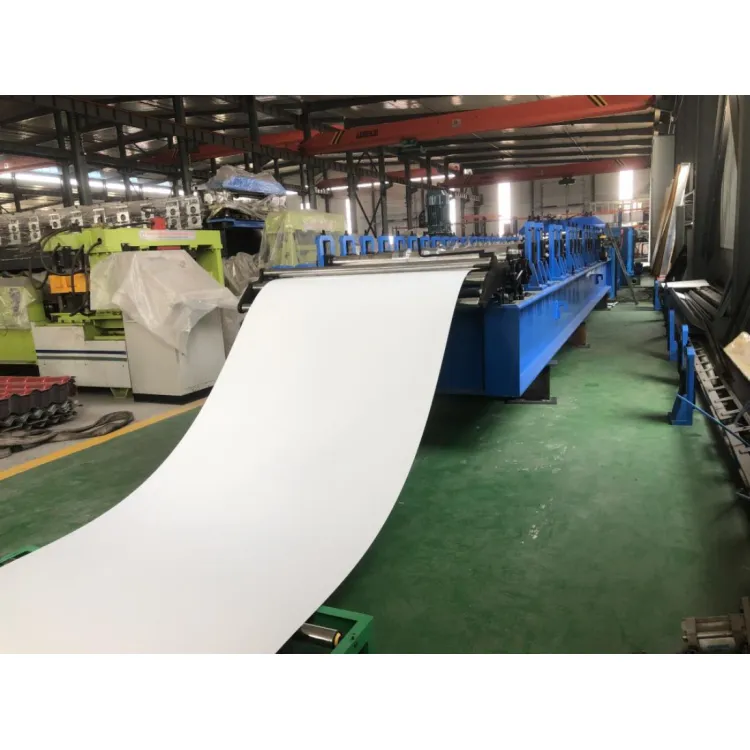

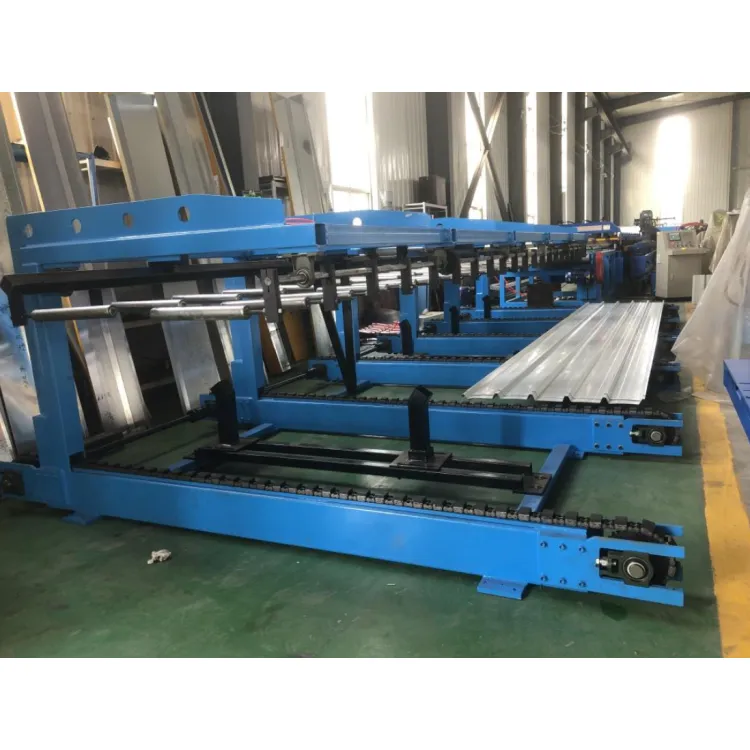

Uncoiling → Feeding material into machine →Roll forming → Auto cutting →Products receiving
table

R Panel Roll Forming Machine Hot Sale To America
Raw Material	PPGI,PPGL
Raw Material	Raw material	Material Thickness:24/26 Gauge （0.4-0.6 Mm)
Machine Frame	500mm H Beam Structure, With iron cast arch construction.
Material Of Rollers	GCr15
Material Of Rollers	Material Of Rollers	Chromed Treatment (Chrome Thickness:0.05 Mm), Make The Rollers Surface More Smoothly, Improve The Hardness And Prevent Abrasion,Anti Corrosion Increase Of Service Life
Forming Stations	Roller Stations :16 Rows ~ 24 Rows
Forming Stations		Rolling Type: Separate Rolling Design Concept, It Can Release Internal Stress From The Sheets, Then The Sheet Will Be In Good Shape And High Precision.
Diameter Of Shafts	Φ80mm Solid
Material Of Shafts	High Grade 45#,With Heat Treatment
Forming Speed	0 ~ 60 M/Min
Voltage	380v/50hz/3p (As Requested)
Transmission Way	By gearbox driving
Main Motor	15 kw
Cutting Blade Material	Gcr12 quenched treatment
Cutting Type	hydraulic post cutting
Driving Method	By pillar type Cylinder

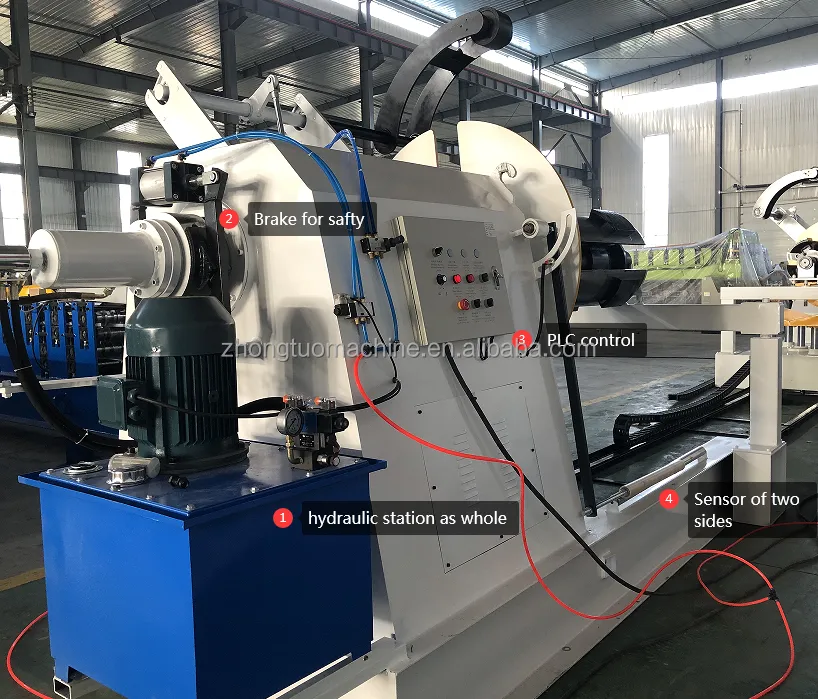

5t Hydraulic decoiler with loading car

Capacity:5 tons Coil inner diameter:450-550mm Feeding width: max 1250mm Structure: welded by the steel plates and profiled bar. The shrink and expand of core is automatically, with pneumatic brake,The coil moving forward or reverse is pulled which controlled by electric control system inside hydraulic decoiler.

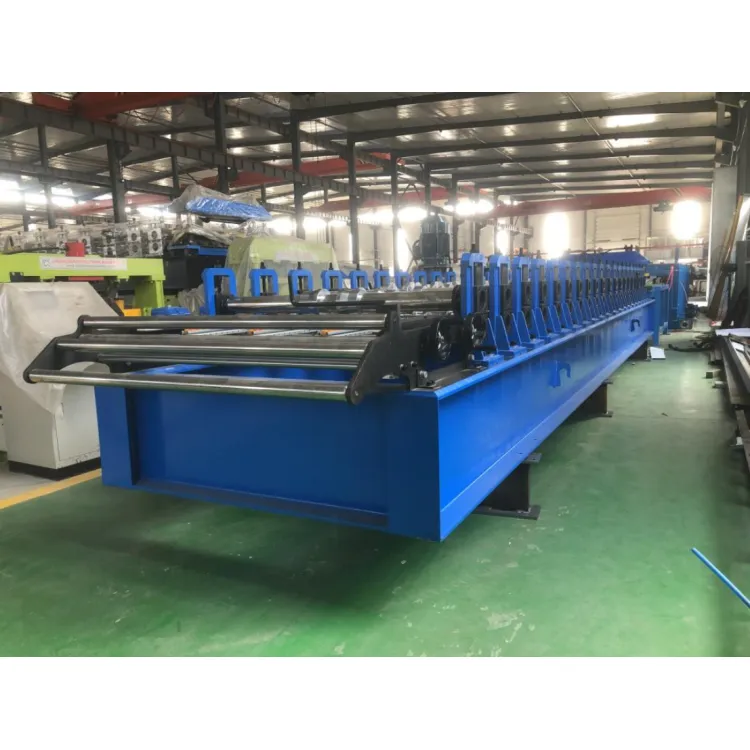

Feeding Device

1.Hand wheels on both sides can be used to adjust the feeding width. 2.Four stainless rollers can make the material go into the machine smoothly and prevent the scratch on the material surface. 3.There are three rows of orange plastic rollers can make the steel coil go into the machine smoothly.

Transmission

Gearbox can provide more stable and strong power from motor to each forming stations.

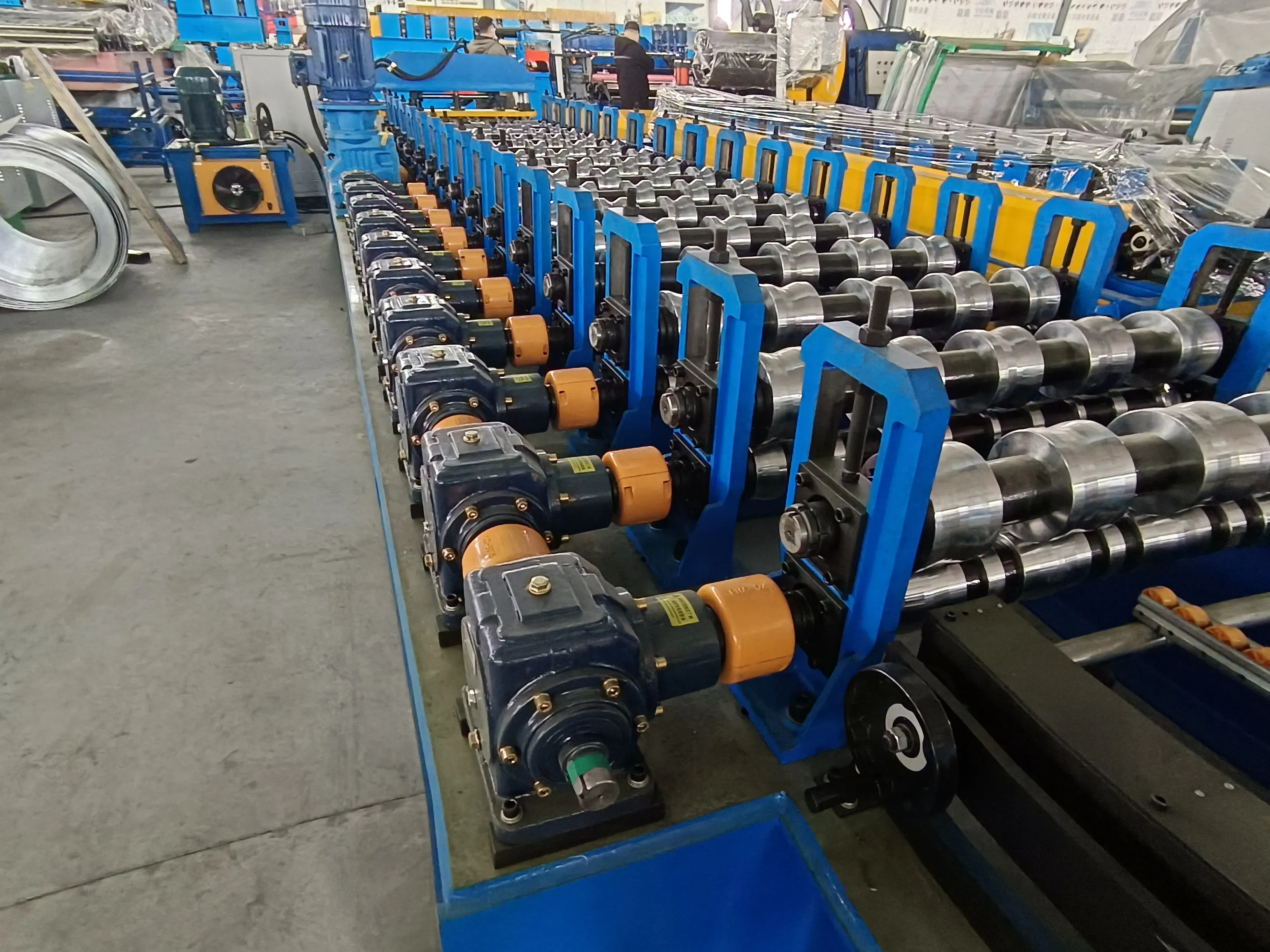

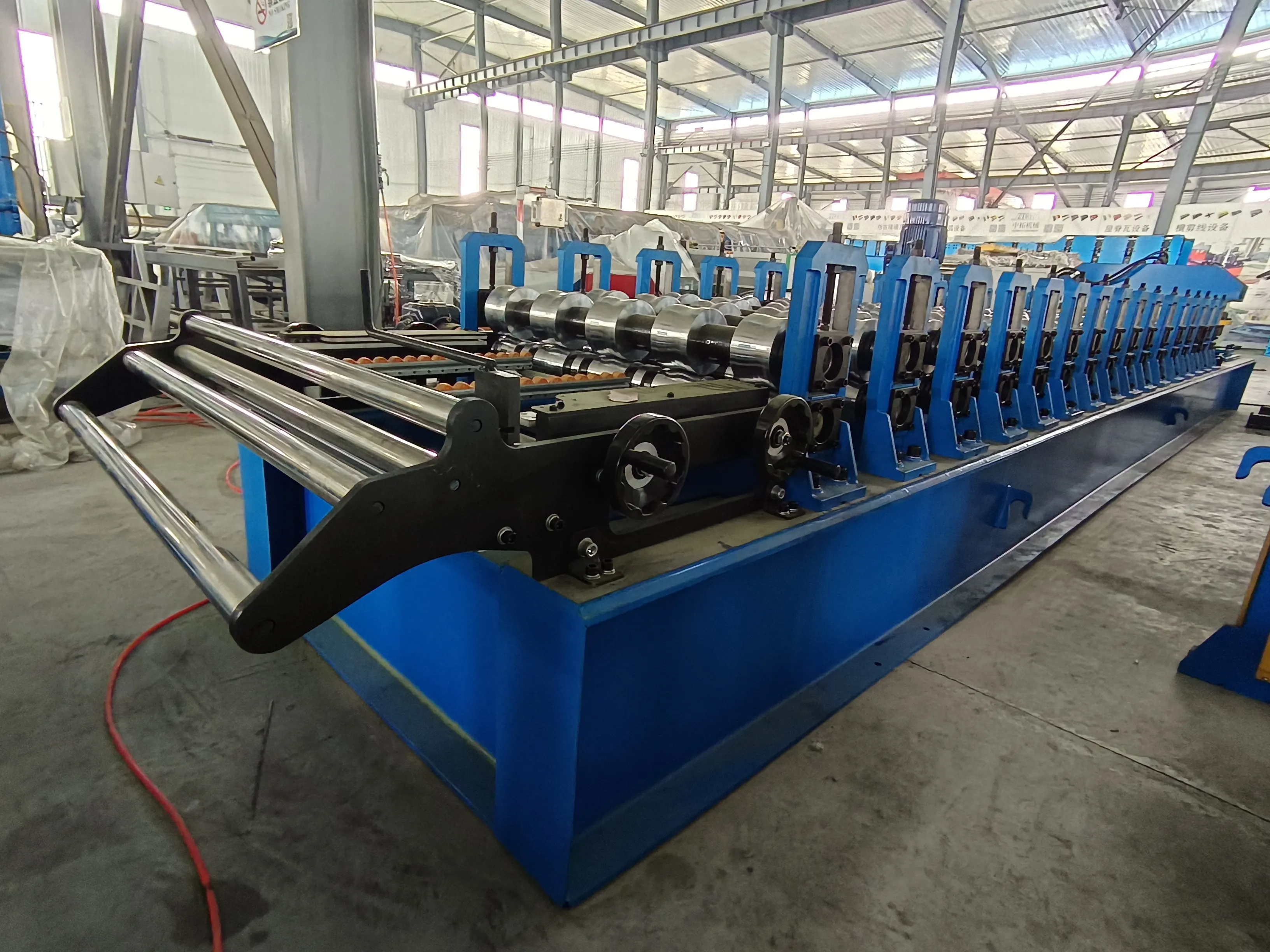

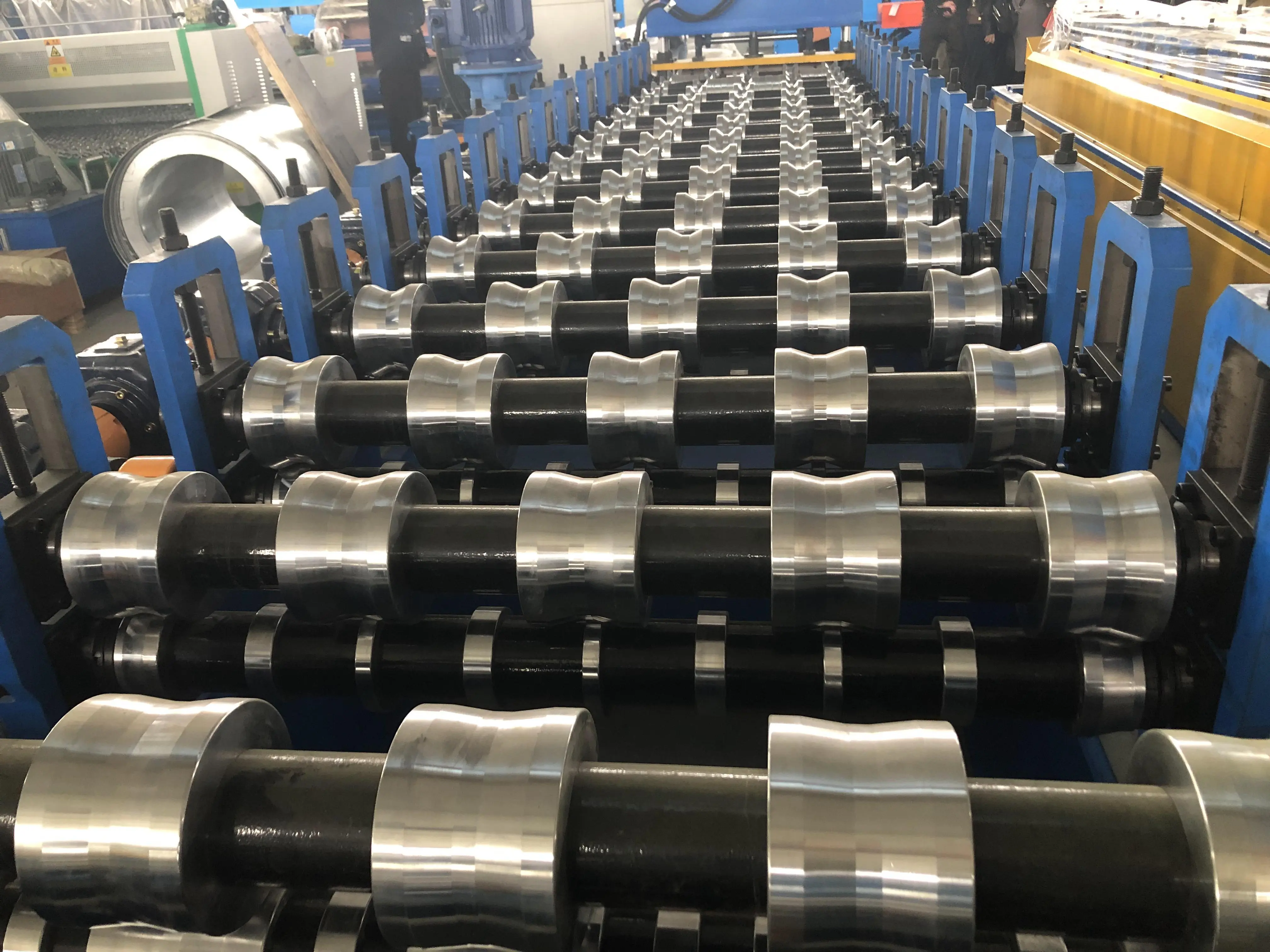

Roll Forming And Transmission Device

1.rollers thick chromed good hardness for long service time. 2. Each roller has number and with keynotes, it can fix on the shaft stablely 3.gear and double chain,stable

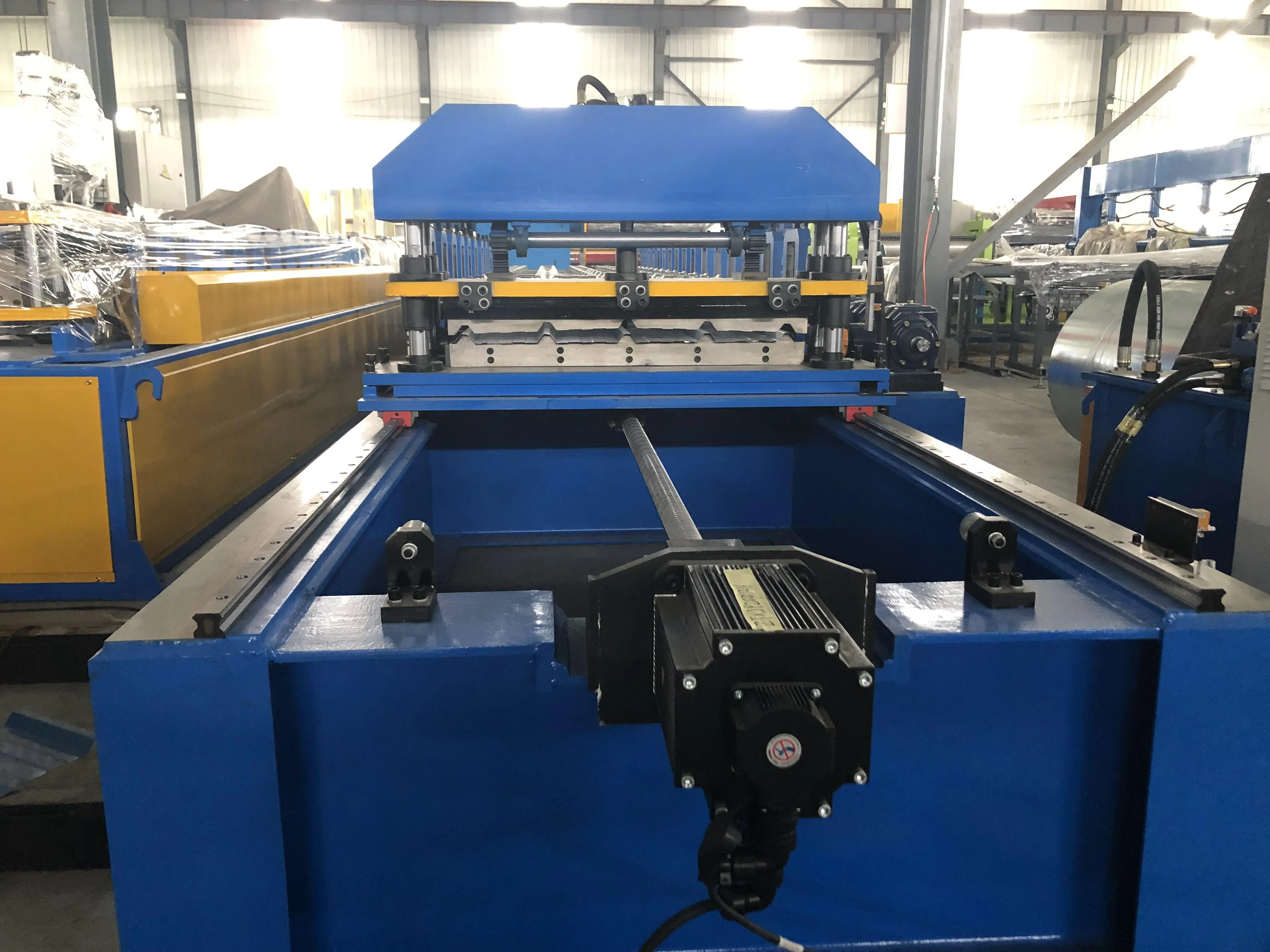

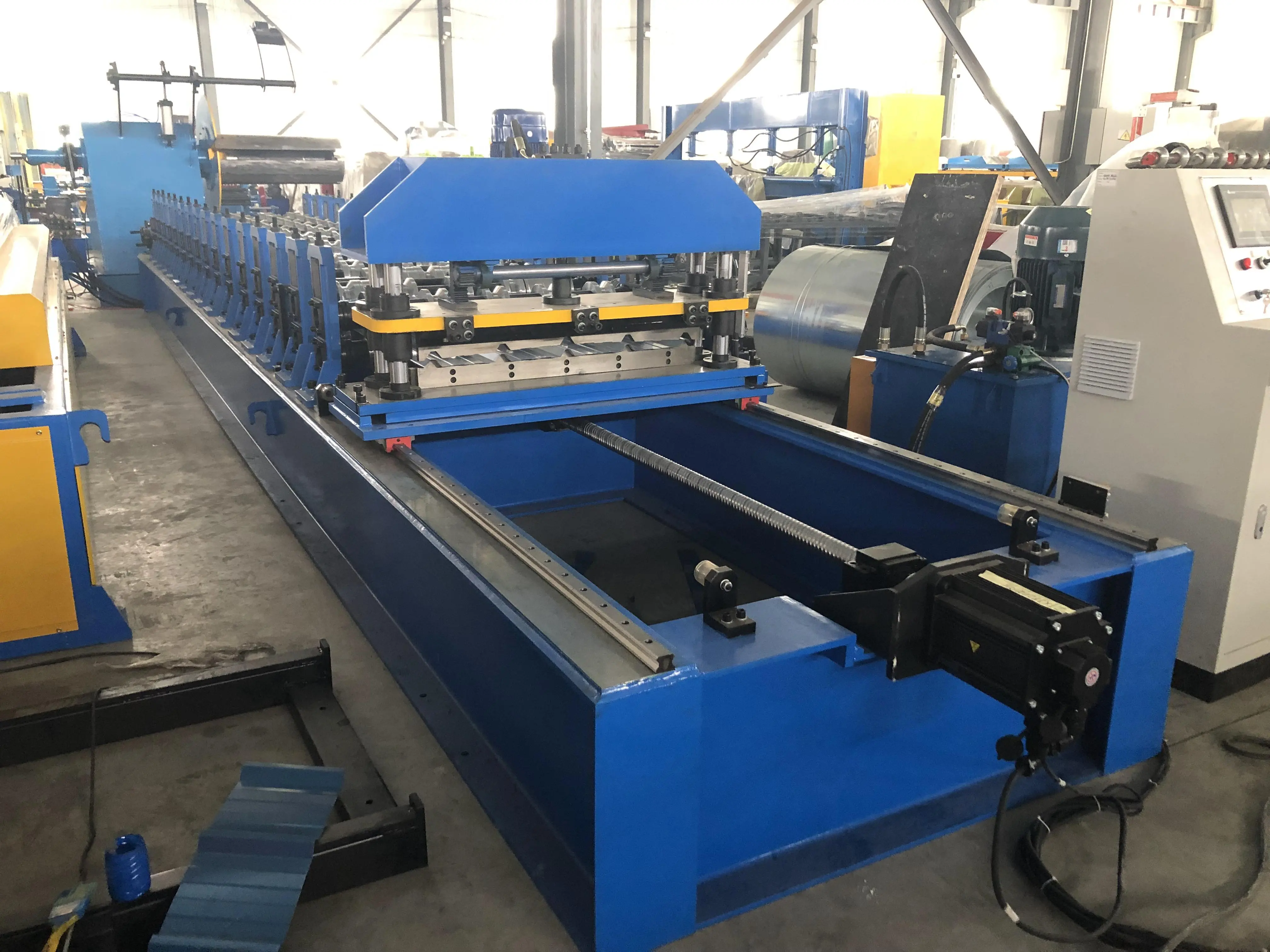

Hydraulic Cutting Device

Hydraulic tracking type cutter, non-stop to cut the sheet in fixed length. High precision and good flatness. Working speed is very high

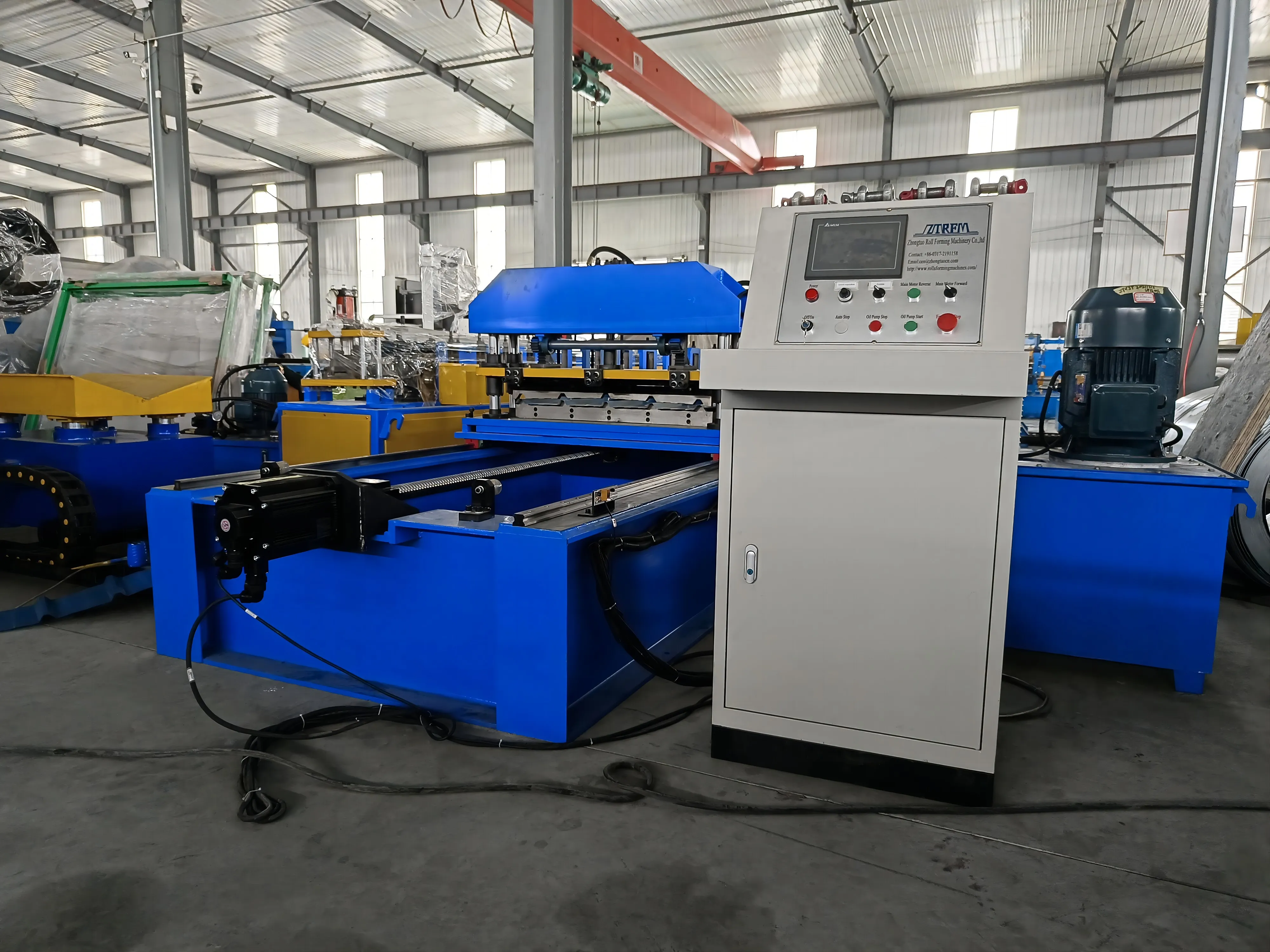

PLC control system

PLC brand:Delta(Taiwan) PLC, and transducer and touched screen ● Encoder brand:Omron ● Electrical components:Schneider ●Operating language:English and Chinese(or as requested) You can set the orders on this part,changing product length and quantity,it is really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.

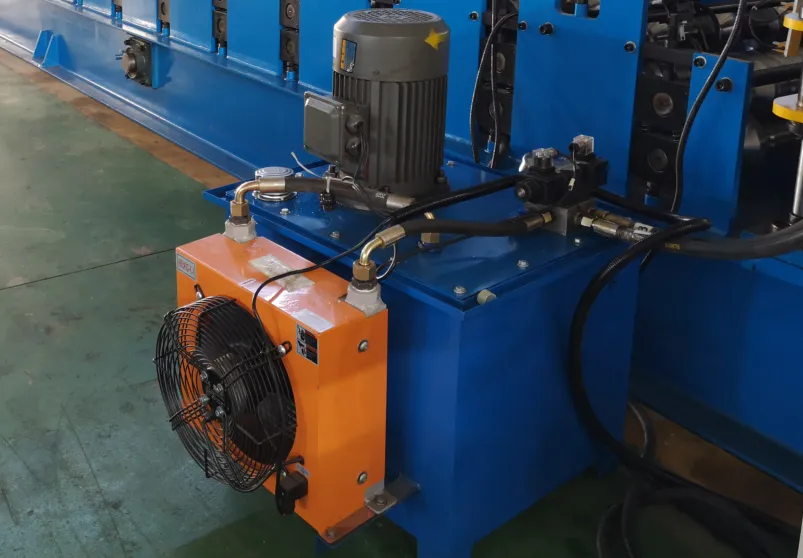

Hydraulic station

● Hydraulic station motor:5.5KW ● Hydraulic oil:46# hydraulic oil ● Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And one of electromagnetism valve

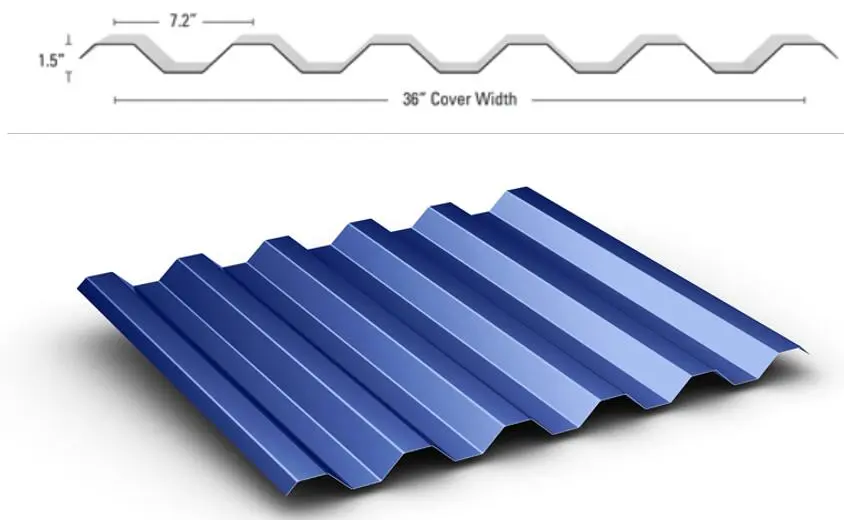

Mega-rib panel

Mesa panel

Multi-cor M-cor panel

Muti-riv panel

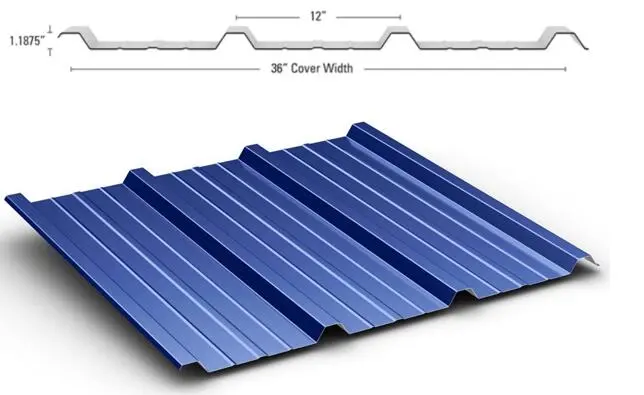

R panel

U panel

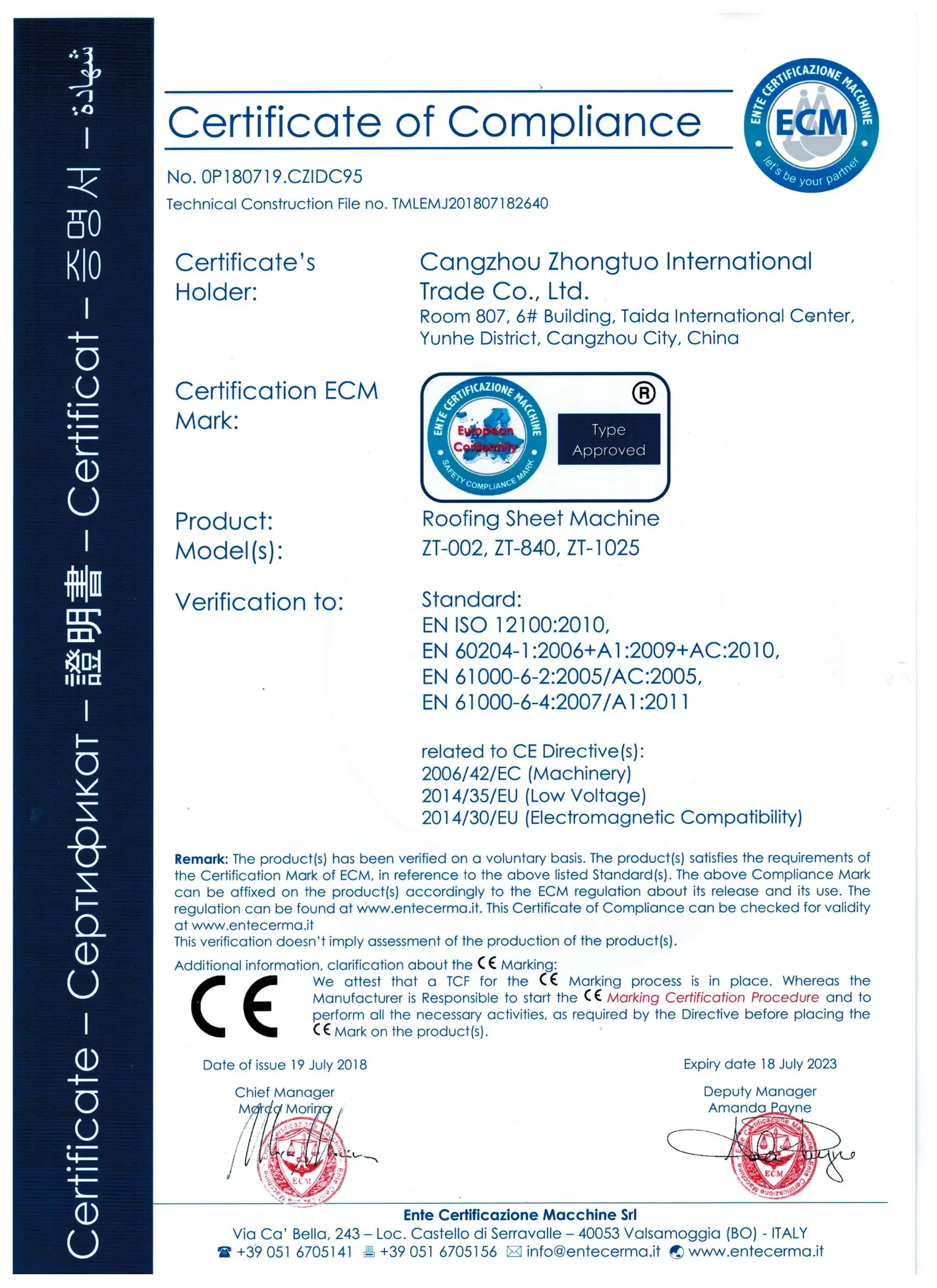

CE(NO.OP180719.CZIDC95)
