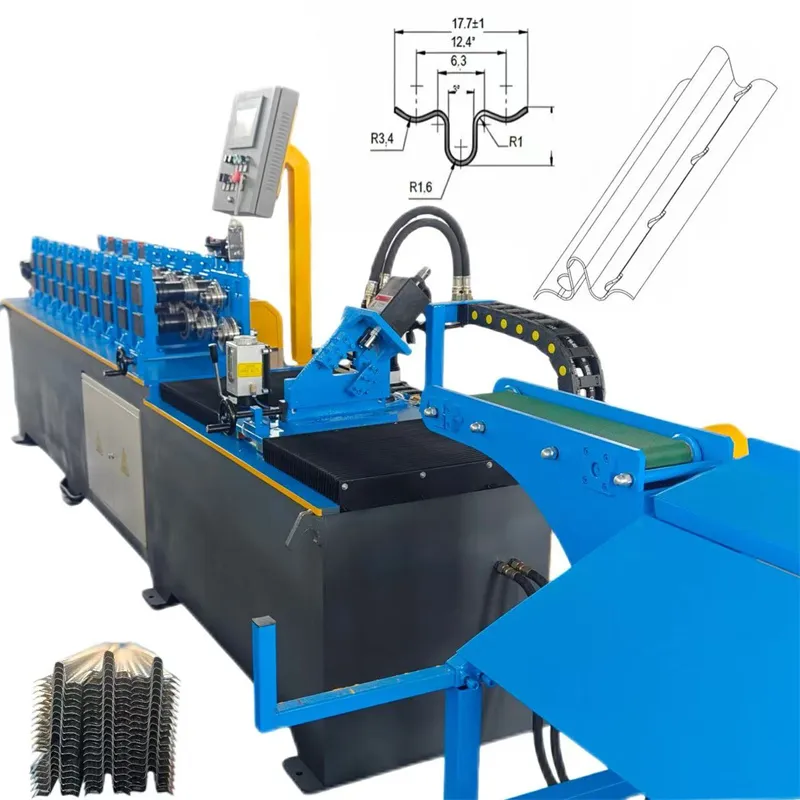

Zhongtuo Plaster Beacon 6mm*3.0m Roll Forming Machine Metal M6 M10 Beacon Channel Machine

Machine feature:

Finished Product Overview
Product Type: Plaster Beacon / Screed Beacon Profile
Height: 6 mm
Standard Length: 3.0 m (customizable)
Material: Galvanized Steel (GI)
Material Thickness: 0.30–0.32 mm
Surface: Full-length perforated shelves for strong mortar bonding

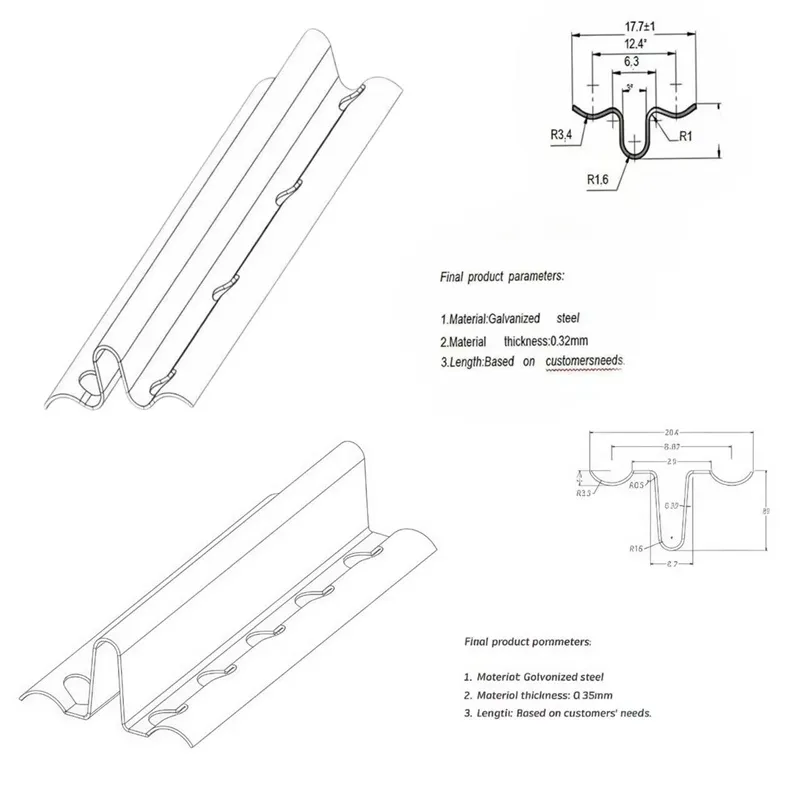

Profile drawing for reference:

The Plaster Beacon 6mm 3.0m Roll Forming Machine is a fully automatic cold roll forming solution designed for mass production of galvanized steel plaster beacons.
It is widely used by manufacturers supplying wall plastering, floor screed, and interior finishing systems for residential, commercial, and industrial construction projects.

Main T bar roll form machine processing flow:

Uncoiling---Feeding material---Roll forming---Hydraulic cutting---Pinching the T bar from roll forming machine to punching machine---Punching holes---Product collect table

Main T Roll Forming Machine Main Technical Parameters
Raw material	PPGI & GI
Forming speed	up to 70 m/min (customized according to punching requirements)
Forming stations	10 rows (customizable)
Shaft material	45# steel with quenched treatment precision machined
Roller shaft diameter	40 mm
Voltage	380 v 50 hz 3 phase or customized as your request
Roller material	Cr12 with quenched treatment
Transmission type	By chains
Material of blades	Gcr12mov quenched

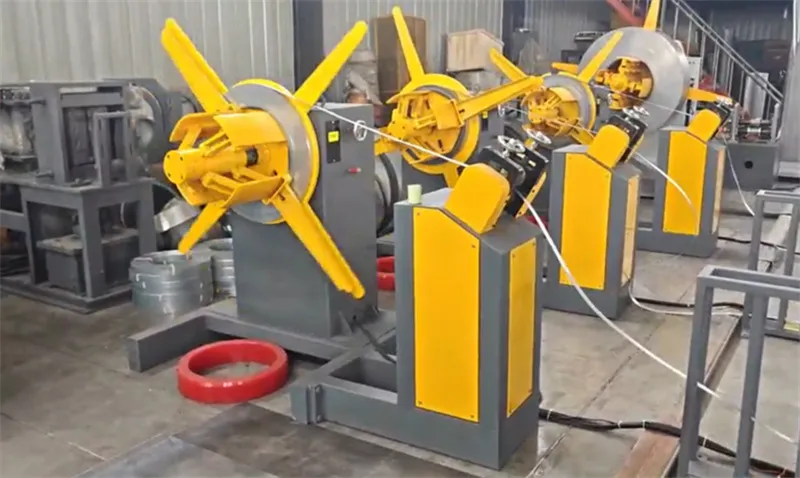

Hydraulic Decoiler

Loading Capacity: 3 tons
Coil Inner Diameter: Ø450–550 mm (adjustable)
Working Mode: Hydraulic automatic expansion
Function: Stable and continuous coil feeding

Guide Feeding Device

Stainless steel and rubber rollers
Manual adjustment system
Prevents material deviation and surface scratching

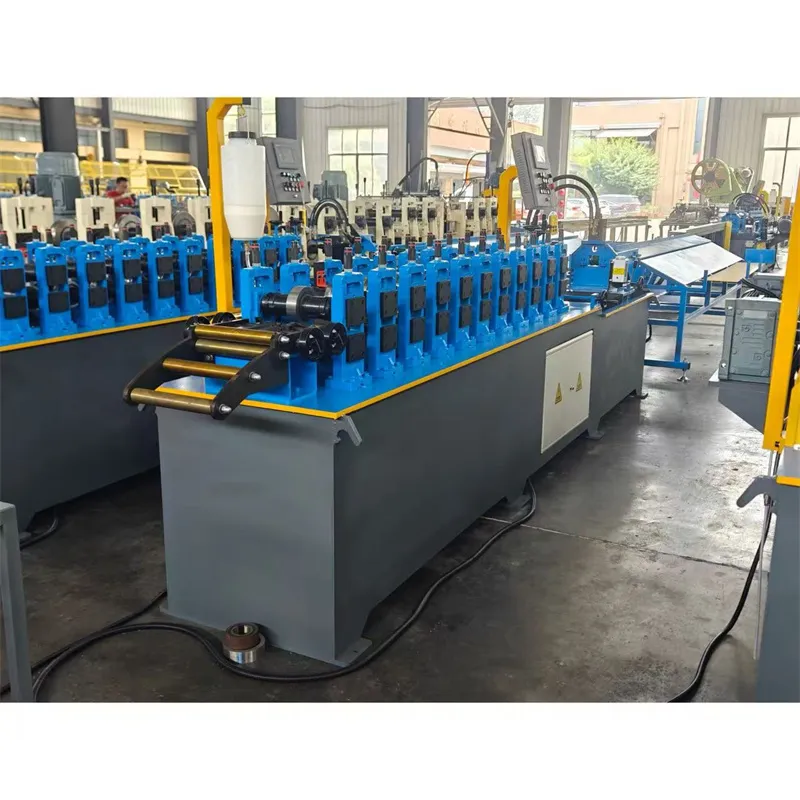

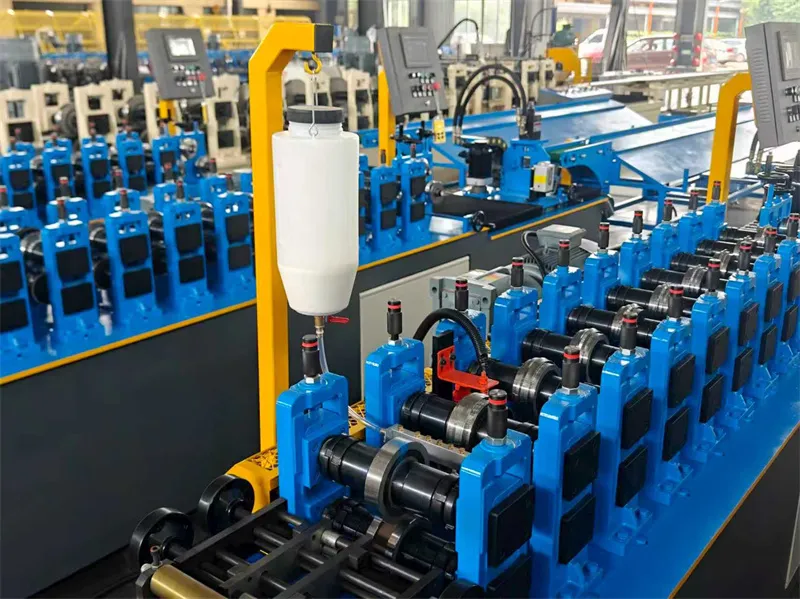

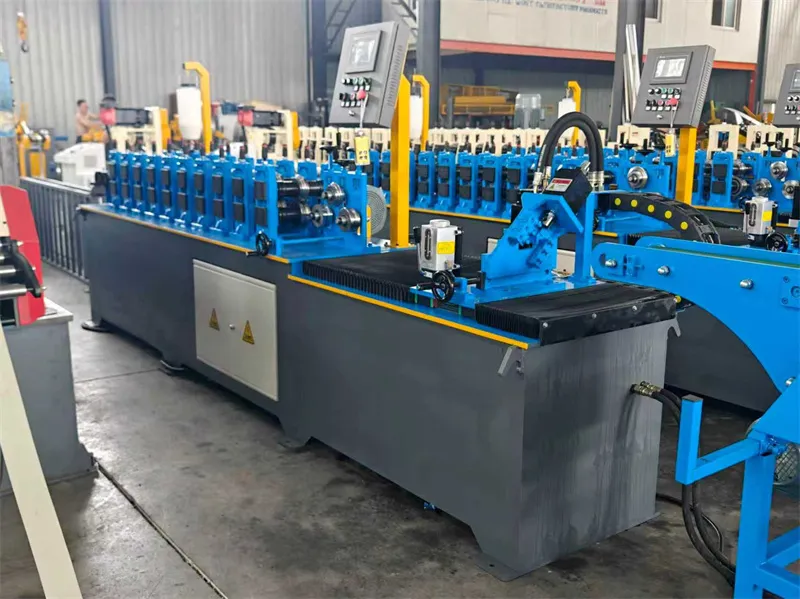

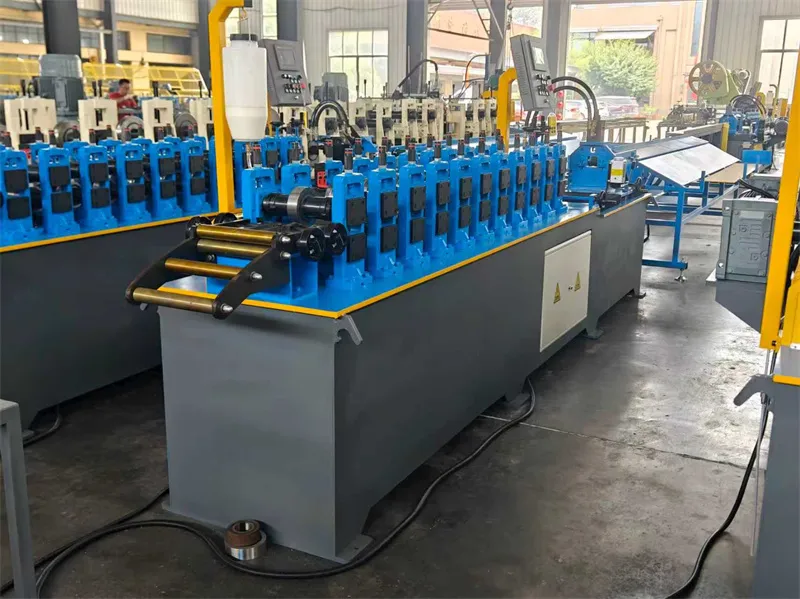

Roll Forming Machine

a. Number of forming steps: 18 stations b. Shaft material: 45# steel with quenched treatment precision machined outer diameter: 40 mm c. Roller material: Cr12 with quenched treatment d. Transmission type: By chains e. Drive motor power: 4kw f. Voltage: 380 v 50 hz 3 phase g. Forming speed: 0-70 m per minute h. Structure: Independent stand (cast steel)

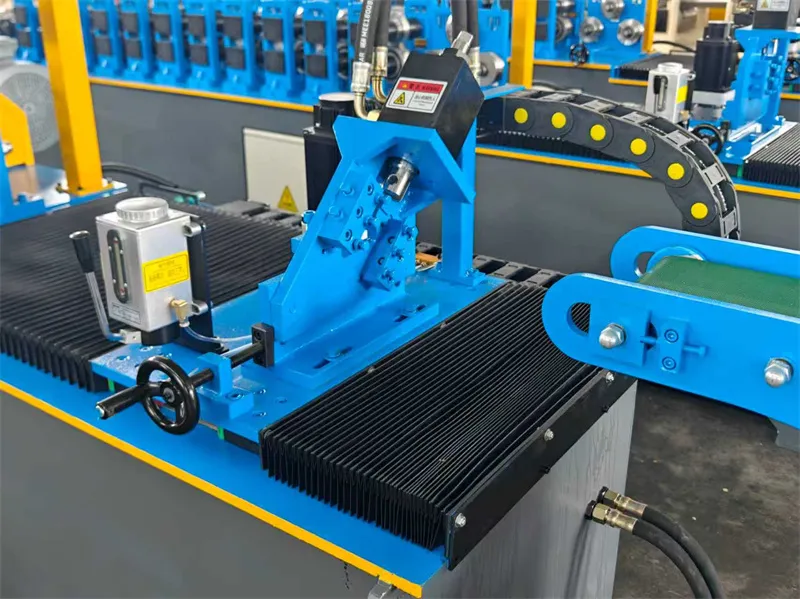

Tracking Hydraulic cutting

Cutting Type: Hydraulic servo tracking cutting
Blade Material: Cr12MoV
Length Tolerance: ±0.5 mm / 3 m
Cutting Feature: No burrs, no deformation

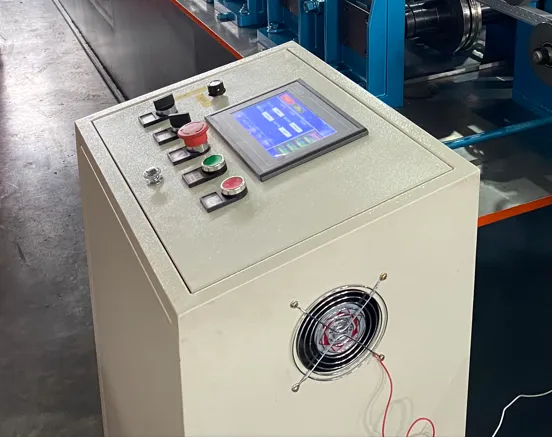

PLC control system

Adopted PLC, transducer, touch panel to ensure high speed with stability, precision and lifetime.

Language: Chinese and English Automatic length and quantity measurement

Length Tolerance: 3 m+-1.5 mm Computer operating panel: touching screen and button together

Equipped with movable switch, air break, radiator, transformer and electric leakage protector for operation convenience and safety.

Punching System

Processing molds: 3 sets Mould material: Skd 11 (Cr 12) Servo motor power: 1.2 kw Power supply: 7.5 kw hydraulic power Have logo pressing function

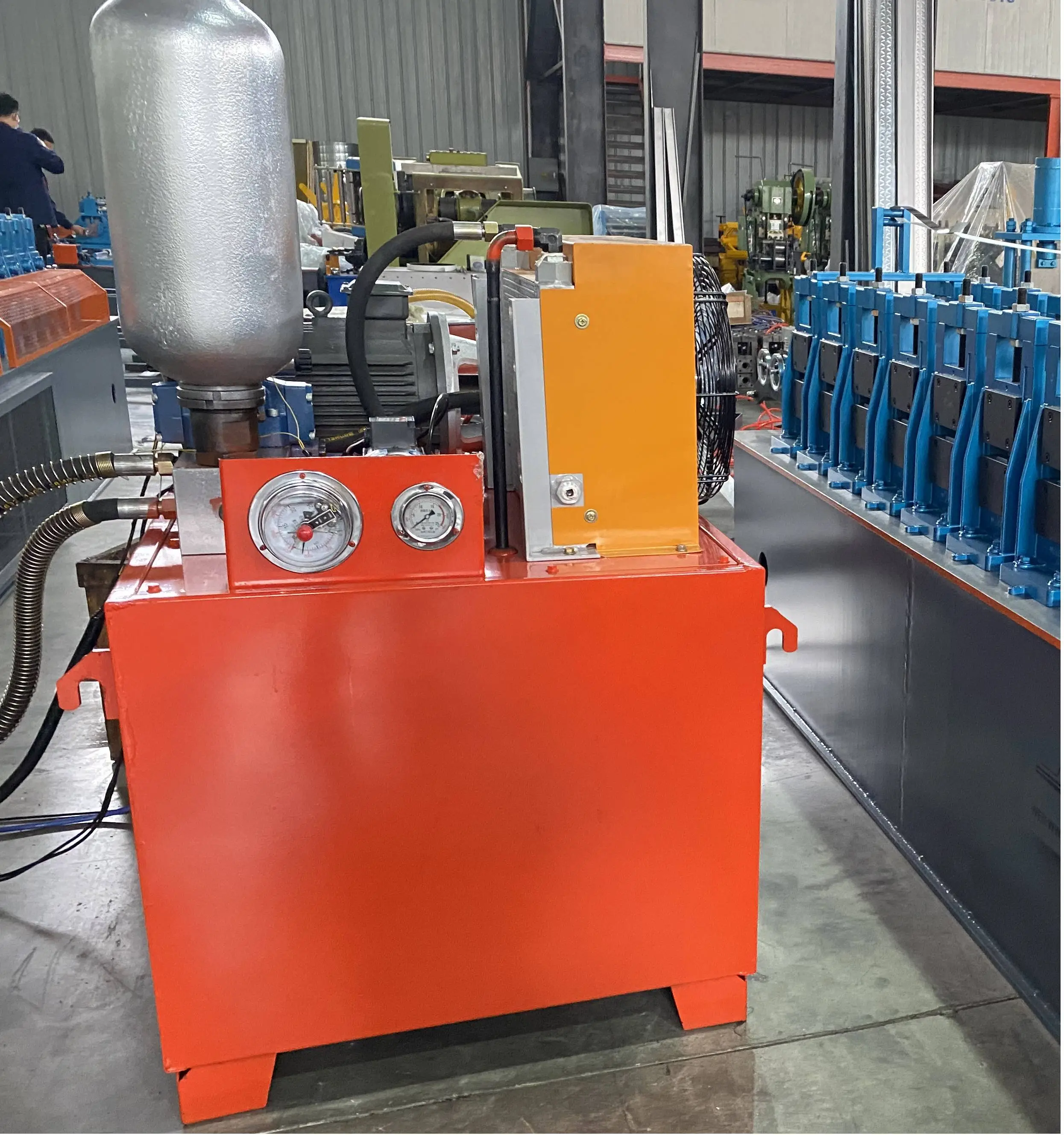

Hydraulic Station

Processing molds: 3 sets Mould material: Skd 11 (Cr 12) Servo motor power: 1.2 kw Power supply: 7.5 kw hydraulic power Have logo pressing function

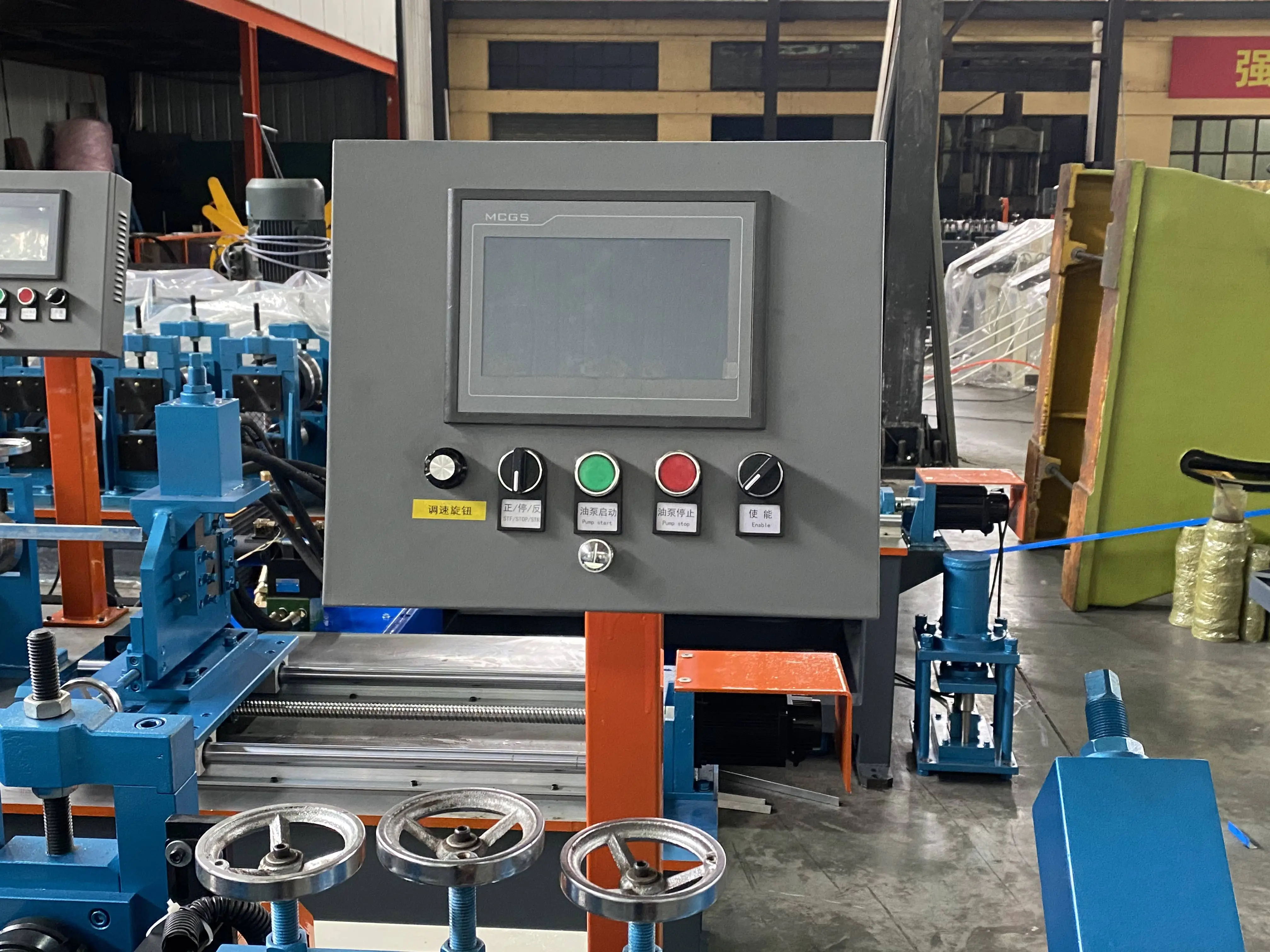

Electric Control System For Punching

Processing molds: 3 sets Mould material: Skd 11 (Cr 12) Servo motor power: 1.2 kw Power supply: 7.5 kw hydraulic power Have logo pressing function
