Zhongtuo PV Mounting Bracket Roll Forming Machine | HAT Omega Solar Profile Production Line 380V 50Hz

The PV Mounting Bracket Roll Forming Machine is an advanced automatic production line designed for manufacturing solar mounting brackets, photovoltaic support rails, and structural profiles. It can produce HAT profiles, Omega profiles, Z channels, and customized solar mounting components with high precision and stable performance.

With the rapid development of solar energy projects worldwide, manufacturers require efficient equipment to produce large quantities of durable photovoltaic structures. This solar mounting bracket roll forming machine provides a complete solution by integrating coil feeding, punching, roll forming, and cutting processes into one continuous production line.

The machine is widely used for producing components applied in ground-mounted solar systems, rooftop photovoltaic installations, solar farms, and energy infrastructure projects. It supports various materials, including galvanized steel, cold-rolled steel, and hot-rolled steel, making it suitable for different solar structure requirements.

Advanced PV Mounting Bracket Roll Forming Machine for Solar Applications

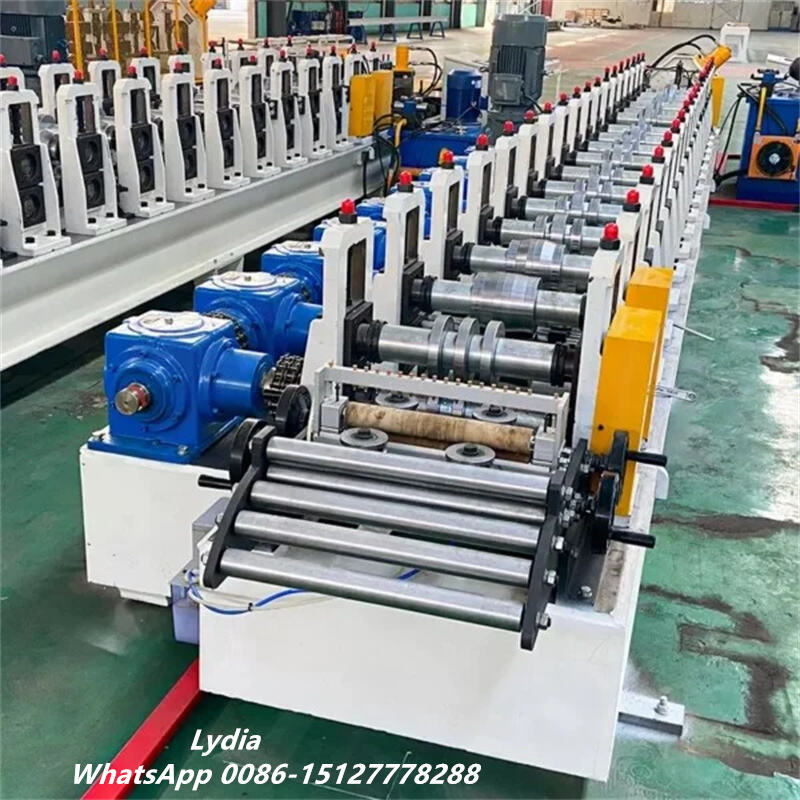

The PV Mounting Bracket Roll Forming Machine adopts continuous cold roll forming technology to transform steel coils into accurate solar mounting profiles. During production, the steel strip enters through the decoiler, passes through the feeding and punching system, and gradually forms the required profile shape through multiple forming stations.

Compared with traditional fabrication methods, this automatic production line improves production efficiency while reducing material waste and labor costs. Moreover, the machine ensures consistent profile dimensions, which helps solar structure manufacturers maintain reliable installation quality.

The equipment can manufacture different types of solar mounting profiles, including:

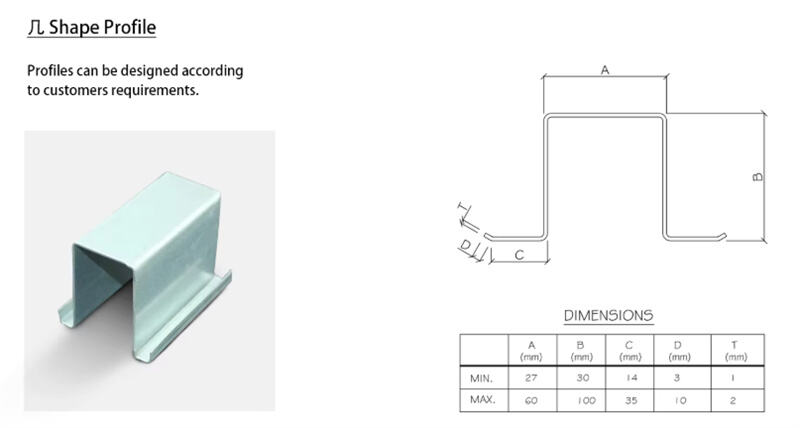

• HAT-shaped solar mounting brackets
• Omega-shaped support profiles
• Z-shaped solar channels

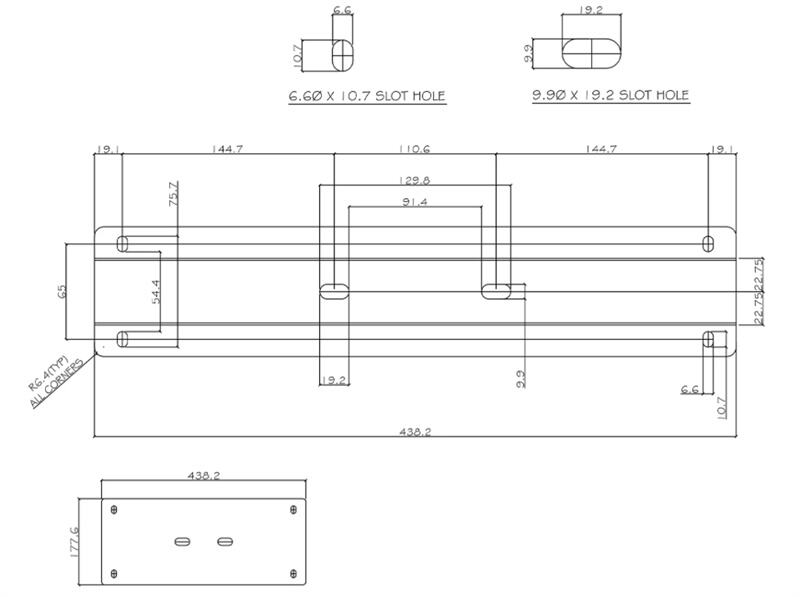

• Slotted and punched mounting rails
• Customized photovoltaic support components

According to customer drawings and application requirements, Zhongtuo can design customized solutions with different punching patterns, profile dimensions, and production speeds.

Complete Production Process and Machine Configuration

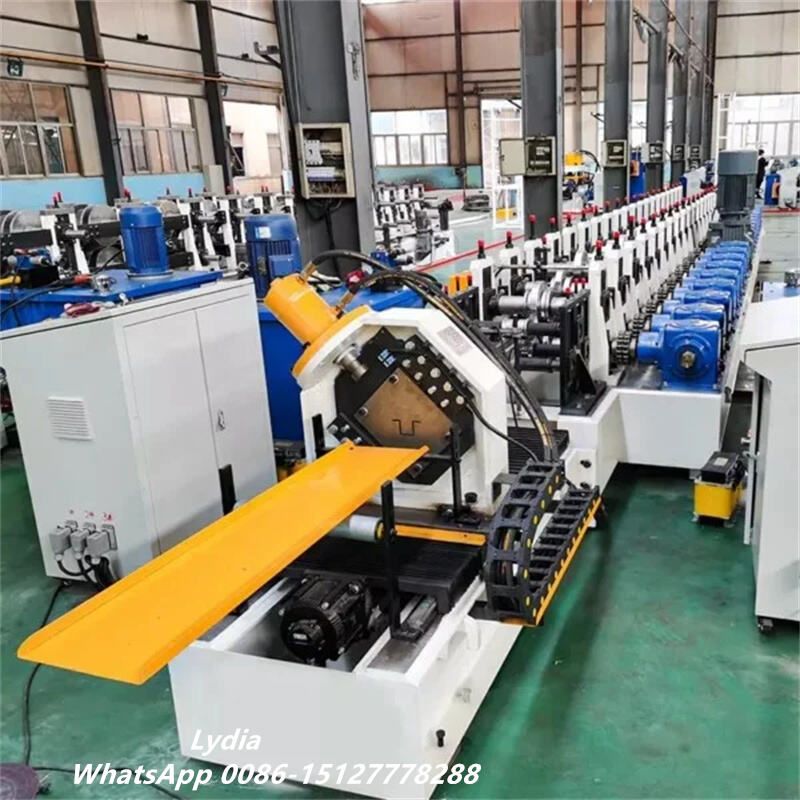

The solar mounting bracket production line integrates several functional units to achieve fully automatic manufacturing. Each component works together to improve accuracy and production stability.

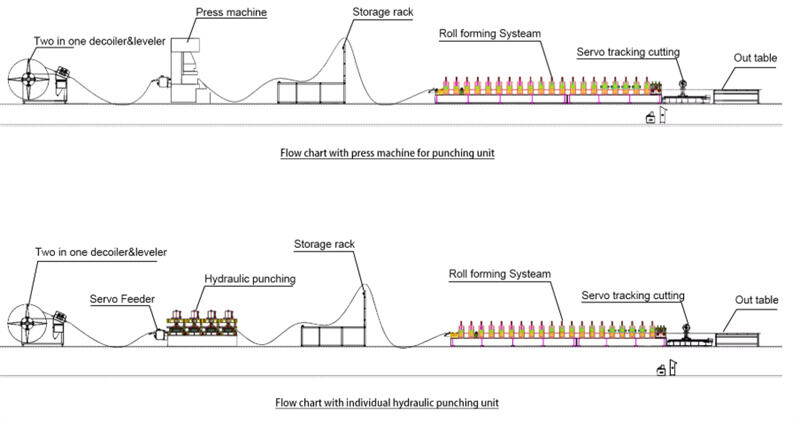

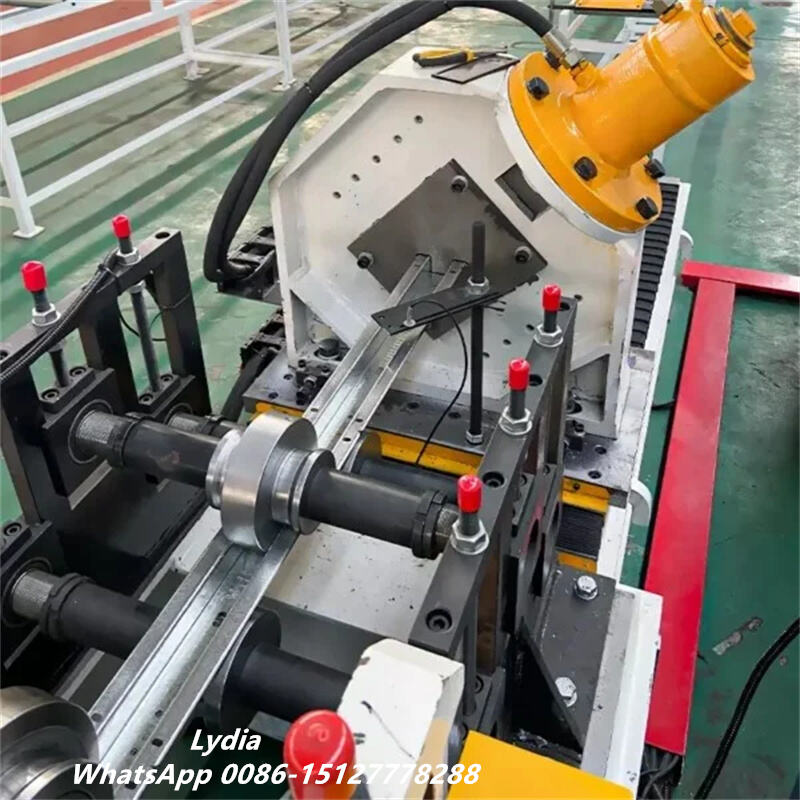

The production process mainly includes coil loading, leveling, servo feeding, punching, roll forming, and cutting. The servo system precisely controls material movement, while the forming rollers gradually shape the steel strip without damaging the surface coating.

The main components include:

Component	Function
Hydraulic Decoiler	Automatically feeds steel coils and provides stable material supply
Servo Feeder	Controls feeding length with high precision
Hydraulic Punching Unit	Creates mounting holes according to profile design
Roll Forming System	Continuously forms steel strips into HAT/Omega/Z profiles
Servo Tracking Cutter	Cuts finished profiles accurately without stopping production
Electrical & Hydraulic System	Controls the complete automatic operation

This integrated design allows the machine to achieve faster production speeds and better profile consistency compared with conventional processing methods.

Technical Parameters of Solar Mounting Bracket Roll Forming Machine

The PV Mounting Bracket Roll Forming Machine is designed for heavy-duty solar structure production. It can process different steel materials with thicknesses generally ranging from 1.5mm to 2.5mm, and customized solutions are available for thicker materials.

Item	Specification
Suitable Material	Hot Rolled Steel, Cold Rolled Steel, Hot-Dip Galvanized Steel, Pre-Galvanized Steel
Material Thickness	1.5-2.5mm (up to 3mm customizable)
Yield Strength	235-345 MPa
Decoiler Type	Hydraulic Decoiler / Manual Decoiler
Punching System	Hydraulic Punching Station or Press Punching System
Forming Stations	Approx. 20 stations (depending on profile design)
Forming Speed	0-15 m/min (customizable)
Cutting Method	Hydraulic Cutting / Servo Tracking Cutting
Roller Material	45# Steel (GCr15 optional)
PLC System	Panasonic
Frequency Converter	Yaskawa
Power Supply	380V 50Hz 3 Phase (customizable)

Because solar projects have different structural requirements, we provide customized machine designs based on profile drawings, production capacity, and customer investment plans.

Advantages of PV Solar Mounting Bracket Roll Forming Machine

The solar mounting bracket roll forming machine offers significant advantages for photovoltaic structure manufacturers.

First, the machine provides high production efficiency through automatic continuous forming. Operators only need to monitor the production process, which greatly reduces manual labor requirements.

Second, the roll forming technology ensures excellent profile accuracy. The finished solar brackets maintain consistent dimensions, allowing faster assembly and easier installation at solar project sites.

In addition, the machine reduces production waste because the forming process uses continuous steel coils with optimized material utilization. This helps manufacturers lower operating costs while improving overall profitability.

Key advantages include:

• High-speed continuous production
• Stable profile accuracy
• Reduced labor requirements
• Lower material waste
• Customized profile manufacturing capability
• Suitable for large-scale solar projects

Solar Mounting Bracket Applications and Profile Types

The finished products from the PV Mounting Bracket Roll Forming Machine are essential components in photovoltaic support systems.

Solar mounting brackets produced by this machine are commonly installed in:

• Utility-scale solar power plants
• Commercial rooftop solar systems
• Residential photovoltaic projects
• Solar carports
• Agricultural solar structures
• Solar street lighting systems

The machine can manufacture different structural components, such as solar rails, support channels, brackets, connectors, and mounting frames. These components provide stable support for photovoltaic panels and help withstand environmental loads, including wind pressure and snow loads.

Furthermore, HAT and Omega profiles are especially popular because their optimized structural design provides excellent strength while maintaining lightweight characteristics.

Customized Solution for High-Volume Solar Structure Production

Unlike standard roll forming equipment, the PV Mounting Bracket Roll Forming Machine can be customized according to each customer’s solar profile drawings and production requirements.

We provide complete solutions including machine design, roller development, punching patterns, electrical configuration, and after-sales support. Whether customers need solid channels, slotted channels, punched profiles, or customized solar mounting structures, our engineering team can develop suitable production equipment.

With reliable components, precise manufacturing technology, and professional service, the HAT / Omega Solar Mounting Bracket Roll Forming Machine helps photovoltaic manufacturers improve production efficiency and build competitive advantages in the growing renewable energy market.
