Zhongtuo Flush Wall Soffit Profile Roll Forming Machine Architectural Wall Panel Machine 15–25 m/min

Modern commercial and residential buildings increasingly demand clean architectural lines, concealed fasteners, and durable metal cladding systems. As a result, the Flush Wall Soffit Profile Roll Forming Machine has become one of the most popular cold roll forming solutions for manufacturers producing flush wall panels, soffit panels, fascia panels, and under-decking systems.

The ZTRFM Flush Wall Soffit Profile Roll Forming Machine is engineered to manufacture premium-quality architectural metal panels with excellent dimensional accuracy, stable forming performance, and flexible profile adjustment. Whether you are supplying materials for commercial buildings, industrial facilities, residential projects, or architectural façades, this machine enables you to produce elegant flush panels that combine aesthetics with structural performance.

Why Flush Wall & Soffit Panels Are Becoming More Popular

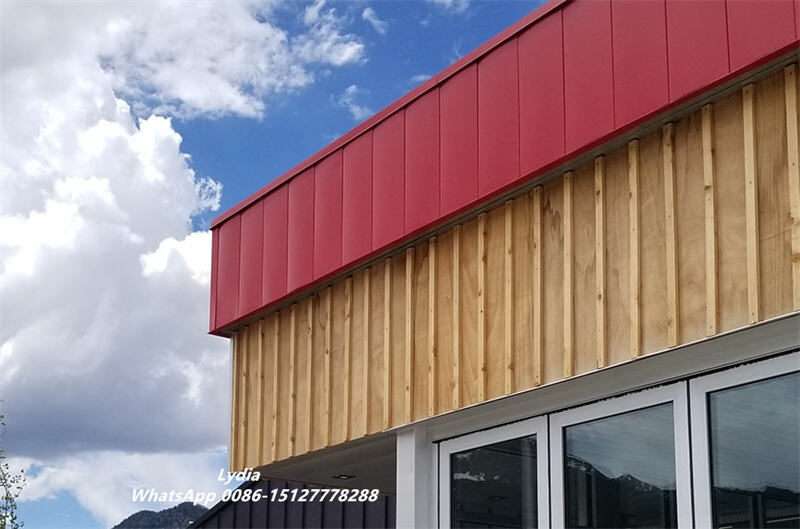

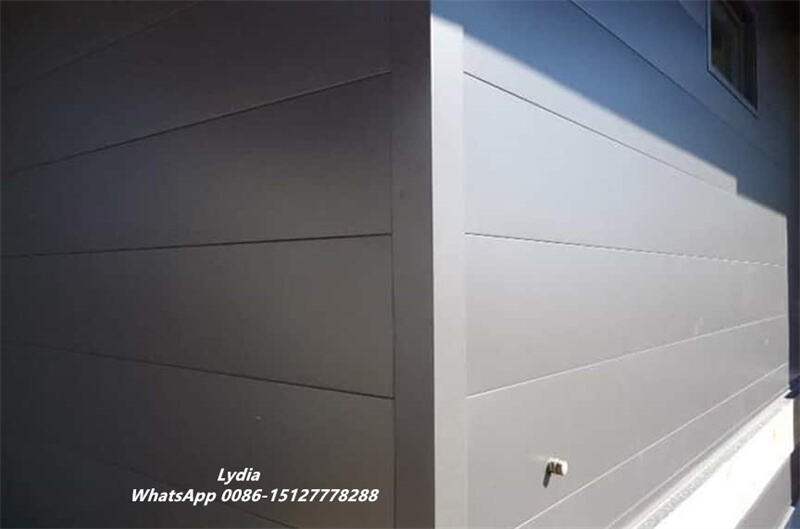

Architectural trends continue moving toward minimalist building envelopes. Unlike traditional corrugated panels, flush wall panels feature a smooth flat surface with concealed joints, creating a sophisticated appearance that architects and developers increasingly prefer.

These panels are widely installed on:

• Commercial buildings
• Office complexes
• Shopping centers
• Schools
• Hospitals
• Residential villas
• Warehouse

Besides their attractive appearance, flush wall panels provide excellent weather resistance, corrosion protection, and long service life while requiring very little maintenance.

The ability to use identical materials and colors for roofing, walls, and soffits also creates a consistent architectural style throughout the entire project.

ZTRFM Flush Wall Soffit Profile Roll Forming Machine Features

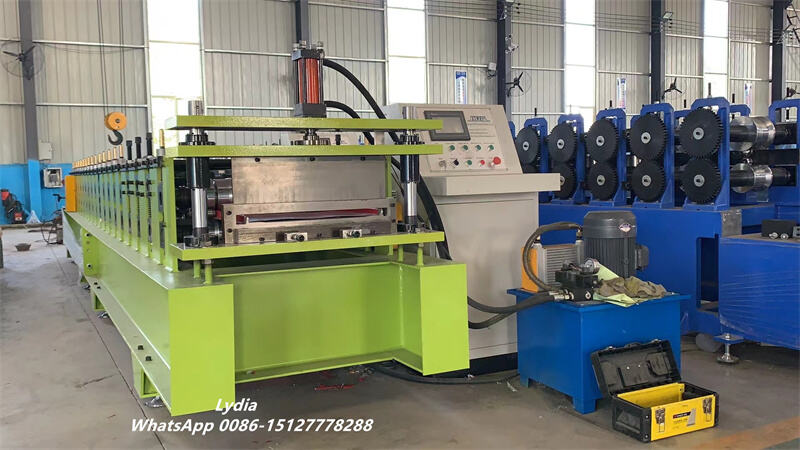

The ZTRFM Flush Wall Soffit Profile Roll Forming Machine is specifically designed for manufacturing precision architectural panels with high production efficiency and excellent forming quality.

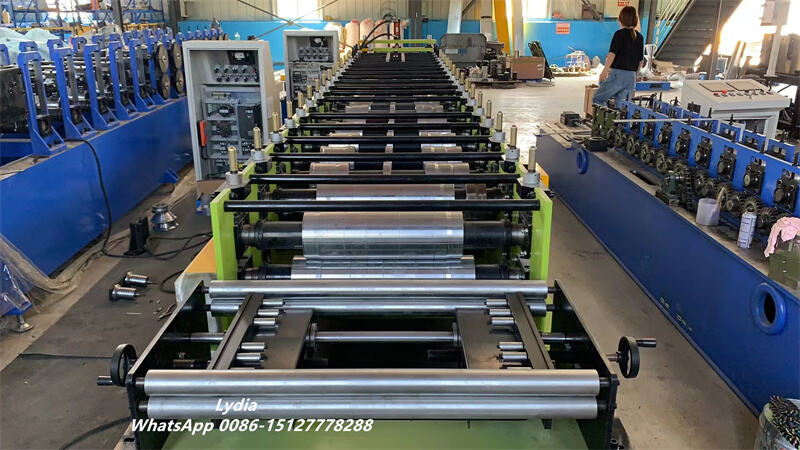

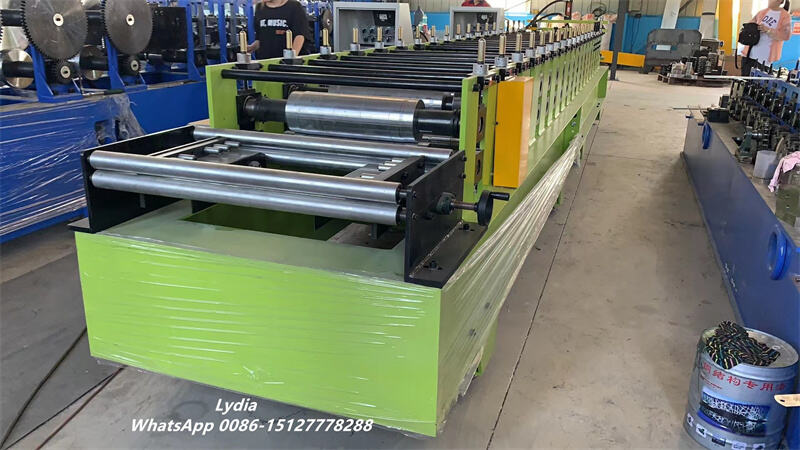

Unlike conventional roll forming equipment, this production line adopts multiple precision forming stations that gradually shape the steel, minimizing material stress and significantly reducing the possibility of oil canning.

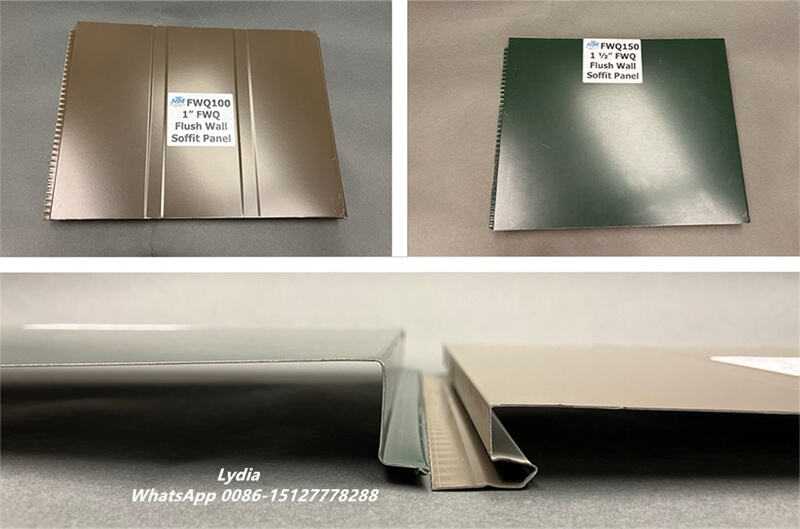

The machine supports production of flush wall panels, soffit panels, and under-deck panels using the same production line, allowing manufacturers to expand their product offerings without investing in multiple machines.

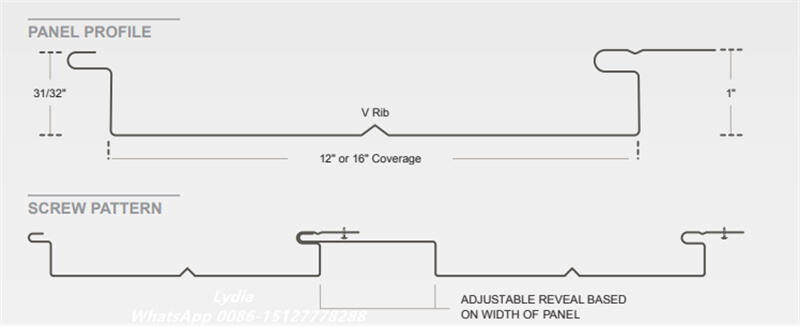

One of its biggest advantages is the adjustable reveal system. Operators can quickly change the reveal width according to project requirements, giving architects greater design flexibility while reducing production costs.

Optional perforating equipment can also be integrated into the production line, allowing manufacturers to produce ventilated soffit panels without additional secondary processing.

Main Technical Specifications

Flexible Production for Different Architectural Projects

One production line can manufacture several architectural panel styles while maintaining outstanding consistency from panel to panel.

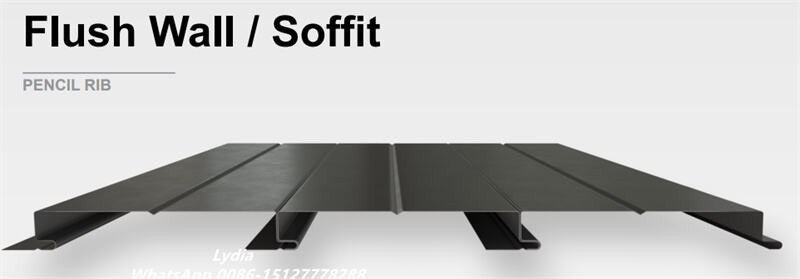

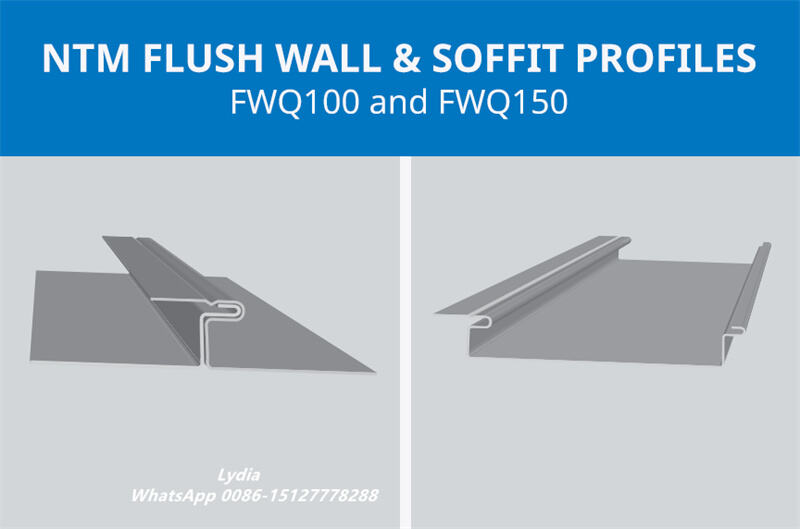

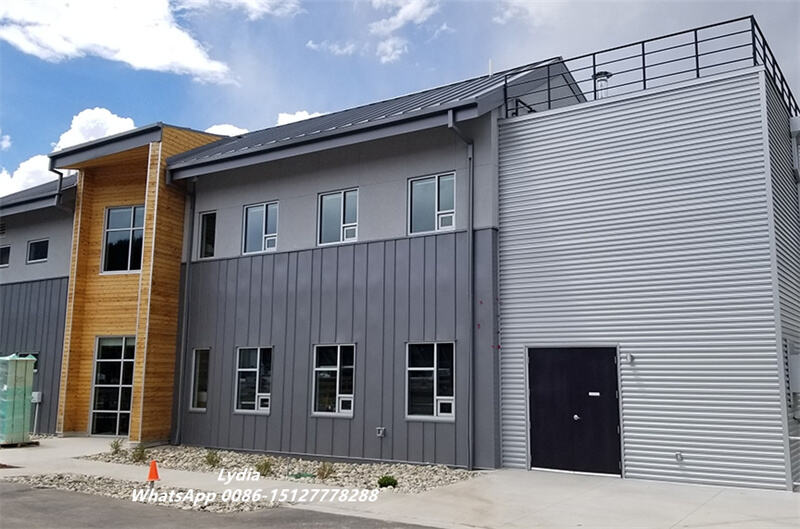

The machine produces flush wall profiles suitable for both horizontal and vertical installation. Consequently, designers can freely create contemporary building façades, elegant soffit systems, and decorative wall cladding using the same panel profile.

Furthermore, manufacturers can easily adjust the reveal between adjacent panels, creating different visual effects without replacing roll tooling. This flexibility shortens setup time, increases production efficiency, and allows companies to respond quickly to customized customer requirements.

For projects requiring ventilation, the optional perforating system produces evenly distributed ventilation holes directly during roll forming, eliminating additional punching operations and reducing labor costs.

Advantages of the ZTRFM Flush Wall Soffit Profile Roll Forming Machine

Manufacturers continuously seek equipment that improves productivity while maintaining premium product quality. The ZTRFM machine delivers both.

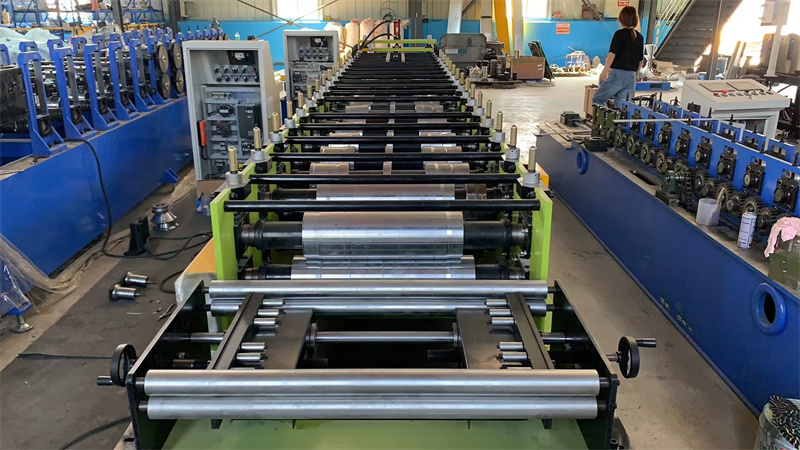

Its precision roll forming system ensures smooth panel surfaces with excellent straightness and accurate dimensions. Multiple forming stations distribute forming pressure evenly, reducing stress on the metal and producing cleaner finished panels.

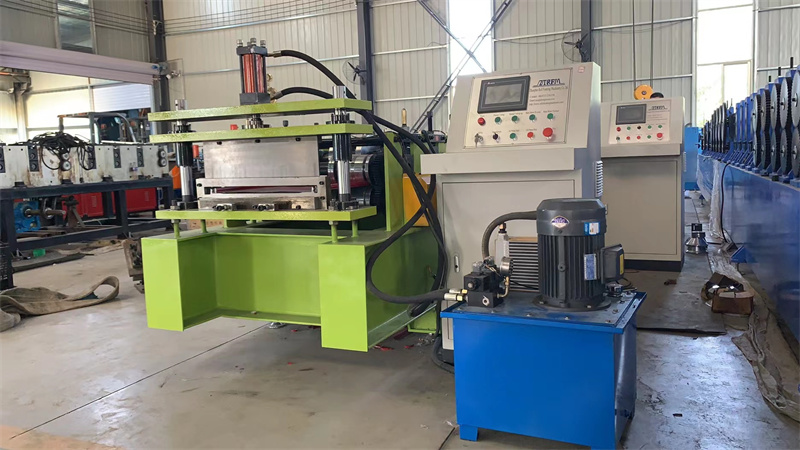

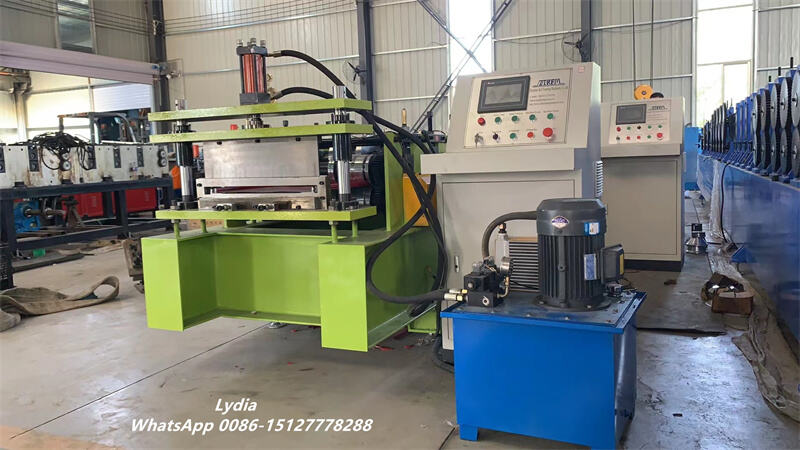

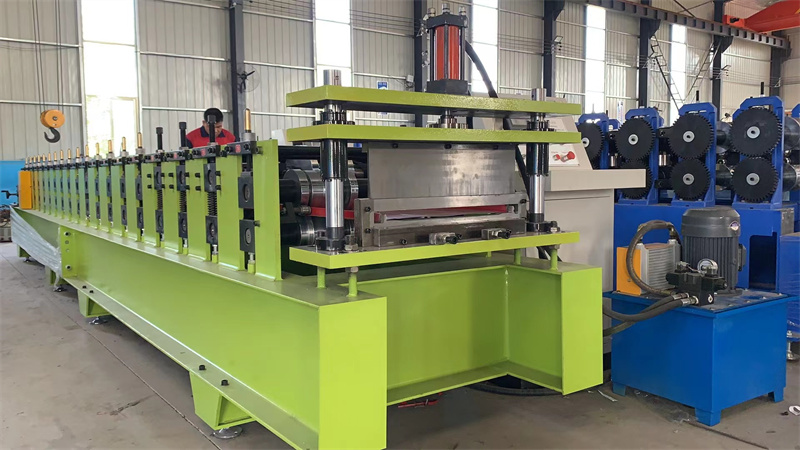

The hydraulic cutting system creates burr-free cutting edges without deforming the panel profile, while the PLC control system automatically manages panel length, production quantity, and operating speed for consistent production.

Because the machine supports various architectural applications—including flush wall panels, soffits, fascia, and under-deck systems—it enables customers to expand into higher-value architectural projects using a single production line.

In addition, manufacturers can process galvanized steel, Galvalume steel, color-coated steel, and aluminum, making the machine suitable for projects across North America, Europe, Australia, the Middle East, Africa, and Southeast Asia.

Why Choose ZTRFM?

With years of experience in cold roll forming equipment manufacturing, ZTRFM provides complete production solutions rather than simply supplying machinery.

Every Flush Wall Soffit Profile Roll Forming Machine undergoes comprehensive testing before shipment to ensure stable operation and accurate profile dimensions. Our engineering team also offers professional installation guidance, operator training, remote technical support, and customized profile development based on customer drawings.

Whether you are launching a new architectural panel business or expanding your existing metal roofing production, ZTRFM can help you achieve higher productivity, lower operating costs, and consistent product quality.

Architectural metal wall systems continue to grow in popularity because they combine modern aesthetics with exceptional durability. Investing in a Flush Wall Soffit Profile Roll Forming Machine allows manufacturers to meet this increasing market demand while expanding their product portfolio.

The ZTRFM Flush Wall Soffit Profile Roll Forming Machine produces premium flush wall panels, soffit panels, fascia panels, and under-deck panels with outstanding precision, adjustable reveal options, and high production efficiency. From commercial buildings to residential projects, this versatile roll forming solution helps manufacturers deliver attractive architectural panels while improving profitability and production flexibility.
