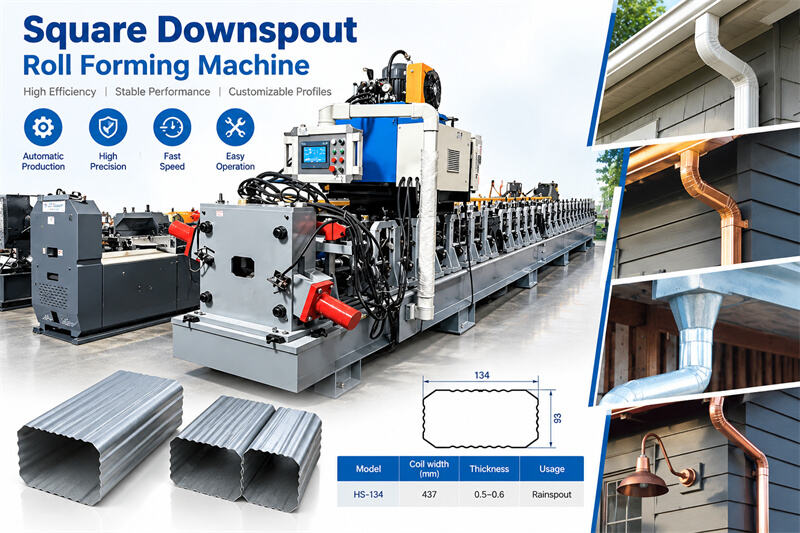

Zhongtuo Downspout Pipe Roll Forming Machine Square & Rectangular Downspout Machine 10–15 m/min

Downspout Pipe Roll Forming Machine is designed to manufacture continuous metal downspouts for residential, commercial, and industrial rainwater drainage systems. By feeding a metal coil through a series of precision-forming rollers, the machine gradually shapes flat strip into a finished downspout profile while maintaining consistent dimensions along the entire length.

Compared with manual fabrication, roll forming provides a more stable production process and reduces material waste. Manufacturers can use galvanized steel, PPGI, PPGL, aluminum, or other suitable metals to produce downspouts according to project requirements. The machine can also be configured for different profile geometries, including square and rectangular downspouts.

Flexible Downspout Production for Different Applications

Rainwater drainage projects do not always use the same downspout dimensions or materials. Therefore, we configure the forming line according to the customer’s profile drawing, material specifications, production capacity, and budget.

The Downspout Roll Forming Machine can process galvanized coils, pre-painted steel, and other compatible materials. For standard applications, material thickness may range from approximately 0.3 to 0.8 mm, while the exact working range depends on the selected profile and machine configuration.

In addition, manufacturers can choose different feeding and driving configurations. A manual decoiler provides a straightforward solution for standard production, while a hydraulic decoiler can improve coil-loading efficiency for higher-volume operations.

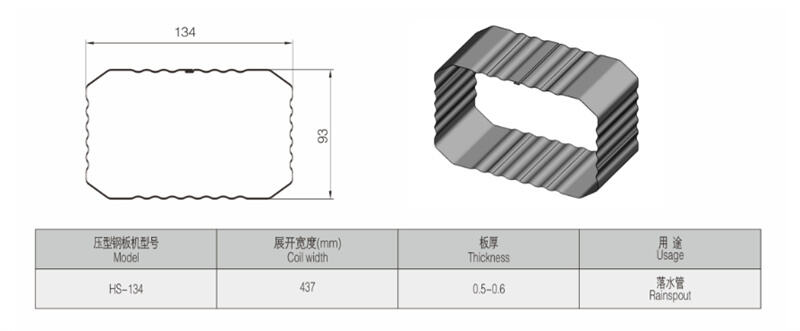

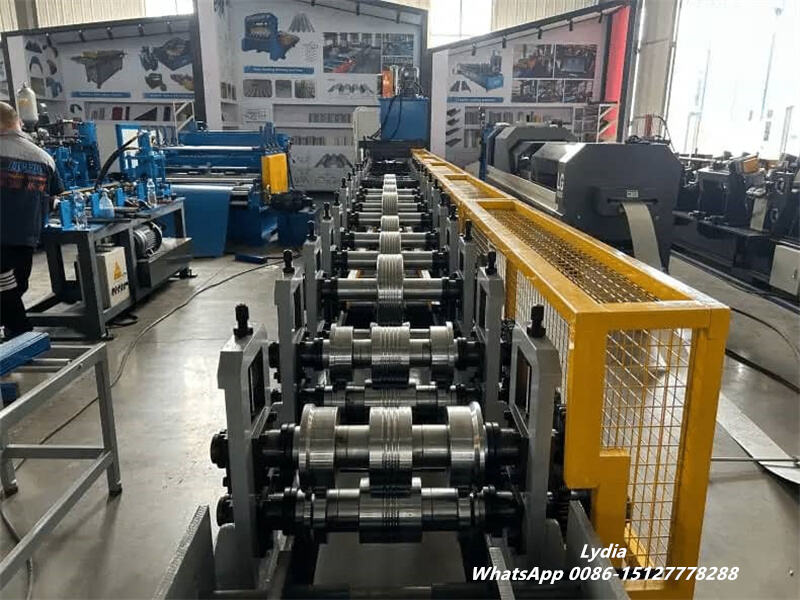

The forming section uses multiple roller stations to shape the strip progressively. This gradual forming method helps reduce deformation and keeps the finished profile uniform from the beginning of the production cycle to the end.

Complete Roll Forming Line

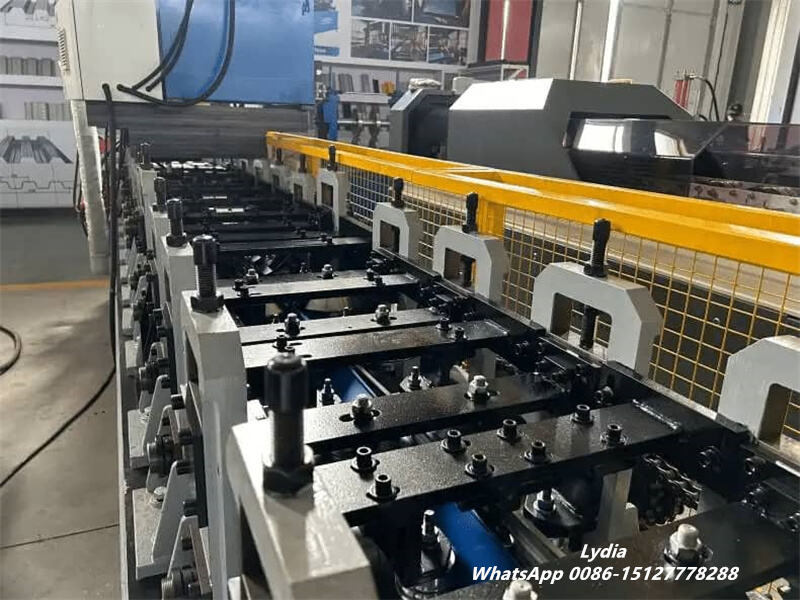

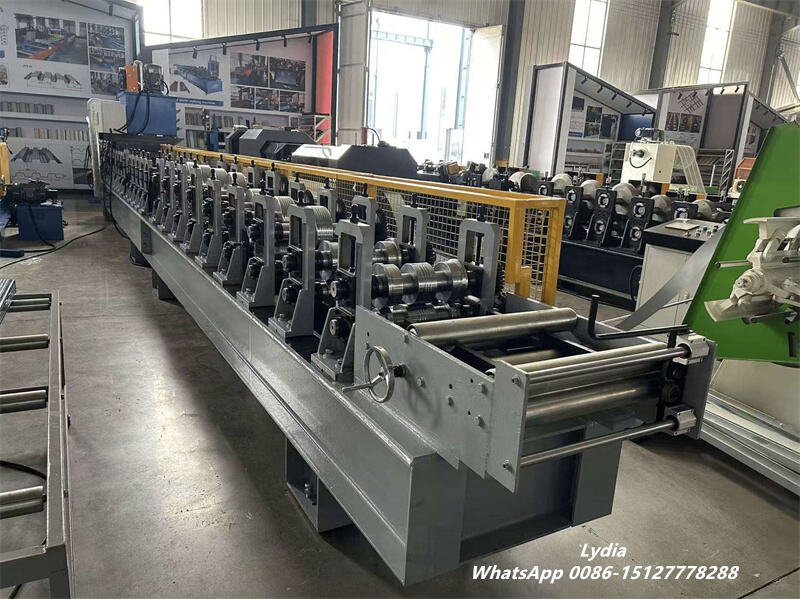

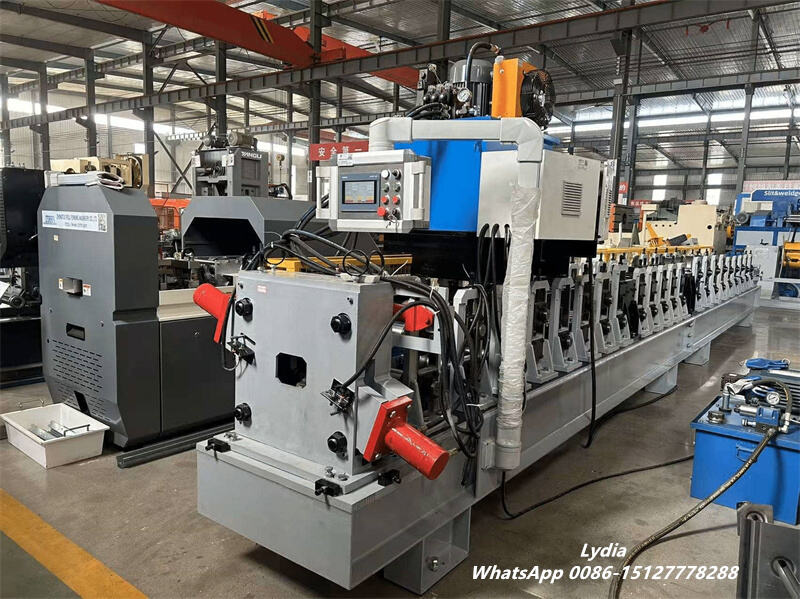

The production line integrates several working sections so operators can complete the manufacturing process efficiently. The uncoiler holds and feeds the raw coil, while the roll forming system progressively creates the required downspout geometry. After forming, the cutting unit separates the finished sections according to the programmed length.

A PLC-based control system coordinates feeding, forming, length measurement, and cutting. As a result, operators can adjust production parameters from the control panel rather than manually controlling every stage.

For projects that require additional flexibility, manufacturers can also select optional components such as a hydraulic decoiler, gearbox drive, or servo tracking cutting system. These configurations allow the machine to match different production volumes and profile requirements.

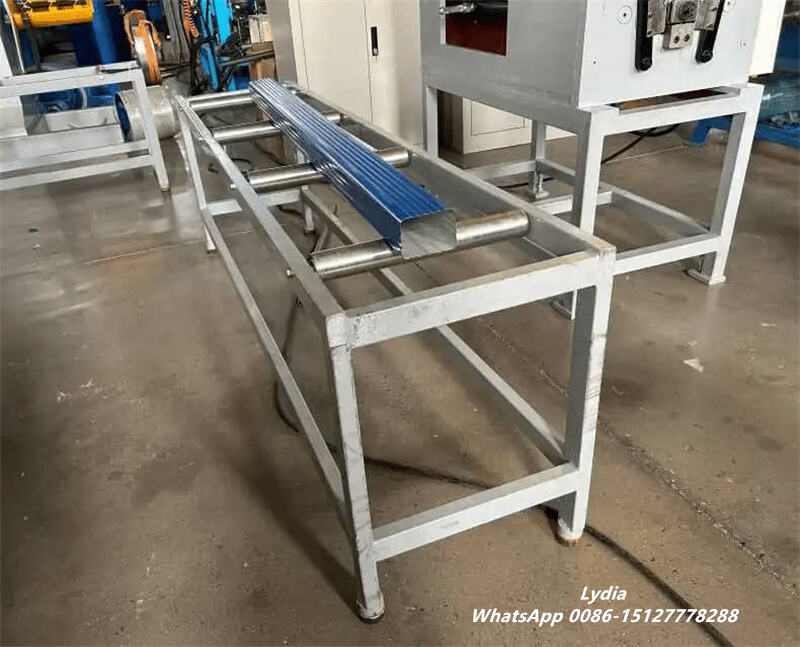

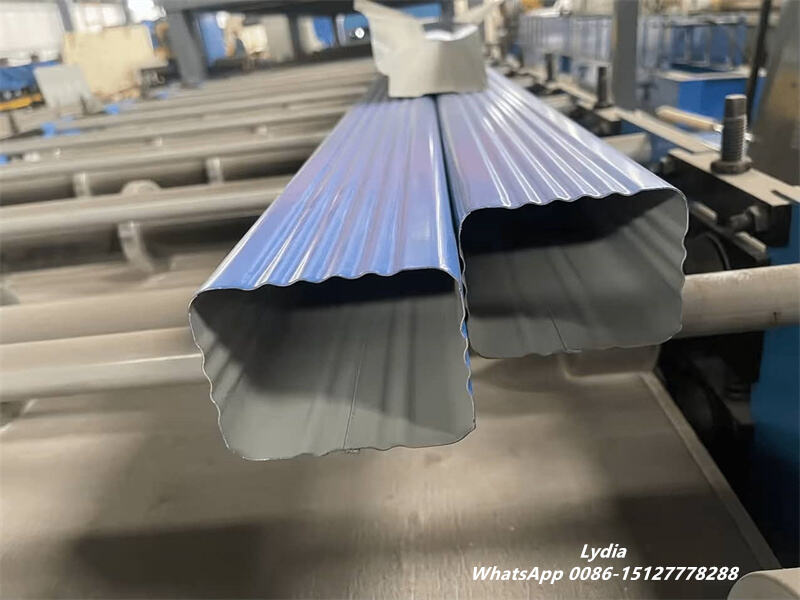

The finished products can be collected on an output roller table, making it easier to transfer downspouts to inspection, packaging, or subsequent processing.

Main Technical Specifications

The exact specifications should always follow the customer’s profile drawing because downspout dimensions, material thickness, coil width, and forming requirements vary between markets and applications.

Parameter	Standard Configuration	Optional / Customized Configuration
Suitable Material	Galvanized Coil, PPGI, PPGL	Aluminum, other compatible materials
Material Thickness	0.3–0.8 mm	According to profile requirements
Yield Strength	250–350 MPa / 350–550 MPa	Customized
Tensile Strength	350–550 MPa	Customized
Coil Width	According to profile	Customized
Forming Speed	10–15 m/min	According to production requirements
Forming Stations	18–24 stations	According to profile drawing
Decoiler	Manual	Hydraulic
Drive System	Chain drive	Gearbox drive
Roller Material	45# steel	Customized
Cutting Method	Hydraulic post-cut	Servo tracking cutter
Output	Roller table	Customized
Frequency Converter	Yaskawa	Siemens
Power Supply	380V, 50Hz	According to customer’s country
Machine Color	Industrial blue	Customized

These specifications provide a typical reference rather than a fixed machine standard. We can modify the forming stations, roller configuration, drive system, cutting method, and electrical components after reviewing the required downspout profile.

Profile Accuracy and Production Stability

A reliable downspout production line must do more than simply form the metal. It needs to maintain profile dimensions, straightness, cutting accuracy, and surface quality throughout continuous production.

The machine uses a multi-stage roller forming process to gradually bend the material into the target shape. This approach helps control deformation and improves consistency between finished pieces. At the same time, the cutting system separates products at the programmed length without requiring operators to stop the entire forming process manually.

For projects with more demanding production requirements, a servo tracking cutter can replace the standard hydraulic post-cut system. A gearbox drive can also provide an alternative to the standard chain-drive configuration when the customer requires a different transmission arrangement.

Because every downspout profile has its own dimensional requirements, we recommend designing the rollers around the customer’s actual drawing instead of using a generic roller configuration.

Customized Downspout Manufacturing Solution

Downspouts are only one part of a complete rainwater goods production system. Depending on the customer’s product range, we can integrate the machine with other equipment for gutter and drainage component production.

For example, a complete production workshop may include a gutter roll forming machine, downspout forming equipment, elbow-forming equipment, cutting equipment, and other auxiliary machines. This arrangement allows manufacturers to produce multiple rainwater drainage components in one facility.

We also provide customized solutions based on profile drawings, material type, thickness, required speed, production volume, and finished-product dimensions. Instead of applying one fixed machine configuration to every project, we adjust the forming and cutting system to the actual production requirements.

This approach helps manufacturers obtain a practical production line while avoiding unnecessary machine configurations and investment. From the initial profile design through roller development, machine manufacturing, testing, and delivery, each stage can be coordinated around the customer’s application.

If you are looking for a Downspout Pipe Roll Forming Machine for square, rectangular, or other custom rainwater drainage profiles, the best starting point is your finished-profile drawing. We can evaluate the drawing and recommend the suitable forming stations, material range, production speed, decoiler, cutting system, and overall line configuration.

Frequently Asked Questions

1. What materials can the Downspout Pipe Roll Forming Machine process?

The machine can be designed to process galvanized steel, PPGI, PPGL, aluminum, and other compatible metal coils. The actual material range depends on the required profile, thickness, yield strength, and machine configuration.

2. What is the typical material thickness?

The standard configuration can generally process material around 0.3–0.8 mm. If you need thicker or thinner material, we can redesign the forming system according to the material specifications and finished-profile requirements.

3. Can the machine produce square and rectangular downspouts?

Yes. The forming rollers can be designed for square downspouts, rectangular downspouts, and other customized profiles. The roller design is developed according to the customer’s profile drawing to ensure the finished dimensions meet the required specifications.

4. What is the production speed of the downspout roll forming machine?

The typical forming speed is approximately 10–15 m/min. However, the actual speed depends on material thickness, profile complexity, cutting method, and other production requirements.

5. How many forming stations does the machine have?

A typical machine uses approximately 18–24 forming stations. The final number depends on the profile shape, material properties, dimensional tolerances, and required forming process.
