Zhongtuo Automatic P Beam Roll Forming Machine Manufacturer Pallet Racking Step Beam Roll Forming Machine Pallet Racking Step beam

Modern warehouses, distribution centers, and industrial storage facilities require durable pallet rack beams to support increasingly heavy loads while making efficient use of available space. To meet these requirements, manufacturers need a reliable production system capable of forming accurate, strong, and consistent rack beam profiles.

Our Heavy Duty Pallet Rack Beam Roll Forming Machine is specially designed for producing step beams, P beams, box beams, and customized pallet rack beams from steel coils. The complete production line combines coil feeding, roll forming, welding, sizing, cutting, and automatic output to provide an efficient solution for large-scale warehouse rack component manufacturing.

With flexible tooling and customizable configurations, this pallet rack beam manufacturing machine can be adapted to different beam dimensions, steel grades, connection designs, and production requirements.

What Is a Pallet Rack Beam Roll Forming Machine?

A pallet rack beam roll forming machine is an automated steel forming system used to manufacture horizontal beams for warehouse storage racks. The machine continuously feeds steel strip through a series of precision rollers, gradually forming the material into the required structural profile.

Compared with conventional cutting, bending, and welding processes, continuous roll forming provides better dimensional consistency and significantly improves production efficiency.

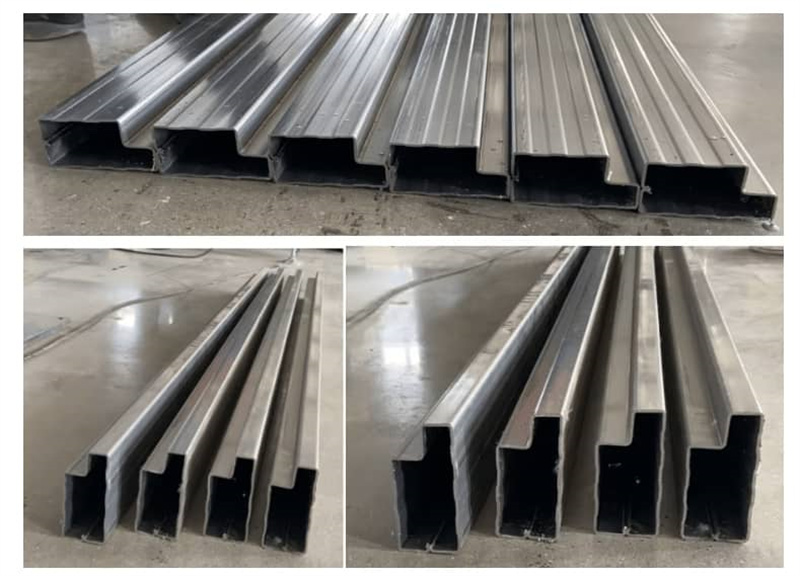

Depending on the rack design, manufacturers can produce different types of profiles, including:

• Step Beam

• P Beam

• Box Beam

• Teardrop Rack Beam

• Structural Pallet Rack Beam

• Heavy Duty Storage Rack Beam

• Customized Warehouse Rack Beam

This makes the equipment suitable for manufacturers serving different warehouse storage and logistics markets.

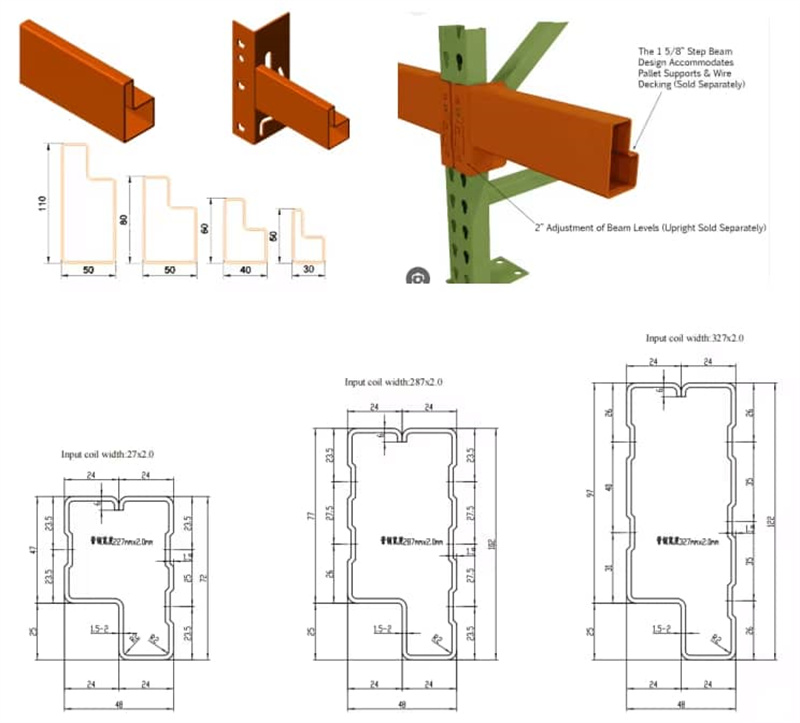

High Precision Step Beam Manufacturing for Warehouse Racks

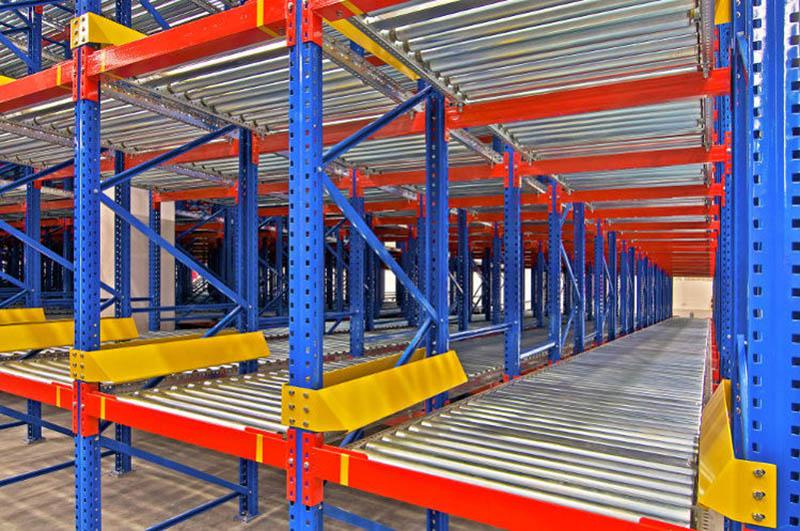

The step beam is one of the most widely used horizontal components in selective pallet racking systems. It connects the vertical rack uprights and supports pallets, cartons, and other stored materials.

Because the beam must fit accurately into the upright frame, even small dimensional deviations can affect installation and overall rack stability. Therefore, a professional step beam forming machine must maintain accurate width, height, flange dimensions, straightness, and connection positioning.

Our machine uses precision-engineered forming rollers to shape the steel strip without excessive deformation gradually. The result is a consistent profile with smooth surfaces and reliable dimensional accuracy.

For customers producing different rack models, the forming section can also be designed according to specific product drawings.

Automatic Pallet Rack Beam Production Line

A complete warehouse rack beam roll forming line can integrate multiple production processes into one continuous system.

The typical workflow includes:

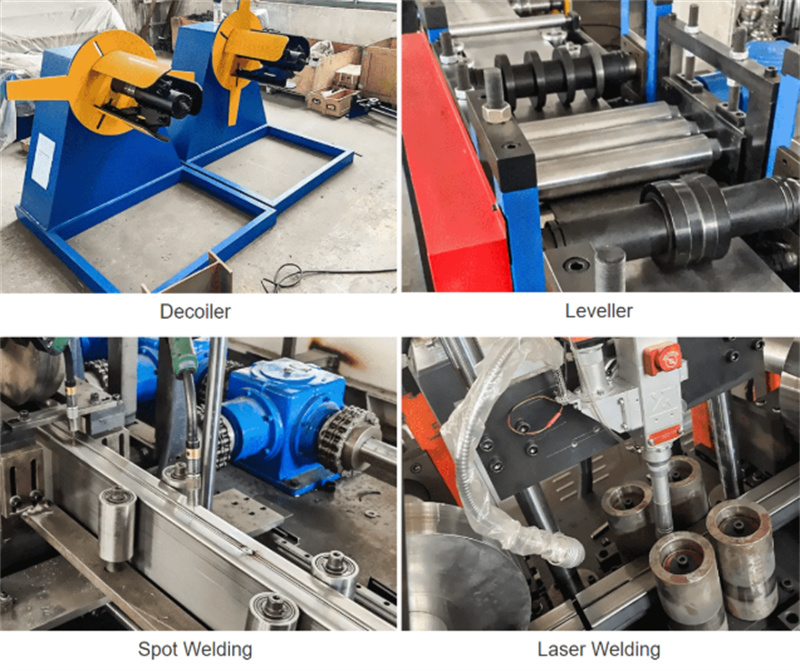

Steel Coil → Decoiling → Leveling → Servo Feeding → Roll Forming → Welding → Sizing → Cutting → Discharge → Stacking

This integrated configuration reduces manual handling and allows manufacturers to maintain stable production over long operating periods.

For high-volume production, additional equipment such as automatic punching units, robotic welding systems, beam end-forming machines, conveyors, and stacking systems can also be incorporated.

As a result, the line can be configured as a semi-automatic production system or a highly automated pallet racking beam manufacturing line according to the customer's production capacity and budget.

Flexible Steel Rack Beam Production for Different Applications

Different warehouse projects require different beam specifications. Some applications require lightweight beams for general storage, while others require reinforced profiles for heavy industrial loads.

Our steel rack beam roll forming machine can be engineered for different material thicknesses and profile dimensions.

Common materials include:

• Galvanized steel

• Cold rolled steel

• Carbon steel

• Pre-painted steel

• High-strength structural steel

For example, the machine can process steel strip within approximately 1.5–3.0 mm, while the final specification can be adjusted according to the customer's drawings and material characteristics.

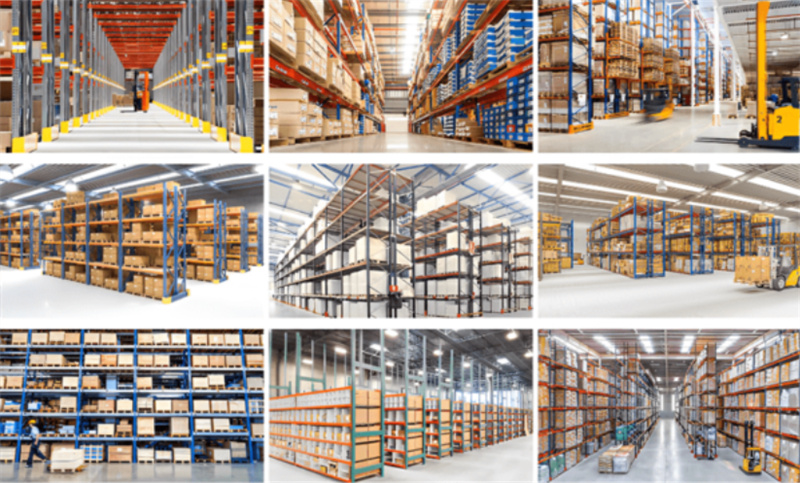

This flexibility makes the equipment suitable for manufacturers producing rack beams for logistics warehouses, distribution centers, factories, supermarkets, and industrial storage facilities.

Key Features of the Pallet Rack Beam Forming Machine

The machine is designed around production stability, profile accuracy, and convenient operation.

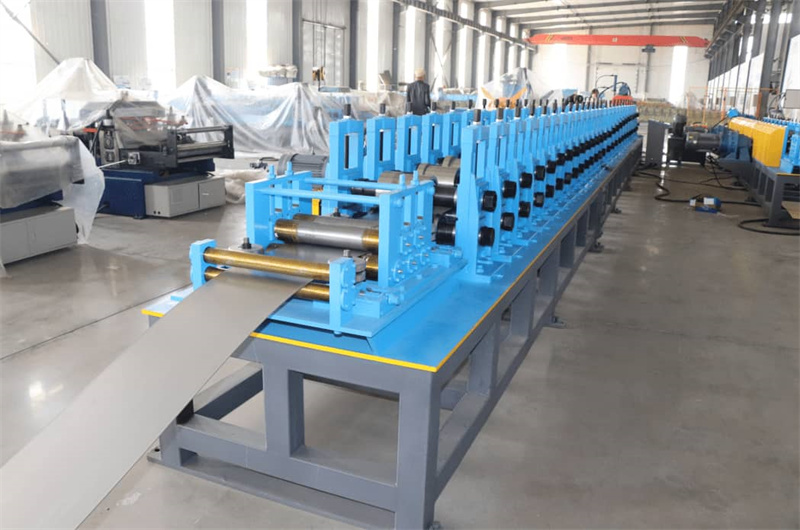

Precision Roll Forming System

The forming rollers are precisely machined to ensure gradual and uniform deformation of the steel strip. This helps maintain consistent beam dimensions throughout continuous production.

Adjustable Production Configuration

Different roller configurations and tooling designs can be provided for different beam sizes and profiles. This allows manufacturers to expand their product range without replacing the complete production line.

Integrated Welding

For beam profiles requiring welded joints or reinforced structures, welding equipment can be integrated directly into the production line. Spot welding or other customized welding solutions can be selected according to the product structure.

Automatic Cutting

The finished beam can be cut automatically according to preset lengths. Saw cutting or flying cutting solutions can be configured depending on production speed and profile requirements.

PLC-Controlled Operation

The electrical control system coordinates feeding, forming, welding, cutting, and other production processes. Operators can set production parameters through the control panel, making daily operation easier and more efficient.

Technical Specifications

Item	Typical Configuration
Machine Type	Pallet Rack Beam Roll Forming Machine
Main Products	Step Beam, P Beam, Box Beam
Material	Galvanized Steel / Cold Rolled Steel / Carbon Steel
Material Thickness	1.5–3.0 mm
Yield Strength	250–350 MPa
Tensile Strength	350–500 MPa
Forming Speed	10–20 m/min
Forming Stations	Approximately 26
Roller Material	GCr15 / Cr12Mov Optional
Transmission	Chain Drive / Gearbox Optional
Welding	Spot Welding / Customized Welding
Cutting	Saw Cutting / Flying Cut Optional
Control System	PLC Automatic Control
Power Supply	380V, 50Hz, 3 Phase
Production	Customized According to Profile Drawing

The actual configuration can be customized according to beam profile, material thickness, production speed, and customer requirements.

Complete Warehouse Storage Rack Manufacturing Solution

A beam production machine is only one part of a complete pallet rack manufacturing system. For manufacturers planning to produce complete warehouse storage systems, our equipment can be combined with other forming and fabrication machines.

Typical supporting equipment includes:

• Pallet Rack Upright Roll Forming Machine

• Rack Column Roll Forming Machine

• Box Beam Forming Machine

• Shelf Panel Roll Forming Machine

Why Choose Our Pallet Rack Beam Roll Former?

For warehouse rack manufacturers, production efficiency is only one consideration. Long-term dimensional stability, machine durability, tooling accuracy, and after-sales support are equally important.

Our pallet rack beam forming equipment is designed for continuous industrial production and can be customized around the customer's actual product drawings.

The combination of precision roll forming, automatic cutting, integrated welding, and flexible tooling allows manufacturers to reduce manual fabrication while improving product consistency.

More importantly, the modular design makes it easier to expand production in the future. As demand increases, additional punching, welding, conveying, and stacking equipment can be integrated into the existing manufacturing system.

Therefore, this heavy duty storage rack beam roll forming machine is an ideal choice for companies looking to manufacture high-quality warehouse rack components efficiently and consistently.
