Zhongtuo Automatic Cable Tray Roll Forming Machine High-Speed Production Line 30 m/min

The Automatic Cable Tray Roll Forming Machine is an advanced production solution developed for manufacturers who need efficient and continuous cable tray production. This complete line integrates coil feeding, leveling, punching, roll forming, cutting, and material collection processes, allowing metal coils to be transformed into finished cable trays automatically.

As a professional cable tray manufacturing machine, Zhongtuo’s production line is suitable for producing various cable management profiles, including ladder cable trays, perforated cable trays, and tray-type cable trays. The machine can be customized according to different cable tray designs, material requirements, and production targets.

With automatic operation, stable forming performance, and flexible configuration, this cable tray roll forming machine helps manufacturers improve productivity while reducing manual operations.

Complete Automatic Cable Tray Production Process

Unlike traditional cable tray fabrication methods that require separate machines for punching, bending, and cutting, the automatic cable tray production line combines multiple processes into one continuous workflow.

The complete production process includes:

Uncoiling → Leveling → Servo Feeding → Automatic Punching → Roll Forming → Cutting → Discharging

At the beginning of the process, the hydraulic decoiler releases the steel coil and sends the strip into the leveling unit. The leveling system removes coil deformation and ensures the material enters the forming section smoothly.

After leveling, the servo feeding system accurately controls the strip position before punching. According to customer requirements, the punching unit can create different hole patterns, including mounting holes, connection holes, and customized openings.

The prepared strip then enters the roll forming section, where multiple forming stations gradually shape the flat metal sheet into the required cable tray profile.

Finally, the automatic cutting system cuts the formed cable tray into preset lengths. The finished products can be transferred to the discharge or stacking system for convenient handling.

Flexible Cable Tray Profiles and Customized Production

One major advantage of the automatic cable tray roll forming machine is its ability to manufacture different cable tray specifications with one production system.

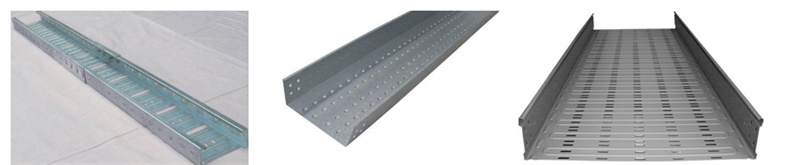

According to different project requirements, the machine can produce:

• Ladder type cable trays

• Trough type cable trays

• Perforated cable trays

• Heavy-duty cable trays

• Customized cable management profiles

The production line can be designed for different cable tray dimensions:

Zhongtuo can customize the roller design, punching system, cutting method, and machine configuration according to the customer’s profile drawing.

Before production, customers can provide:

• Cable tray profile drawing

• Material type

• Material thickness

• Finished product length

• Required production speed

• Hole pattern requirements

The engineering team will recommend a suitable machine configuration based on actual production needs.

Main Features of Cable Tray Roll Forming Machine

The cable tray roll forming production line is designed for long-term industrial production with reliable mechanical performance.

Automatic Punching System

The integrated punching unit improves production efficiency by creating holes automatically before forming. Different punching patterns can be programmed according to cable tray designs.

This eliminates manual drilling processes and ensures consistent hole positions during mass production.

Stable Roll Forming System

The forming section adopts multiple roller stations to gradually shape the steel strip. Progressive forming reduces material deformation and helps maintain accurate cable tray dimensions.

The rollers are manufactured from high-quality steel with surface treatment for improved durability during continuous operation.

PLC Control System

The machine uses a PLC control system with a touchscreen interface. Operators can easily set:

• Production length

• Production quantity

• Forming speed

• Other operating parameters

After setting the production data, the machine can complete the manufacturing process automatically.

Automatic Cutting and Material Handling

The cutting system separates finished cable trays according to preset lengths. Hydraulic cutting or flying cutting solutions can be selected depending on production requirements.

The automatic discharge system improves handling efficiency and reduces labor requirements.

Technical Specifications of Cable Tray Making Machine

The final machine configuration may vary depending on cable tray size, material thickness, production speed, and punching requirements.

Applications of Cable Tray Manufacturing Machine

Cable trays produced by this roll forming line are widely used in various cable management projects.

Construction Projects

In residential buildings, commercial buildings, and industrial facilities, cable trays help organize electrical wiring systems and provide reliable cable support.

Power and Industrial Facilities

Factories, substations, workshops, and energy projects often require strong cable support systems. Heavy-duty cable trays produced by this machine can meet different load requirements.

Data Centers and Communication Infrastructure

Modern data centers require accurate cable routing solutions. Cable trays provide organized installation space for high-density wiring systems.

Renewable Energy Projects

Solar power plants and wind energy projects also require efficient cable management systems. Galvanized steel and stainless steel cable trays can adapt to different environmental conditions.

FAQ About Cable Tray Roll Forming Machine

1. What is a cable tray roll forming machine?

A cable tray roll forming machine is an automated production line that converts steel coils into finished cable trays through leveling, punching, forming, and cutting processes.

2. What materials can this machine process?

The machine can process galvanized steel, PPGI, aluminum, cold rolled steel, and stainless steel according to customer requirements.

3. Can the cable tray size be customized?

Yes. The machine can be designed according to different cable tray widths, heights, thicknesses, and profile drawings.

4. Does the machine include automatic punching?

Yes. The production line can integrate an automatic punching system for mounting holes, connection holes, and customized patterns.

5. What is the production speed?

The forming speed is generally around 10–30 m/min, depending on material thickness, profile design, punching requirements, and machine configuration.
