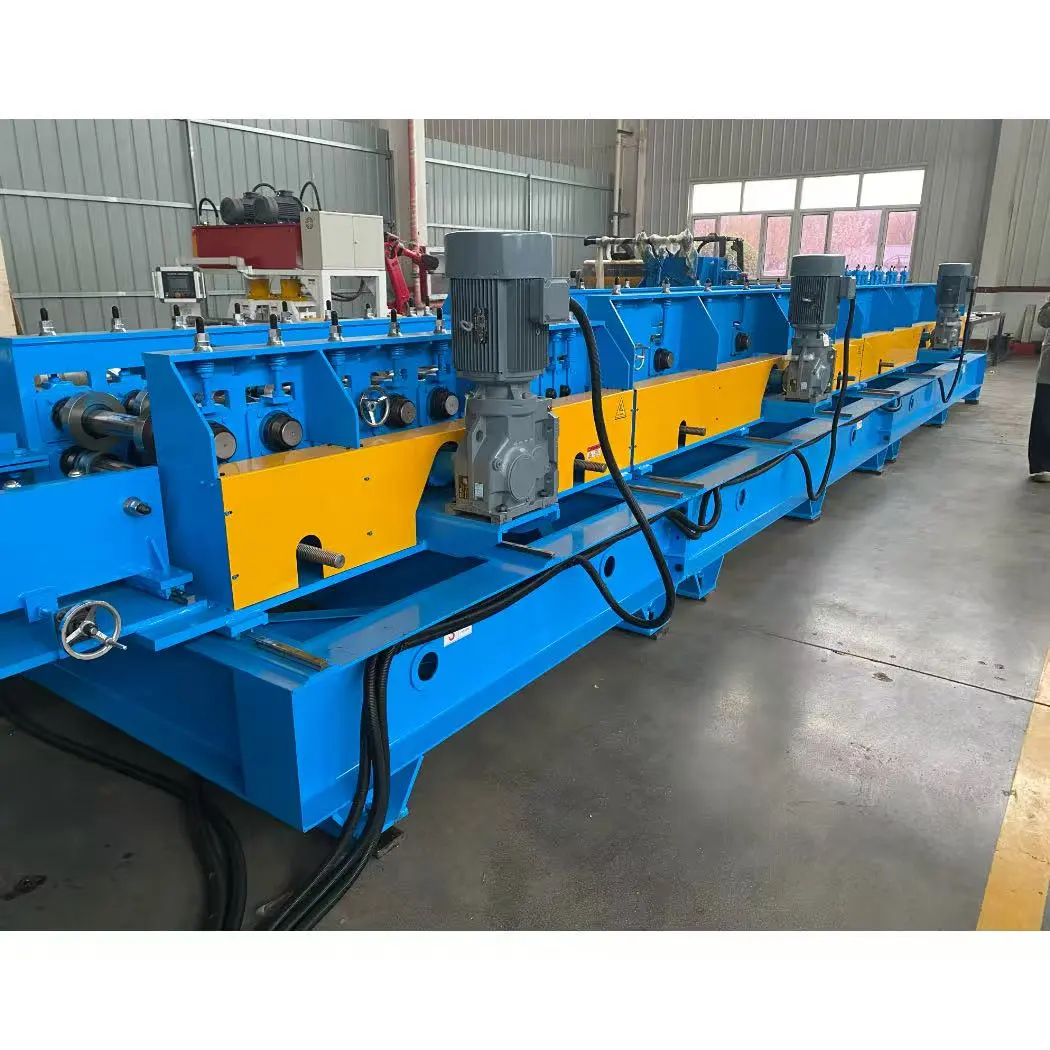

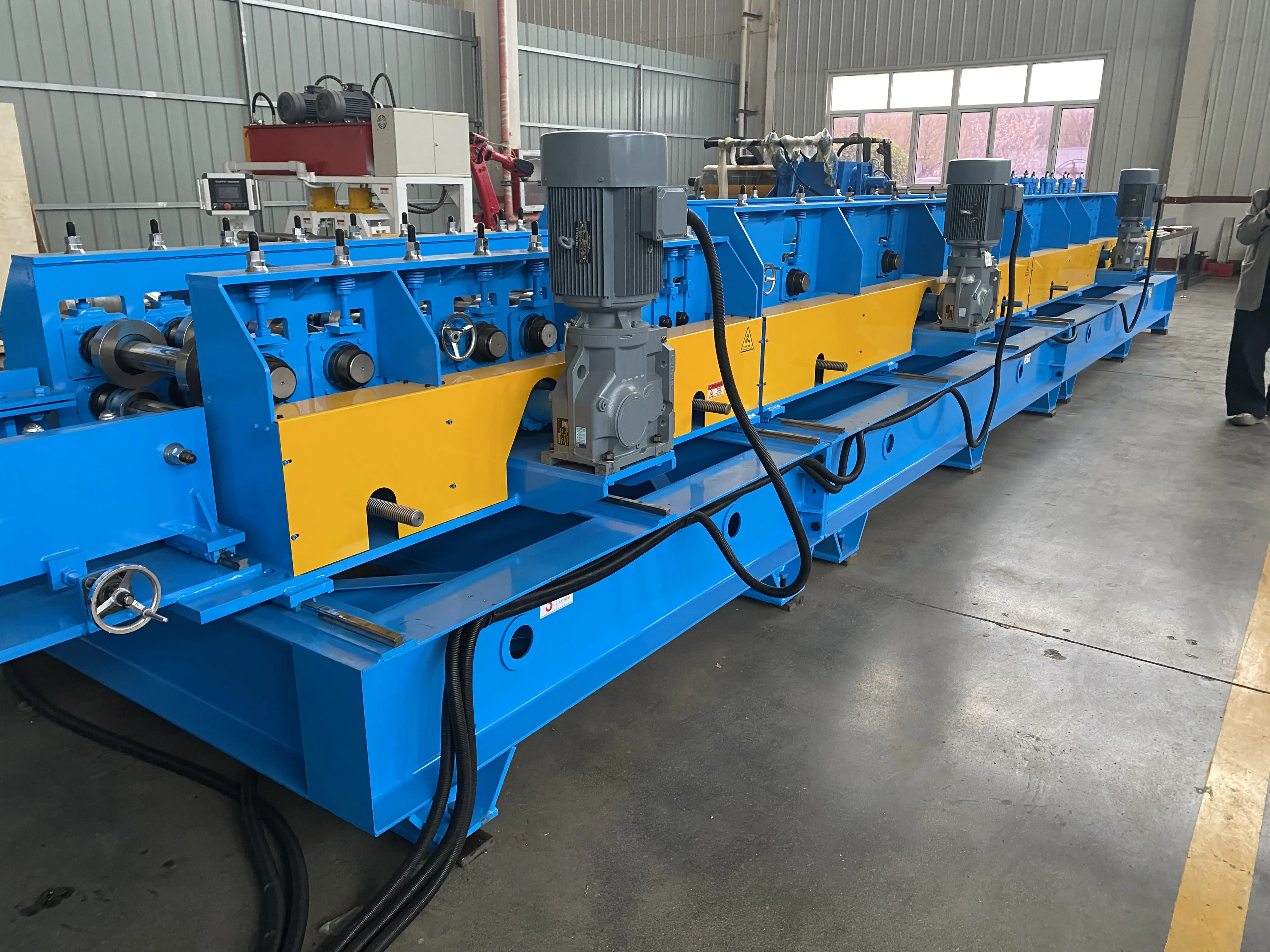

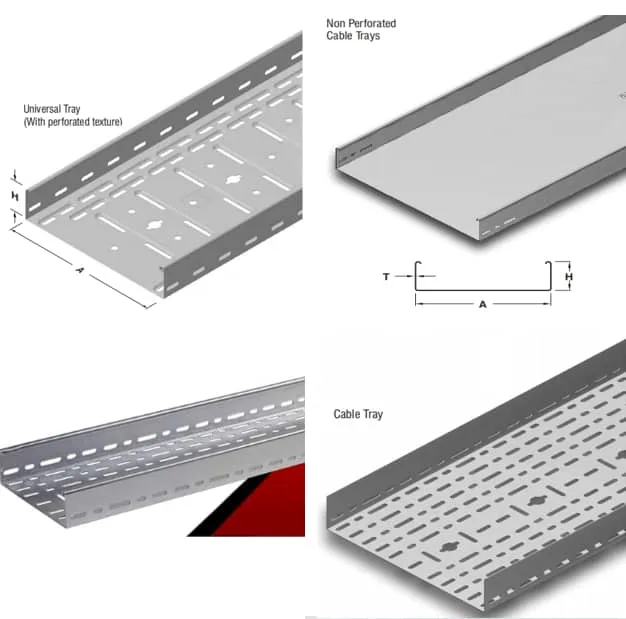

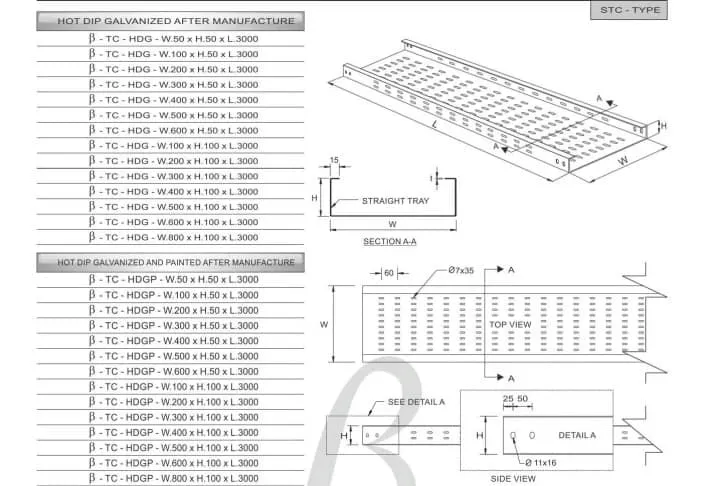

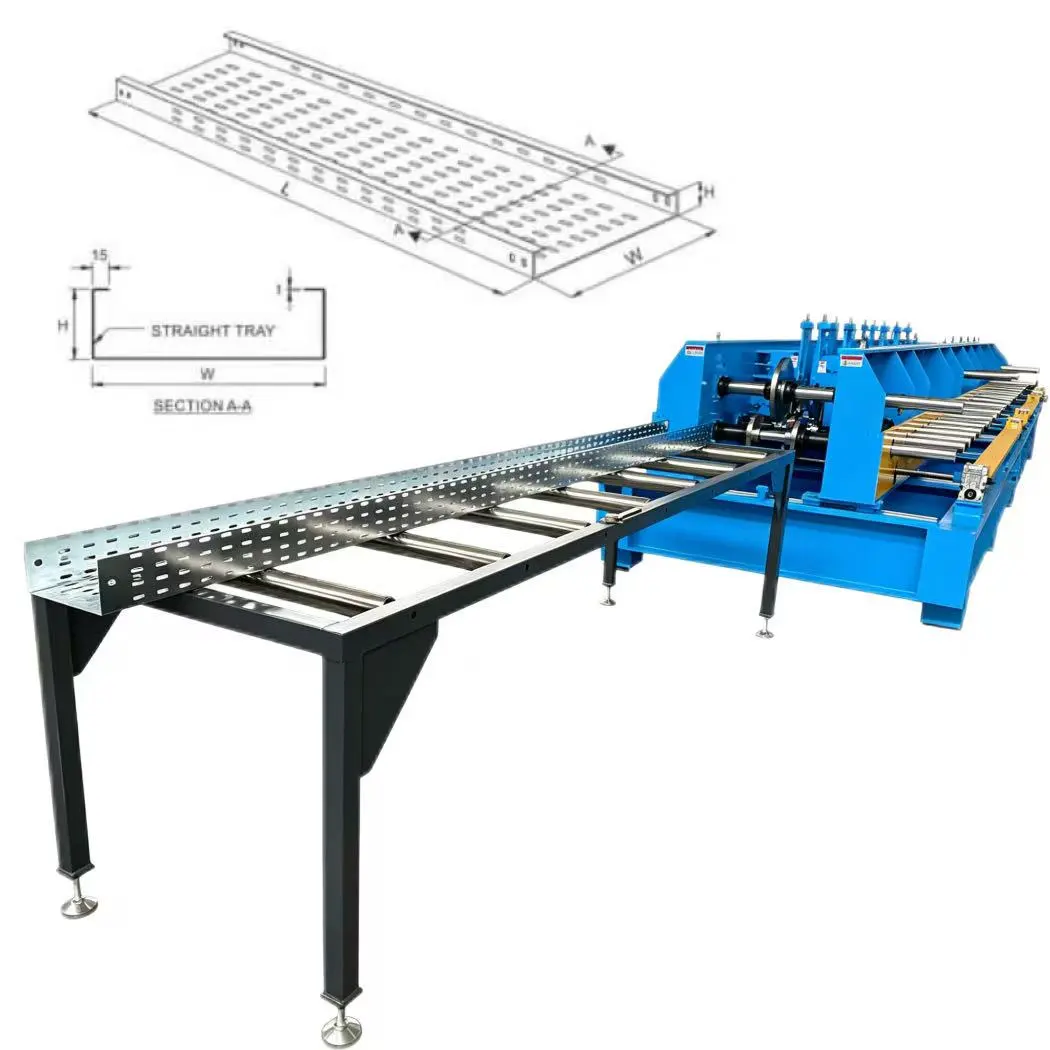

Zhongtuo Adjustable 50–600mm Cable Tray Roll Forming Machine with Punching & Logo System
|
|
|
|
|
||||
|
1.Formed Material
|
PPGI,GI,AI
|
|
Thickness:1-2mm
|
|
||||
|
2.Decoiler
|
Hydraulic automatic decoiler
|
|
Manual decoiler(will give you as free）
|
|
||||
|

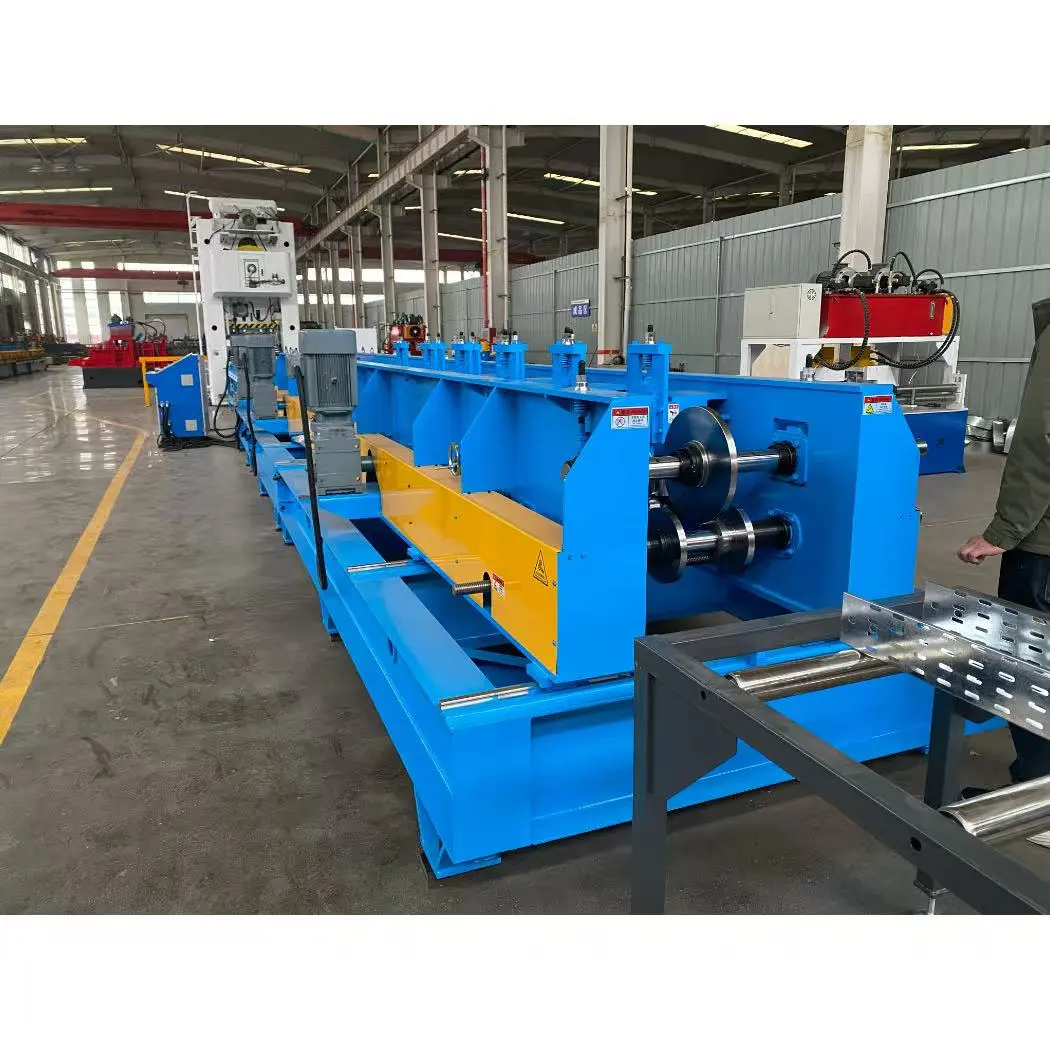

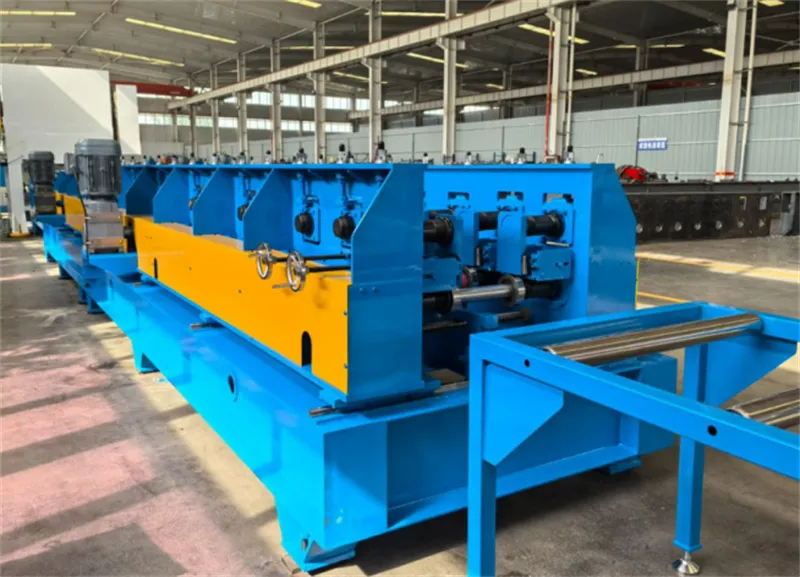

3.Main body
|
Roller station
|
|
12 rows(As your requirement)
|
|
||||
|
|
Diameter of shaft
|
|
80mm solid shaft
|
|
||||
|
|
Material of rollers
|
|
Gcr 15 with quenched teeatment
|
|
||||
|
|
Machine body frame
|
|
Metal steel welded
|
|
||||
|
|
Drive
|
|
Chain transmission
|
|
||||
|
|
Dimension(L*W*H)
|
|
9500*800*1200(customize)
|
|
||||
|
|
Weight
|
|
About 7T
|
|
||||
|
4.Cutter
|
Automatic
|
|
cr12mov material, no scratches, no deformation
|
|
||||
|
5.Power
|
Motor Power
|
|
15KW
|
|
||||
|
|
Hydraulic system power
|
|
5.5KW
|
|
||||
|
6.Voltage
|
380V 50Hz 3Phase
|
|
As your requirement
|
|
||||
|
7.Control system
|
Electric Box
|
|
Customized(famous brand)
|
|
||||
|
|
Language
|
|
English(Support multiple languages)
|
|
||||
|
|
PLC
|
|
Automatic production of the whole machine. Can set batch, length, quantity, etc.
|
|
||||
|
18.Forming Speed
|
60-70m/min(customized)
|
|
The speed depends on the shape of the tile and the thickness of the material.
|
|
||||
