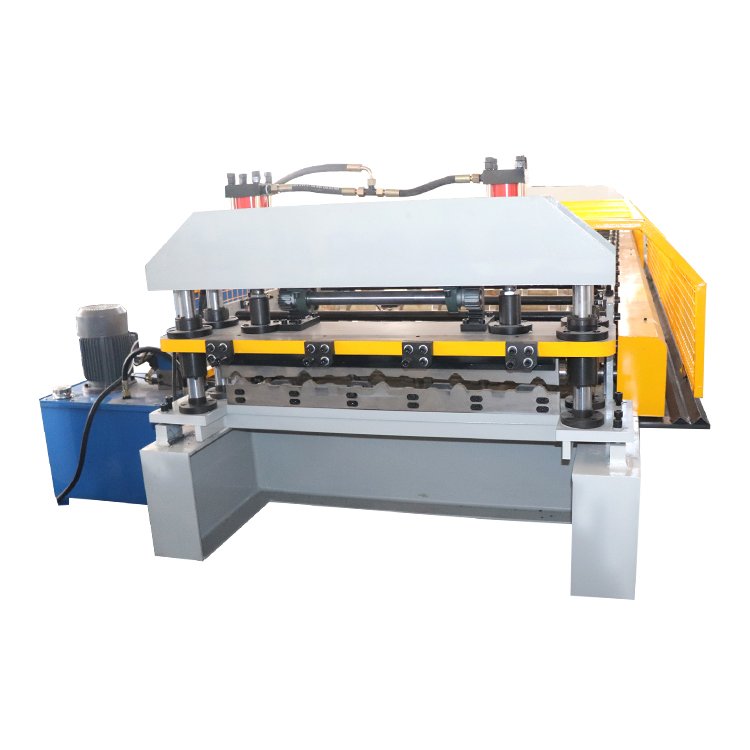

The ZTRFM Trapezoidal Roof Tile Making Machine is a professional cold roll forming solution designed for continuous production of trapezoidal metal roofing sheets and roof panels.
Trapezoidal roofing sheets are widely used in factories, warehouses, workshops, commercial buildings, agricultural structures, garages, and residential construction. Their ribbed profile provides a practical combination of structural performance, drainage capability, installation convenience, and attractive appearance.
The machine uses a continuous roll forming process to transform metal coils into finished trapezoidal roofing panels. The production line can integrate decoiling, feeding, progressive forming, automatic length measurement, cutting, and finished product collection, helping manufacturers establish an efficient and organized roofing sheet production process.
ZTRFM also provides customized roll forming solutions according to the customer's actual roofing profile, material requirements, production needs, and local market standards. This makes the equipment suitable for both standard roofing products and customized trapezoidal profiles.
A trapezoidal roof sheet is formed with a series of raised ribs along the length of the panel. This profile structure provides a practical roofing solution for many types of construction.
During production, the flat metal coil passes through multiple forming stations. Each station gradually changes the material into the required trapezoidal profile.
Instead of forming the complete shape in one step, the machine uses progressive forming technology. This helps maintain a consistent profile while reducing unnecessary deformation of the metal material.
The finished roofing sheets can be produced in different lengths according to the customer's requirements, making the machine suitable for both regular production and project-based orders.
The complete production process follows an organized continuous workflow:
Coil Loading → Feeding → Roll Forming → Length Measurement → Automatic Cutting → Finished Panel Output
The metal coil is installed on the decoiling system and prepared for continuous production.
The feeding section guides the metal strip into the roll forming machine while helping maintain proper alignment.
The material passes through a series of forming stations. Each roller gradually shapes the metal strip until the complete trapezoidal profile is formed.
The control system monitors the production length according to the programmed requirements.
When the required panel length is reached, the cutting system separates the finished roofing sheet.
The completed panels are transferred to the output section for collection, inspection, and further handling.
This continuous workflow reduces repetitive manual operations and is suitable for professional roofing material manufacturers.
The forming roller system is the core of the roofing sheet machine.
For a trapezoidal profile, the roller geometry needs to match the customer's actual product design. The forming stations work progressively to create the ribs, edges, and other profile features.
A properly designed roller system helps achieve:
For colored or coated steel coils, roller design is particularly important. Proper forming can help reduce unnecessary friction and protect the surface finish of the roofing material.
Trapezoidal roofing profiles are not necessarily identical in different countries or markets.
Different manufacturers may have their own profile dimensions, rib shapes, panel widths, and application requirements.
Therefore, ZTRFM provides customized machine design based on the customer's actual product.
Customers can provide:
Our engineering team can evaluate the product and develop the appropriate forming solution.
This customized approach is especially useful for roofing manufacturers who want to produce a specific profile for their local market.
The trapezoidal roof tile machine can be designed for commonly used metal roofing materials.
Galvanized steel is widely used in building construction and roofing applications because of its protective coating and practical outdoor performance.
Pre-painted steel provides additional color options and is suitable for projects where both appearance and functional performance are important.
Aluminum zinc coated steel can be considered for roofing applications where corrosion resistance and long-term outdoor performance are important.
Other suitable metal coils can also be evaluated according to their material characteristics and forming requirements.
Before production, customers should provide information about the material they intend to use so that the forming system can be properly matched.
The machine is designed around automatic and continuous production.
After the required production settings have been entered into the control system, the machine can coordinate the forming, measurement, and cutting processes.
This reduces repetitive operator intervention and makes production easier to manage.
Automatic production can provide:
The automation level can also be customized according to the customer's production requirements.
The PLC control system provides centralized management of the production line.
The operator can use the control interface to manage the main machine functions.
Typical functions include:
The control interface can be customized according to customer requirements.
Different languages can also be considered for international projects to make machine operation more convenient for local workers.
The cutting system is designed to separate finished roofing panels according to the required length.
Once the required length is reached, the control system coordinates the cutting operation.
This eliminates the need for operators to repeatedly measure and manually cut individual panels.
The automatic cutting process helps provide:
The cutting solution can be selected according to the customer's material, profile, and production requirements.
A stable machine frame is important for long-term roll forming production.
The machine structure supports the forming stations, transmission components, cutting system, and control system.
A rigid structure helps reduce unnecessary vibration during production and provides a stable working platform for the forming rollers.
The overall machine layout can also be customized according to the customer's workshop.
When designing the production line, factors such as material flow, operator access, coil storage, finished product handling, and available factory space can be considered.
Trapezoidal metal roofing panels have a wide range of applications.
The panels are widely used for factories, workshops, production facilities, and steel structure buildings.
The continuous roofing sheets are suitable for large warehouse projects and storage facilities.
Trapezoidal panels can provide a practical roofing solution for commercial and service buildings.
The roofing sheets can be used for barns, farm buildings, storage facilities, and agricultural workshops.
The products are also suitable for garages, private workshops, storage buildings, and extensions.
Depending on local building standards, trapezoidal metal roofing can also be used for residential construction and renovation.
The machine processes metal coils continuously, making it suitable for regular production.
The forming rollers help maintain consistent trapezoidal geometry throughout the production process.
Finished roofing panels can be cut according to different construction requirements.
Automatic feeding, forming, measurement, and cutting reduce repetitive operator work.
The machine can be designed according to the customer's own roofing profile.
The machine configuration can be adjusted according to local material, electrical, product, and production requirements.
The trapezoidal roof tile machine can be supplied as part of a complete production line.
Depending on the customer's project, the system can include:
Supports the metal coil and provides continuous material feeding.
Guides the metal strip into the forming section and helps maintain material alignment.
Gradually forms the metal coil into the required trapezoidal roofing profile.
Automatically separates finished panels according to the programmed length.
Provides centralized management of the production process.
Supports the finished roofing panels after cutting.
Additional automation can be considered for customers who require higher production efficiency or reduced manual handling.
ZTRFM focuses on designing and manufacturing cold roll forming equipment for construction and metal processing applications.
The company provides solutions for roofing sheets, roof tiles, wall panels, CZ purlins, light steel framing, gutters, downspouts, cable trays, and other customized metal profiles. ZTRFM states that it provides OEM, ODM, and one-stop services for international customers. https://www.ztrfm.com/
The company has experience developing customized equipment according to customer drawings and product requirements.
This is particularly useful when a customer needs a trapezoidal profile that differs from common standard roofing products.
Customized manufacturing is one of the key advantages of working directly with a professional roll forming manufacturer.
If you already have your own trapezoidal roofing profile, you do not need to limit your product design to a standard machine.
You can provide your:
Our engineering team can evaluate the product and develop the corresponding roller forming solution.
OEM and ODM services are suitable for:
Before delivery, the machine is assembled and tested at the factory.
The testing process can include:
Factory testing helps confirm the normal operation of the production line before shipment.
For customized projects, customers can also communicate specific testing requirements with the technical team in advance.
ZTRFM's product information indicates that factory testing documentation and outgoing inspection records can be provided for relevant machine models. ZTRFM Roll Forming Machines
For overseas customers, technical support is an important part of the complete machine service.
ZTRFM can provide remote assistance for:
Online communication and video guidance can help customers receive technical assistance during installation and production.
For projects requiring on-site installation or commissioning, engineer service can also be discussed according to the customer's requirements.
The machine is designed with practical operation and maintenance in mind.
After installation and commissioning, operators can learn the basic production process through the operation manual and technical guidance.
Regular maintenance may include:
Proper maintenance can help maintain stable machine operation and reduce unnecessary production downtime.
Before designing the machine, customers are encouraged to provide their product information.
A clear cross-section drawing is the preferred reference for roller design.
If a drawing is unavailable, a finished roofing sheet sample can also help our engineers understand the required profile.
Please provide the material type and relevant characteristics.
The desired panel width, profile structure, finished length, and production requirements should be confirmed.
Available workshop space and production workflow can also be considered when planning the machine layout.
After receiving the information, our engineering team can recommend a suitable customized solution.
It is a continuous cold roll forming machine designed to transform metal coils into trapezoidal roofing sheets and panels.
Yes. The forming rollers and machine configuration can be designed according to the customer's profile drawing or finished product sample.
Common materials include galvanized steel, pre-painted steel, and aluminum zinc coated steel. Other materials can be evaluated according to their forming characteristics.
Yes. The automatic cutting system can be configured to produce different finished panel lengths.
Yes. The production line can integrate automatic feeding, forming, length measurement, and cutting according to the required configuration.
Yes. Customized roller design is available according to the customer's actual roofing profile.
Yes. Remote assistance can be provided for installation, commissioning, operation, troubleshooting, and maintenance.
Yes. The solution can integrate decoiling, feeding, roll forming, cutting, electrical control, and finished product output.
The ZTRFM Trapezoidal Roof Tile Making Machine provides a professional solution for manufacturers producing metal roofing sheets for industrial, commercial, agricultural, and residential applications.
Its continuous roll forming process provides an efficient way to transform metal coils into finished trapezoidal roofing panels. Customized roller design allows the equipment to adapt to different profile requirements, while automatic control and cutting simplify daily production.
For customers who need a reliable roofing sheet production solution, ZTRFM can provide support from profile evaluation and machine design through factory testing, installation guidance, and after-sales technical service.
Whether you are establishing a new roofing sheet factory, expanding an existing production line, or developing a customized trapezoidal roofing product, you can provide your profile drawing or finished roofing sheet sample for engineering evaluation.
ZTRFM — Customized roll forming solutions for modern metal roofing production.
