Key attributes
Type	Tile Forming Machine	Tile Type	Steel
Feeding width	1000mm and 1250mm	Rolling thinckness	0.3-0.8mm
Production Capacity	30-40m/min	Voltage	380V,50HZ,3PH
Core Components	Motor, Bearing, PLC	Use	ROOF
Warranty	1 Year	Video outgoing-inspection	Provided
Machinery Test Report	Provided	Key Selling Points	Long Service Life
Place of Origin	Cangzhou Hebei China	Weight	18000 kg
Brand Name	ZTRFM	Dimension (L*W*H)	About 12.5m*1.5m*1.5m
Advantage	High Efficent	Usage	Roofing panel
Raw material	Color steel,galvanized steel	speed	35-40m/min
Motor brand	Siemens	Thickness	0.3--0.8mm
Cutting type	Automatic Hydraulic Cutting	Application	Construction Panel
Feeding width	1000mm and 1250mm	After-sales Service Provided	Online Support Video Technical Support
Packaging and delivery
Packaging Details	1.One 20ft or 40ft container for loading one set machine. 2.The whole wiped anti rust oil ,PLC controller covered by foam film. 3.Spare parts and some small parts packed in plastic tooling box. 4.All components of the roll forming machine are fixed by steel wire.	Port of dispatch	Tianjin,China
Selling Units	Single item	Single volume	0 cm³
Single gross weight	0.0 kg	Packaging examples
Supply capacity
Supply Ability	30 sets per Month

ZTRFM Full Automatic High Speed TN40 Trapezoid Metal Roof Sheet Roll Forming Machine

The ZTRFM High-Speed TN40 Roofing Panel Roll Forming Machine is specifically engineered for the Algerian market. The "TN40" designation refers to the 40mm rib height of the roofing panel, a profile widely recognized and utilized in Algeria. We have successfully exported numerous units of this machine to the region.

Key Advantages

• High Production Speed: Operating speed of 35-40 m/min.
• Gearbox Transmission: Ensures extended service life and stable operation.
• Flying Shear System: Enables non-stop cutting to maximize production capacity.
• Full Automation: Equipped with an automatic decoiler and stacker to reduce labor costs and enhance operational efficiency.
• Versatile Coil Width: Capable of processing both 1000mm and 1250mm coil widths on a single machine.

Technical Specifications

Component	Specification
Formed Material	PPGI, GI, Aluminum (Al)
Material Thickness	0.3 - 1.0 mm
Coil Width	1000mm / 1250mm (Customizable)
Decoiler	Hydraulic automatic decoiler Note: Manual decoiler included as a complimentary item.
Roller Stations	29 rows (Adjustable per requirement)
Shaft Diameter	80mm solid shaft
Roller Material	45# Steel with hard chrome plating
Machine Frame	400 H-Steel
Drive System	Gearbox transmission
Dimensions (L*W*H)	15000 * 1800 * 1600 mm (Customizable)
Cutter Material	Automatic Cr12MoV alloy steel (Scratch-resistant, deformation-resistant)
Motor Power	7.5KW × 2 sets (Siemens brand)
Hydraulic System Power	7.5KW
Voltage	380V, 50Hz, 3-Phase (Customizable)
Control System	PLC with Touch Screen Interface Language: English (Supports multiple languages) Features: Batch setting, length control, quantity counter, etc.
Forming Speed	30-35 m/min (Varies based on tile profile and material thickness)

Machine Features & Design Highlights

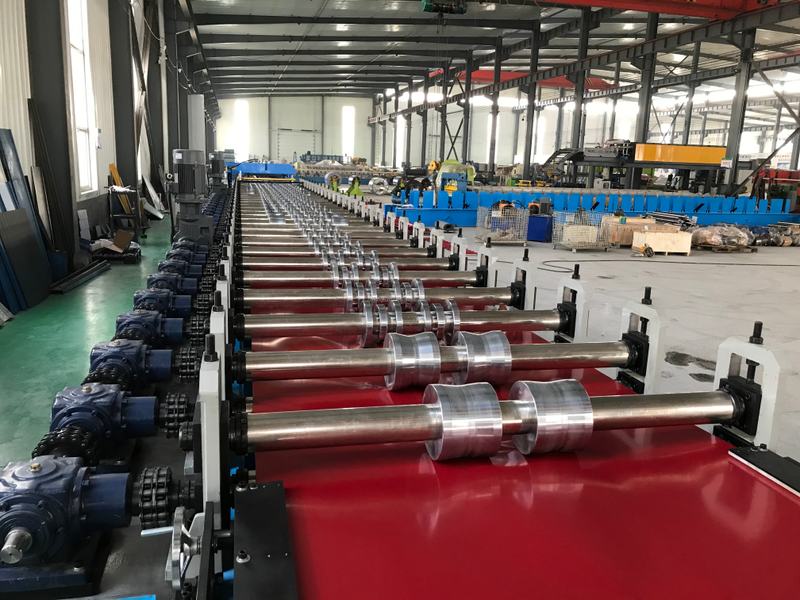

• Roll Forming Device: Keynote rollers designed for stable transmission.
• Machine Frame: Thickened molding frame ensures strength and stability during high-speed operation.

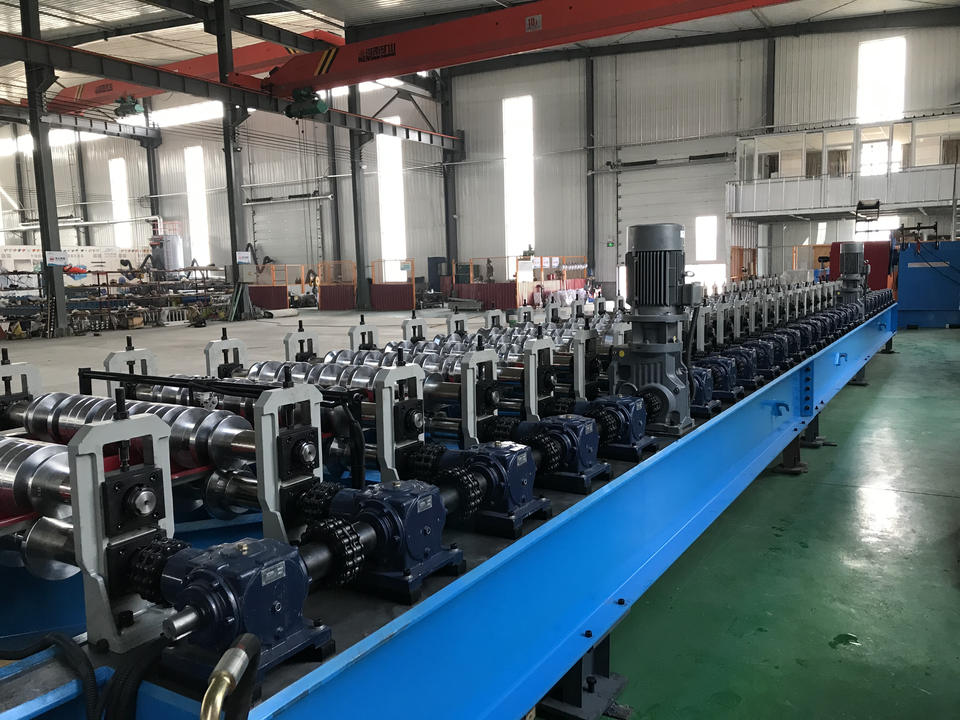

• Transmission: Adopted gearbox transmission for enhanced stability at high speeds.
• Feeding Device: Equipped with handwheels for easy adjustment; rubber rollers protect the PPGI surface from scratches.
• Hydraulic Cutting: Non-stop flying shear system controlled by PLC for high-speed precision cutting.
• Control Cabinet: User-friendly touch screen operation; aviation plugs used for easy installation and maintenance.

Note: Machines can be customized according to your drawings. Below are popular profile designs for reference.
