ZhongTuo ZTRFM Full Auto Ameri-Cana Trapezoidal Roof Roll Former Customizable

Product Details Description

1. Product Overview

The ZTRFM Full Auto Ameri-Cana Trapezoidal Roof Roll Former is a high-performance metal forming equipment specifically designed to produce trapezoidal roof and wall panels with exceptional water-shedding performance. This model is highly popular in the U.S. market, as the Ameri-Cana panels it produces feature a unique anti-siphon groove design and high-strength steel construction at 80,000 psi, making it an ideal choice for industrial buildings, warehouses, commercial facilities, and agricultural structures.

2. Core Advantages & Features

2.1. Superior Water-Shedding Performance
The roof panels produced by this machine are equipped with precision anti-siphon grooves. This design effectively prevents moisture penetration caused by capillary action and ensures any trapped water is quickly drained out, providing reliable protection for both long-span and low-slope roofs, with a minimum recommended slope of 3/12.

2.2. High Efficiency & Low Material Waste
Compared to conventional models, the ZTRFM machine optimizes material utilization. The finished panel has a standard width of 36 inches, while the coil width is 41 inches. This design effectively reduces production scrap, helping customers lower raw material costs. The forming speed reaches 0–30 m/min, with customizable higher-speed options available to maximize production capacity.

2.3. Durable & Robust Construction
All critical components are manufactured with premium materials to ensure long-term stability and product precision.

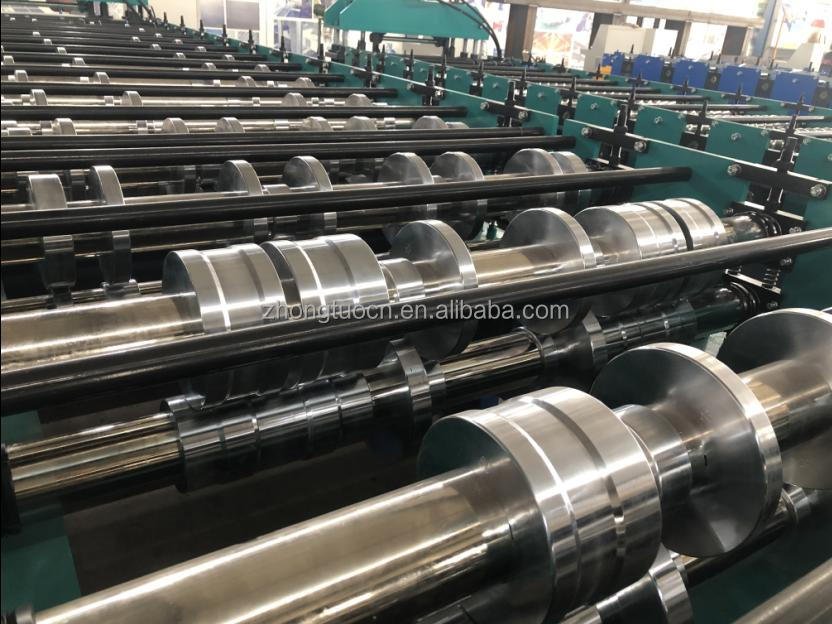

• Roller Material: High-grade 45# forged steel with hard chrome plating (chrome layer thickness 0.05mm), offering exceptional wear resistance and extended service life.

• Cutting Blades: Made of Cr12MoV high-quality steel, ensuring smooth, burr-free cuts and long-lasting sharpness.

• Control System: Equipped with a renowned brand PLC controller and servo motor, enabling fully automatic, precise control with user-friendly operation.

3. Technical Specifications

4. Application Fields

The Ameri-Cana panels produced by the ZTRFM machine are widely used in various construction projects due to their high strength, lightweight nature, and modern aesthetic appeal:

• Industrial Buildings: Factories, large-scale warehouses

• Commercial Facilities: Shopping malls, exhibition centers

• Agricultural Structures: Livestock farms, greenhouses

• Public Facilities: Stadiums, airports

• Building Exteriors: Metal curtain walls and sidewall systems

5. Customization & After-Sales Service

As an SGS-certified factory with 12 years of industry experience, Cangzhou Zhongtuo International Trade Co., Ltd. offers comprehensive customization and after-sales support.

• Customization Services: LOGO, packaging, graphics, and technical parameters (e.g., voltage, color) can be customized upon request.

• After-Sales Support: Includes lifetime technical support, video inspection before shipment, online assistance, and local overseas after-sales service, ensuring complete peace of mind for our customers. The supplier maintains a high positive feedback rating of 99.4% on the platform, reflecting excellent customer satisfaction.

Choose ZTRFM – choose stability, efficiency, and a professional partner. For detailed quotations or technical proposals, please contact us today!
