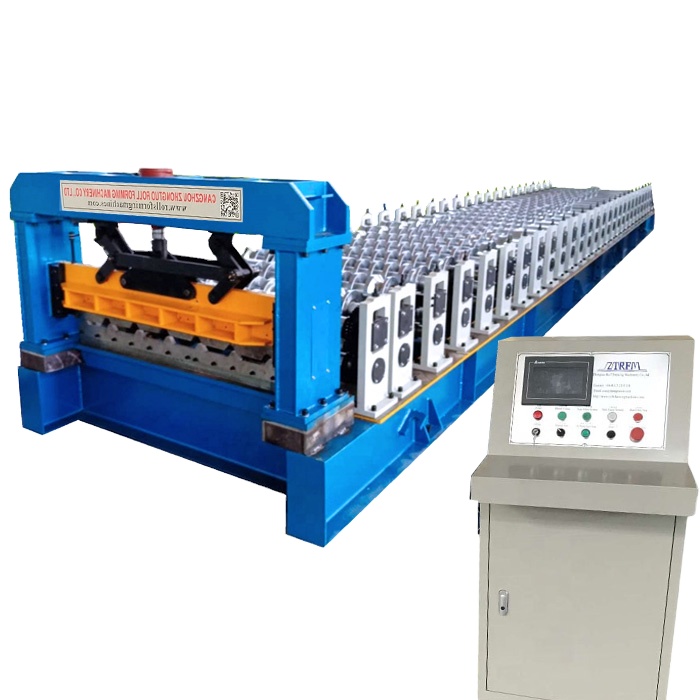

ZhongTuo ZTRFM Custom Automatic R‑Panel Trapezoidal Roof Sheet Forming Machine Customizable

Product Title: ZTRFM Custom Automatic R-Panel Trapezoidal Roof Sheet Forming Machine

ZTRFM Customized Fully Automatic Trapezoidal Roofing Sheet Machine (R-Panel)

Design Philosophy
Delivering precision and reliability through advanced machinery.

• Stable Transmission: Features a double chain and gear drive system with optimized keynote roller design for consistent performance.
• Fully Automatic & Easy Operation: The entire production line is designed for efficient operation, requiring only one operator.

Technical Parameters
Driven by technology; sustained by quality.

Note: This R-Panel Roll Forming Machine is highly popular in the American market.

Raw Material	PPGI, PPGL Material Thickness: 24/26 gauge (0.4-0.6mm)
Machine Frame	350mm H-beam structure with 18mm welded steel middle support plate
Roller Material	High-grade 45# forged steel Chrome-plated treatment (thickness: 0.05mm) ensures a smoother surface, increased hardness, abrasion resistance, and corrosion protection, thereby extending service life.
Forming Stations	18 rows Adopts a separate rolling design concept to release internal stress from the sheets, ensuring superior shape accuracy and high precision.
Shaft Diameter	φ80mm solid shafts
Shaft Material	High-grade 45# steel with heat treatment
Forming Speed	15 m/min
Voltage	380V / 50Hz / 3-phase (Customizable)

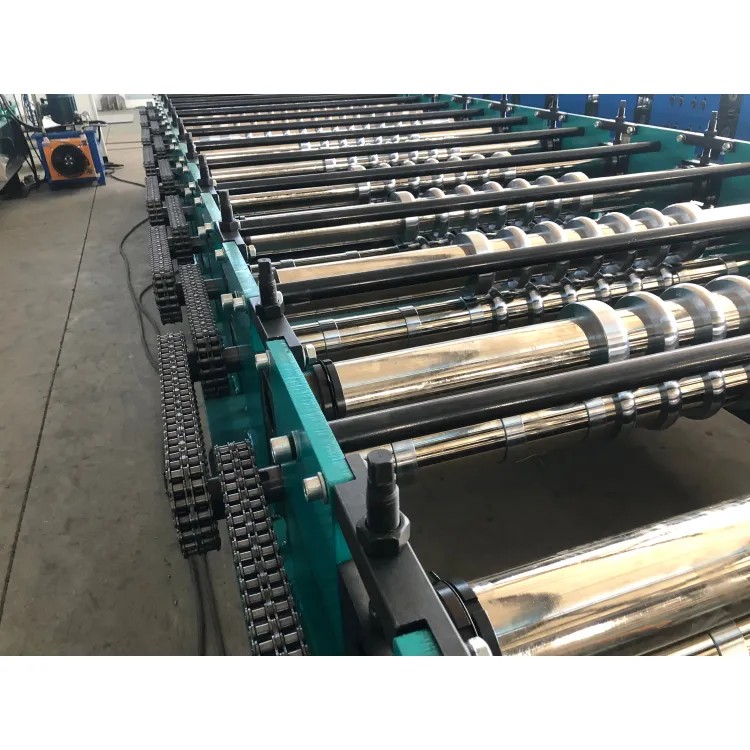

Transmission Method	1-inch double chain drive
Main Motor	11 kW
Cutting Blade Material	GCr12 steel with quenching treatment

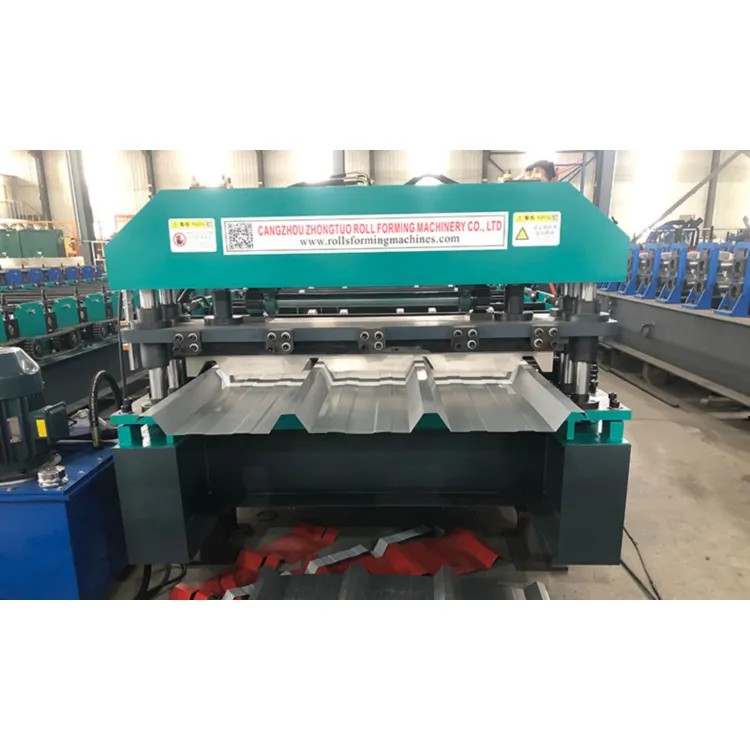

Cutting Type	Hydraulic post-cutting
Driving Method	Pillar-type cylinder

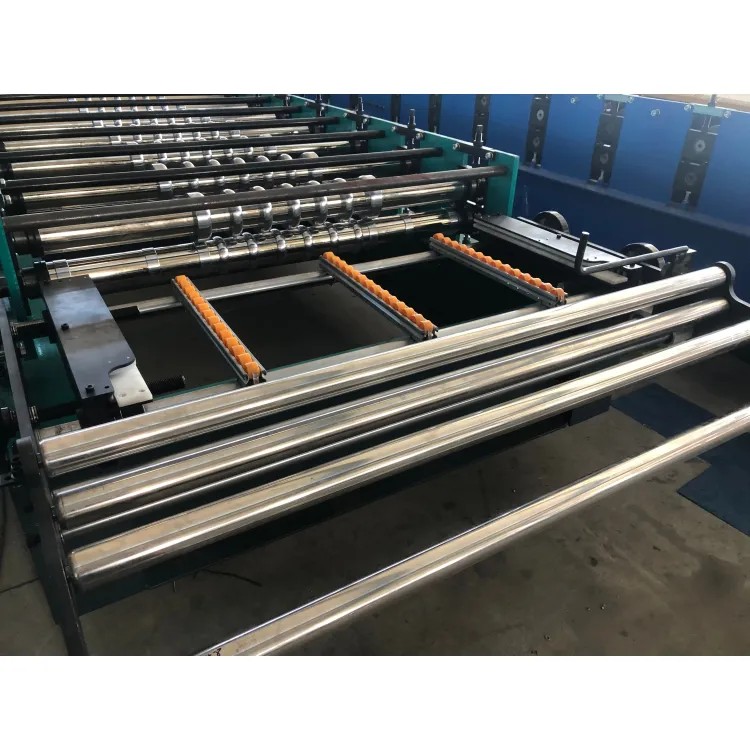

Product Display
Technology as the primary productive force.

Customer Feedback
Our goal is to meet your requirements and solve your problems with dedication.

About Our Company
Cangzhou Zhongtuo, located in Hebei, China, is a manufacturer specializing in the design and production of various cold roll forming machines. Established in 2006, we have extensive experience in manufacturing roofing sheet machines, C/Z purlin machines, light steel gauge machines, metal embossing machines, door system forming machines, ceiling system machines, pipe welding machines, slitting lines, and cut-to-length machines.

The company has achieved ISO9001 quality management system certification, European CE safety certification, and North American CSA electrical certification. We adhere to the principle that "time is money, quality is life," strictly controlling quality while improving production efficiency and shortening delivery times. All machines undergo full-line testing before leaving the factory to ensure zero-defect delivery.

With comprehensive export experience, we understand the diverse needs of customers in both developing and developed countries. Our machines have been exported to over 150 countries, establishing long-term and stable cooperative relationships with our clients.
