ZhongTuo USA Hot‑Sale PBR R Panel Metal Roof Roll Forming Machine Equipped With Pre‑Cutter Customizable

Key Attributes
Type	Tile Forming Machine	Tile Type	Galvanized Steel / Colored Steel / Steel
Feeding Width	42 inch / 43 inch	Rolling Thickness	0.4-0.7mm (24-26 gauge)
Voltage	440 V, 220 V	Core Components	Motor, Engine, PLC, Bearing, Gear, Pump, Pressure Vessel

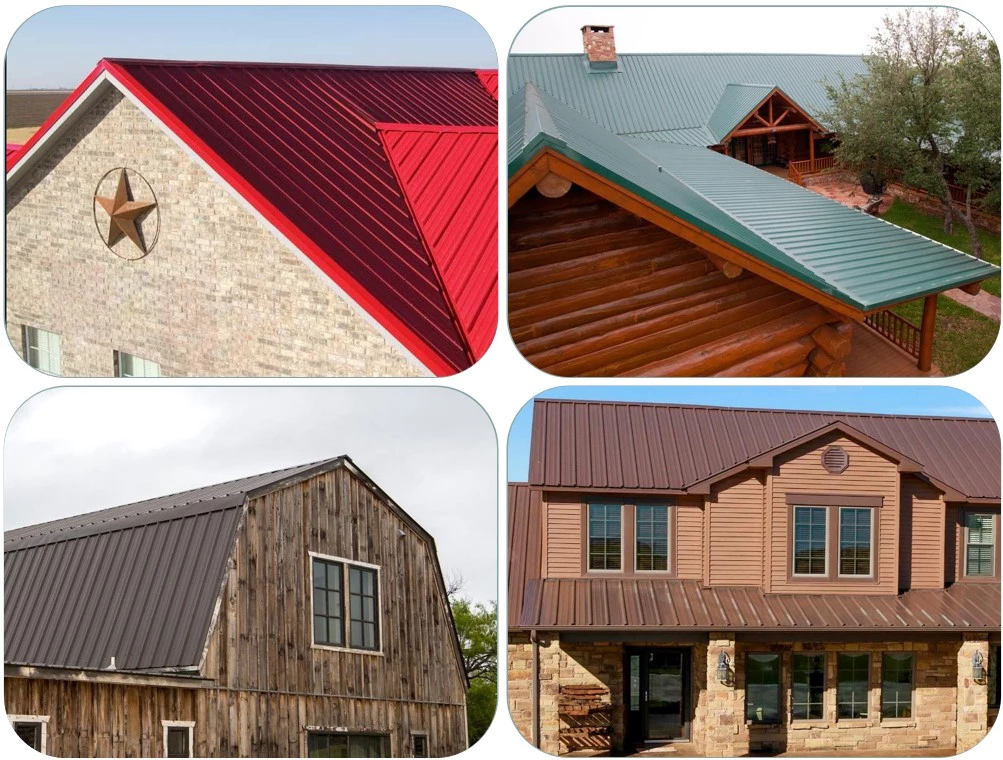

Application	Roofing	Warranty	2 Years
Video Outgoing Inspection	Provided	Machinery Test Report	Provided
Key Selling Points	Energy Saving	Place of Origin	Hebei, China
Weight	6000 kg	Brand Name	ZTRFM
Dimensions (L*W*H)	8.5*1.5*1.5 m	Product Name	PBR R Panel Roll Forming Machine
Color	Customized	Advantage	One machine produces two profiles
PLC Brand	Delta	Certification	CE, ISO
Control Box Language	English (Customizable)	Forming Speed	45 ft/min (12-15 m/min)
After-sales Service	Overseas Service Available	Decoiler	Includes one free 5-ton manual decoiler with purchase
Advantage	High Accuracy
Packaging and Delivery
Selling Units	Single item	Single Volume	0 cm³
Single Gross Weight	0.0 kg

Product Title: USA Hot Sale Metal Roof PBR R Panel Roll Forming Machine with Pre-Cutter

The USA Hot Sale Metal Roof PBR R Panel Roll Forming Machine is a sophisticated piece of equipment designed for the efficient production of roofing materials. Utilizing precise engineering and advanced technology, it forms sheet metal into PBR and R panels with high reliability and durability, ensuring consistent output quality.

Key Features:

1. Dual Profile Capability: One machine can produce both R panels and PBR panels by feeding different coil widths.
2. Pre-cutting Design: Optimizes material usage by minimizing waste inside the machine.
3. Updated Design: Facilitates easy installation and operation.
4. Fully Automatic Operation: Reduces labor requirements through automation.

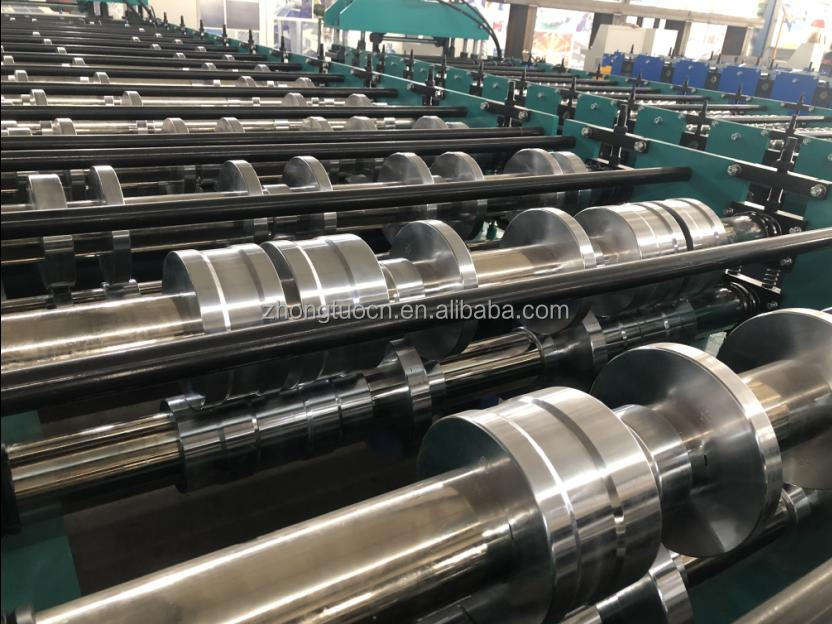

5. Precision Rollers: Rollers equipped with bearings eliminate linear velocity inconsistency, ensuring superior product finish.
6. High Accuracy & Durability: Designed for long-term stable performance.

Technical Specifications:

• Profile Compatibility:
  • R Panel: Feeds 42-inch width material coil.
  • PBR Panel: Feeds 43-inch width material coil.
• Material Thickness: 24-26 gauge.
• Roller Stations: 19 rows.
• Shaft Diameter: 80mm solid shaft.
• Roller Material: High Grade 45# Forged Steel, hard chrome plated surface.
• Machine Frame: 350mm H-Beam structure with 20mm welded steel middle support plate.
• Transmission: Drive gear and double chain transmission.

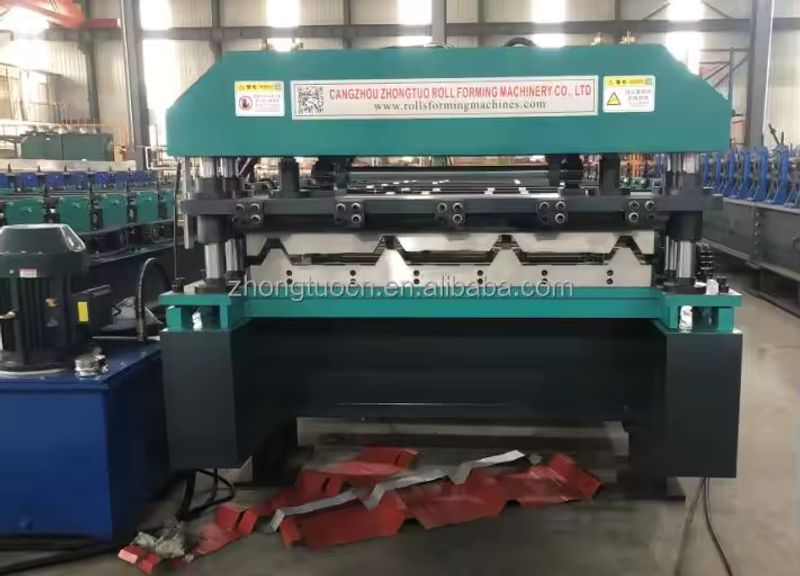

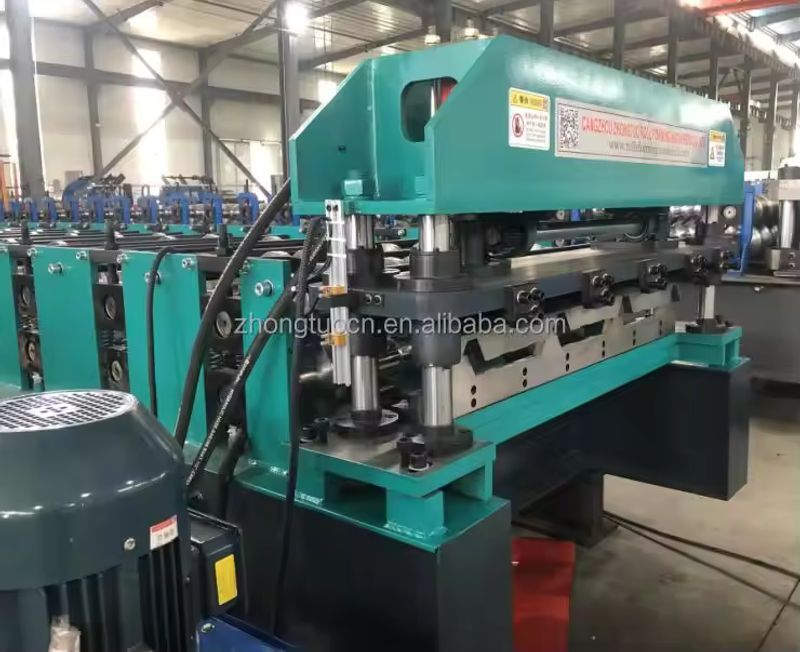

• Cutter Material: Automatic Cr12Mov material; ensures no scratches or deformation.
• Power:
  • Motor Power: 5.5 KW
  • Hydraulic System Power: 4 KW
• Voltage: 480V/440V/600V/240V, 60Hz, 3-Phase (Customizable as per requirement).
• Control System:
  • Electric Box: Customized (famous brand components).
  • Language: English (supports multiple languages).
  • PLC Control: Automates the entire production process; allows setting of batch, length, quantity, etc.
• Forming Speed: 0-15 m/min (approx. 45 ft/min).
