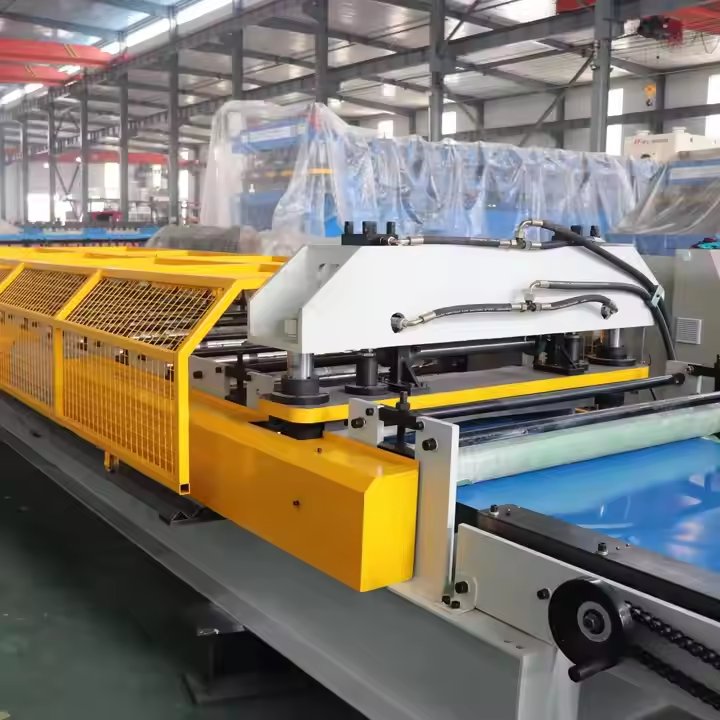

The USA 7.2 Panel Mega Rib Metal Roofing Sheet Roll Forming Machine is a professional cold roll forming solution designed for producing high-rib metal roofing and siding panels for the North American construction market.
The 7.2 panel is a recognized metal building profile used for roofing and wall applications. It is particularly suitable for agricultural buildings, post-frame structures, warehouses, workshops, commercial buildings, and other projects where a deeper ribbed panel profile is required. The profile is also commonly associated with structural metal panel applications in the USA. Machine Matcher
This machine transforms continuous metal coils into finished 7.2-style panels through a progressive roll forming process. The production line can integrate decoiling, feeding, roll forming, length measurement, automatic cutting, and finished panel collection.
ZTRFM can customize the machine according to the customer's actual 7.2 panel drawing, material requirements, production workflow, and local market specifications.
The 7.2 panel is a high-rib metal panel designed for roofing and siding applications.
Its deeper rib structure gives the finished panel a distinctive appearance and makes it suitable for a range of agricultural, commercial, and light industrial construction projects. Current industry references list 7.2 panel systems among common US roof and wall panel profiles.
During production, the flat metal coil enters the roll forming system and passes through a series of forming stations.
Each station performs a specific forming operation, gradually transforming the flat strip into the required ribbed profile.
This progressive forming process helps maintain consistent panel geometry and provides stable production throughout the coil.
The complete production workflow is designed for continuous operation:
Coil Loading → Material Feeding → Progressive Roll Forming → Length Measurement → Automatic Cutting → Finished Panel Output
The metal coil is installed on the decoiling system and prepared for continuous production.
The feeding section guides the material into the forming machine while helping maintain stable alignment.
The metal strip passes through multiple roller stations and gradually develops the 7.2 panel profile.
The control system monitors the forming length according to the programmed production requirements.
When the required length is reached, the cutting system separates the finished panel.
The completed panels are transferred to the output section for collection and further handling.
This continuous workflow reduces repetitive manual operations and provides an efficient production method for metal building material manufacturers.
The forming roller system is the core component of the 7.2 panel roll forming machine.
The roller geometry is designed according to the customer's confirmed panel profile.
Because high-rib panels have a distinctive geometry, accurate roller design is important for achieving the required rib shape and panel appearance.
The progressive forming process helps provide:
For pre-painted and coated materials, proper roller design is also important to help minimize unnecessary surface friction and protect the finished coating.
Although the term 7.2 Panel is widely used in the North American metal building industry, actual product designs can vary between manufacturers and markets.
Profile dimensions, rib arrangements, edge details, coverage requirements, and other features should therefore be confirmed from the customer's actual drawing.
ZTRFM provides customized machine design according to the customer's product.
Customers can provide:
Our engineering team can evaluate the product and develop the corresponding forming solution.
This approach is particularly useful for customers who need to reproduce an existing 7.2 panel or develop a customized high-rib roofing product.
The 7.2 panel can be used for both roofing and siding applications depending on the product design and local construction requirements.
Industry references identify 7.2 panels as suitable for agricultural, commercial, and light industrial buildings. XJJ Machinery
The panel can be used for barns, farm buildings, equipment storage facilities, and other agricultural structures.
High-rib metal panels are suitable for post-frame construction and related building systems.
The panels can be used for warehouse roofing and wall applications.
Metal panels are suitable for workshops, garages, and equipment facilities.
The profile can be used for selected commercial construction projects where a strong ribbed appearance is desired.
The panels can also be applied to factories, production facilities, and other industrial structures.
One advantage of a versatile 7.2 panel system is its potential use in both roof and wall applications.
The final product configuration depends on the customer's profile design and required coverage.
This can provide manufacturers with additional opportunities to serve different segments of the metal building market.
A single production system can therefore become part of a broader product portfolio covering:
The exact product configuration should always be confirmed using the customer's profile drawing.
The machine can be designed to process commonly used metal building materials.
Galvanized steel is widely used for metal roofing and siding applications.
Pre-painted steel provides a wide range of color choices and is suitable for architectural and agricultural projects where appearance is important.
Aluminum zinc coated steel can be considered for applications where suitable corrosion resistance and outdoor performance are required.
Other metal materials can also be evaluated according to their mechanical properties, surface treatment, and forming characteristics.
Before machine manufacturing, customers should provide material information so that the forming system can be properly matched to the product.
A pre-cutting solution can be integrated into the production process when appropriate.
Pre-cutting allows material at the end of a coil to be handled before the next coil is introduced, which can help reduce unnecessary material waste during coil changes.
This can be particularly useful for manufacturers who frequently change coils or operate a production line with regular material replacement.
The exact pre-cutting configuration can be customized according to the customer's production workflow.
The post-cutting system separates the finished panel after the required length has been reached.
The control system coordinates the forming and cutting process so that panels can be produced according to the programmed length.
This provides:
The cutting solution can be customized according to the profile and material requirements.
The control system provides centralized management of the production line.
Operators can manage the main functions through the control interface.
Typical functions include:
The control interface can be configured according to customer requirements.
For international projects, operation instructions can also be prepared to help local operators become familiar with the production process.
A stable machine structure provides the foundation for continuous production.
The frame supports the forming stations, transmission components, cutting system, and electrical control system.
A rigid structure helps reduce unnecessary vibration during operation and provides a stable platform for the forming rollers.
The machine layout can also be customized according to the customer's workshop.
During production line planning, factors such as coil handling, material flow, operator access, finished panel storage, and available workshop space can be considered.
The machine is designed around the distinctive geometry of high-rib 7.2-style panels.
Metal coils can be continuously transformed into finished roofing or siding panels.
The forming roller system helps maintain stable rib geometry throughout production.
Finished panels can be produced according to different construction requirements.
Automatic forming, measuring, and cutting reduce repetitive operator tasks.
The machine can be designed according to the customer's own 7.2 panel profile.
The finished panels can be used for roofing and siding applications depending on the confirmed product design.
The machine can be configured as part of a complete metal panel production line.
Depending on the project, the production system can include:
Supports the metal coil and provides continuous material feeding.
Guides the metal strip into the forming system and helps maintain proper alignment.
Gradually forms the material into the required 7.2 high-rib profile.
Automatically separates finished panels according to the programmed length.
Provides centralized control of the production process.
Supports and collects finished panels after cutting.
An automatic stacking solution can be considered for customers who require reduced manual handling and more organized finished-product collection.
ZTRFM specializes in the design and manufacturing of cold roll forming equipment for construction and metal processing applications.
The product range includes roofing sheet machines, wall panel machines, roof tile machines, purlin machines, light steel framing machines, gutter and downspout machines, cable tray machines, and other customized profile forming equipment.
For the 7.2 panel, the machine can be developed according to the customer's actual product drawing instead of relying only on a generic profile.
This is important because US metal panel products can have different designs even when they are sold under similar profile names.
ZTRFM provides OEM and ODM manufacturing for customers with specific metal panel requirements.
If you already have a 7.2 panel product, you can provide the profile drawing or finished sample.
Our engineering team can evaluate:
The machine can then be developed around the actual product.
Customized manufacturing is suitable for:
Before shipment, the machine is assembled and tested at the factory.
The testing process can include:
Factory testing helps identify potential problems before the machine reaches the customer's factory.
For customized projects, customers can also communicate their specific testing requirements with the technical team before delivery.
For international customers, technical support is an important part of the complete equipment solution.
ZTRFM can provide remote assistance for:
Online communication and video guidance can help customers solve common installation and operation issues efficiently.
For projects requiring on-site installation or commissioning, engineer service can also be discussed according to project requirements.
The machine is designed for practical daily operation and maintenance.
After installation and commissioning, operators can learn the production process through the operation manual and technical guidance.
Regular maintenance may include:
Regular maintenance helps maintain stable machine operation and reduce unnecessary downtime.
Before machine design, customers are encouraged to provide detailed product information.
A clear 7.2 panel cross-section drawing is the preferred reference for roller design.
If a drawing is unavailable, a physical panel sample can also help engineers understand the required profile.
Please provide the material type and relevant characteristics.
The desired panel application, product dimensions, finished length, and production requirements should be confirmed.
Available workshop space and production workflow can also be considered when planning the machine layout.
After receiving this information, our engineering team can recommend a suitable customized production solution.
It is a continuous cold roll forming machine designed to produce 7.2-style high-rib metal roofing or siding panels.
Yes. 7.2 panel profiles are recognized within the North American metal building market and are used for roofing and siding applications. Machine Matcher
Yes. The roller system and machine configuration can be designed according to the customer's actual profile.
Common materials include galvanized steel, pre-painted steel, and aluminum zinc coated steel. Other materials can be evaluated according to their forming characteristics.
Yes. The automatic cutting system can be configured for different finished panel lengths.
Depending on the confirmed profile and product requirements, the production system can be designed for roofing, siding, or a related high-rib panel application.
Yes. Remote technical assistance can be provided for installation, commissioning, operation, troubleshooting, maintenance, and spare parts support.
Yes. Providing the profile drawing or finished panel sample is highly recommended so our engineers can develop the machine around your actual product.
The USA 7.2 Panel Mega Rib Metal Roofing Sheet Roll Forming Machine provides a professional solution for manufacturers producing high-rib metal roofing and siding panels.
The continuous roll forming process transforms metal coils into finished panels through controlled feeding, progressive forming, length measurement, cutting, and product collection.
With customized roller design, automatic production, pre-cutting options, factory testing, OEM/ODM manufacturing, and remote technical support, the machine can be adapted to different 7.2 panel products and production requirements.
Whether you are supplying agricultural buildings, post-frame structures, warehouses, workshops, or commercial metal buildings, the machine can be developed around your actual panel profile and production needs.
Send us your 7.2 panel profile drawing or finished sample, and our engineering team can evaluate the product and develop a customized roll forming solution.
