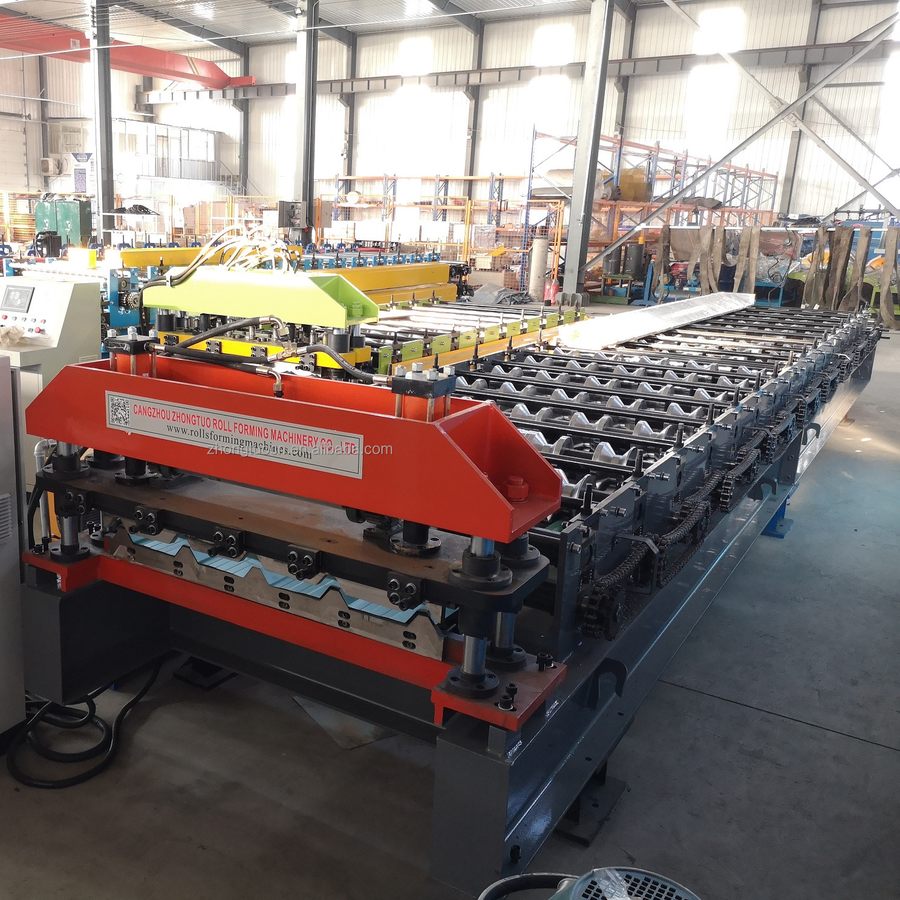

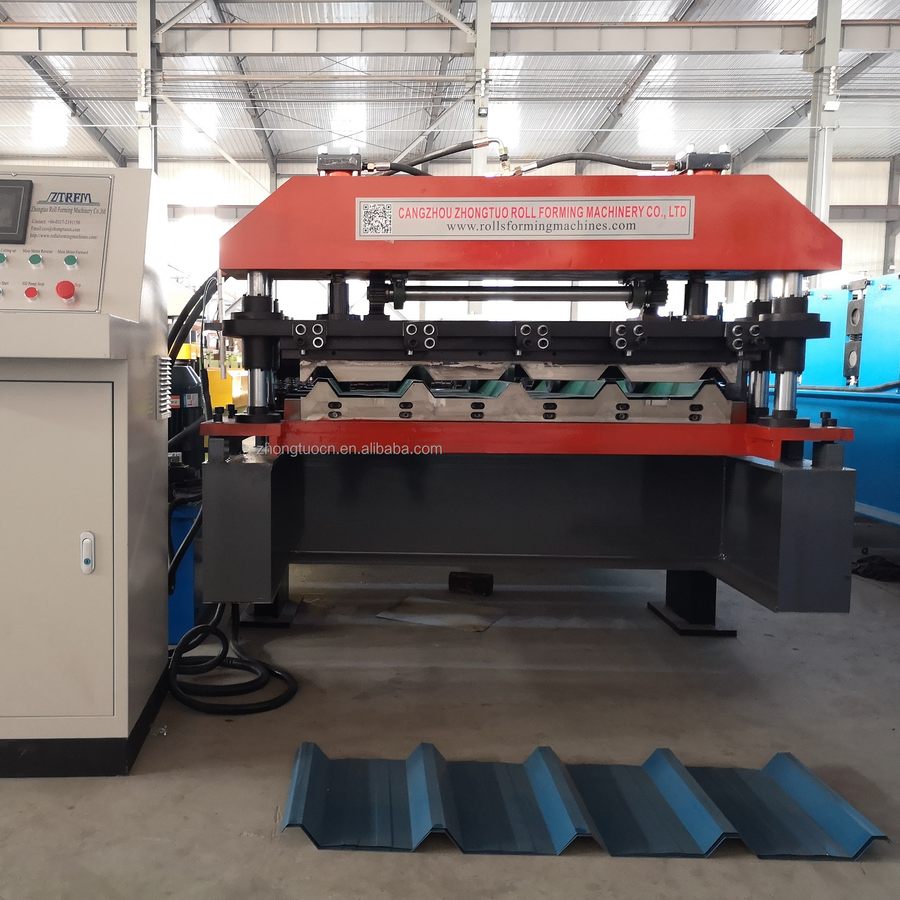

ZhongTuo Trapezoid IBR R‑Panel Metal Roof Tile Roll Forming Machine Customizable

Product Title: Trapezoid IBR R-Panel Metal Roof Tile Roll Forming Machine

Product Description

This Trapezoid Steel Roof Tile Making Machine is designed for producing high-quality metal roof sheets, including Iron IBR and R-panel profiles. The resulting sheets feature precise geometry for easy installation and reliable performance. Key features include:

• Cost-effective solution
• High manufacturing quality
• Fully tested for reliability
• Low operational cost with minimal raw material waste
• Consistent production performance

Technical Specifications

1. Forming Material: PPGI, GI, AI
   Thickness: 0.14-0.8mm | Width: Customized
2. Decoiler: Hydraulic automatic decoiler (Standard manual decoiler included free of charge)

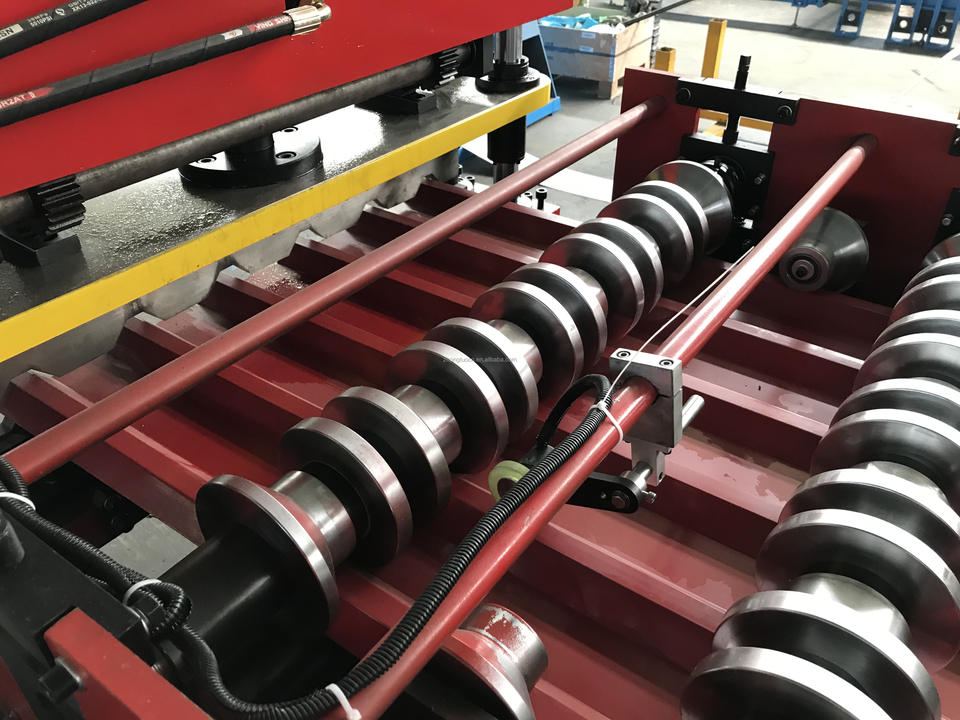

3. Main Body:
   Roller Stations: 10-20 rows (customizable)
   Shaft Diameter: 70mm solid shaft
   Roller Material: #45 steel with hard chrome plating
   Machine Frame: 350 H-beam steel
   Dimensions (L*W*H): 8500*1400*1300 mm (customizable)


4. Cutter: Automatic cutting system
   Blade Material: Cr12MoV (quenched for high hardness), ensuring no scratches or deformation
5. Power Supply:
   Main Motor Power: 5.5KW
   Hydraulic Station Power: 7.5KW
6. Voltage: 380V, 50Hz, 3-Phase (Customizable per requirement)
7. Control System:
   Electric Box: Customized with famous brand components
   PLC Interface: Supports multiple languages (English default)
   Functionality: Fully automatic production control; allows setting of batch size, length, quantity, etc.
8. Forming Speed: 12-35 m/min
   (Note: Speed varies based on tile profile shape and material thickness)

Machine Details

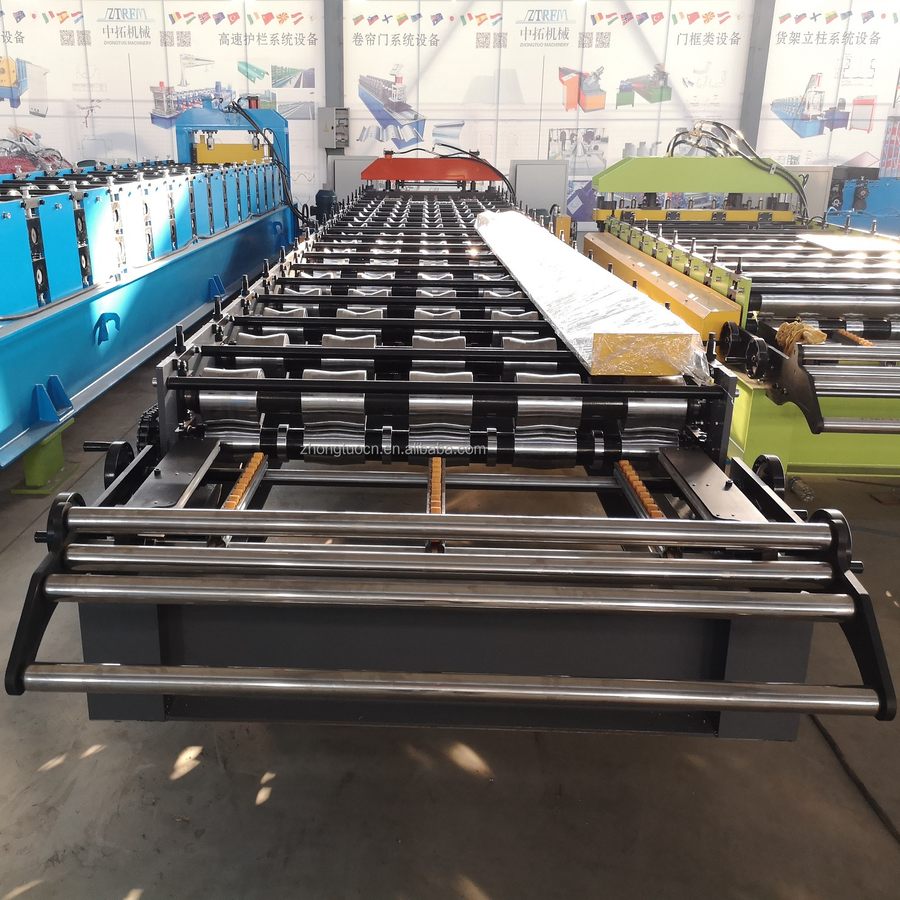

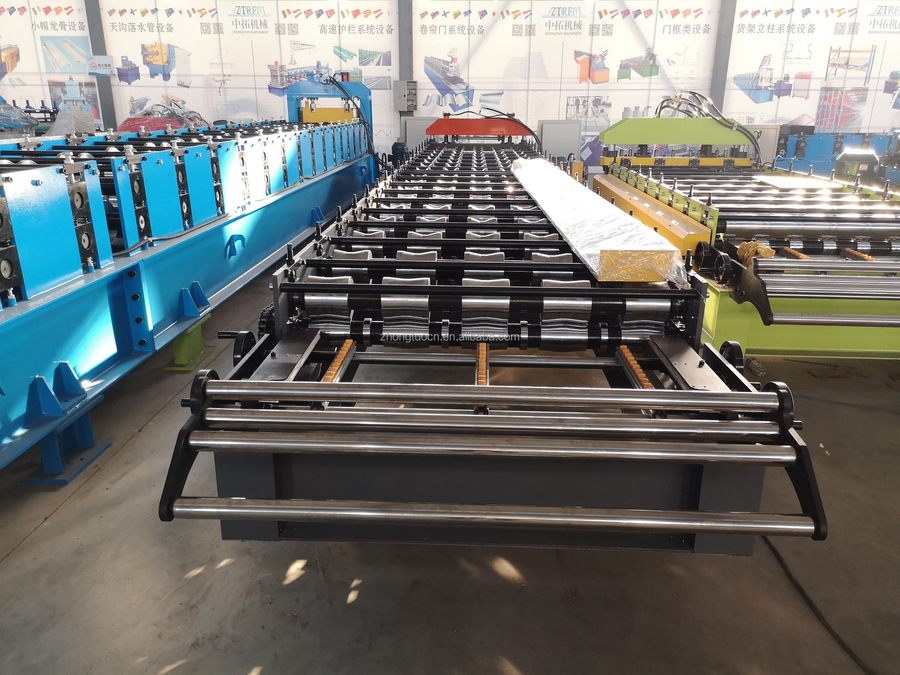

• Feeding Device: Equipped with rubber rollers to ensure smooth feeding and protect the material surface.
• Cutting Device: Cutters made from GCr12MoV, quenched for superior hardness and durability.
