Downspout Roll Forming Machine with Elbow Bending Machine

Zhongtuo Downspout Roll Forming Machine is a complete solution for producing 100 × 100 mm square metal downpipes and matching elbow components. The production line integrates decoiling, roll forming, hydraulic cutting, PLC control, product receiving, and elbow bending, providing an efficient solution for continuous rainwater drainage system production.

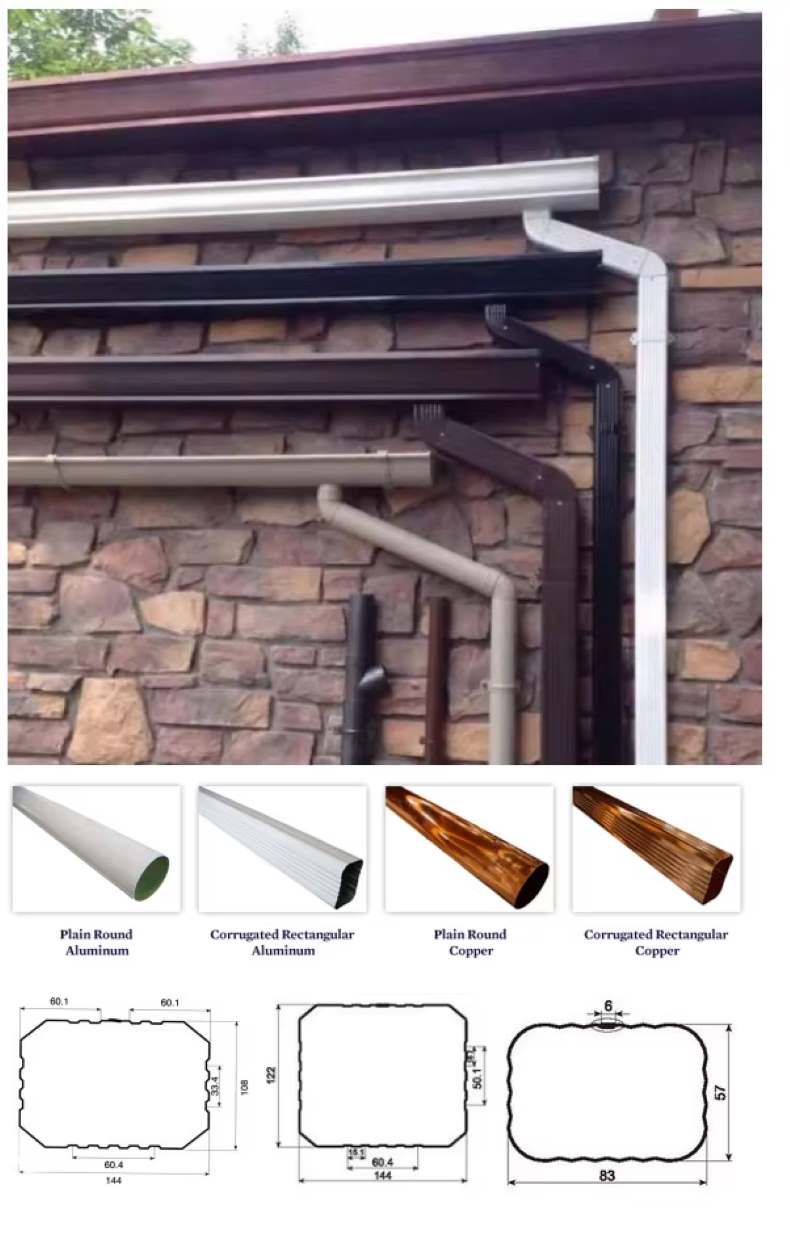

The production line is suitable for manufacturing components for metal rainwater drainage systems, including:

*Square rainwater downpipes
* Downpipe elbows
* Residential drainage systems
* Commercial building drainage
* Industrial building drainage
* Metal roofing drainage projects

1. Technical Specification:

Product	Square Downspout
Profile Size	100 × 100 mm
Material	PPGI / PPGL / GL
Material Thickness	0.4–0.6 mm
Machine Speed	8–10 m/min
Roller Stations	19 Horizontal + Vertical Rollers
Shaft	80 mm Solid Shaft
Shaft Material	45# Steel
Roller Material	45# Steel
Roller Treatment	0.05 mm Chrome Plated
Machine Frame	350H Steel
Main Power	5.5 kW
Transmission	Chain
Cutting Blade	Cr12 Quenched Steel
Receiving Table	3 m
Elbow Machine Power	2.4 kW
Max. Elbow Angle	90°

2.  Complete Downspout Production Line

The complete working process is:

Uncoiling → Feeding → Roll Forming → Automatic Cutting → Product Receiving

An additional elbow bending machine is included to produce matching downpipe elbows, creating a more complete production solution.

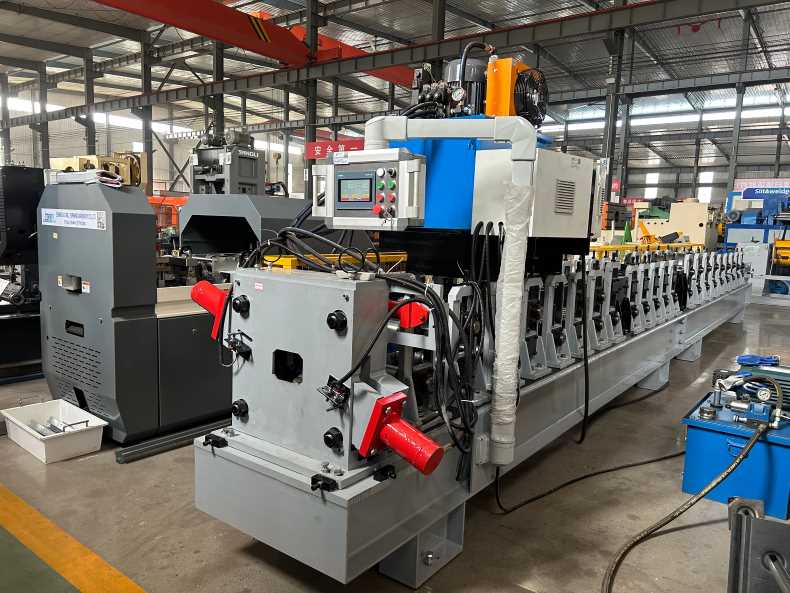

3.  High-Strength Roll Forming Structure

The main forming machine uses a 350H welded steel body and an 80 mm solid shaft made from quenched and tempered 45# steel, providing a strong foundation for continuous production.

The machine features 19 horizontal roller stations plus vertical rollers, allowing the material to be gradually formed into the required square downspout profile.

4. Hydraulic Cutting System

The production line is equipped with a hydraulic cutting system for automatic cutting of finished downpipes.

Cutting Type: Hydraulic
Driving Method: Cylinder
Motor Power:4 kW
Blade Material: GB-Cr12 mold steel
Blade Treatment:Quenched
Cooling: Fan cooling

5. Delta PLC Control System

The electrical control system uses reliable industrial components for convenient operation.

PLC & Touch Screen: Delta
Encoder: Omron
Electrical Components: Schneider
Operating Languages: English & Chinese, customizable
Aviation Plugs: Convenient machine installation

Operators can easily set the product length and production quantity through the touch screen.

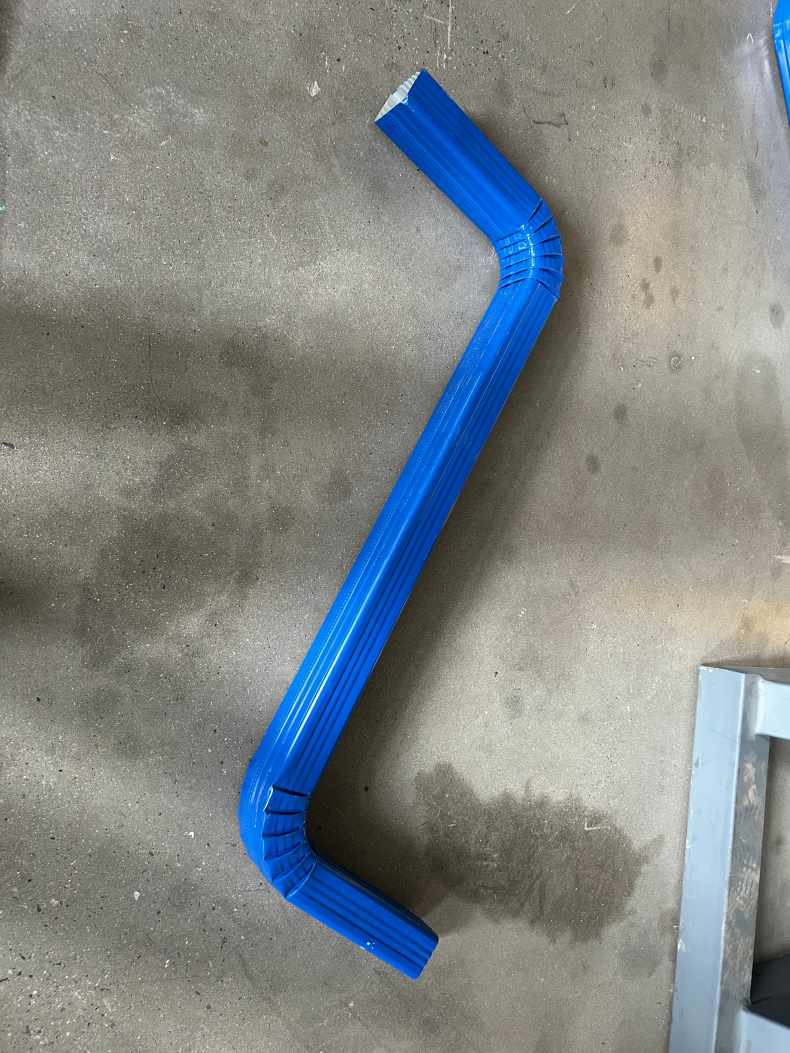

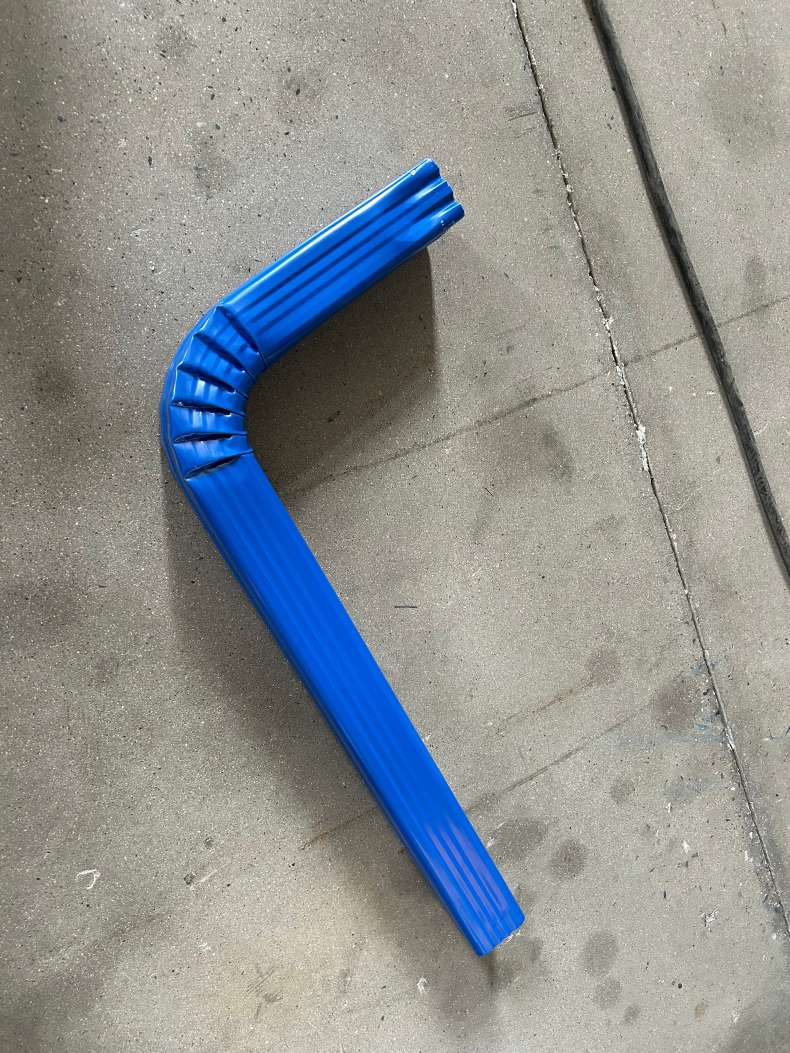

6. Square Downspout & Elbow Production

The machine is designed according to the customer's specified profile:

Downspout Size: 100 × 100 mm
Material Thickness: 0.4–0.6 mm
Material: PPGI / PPGL / GL

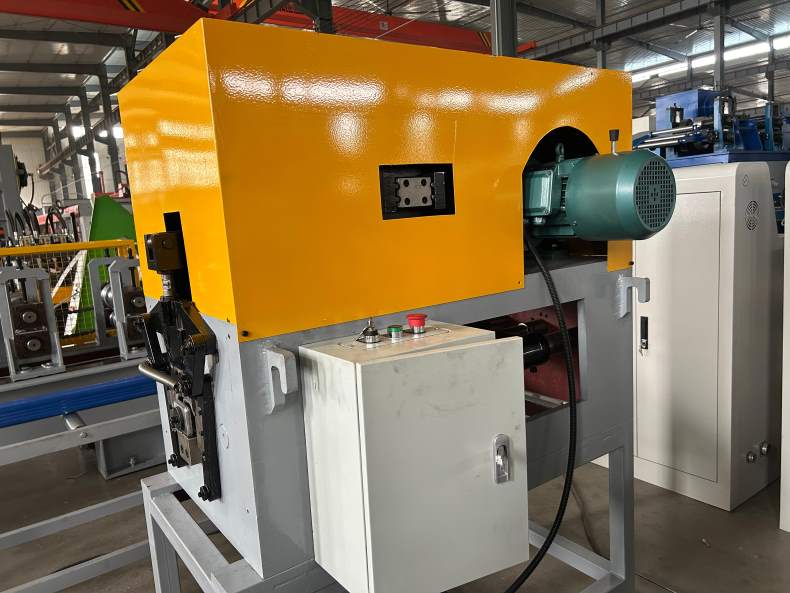

The dedicated elbow machine has a 2.4 kW motor and supports a maximum bending angle of 90°, making it suitable for producing matching elbow components for the downspout system.

7.3-Meter Receiving Table

The finished downpipes are transferred to a 3-meter receiving table. The table is constructed from welded square tubes and equipped with passive rollers to help move finished products forward more smoothly.



Why Choose Zhongtuo Downspout Roll Forming Machine?

✔ Complete production solution — Roll forming + cutting + elbow bending
✔ Strong 350H machine frame for stable production
✔ 80 mm solid shaft for reliable forming performance
✔ 19 forming stations + vertical rollers for progressive forming
✔ Delta + Omron + Schneider control components
✔ 8–10 m/min working speed for efficient production
✔ Customized profile based on customer drawings
✔ Complete after-sales support and online technical training

One Machine Line for Complete Downspout Production

From metal coil to formed square downpipe and matching elbow, Zhongtuo provides an integrated production solution designed around the customer's profile, material, and production requirements.
